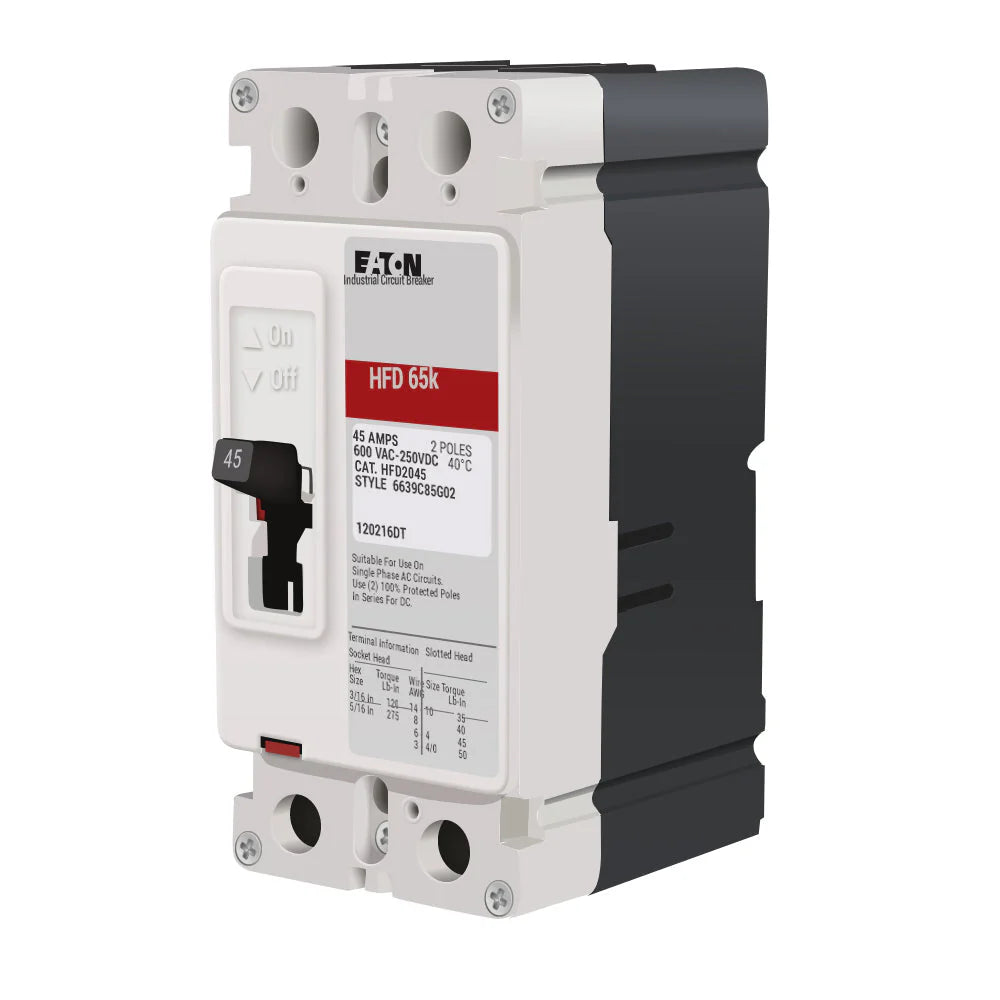

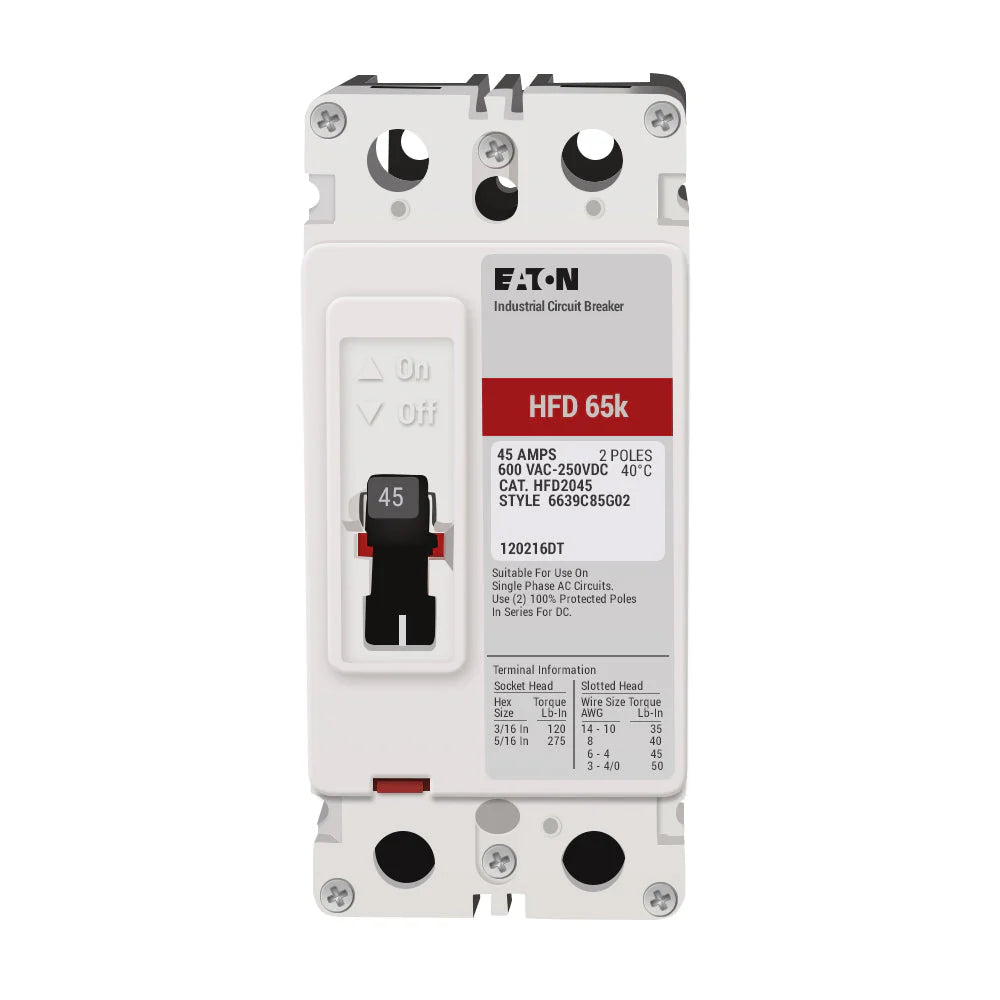

HFD2045 - Cutler Hammer Bolt-On 600V 45A 2 pole circuit breaker 65kA@480V
Couldn't load pickup availability
Ask an expert
Description
HFD2045
The Cutler Hammer HFD2045 is a Molded Case Circuit Breaker. This type HFD circuit breaker is a member of The Series C family. The HFD2045 is a 2 pole, 600 Volt, 45 amp rated circuit breaker, with an AIC rating of 65kA@480V. The HFD2045 is manufactured by Eaton. The HFD2045 uses a Bolt-On connection. Includes Thermal Magnetic protection. Every part My Circuit Breakers sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: HFD2045
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : HFD
- Voltage : 600
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : F Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679325452
- GTIN : 00786679325452
- Country of Origin : Dominican Republic
- Dimensions : Length 3.38in Height 6in Width 2.75in
- Weight : 4.5
- Certification : UL Listed
- Type Circuit Breakers
- Vendor Eaton Cutler-Hammer
- Brand Eaton
- Electrical Rating Bolt-On - 45 Amp - 2 Pole - 600 Volt
