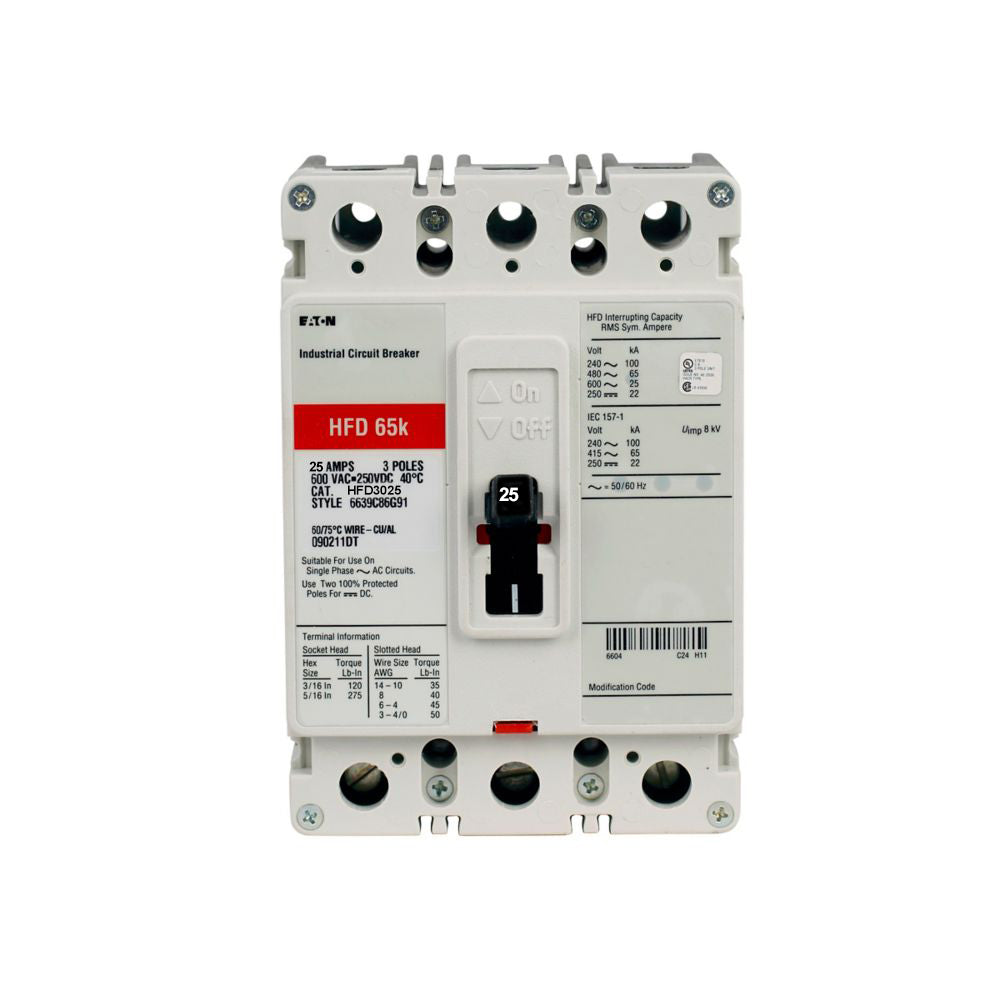

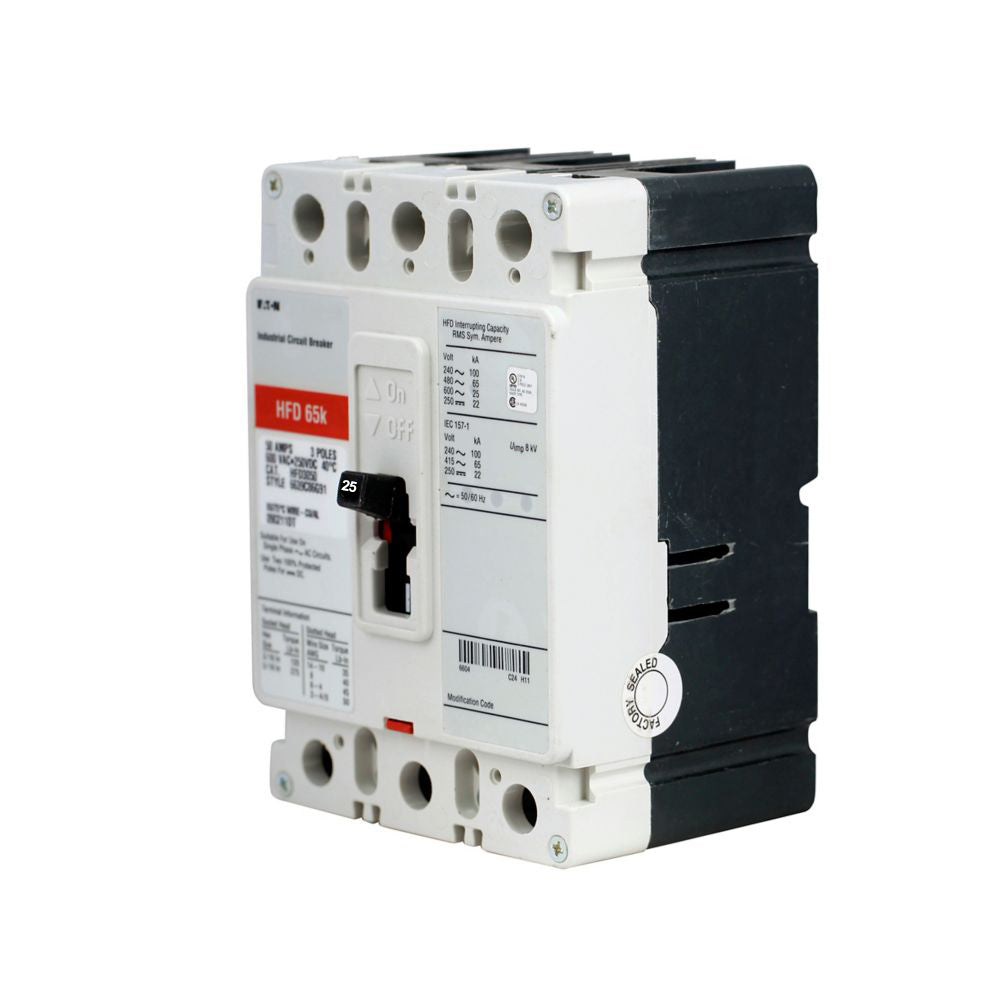

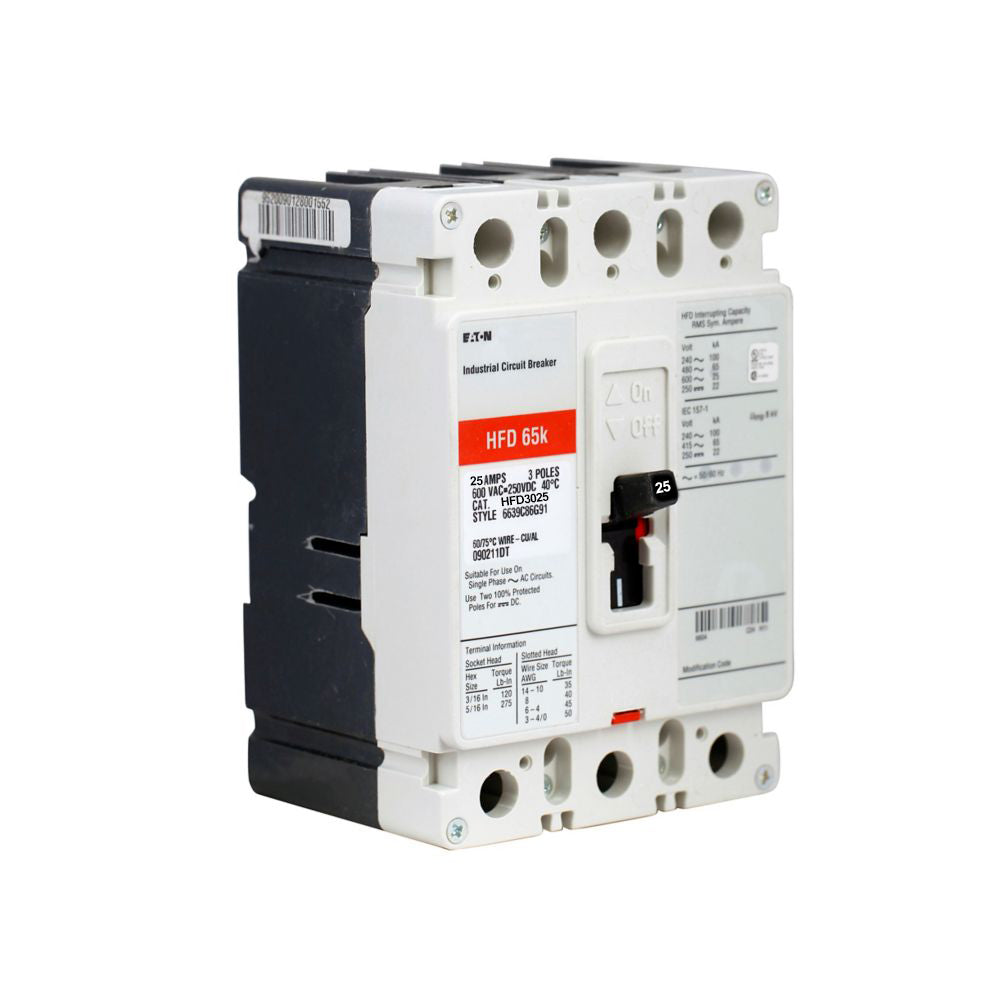

Eaton HFD3025 Molded Case Circuit Breaker – 25A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – Series C HFD

The Eaton HFD3025 is a 25A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer / Westinghouse Series C Type HFD. It is designed for compatible electrical distribution applications and provides thermal-magnetic overcurrent protection.

The HFD3025 is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It features a feed-thru configuration, a non-interchangeable trip with Long-Time and Instantaneous (LI) trip functions, and line-side and load-side lug terminals. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: HFD
• Catalog No.: HFD3025
• Current Rating: 25A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3025
• Catalog Number: HFD3025
• Model: HFD3025
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HFD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 25A
• UPC:786679175828

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type HFD electrical distribution equipment that accepts HFD Series molded case circuit breakers. The HFD3025 provides 25A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
