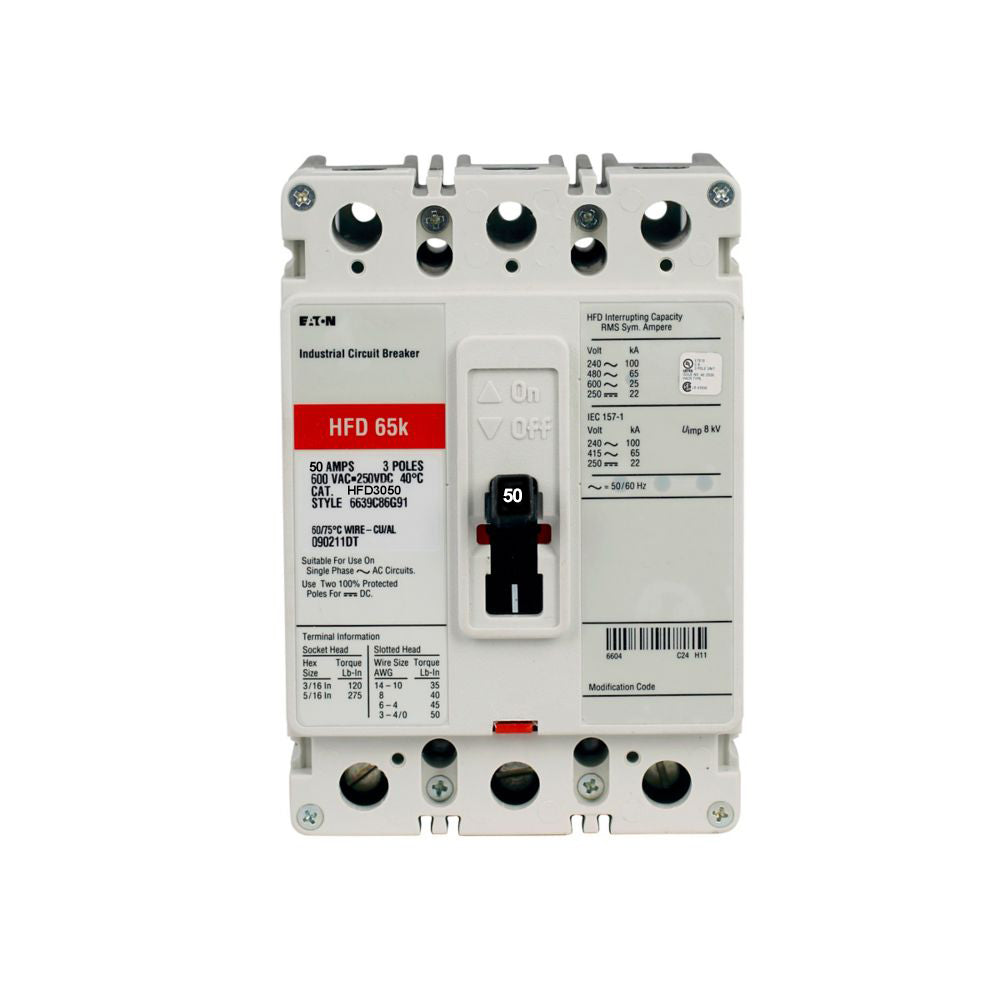

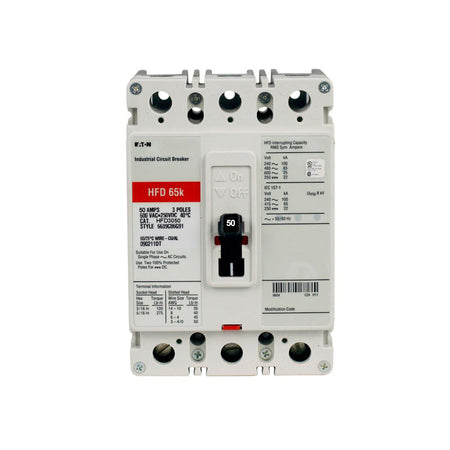

Eaton HFD3050 Molded Case Circuit Breaker – 50A – 3-Pole – 600V AC – 65kA @ 480V – Feed-Through – Series C HFD

The Eaton HFD3050 is a 50A, 3-pole Series C molded case circuit breaker with an F-frame and thermal-magnetic protection. It is rated for 600V AC and provides high interrupting capacity of 100kA @ 240V AC, 65kA @ 480V AC, and 25kA @ 600V AC.

The breaker features a fixed thermal/fixed magnetic trip, current-limiting design, and feed-through configuration with line and load connections. It is suitable for compatible commercial, industrial, and power distribution applications.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Catalog No.: HFD3050
• Series: Series C
• Breaker Type: HFD
• Frame Size: F-Frame
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Frequency: 50/60 Hz
• Interrupting Rating: 100kA @ 240V AC / 65kA @ 480V AC / 25kA @ 600V AC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous
• Trip Configuration: Fixed Thermal / Fixed Magnetic
• Current Limiting: Yes
• Mounting / Configuration: Feed-Through
• Connection: Line and Load Connections
• Dimensions (H × W × D): 6.00 × 4.13 × 3.38 in
• Weight: Approximately 4.5 lbs
• Application: Commercial, Industrial, Power Distribution, Motor Protection, and OEM Electrical Equipment

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3050
• Catalog Number: HFD3050
• Model: HFD3050
• Product Family: Eaton Series C Circuit Breakers
• Series: Series C
• Breaker Type: HFD
• Frame: F-Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton Corporation
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• UPC: 786679175859
• GTIN: 00786679161432

Compatibility:

Designed for use with compatible Eaton Series C HFD electrical distribution equipment utilizing F-frame molded case circuit breakers. Applications may include compatible panelboards, switchboards, motor control centers, distribution equipment, and OEM power distribution assemblies.

When replacing an existing breaker, verify the exact HFD3050 catalog number, frame configuration, terminal arrangement, system voltage, available fault current, and installation requirements. The replacement should match the required thermal-magnetic fixed-trip configuration and connection arrangement.

Certifications:

• UL Listed
• CSA Certified
• 50A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 100kA @ 240V AC
• 65kA @ 480V AC
• 25kA @ 600V AC
• Thermal-Magnetic Protection
• Fixed Thermal / Fixed Magnetic Trip
• Current Limiting Design
• Feed-Through Configuration
• Genuine Eaton / Cutler-Hammer Product
