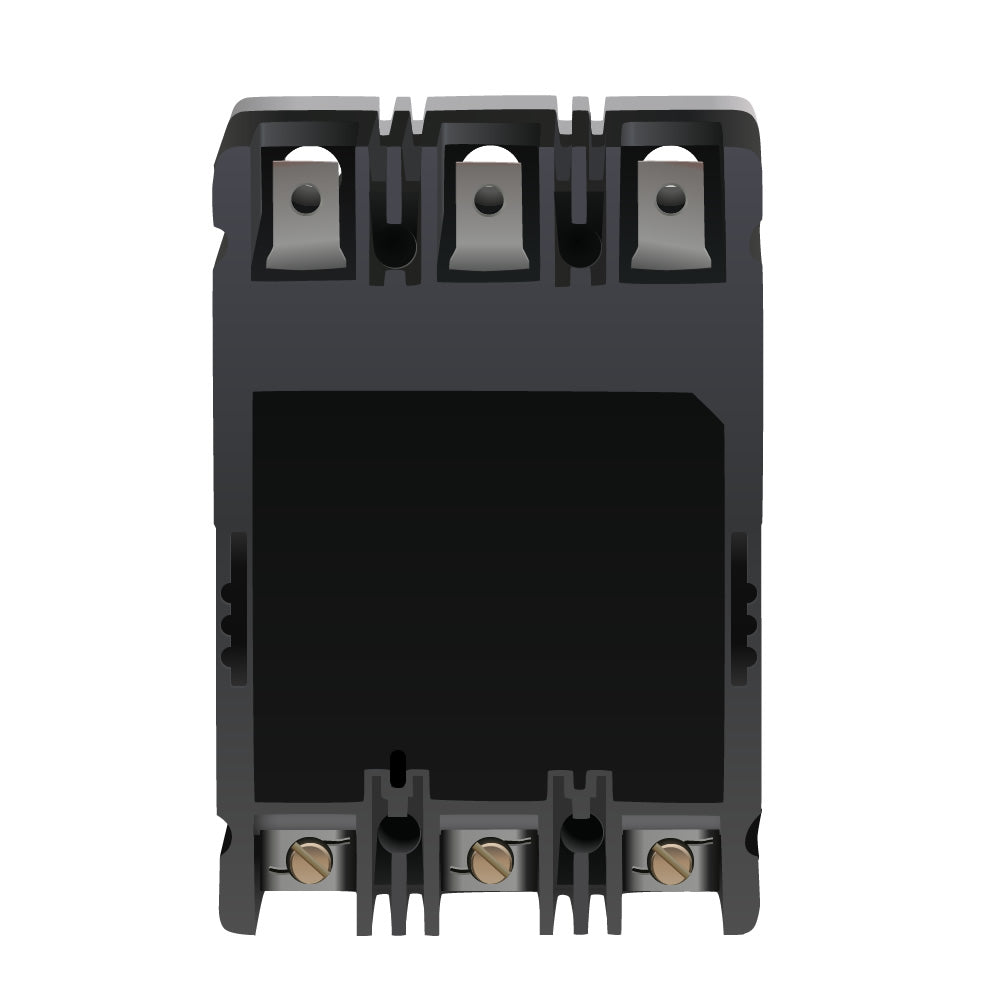

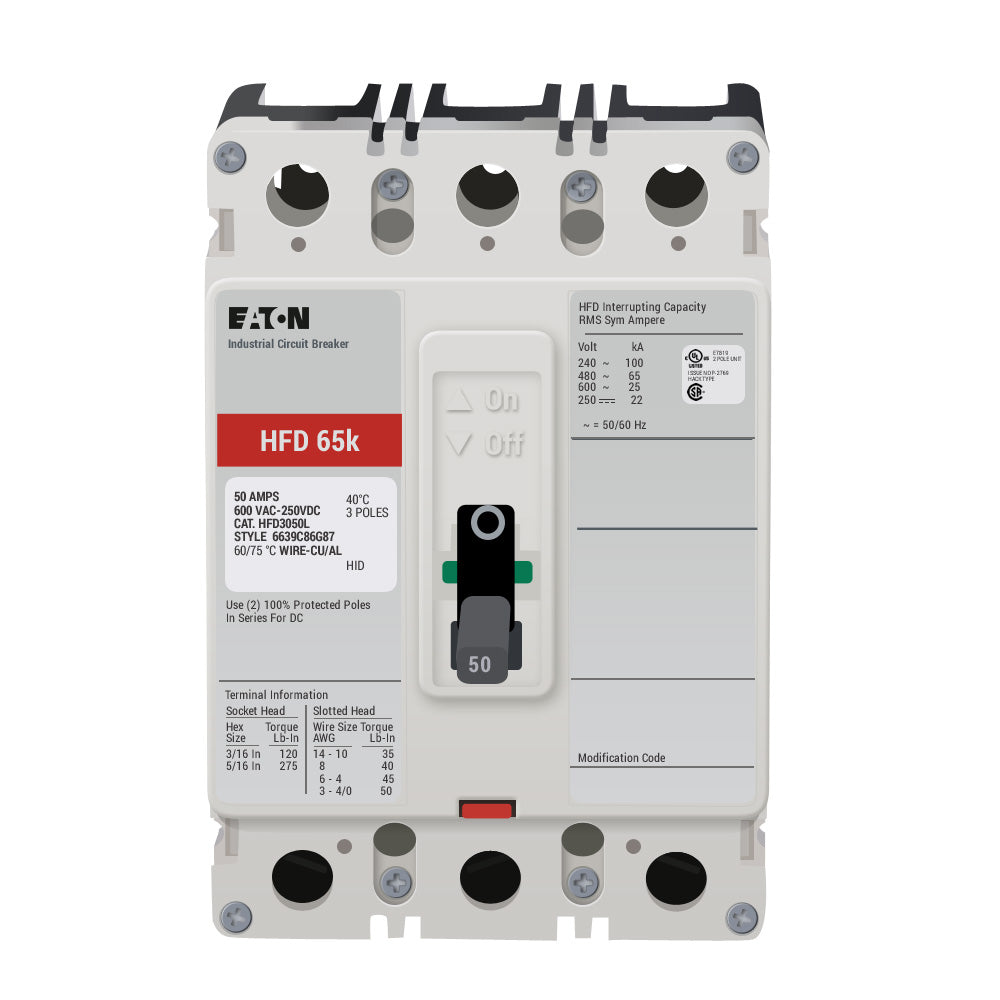

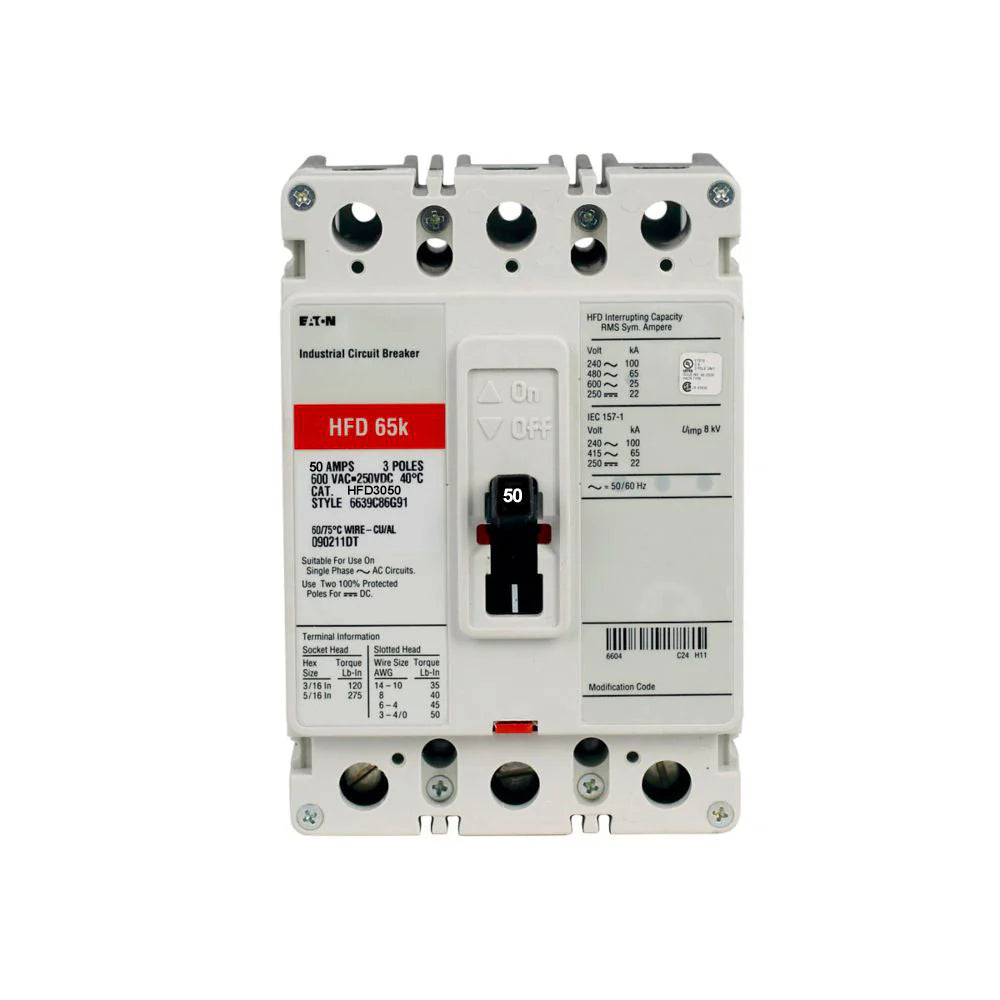

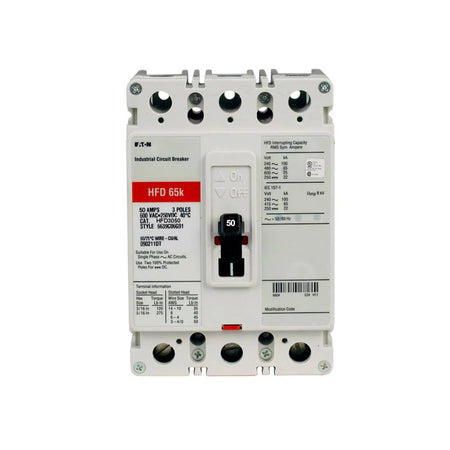

Eaton HFD3050L Molded Case Circuit Breaker – 50A – 3-Pole – 600VAC – 65kA @ 480V – Unit Mount – Series C HFD

The Eaton HFD3050L is a 50A, 3-pole molded case circuit breaker from the Series C HFD F-Frame family. It is designed for overload and short-circuit protection in compatible commercial and industrial electrical distribution systems.

The breaker features thermal-magnetic protection, fixed thermal and magnetic trip characteristics, and Long-Time and Instantaneous protection functions. It has a 600VAC voltage rating and interrupting ratings of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC.

The HFD3050L uses a unit-mount configuration and includes factory-installed line and load lugs. It is also specified as a current-limiting breaker and is suitable for compatible panelboards, switchboards, motor control centers, distribution equipment, and OEM electrical assemblies.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Breaker Type: HFD
• Frame Size: F-Frame
• Catalog No.: HFD3050L
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600VAC
• Frequency: 50/60 Hz
• Interrupting Rating: 100kA @ 240VAC / 65kA @ 480VAC / 25kA @ 600VAC
• Protection Type: Thermal-Magnetic
• Trip Characteristics: Fixed Thermal / Fixed Magnetic
• Protection Functions: Long-Time and Instantaneous
• Protection Design: Current Limiting
• Mounting Type: Unit Mount
• Connection Type: Factory-Installed Line and Load Lugs
• Configuration: Feed-Through
• Height: 6.00 in
• Width: 4.13 in
• Depth: 3.38 in
• Weight: Approximately 4.5 lb
• Application: Commercial, Industrial, OEM, and Electrical Distribution Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3050L
• Catalog Number: HFD3050L
• Brand: Eaton
• Manufacturer: Eaton Corporation
• Product Family: Series C
• Series: HFD
• Breaker Type: HFD
• Frame: F-Frame
• Product Type: Molded Case Circuit Breaker
• Model: HFD3050L
• Rated Current: 50A
• Configuration: 3-Pole
• UPC: 786679175132
• GTIN: 00786679162767

Compatibility:

Designed for use with compatible Eaton Series C HFD/F-Frame electrical distribution equipment, including panelboards, switchboards, motor control centers, distribution assemblies, and OEM equipment designed to accept the specified breaker configuration.

The HFD3050L includes factory-installed line and load lugs and is specified as a unit-mounted breaker. The “L” suffix identifies the factory-lug configuration supplied with this model.

Always verify the exact equipment model, approved breaker type, voltage, pole configuration, interrupting rating, mounting arrangement, terminal configuration, and replacement requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• Series C HFD
• F-Frame
• 50A Rated
• 3-Pole / 3-Phase
• 600VAC Rated
• 100kA @ 240VAC
• 65kA @ 480VAC
• 25kA @ 600VAC
• Thermal-Magnetic Protection
• Current Limiting
• Fixed Thermal / Fixed Magnetic Trip
• Long-Time and Instantaneous Protection
• Factory-Installed Line and Load Lugs
