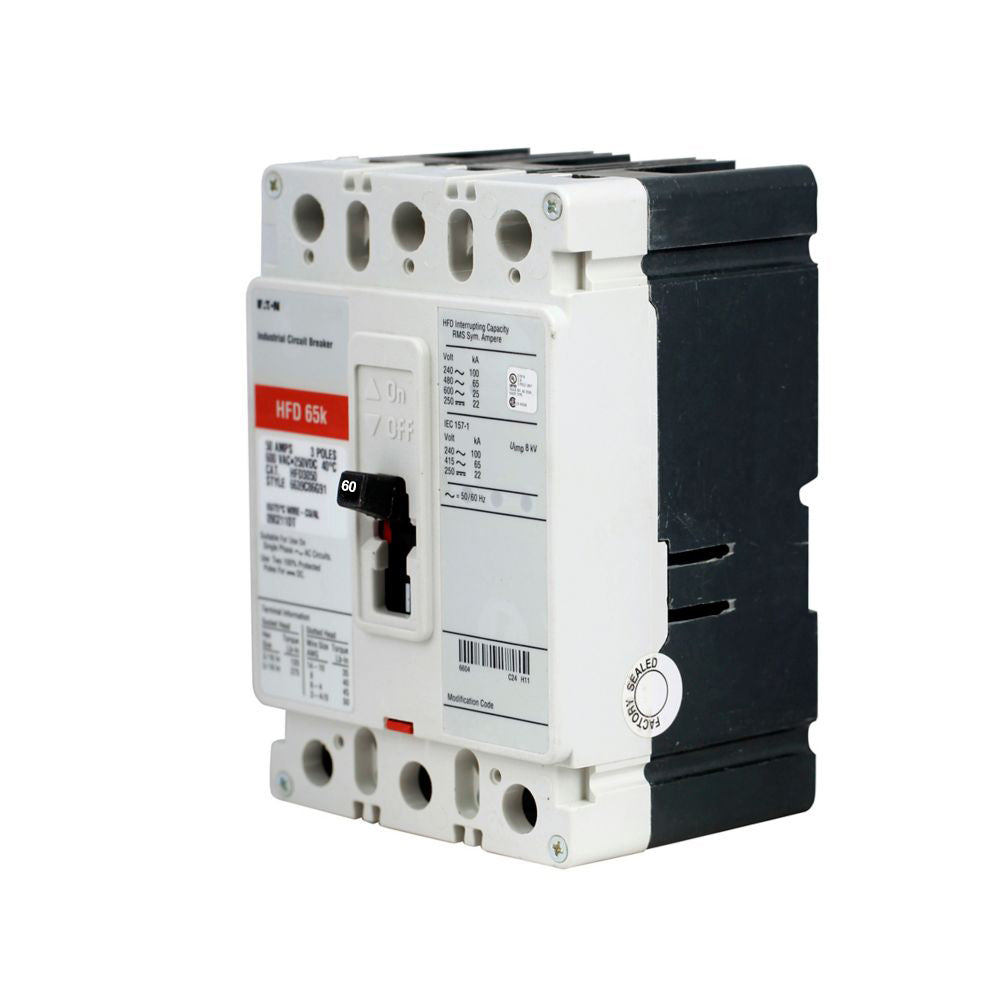

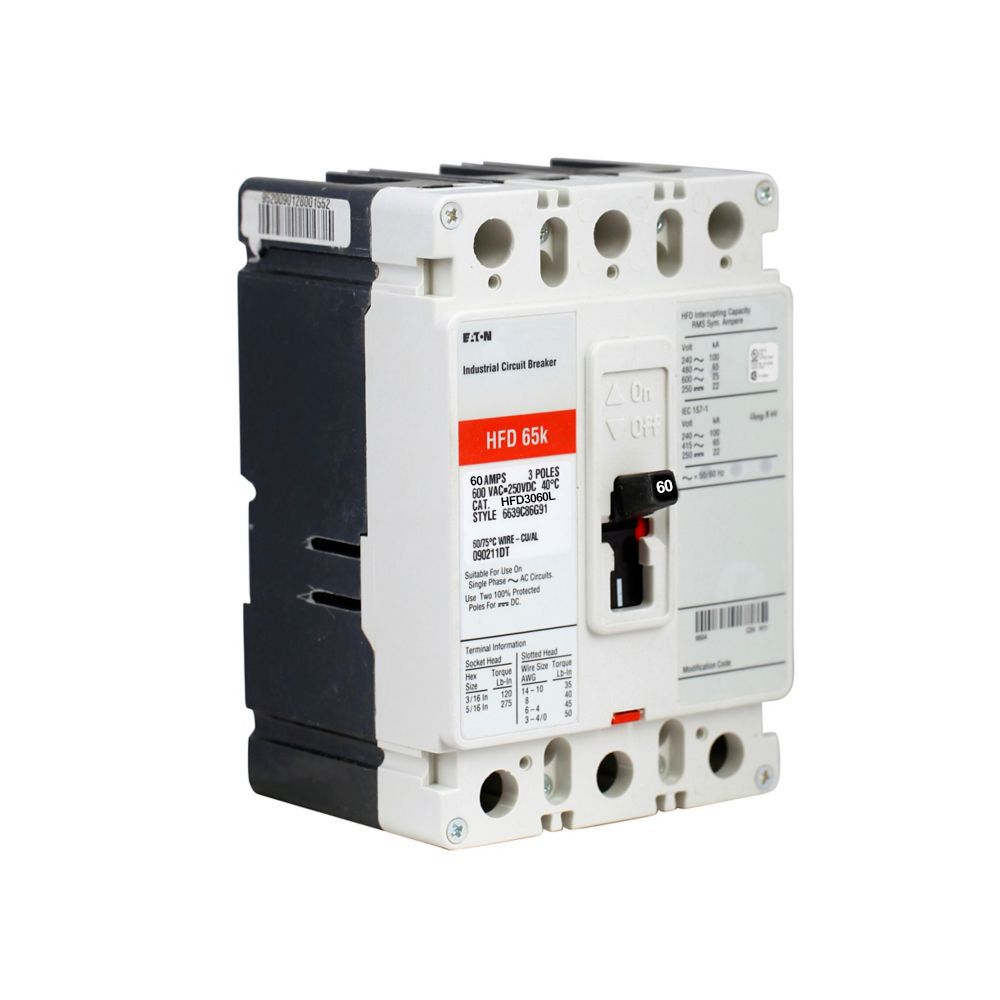

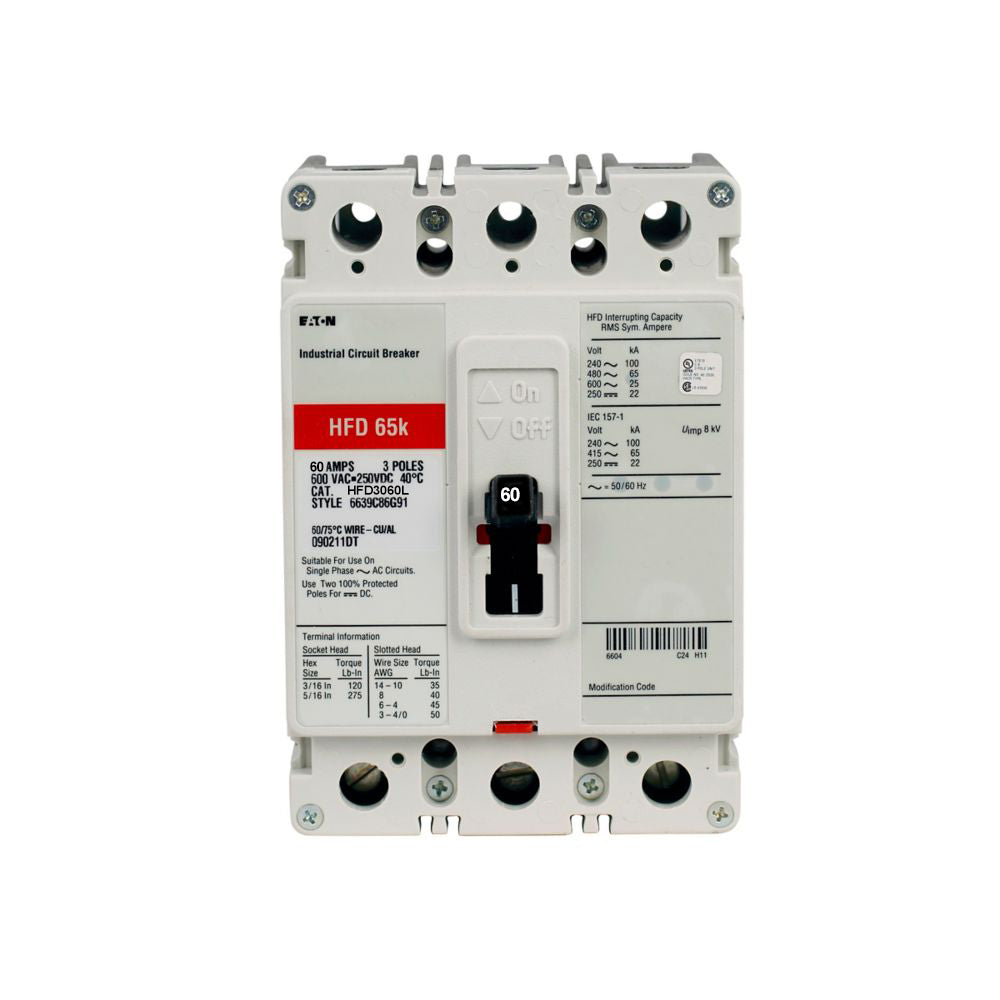

Eaton HFD3060L Molded Case Circuit Breaker – 60A – 3-Pole – 600V – 65kA @ 480V – Feed-Thru – Series C HFD

The Eaton HFD3060L is a 60A, 3-pole molded case circuit breaker from the Series C HFD family. It is a high-interrupting-capacity, thermal-magnetic breaker designed for compatible electrical distribution applications.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V. It features a feed-thru configuration, a non-interchangeable trip, and Long-Time and Instantaneous (LI) trip functions. Line- and load-side lug terminals are included.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Catalog No.: HFD3060L
• Product Family: Series C
• Series: HFD
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Temperature Rating: 40°C
• Mounting/Connection: Feed-Thru
• Trip Type: Non-Interchangeable
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Terminal Configuration: Line & Load Side Lug Terminals
• Application: Electrical Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3060L
• Catalog Number: HFD3060L
• Product Family: Eaton Series C
• Series: HFD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: HFD3060L
• Breaker Configuration: 3-Pole, 60A
• Frame Type: HFD
• upc:786679175149

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HFD electrical distribution equipment requiring a 3-pole, 60A molded case circuit breaker. The HFD3060L features a feed-thru configuration, thermal-magnetic protection, and line- and load-side lug terminals.

Always verify the specific equipment model, approved breaker type, system voltage, interrupting rating, mounting/connection arrangement, terminal configuration, and installation requirements before installation.

Certifications:

• Series C HFD
• 60A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time & Instantaneous (LI) Trip
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line & Load Side Lug Terminals
• 40°C Rated
