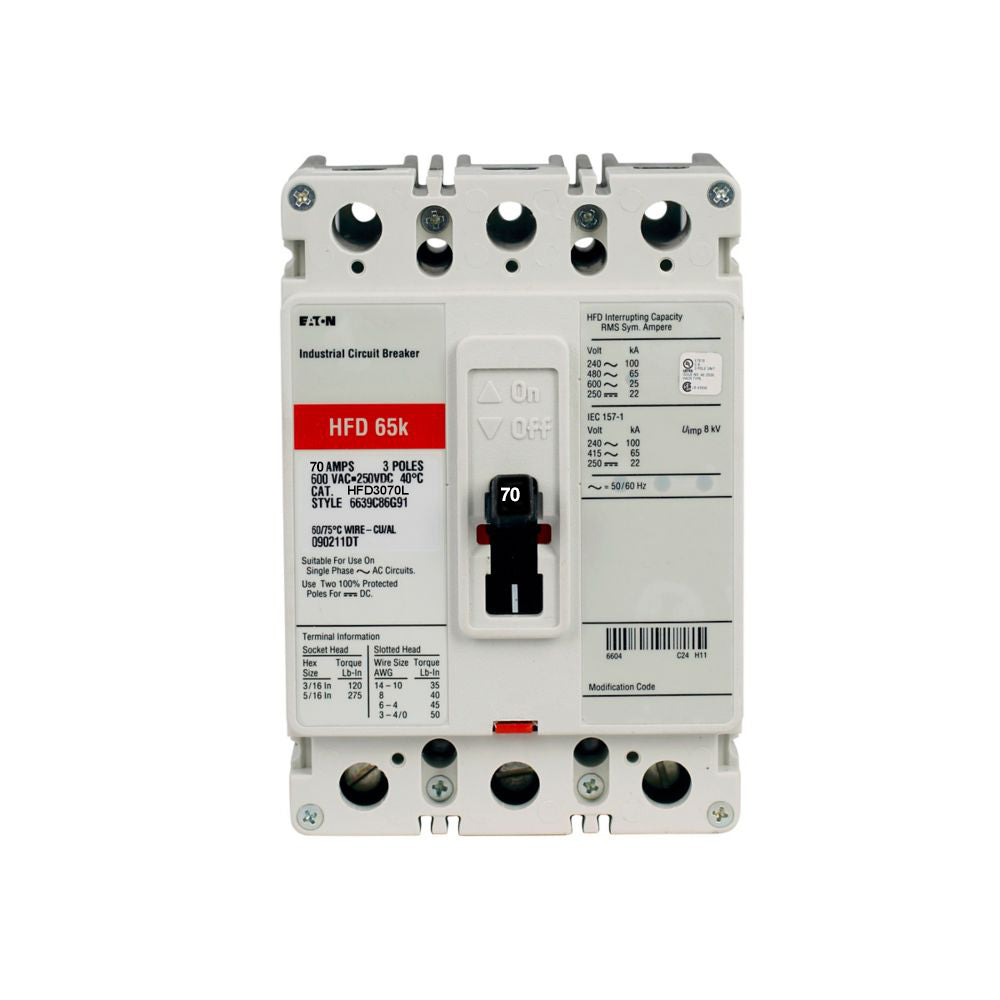

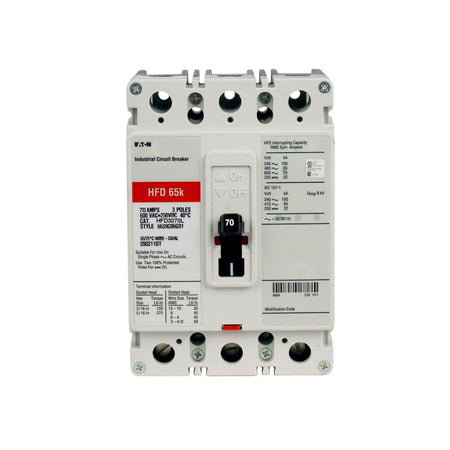

Eaton HFD3070L Molded Case Circuit Breaker – 70A – 3-Pole – 600V – 65kA @ 480V – Feed-Thru – Series C HFD

The Eaton HFD3070L is a 70A, 3-pole molded case circuit breaker from the Eaton Series C Type HFD family. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V. It features a high interrupting capacity, feed-thru configuration, non-interchangeable trip, and line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Catalog No.: HFD3070L
• Series: Series C
• Type: HFD
• Current Rating: 70A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting/Configuration: Feed-Thru
• Line-Side Connection: Lug Terminals
• Load-Side Connection: Lug Terminals
• Calibration Temperature: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer
• Authenticity: Authentic Eaton / Cutler-Hammer Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3070L
• Catalog Number: HFD3070L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HFD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: HFD3070L
• Breaker Configuration: 3-Pole, 70A
• upc:786679175156

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type HFD electrical distribution equipment that accepts HFD Series molded case circuit breakers. The HFD3070L provides 70A thermal-magnetic overcurrent protection with Long-Time and Instantaneous trip functions.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, feed-thru arrangement, terminal requirements, and installation requirements before installation.

Certifications:

• Series C HFD
• 70A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line & Load Side Lug Terminals
• 40°C Calibrated
• Genuine Eaton / Cutler-Hammer Product
