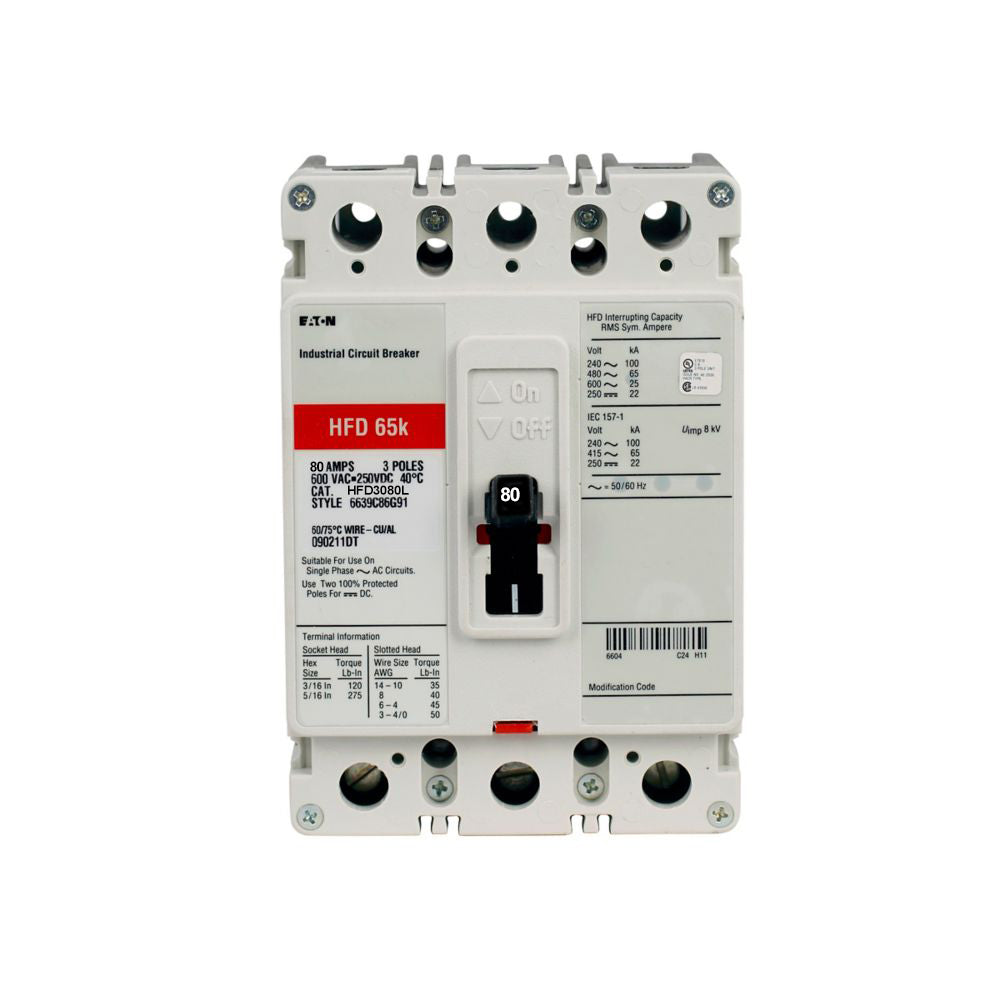

Eaton HFD3080L Molded Case Circuit Breaker – 80A – 3-Pole – 600V – 65kA @ 480V – Feed-Thru – Series C HFD

The Eaton HFD3080L is an 80A, 3-pole molded case circuit breaker from the Eaton Cutler-Hammer Series C HFD family. It is rated for 600V and provides a 65kA interrupting rating at 480V. The breaker features thermal-magnetic protection, a non-interchangeable LI (Long-Time and Instantaneous) trip unit, and line- and load-side lug terminals. It uses a feed-thru configuration and is calibrated at 40°C.

Specifications:

• Manufacturer : Eaton / Cutler-Hammer / Westinghouse
• Product Type : Molded Case Circuit Breaker
• Series : Series C
• Type : HFD
• Catalog No. : HFD3080L
• Current Rating : 80A
• Number of Poles : 3-Pole
• Phase : 3-Phase
• Voltage Rating : 600V
• Interrupting Rating : 65kA @ 480V
• Interrupting Capacity : High Interrupting Capacity
• Trip Technology : Thermal-Magnetic
• Trip Unit : Non-Interchangeable
• Trip Functions : LI – Long-Time and Instantaneous
• Connection Type : Feed-Thru
• Terminal Type : Line & Load Side Lug Terminals
• Calibration Temperature : 40°C
• Application : Electrical Distribution and Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : HFD3080L
• Catalog Number : HFD3080L
• Product Family : Series C HFD
• Series : Series C
• Type : HFD
• Brand : Eaton / Cutler-Hammer
• Manufacturer : Eaton
• Product Type : Molded Case Circuit Breaker
• Model : HFD3080L
• Breaker Configuration : 3-Pole, 80A
• upc:786679175163

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HFD molded case circuit breaker applications. The HFD3080L is an 80A, 3-pole, 600V feed-thru MCCB with thermal-magnetic protection, a non-interchangeable LI trip unit, and line- and load-side lug terminals.

Always verify the specific electrical distribution equipment, breaker compatibility, system voltage, pole configuration, interrupting rating, connection arrangement, trip-unit requirements, and terminal configuration before installation.

Certifications:

• Series C HFD
• 80A Rating
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• LI – Long-Time and Instantaneous Trip
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line & Load Side Lug Terminals
• 40°C Calibration
