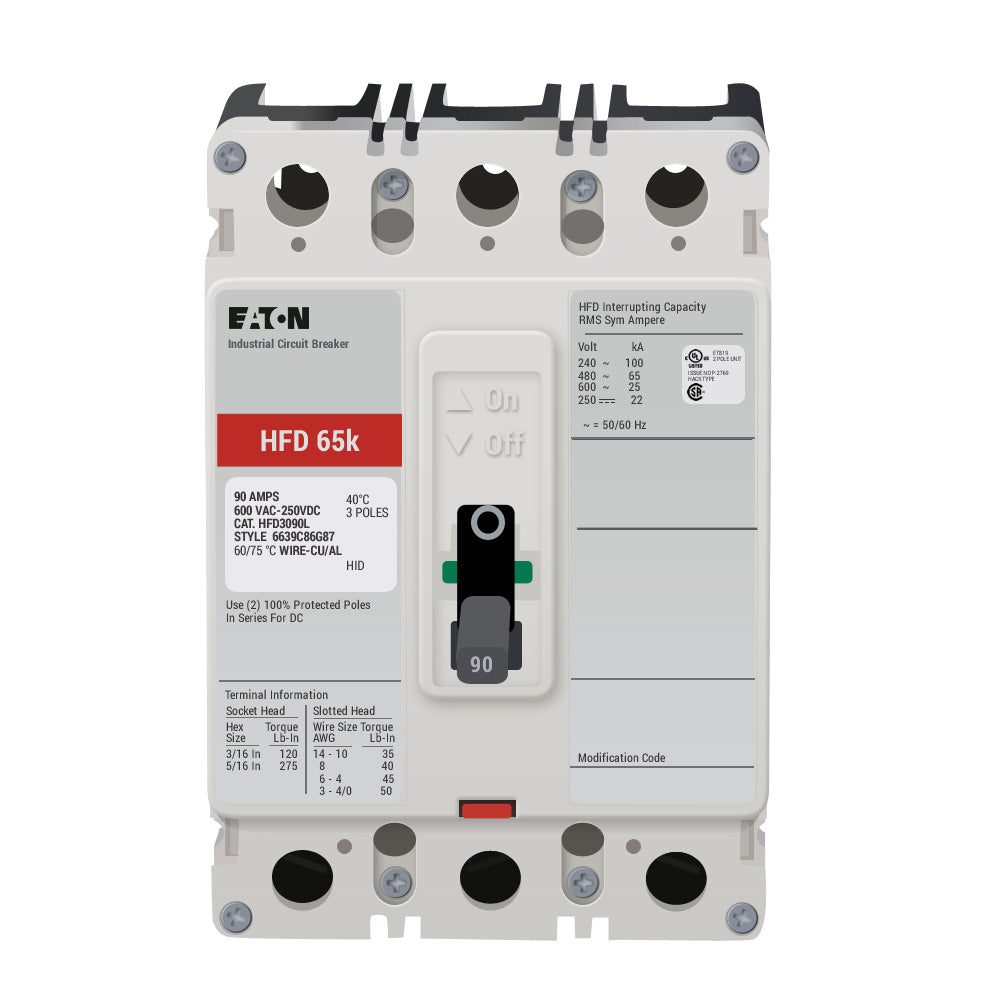

Eaton HFD3090L Molded Case Circuit Breaker – 90A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – Series C HFD

The Eaton HFD3090L is a 90A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series C HFD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The HFD3090L is rated for 600V and provides a 65kA interrupting rating at 480V. It features a high interrupting capacity, 40°C temperature rating, and a feed-thru configuration with line-side and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: HFD
• Type: HFD
• Catalog No.: HFD3090L
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru

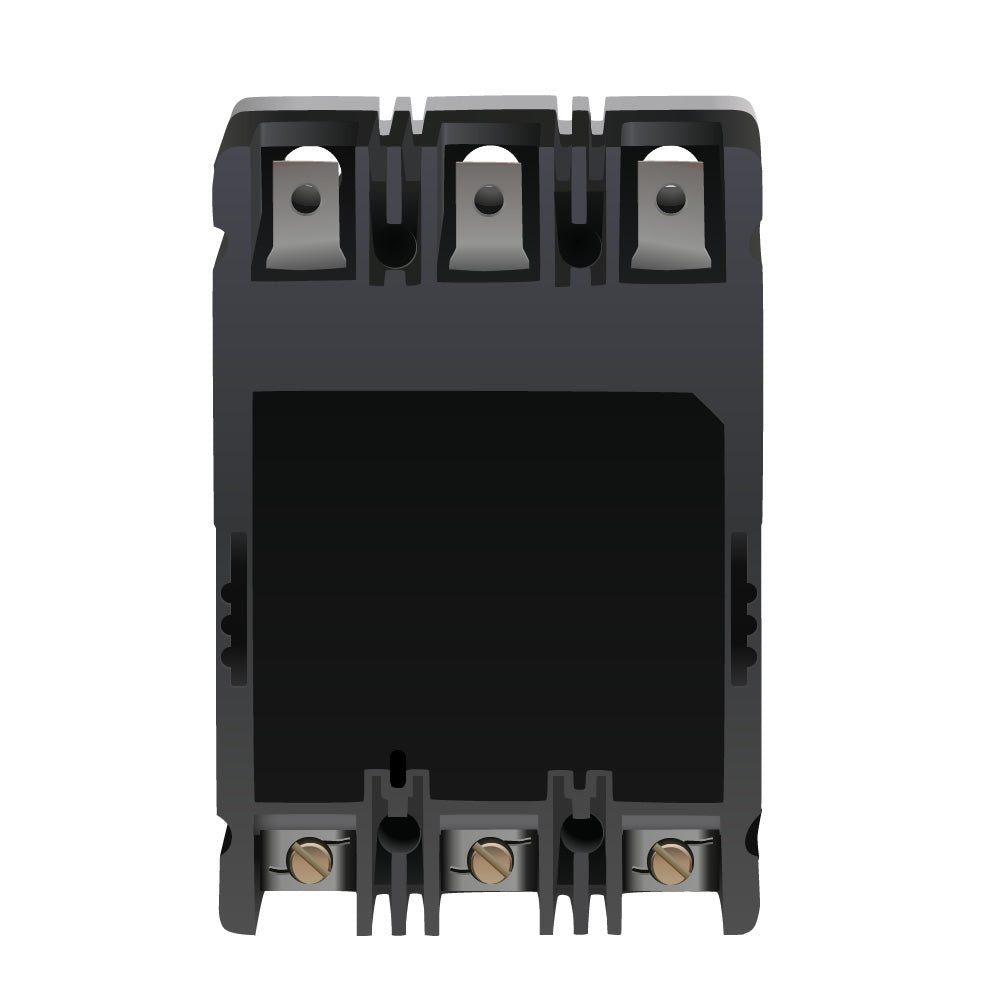

• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3090L
• Catalog Number: HFD3090L
• Model: HFD3090L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: HFD
• Type: HFD
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 90A
• UPC:786679175170

Compatibility:

Designed for use with compatible Eaton Series C HFD electrical distribution equipment that accepts HFD Series molded case circuit breakers. The HFD3090L provides 90A, 3-pole thermal-magnetic overcurrent protection for compatible 600V applications.

The breaker features a 65kA interrupting rating at 480V, high interrupting capacity, non-interchangeable LI trip functions, feed-thru configuration, and line-side and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• Series C HFD Series
• 90A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• 40°C Rated
