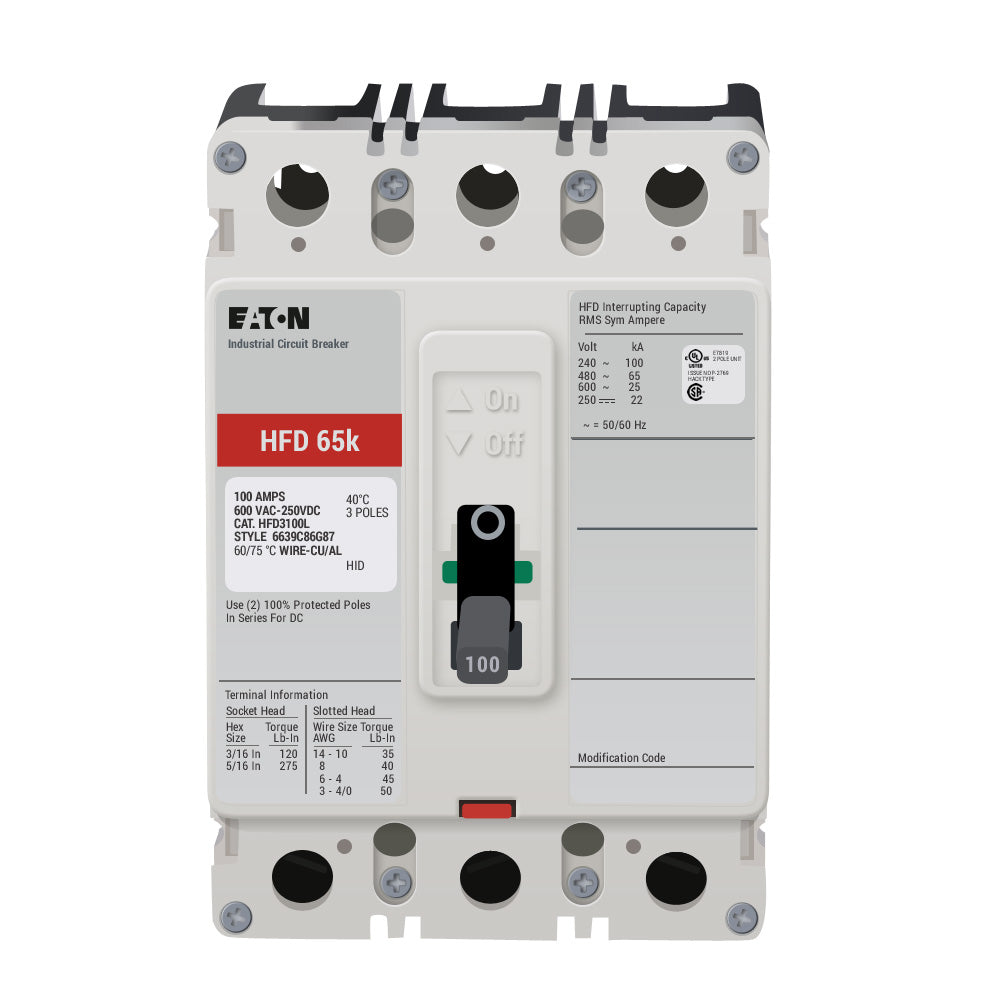

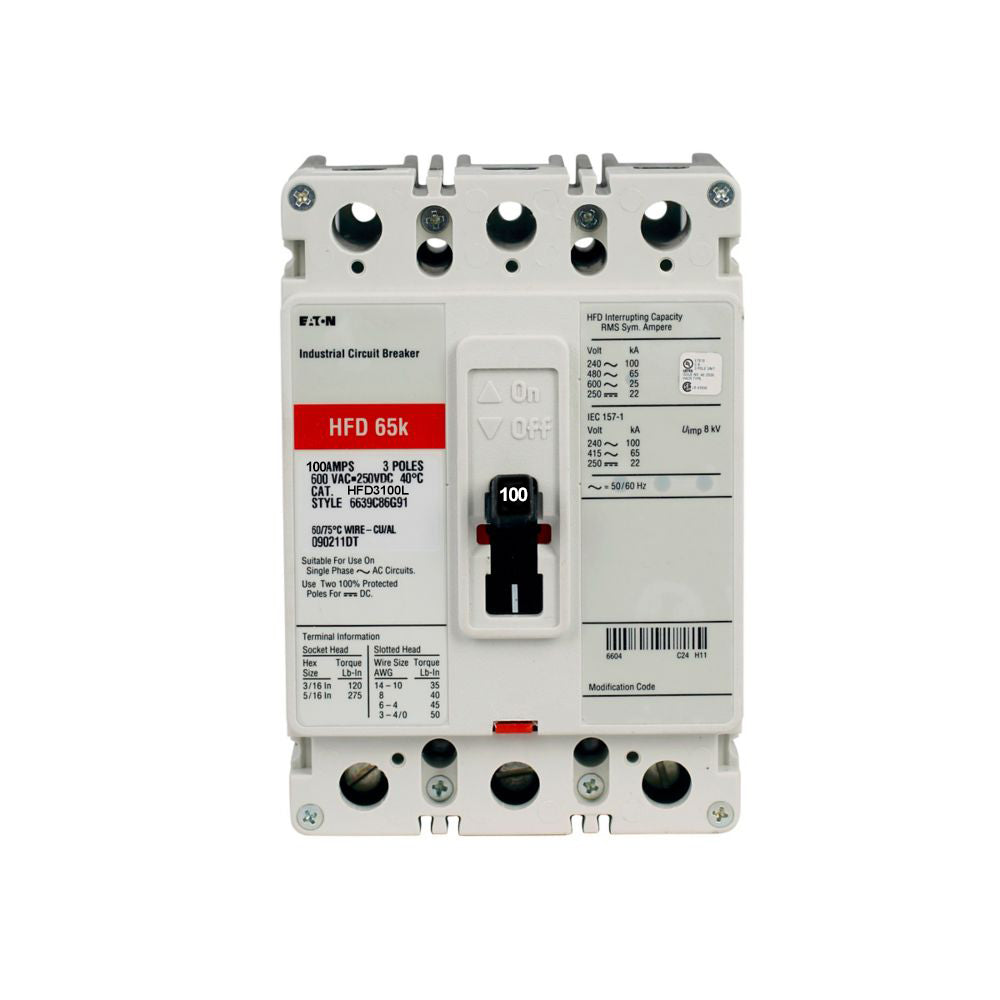

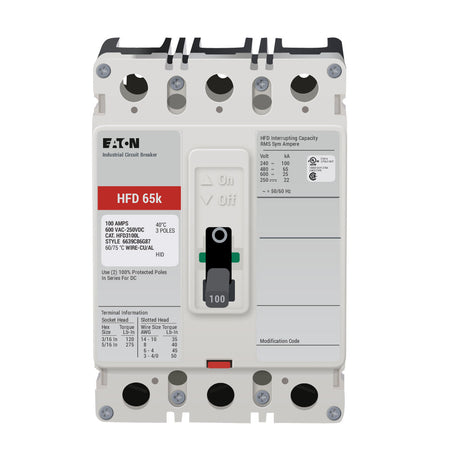

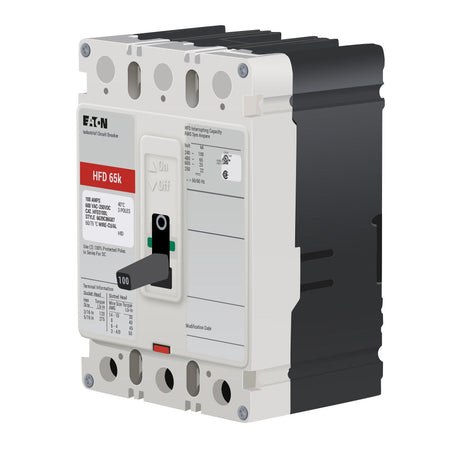

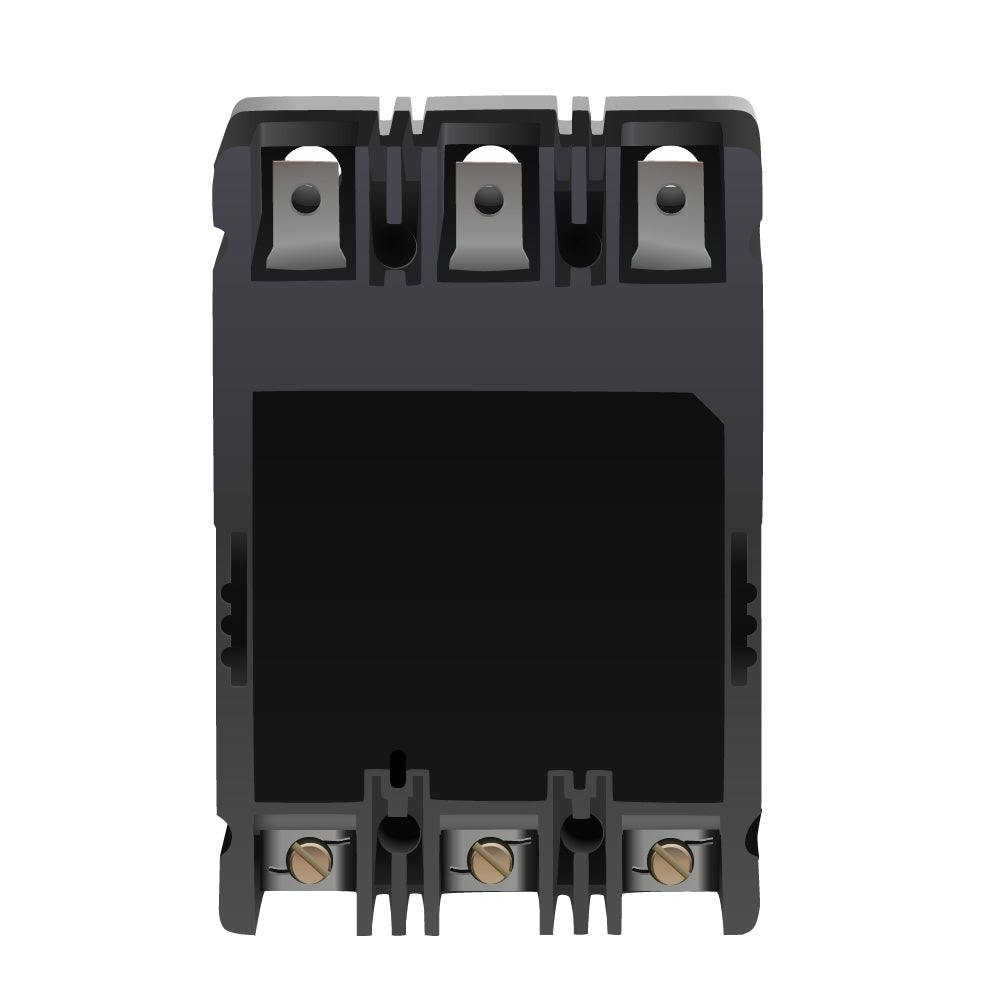

Eaton HFD3100L Molded Case Circuit Breaker – 100A – 3-Pole – 600V – 65kA – Feed-Thru – Series C HFD

The Eaton HFD3100L is a 100A, 3-pole, 3-phase molded case circuit breaker from the Series C HFD family. It is rated for 600V and provides a 65kA interrupting rating at 480V, with thermal-magnetic protection and high interrupting capacity.

The HFD3100L features feed-thru construction, non-interchangeable LI (Long-Time and Instantaneous) trip functions, and line- and load-side lug terminals. It is designed for compatible electrical distribution applications and is calibrated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: HFD
• Catalog No.: HFD3100L
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA at 480V
• Interrupting Capacity: High Interrupting Capacity
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Connection: Feed-Thru
• Terminals: Line & Load Side Lug Terminals
• Calibration Temperature: 40°C
• Product Family: Series C HFD Molded Case Circuit Breakers

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3100L
• Catalog Number: HFD3100L
• Product Family: Eaton Series C HFD
• Series: C
• Type: HFD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: HFD3100L
• upc:
  786679175187

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HFD electrical distribution applications. The HFD3100L is a 3-pole, 100A, 600V thermal-magnetic molded case circuit breaker with feed-thru construction and LI long-time and instantaneous trip functions.

Always verify the specific equipment or panelboard model, system voltage, available fault current, approved breaker type, terminal configuration, and installation requirements before installation.

Certifications:

• Series C HFD
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA Interrupting Rating at 480V
• Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• Feed-Thru Connection
• Non-Interchangeable Trip
