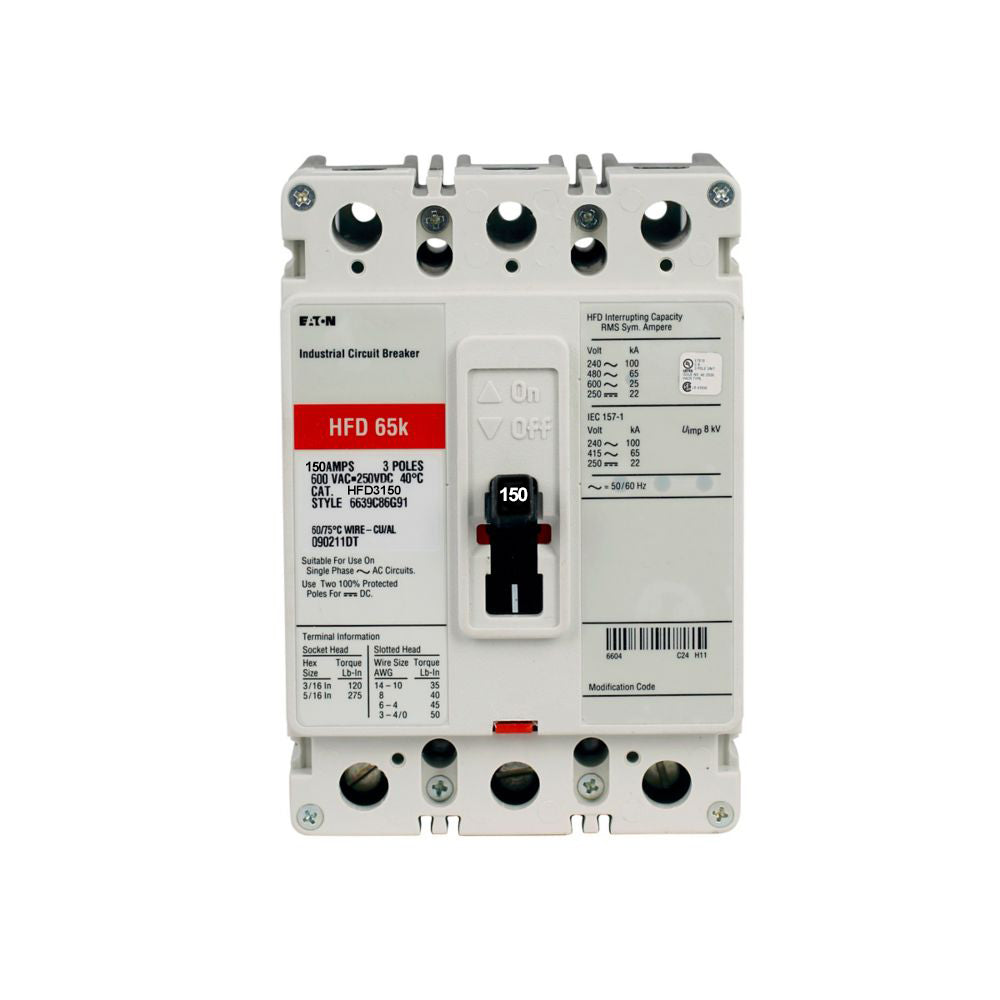

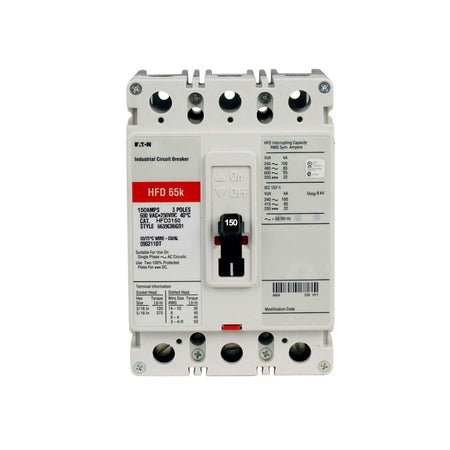

Eaton HFD3150 Molded Case Circuit Breaker – 150A – 3-Pole – 600V – 65kA – Bolt-On – Series C HFD

The Eaton Cutler-Hammer HFD3150 is a 150A, 3-pole, 3-phase molded case circuit breaker from the Series C HFD family. It is rated for 600V and provides a 65kA interrupting rating at 480V, with a high interrupting capacity configuration.

The HFD3150 features a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) trip functions, a non-interchangeable trip, and load-side lug terminals. It uses a bolt-on mounting configuration and is designed for compatible electrical distribution applications.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Brand: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: HFD
• Catalog No.: HFD3150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA at 480V
• Interrupting Capacity: High
• Mounting Type: Bolt-On
• Trip Technology: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Terminals: Load-Side Lug Terminals
• Temperature Rating: 40°C

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3150
• Catalog Number: HFD3150
• Product Family: Eaton Series C HFD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: HFD3150
• Breaker Configuration: 3-Pole, 150A
• upc:786679175910

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HFD molded case circuit breaker applications. The HFD3150 is configured for 3-phase, 150A, 600V electrical distribution applications and uses bolt-on mounting with load-side lug terminals.

Always verify the specific panelboard or switchboard, approved breaker type, system voltage, interrupting rating, pole configuration, mounting arrangement, terminal requirements, and installation specifications before installation.

Certifications:

• 65kA Interrupting Rating at 480V
• High Interrupting Capacity
• Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• Non-Interchangeable Trip
• Bolt-On Mounting
• 3-Pole / 3-Phase
• 150A Rating
• 600V Rated
• Eaton / Cutler-Hammer Series C HFD
