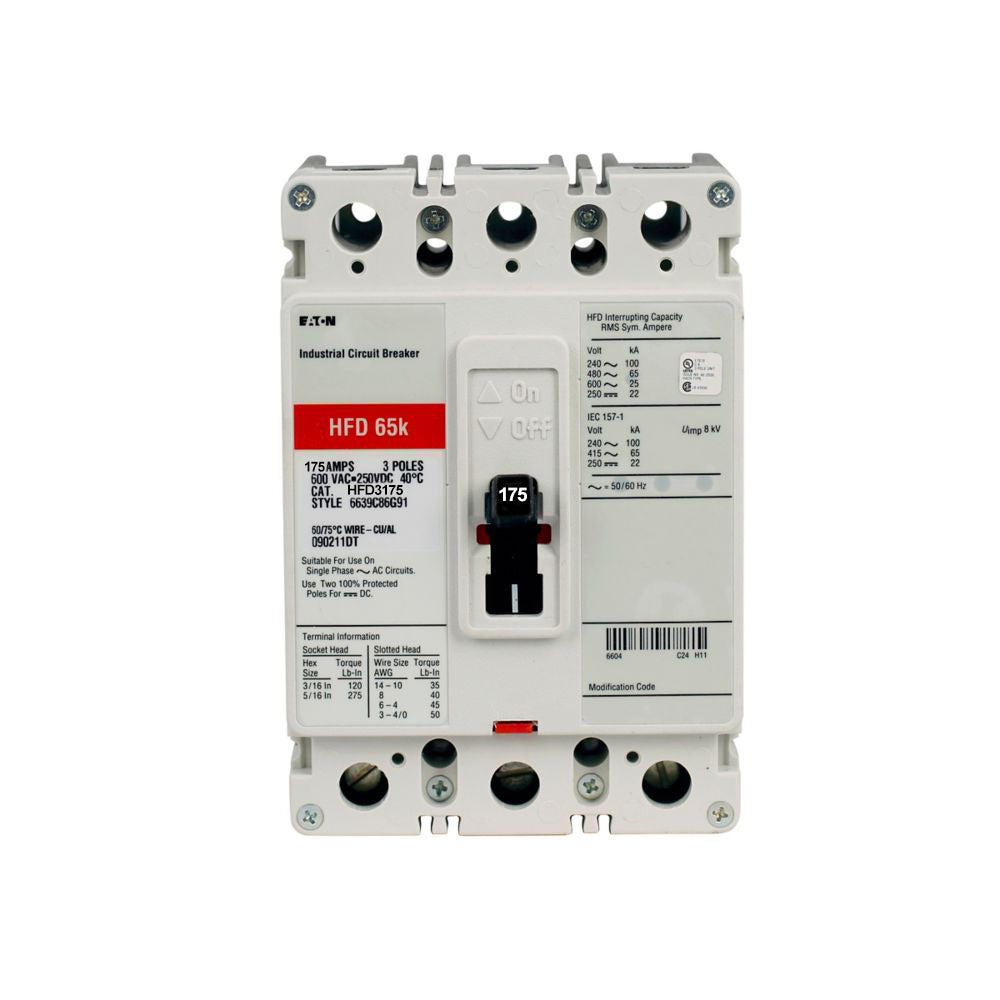

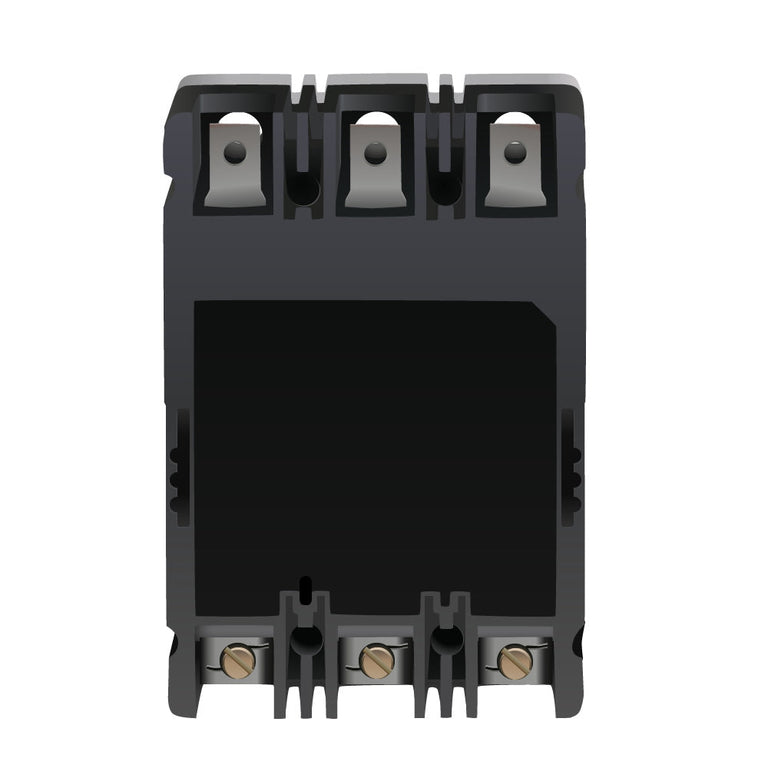

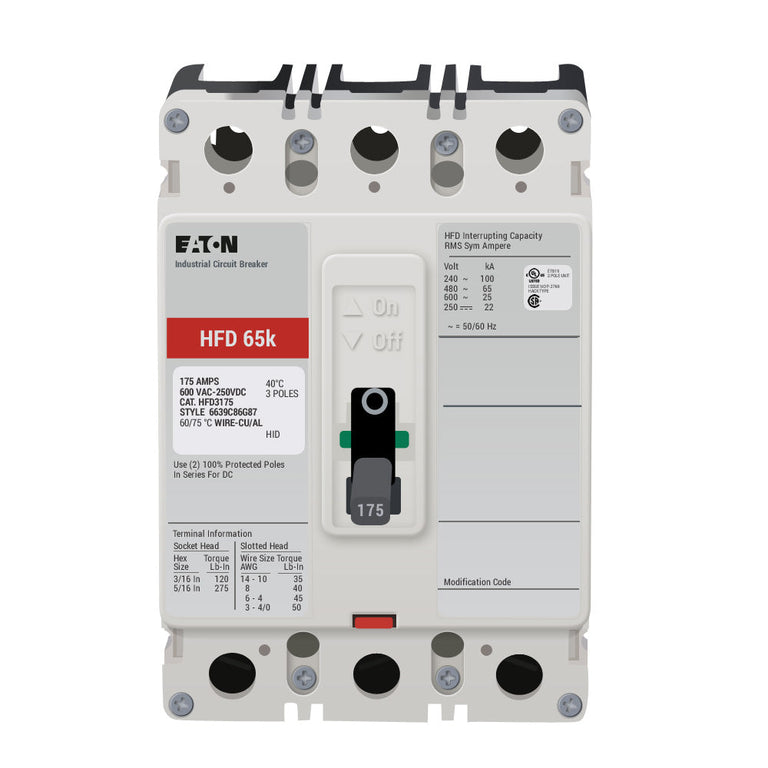

Eaton HFD3175 Molded Case Circuit Breaker – 175A – 3-Pole – 600V AC – 65kA @ 480V – Feed-Through – Series C HFD

The Eaton HFD3175 is a 175A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series C HFD family. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with a non-interchangeable trip.

The breaker is rated for 600V AC and provides 65kA interrupting capacity at 480V. It uses a feed-through configuration and includes line- and load-side lug terminals. The breaker provides long-time and instantaneous (LI) trip functions and is calibrated for a 40°C ambient temperature.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Catalog No.: HFD3175
• Product Family: Series C
• Series: HFD
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Ambient Rating: 40°C
• Mounting / Connection Type: Feed-Through
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Protection Type: Thermal-Magnetic
• Terminal Type: Line- and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer
• Authenticity: Genuine Eaton Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFD3175
• Catalog Number: HFD3175
• Product Family: Eaton Series C
• Series: HFD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: HFD3175
• Configuration: 3-Pole, 175A
• Trip Configuration: Non-Interchangeable, LI
• Connection: Feed-Through

• upc:786679015445

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HFD electrical distribution equipment that accepts HFD Series molded case circuit breakers. The HFD3175 provides 175A, 3-pole protection for compatible 600V AC, 3-phase applications.

The breaker features a non-interchangeable thermal-magnetic trip with long-time and instantaneous functions and includes line- and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• 175A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 65kA Interrupting Rating @ 480V
• High Interrupting Capacity
• 40°C Ambient Rating
• Feed-Through Configuration
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• LI Long-Time and Instantaneous Trip Functions
• Line- and Load-Side Lug Terminals
• Complete Breaker
• Series C HFD
• Genuine Eaton / Cutler-Hammer Product
