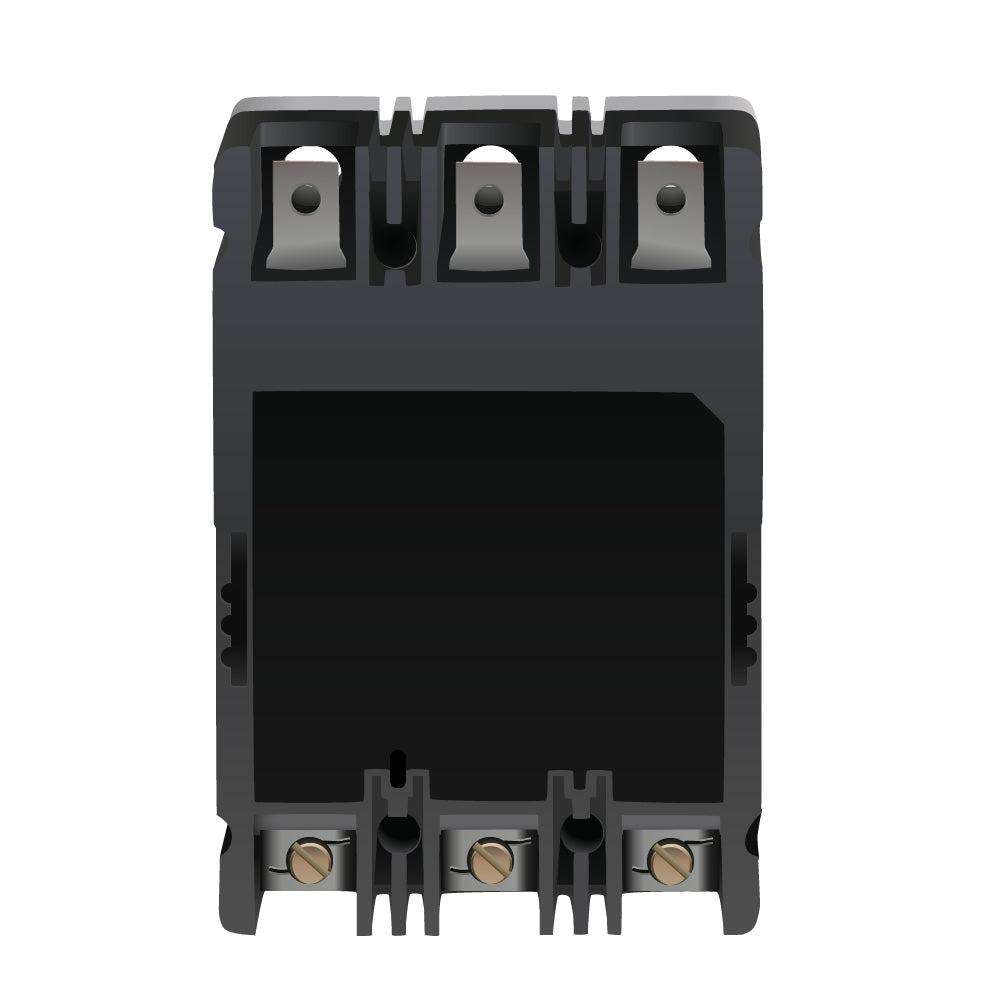

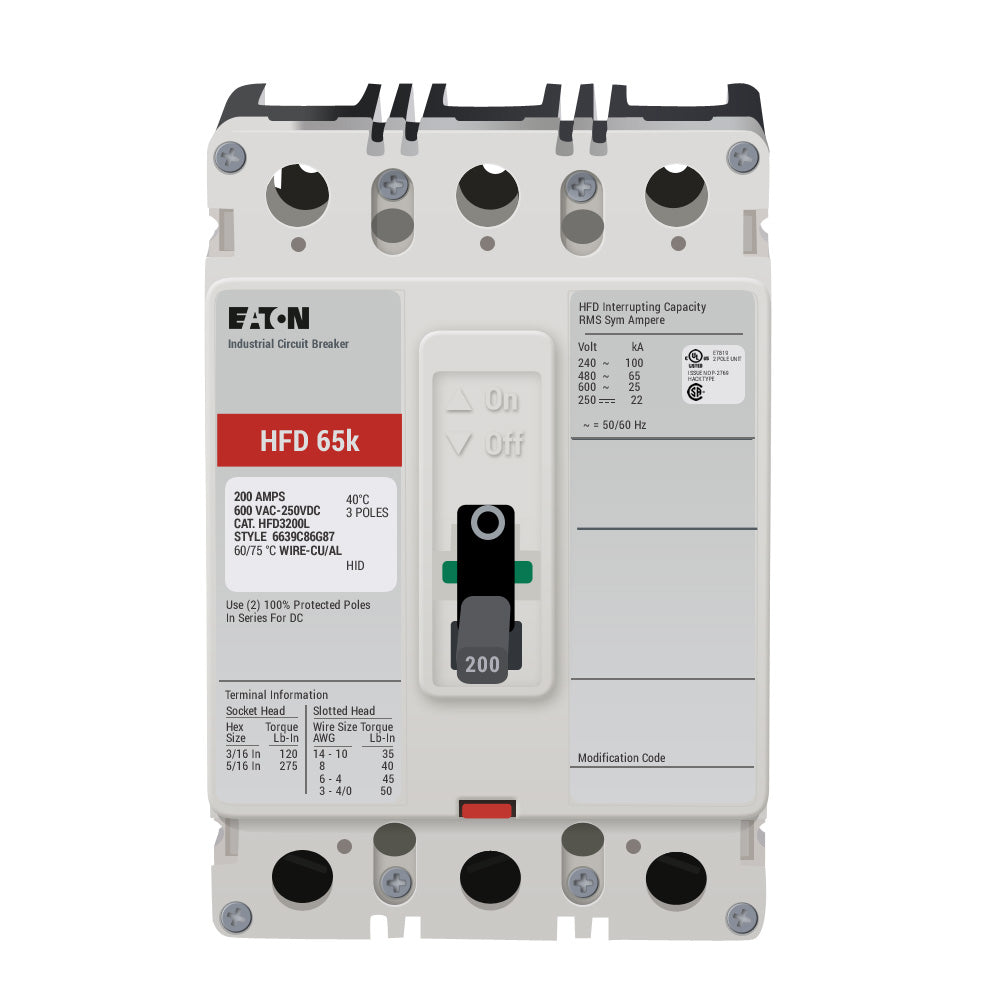

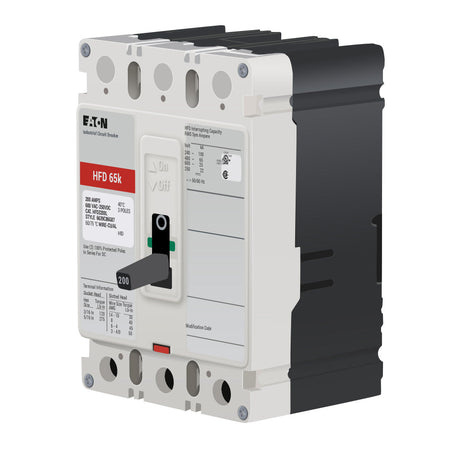

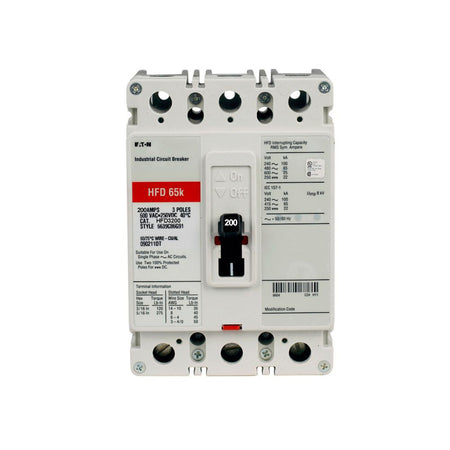

Eaton HFD3200 Molded Case Circuit Breaker – 150A – 3-Pole – 600V – 65kA – Bolt-On – Series C

The Eaton Cutler-Hammer HFD3200 is a 150A, 3-pole molded case circuit breaker from the Series C HFD family, designed for three-phase electrical distribution and circuit protection applications. It is rated for 600V and provides a 65kA interrupting capacity at 480V.

The breaker features a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) trip functions, a non-interchangeable trip, and bolt-on mounting. It is supplied with load-side lug terminals and is rated for high interrupting capacity.

Specifications

• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: HFD
• Catalog No.: HFD3200
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C
• Application: Three-Phase Electrical Distribution and Circuit Protection

Part Numbers & Identification

• Manufacturer Part Number (MPN): HFD3200
• Catalog Number: HFD3200
• Product Family: HFD Series
• Product Line: Series C
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: HFD3200
• upc:786679015438

Compatibility

Designed for use with compatible Eaton / Cutler-Hammer Series C HFD electrical distribution equipment requiring a 150A, 3-pole molded case circuit breaker. The HFD3200 is suitable for compatible 600V, three-phase applications requiring high interrupting capacity and thermal-magnetic LI protection.

Always verify the exact panelboard or switchboard model, system voltage, interrupting requirements, mounting configuration, terminal requirements, and approved breaker combinations before installation.

Certifications

• High Interrupting Capacity
• 40°C Rated
