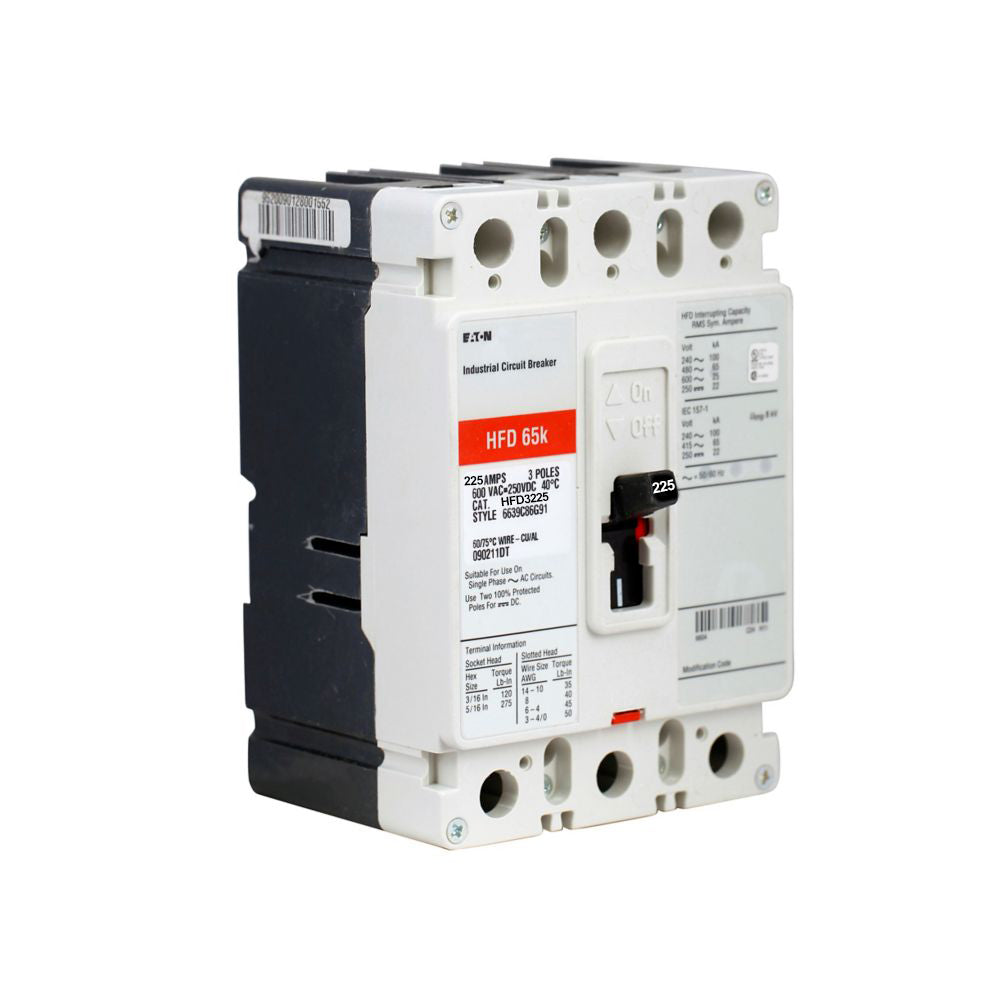

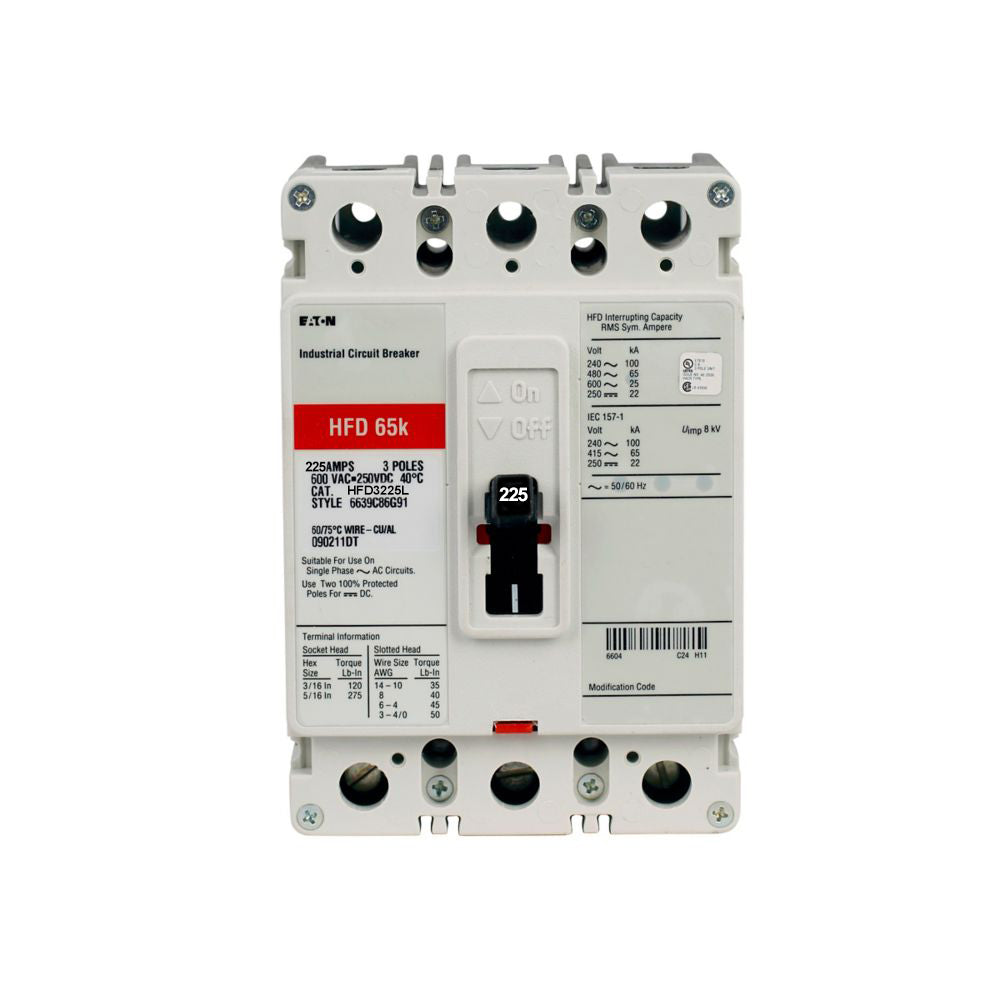

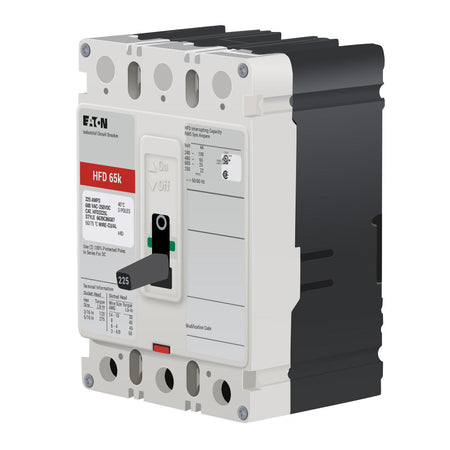

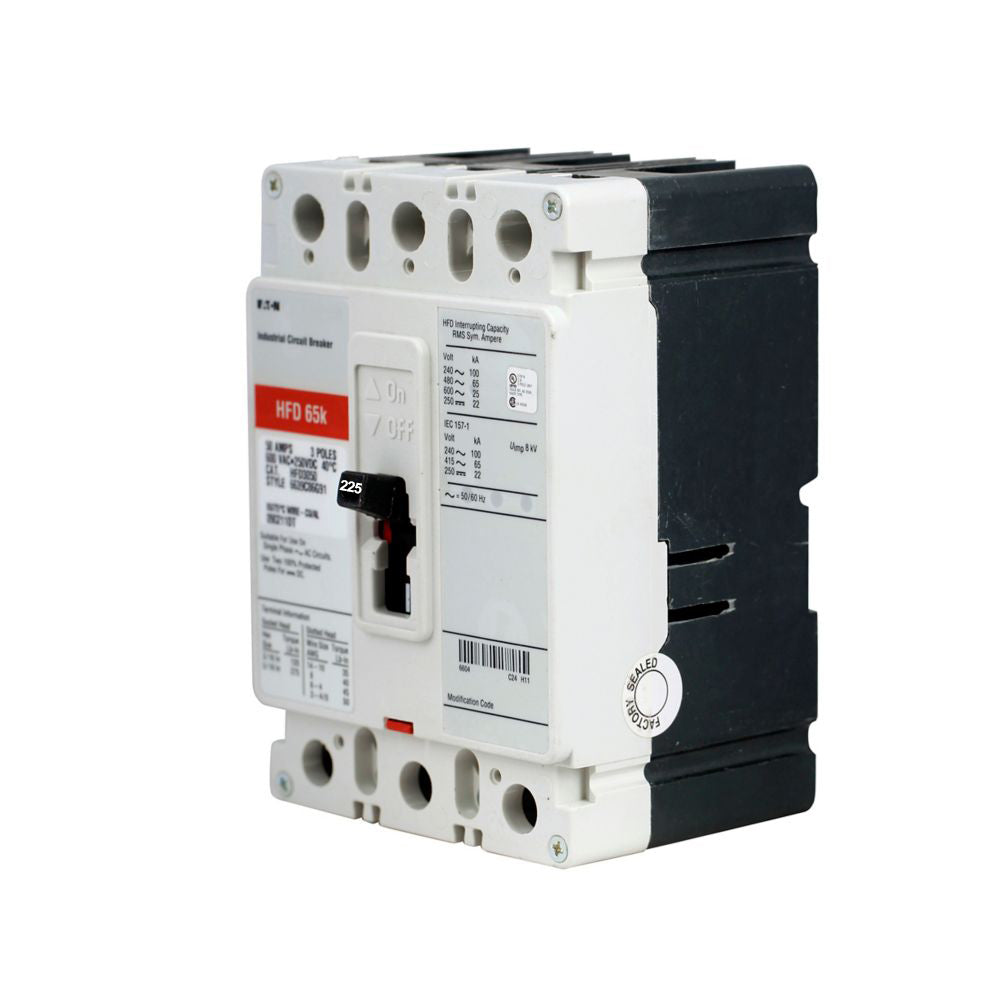

Eaton HFD3225 Molded Case Circuit Breaker – 225A – 3-Pole – 600V – 65kA @ 480V – Bolt-On – Series C HFD

The Eaton HFD3225 is a 225A, 3-pole molded case circuit breaker from the Eaton Cutler-Hammer Series C HFD family. It is rated for 600V and provides a 65kA interrupting rating at 480V. The breaker features a thermal-magnetic trip unit with LI (Long-Time and Instantaneous) trip functions, a non-interchangeable trip, and load-side lug terminals. It uses bolt-on mounting and is designed for compatible electrical distribution applications.

Specifications:

• Manufacturer : Eaton / Cutler-Hammer
• Product Type : Molded Case Circuit Breaker
• Series : Series C
• Type : HFD
• Catalog No. : HFD3225
• Current Rating : 225A
• Number of Poles : 3-Pole
• Phase : 3-Phase
• Voltage Rating : 600V
• Interrupting Rating : 65kA @ 480V
• Interrupting Capacity : High Interrupting Capacity
• Trip Technology : Thermal-Magnetic
• Trip Unit : Non-Interchangeable
• Trip Functions : LI – Long-Time and Instantaneous
• Mounting Type : Bolt-On
• Terminal Type : Load-Side Lug Terminals
• Calibration Temperature : 40°C
• Application : Electrical Distribution and Branch Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : HFD3225
• Catalog Number : HFD3225
• Product Family : Series C HFD
• Series : Series C
• Type : HFD
• Brand : Eaton / Cutler-Hammer
• Manufacturer : Eaton
• Product Type : Molded Case Circuit Breaker
• Model : HFD3225
• Breaker Configuration : 3-Pole, 225A
• upc:786679015421

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C HFD molded case circuit breaker applications. The HFD3225 is a 3-pole, 225A, 600V bolt-on MCCB with a non-interchangeable thermal-magnetic LI trip unit and load-side lug terminals.

Always verify the specific panelboard or electrical distribution equipment, breaker compatibility, system voltage, pole configuration, interrupting rating, mounting arrangement, terminal requirements, and installation specifications before installation.

Certifications:

• Series C HFD
• 225A Rating
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• Thermal-Magnetic Protection
• LI – Long-Time and Instantaneous Trip
• Non-Interchangeable Trip
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Calibration
