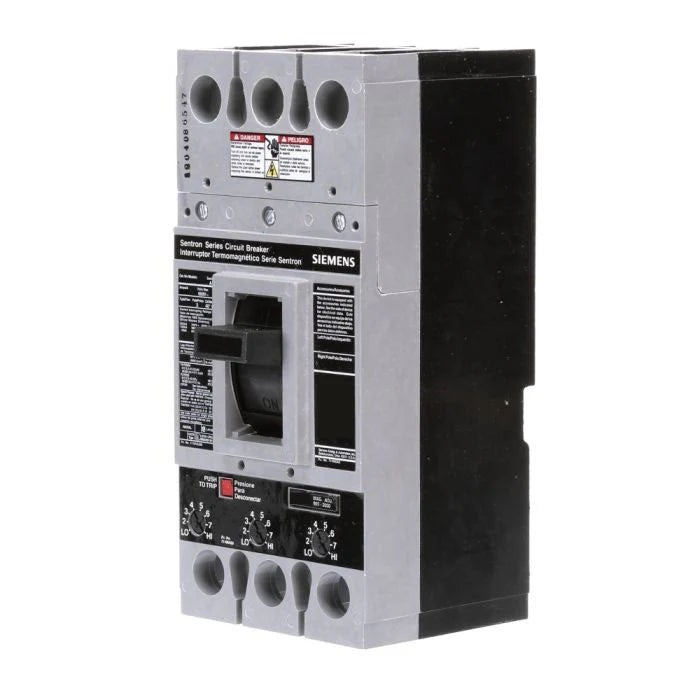

Siemens HFD63B200 200A 3 Pole 600V Molded Case Circuit Breaker F Frame Thermal Magnetic 25kA @600V / 35kA @480V / 65kA @240V

Description

The Siemens HFD63B200 is a 200A, 3 pole, 600V molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker is part of the F Frame series and features a thermal magnetic trip unit providing dependable overload and short-circuit protection.

Built for performance and durability, the HFD63B200 is commonly used in panelboards, switchboards, and motor control applications where consistent circuit protection is required.

Interrupting Ratings

• 65kA @ 240V
• 35kA @ 480V
• 25kA @ 600V

Key Specifications

• Manufacturer: Siemens
• Catalog Number: HFD63B200
• Amperage: 200A
• Poles: 3 Pole
• Voltage Rating: 600V
• Frame Type: F Frame
• Trip Type: Thermal Magnetic
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Application: Commercial / Industrial Power Distribution

Product Data / Technical Information

• Product Type: Molded Case Circuit Breaker
• Series: F Frame
• Trip Function: Thermal Magnetic
• Rated Current: 200 Amps
• Number of Poles: 3
• Maximum Voltage: 600 Volts
• Interrupt Rating: 25kA @ 600V
• Mounting: Bolt-On
• Condition: New / Used (Specify)
• 783643211841
