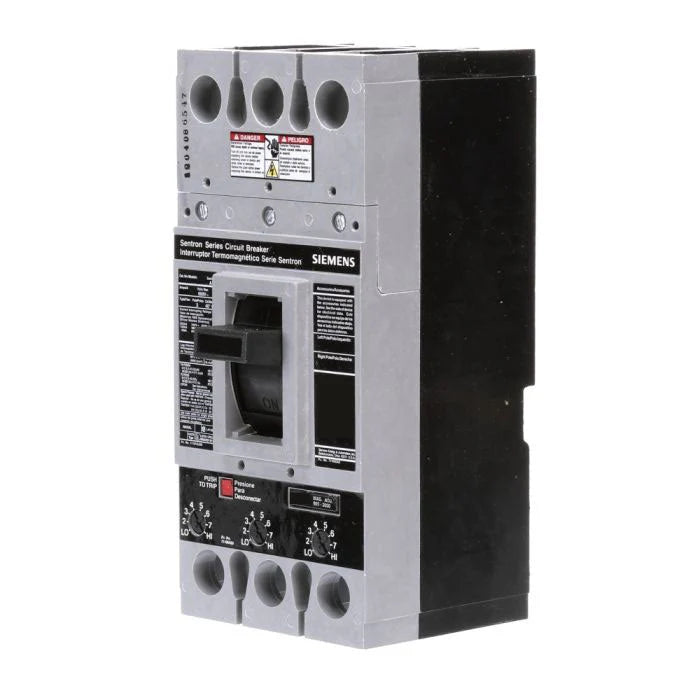

Siemens HFD63B250L 250 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – SENTRON Series

The Siemens HFD63B250L is a 250 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series. It has a maximum voltage rating of 600 V and a standard interrupting rating of 65 kA at 480 V. The breaker features thermal-magnetic protection, a non-interchangeable trip unit, feed-thru mounting, and line & load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: HFD
• Catalog Number / MPN: HFD63B250L
• Primary Rating: 250 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V Maximum
• Interrupting Rating: 65 kA@480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:783643235939

Compatibility

The Siemens HFD63B250L is designed for compatible Siemens SENTRON Type HFD molded case circuit breaker applications.
