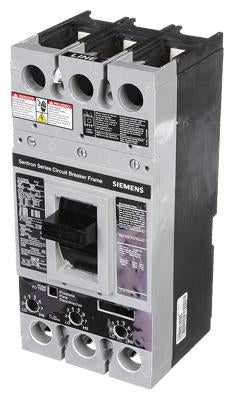

Siemens HFD63F250 Molded Case Circuit Breaker Frame – 250A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Sentron HFD Series

The Siemens HFD63F250 is a 250A, 3-pole, 3-phase molded case circuit breaker frame from the Siemens Sentron Type HFD Series. It is identified as a frame-only product with thermal-magnetic protection for compatible electrical distribution applications.

The frame is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on mounting configuration and is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Sentron
• Series: HFD
• Type: HFD
• Catalog No.: HFD63F250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Product Configuration: Frame Only
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification

• Manufacturer Part Number (MPN): HFD63F250
• Catalog Number: HFD63F250
• Model: HFD63F250
• Product Family: Siemens Sentron Circuit Breakers
• Series: HFD
• Type: HFD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Configuration: 3-Pole, 250A
• Product Status: Frame Only
• UPC:783643211889

Compatibility

Designed for use with compatible Siemens Sentron Type HFD electrical distribution equipment and applicable HFD-frame configurations. The HFD63F250 is a frame-only product rated for 250A, 3-pole, 600V applications with a 65kA interrupting rating at 480V.

Because this is a frame-only product, required trip units, terminals, and other components should be verified separately for the intended application. Always verify the specific equipment model, approved frame configuration, system voltage, available fault current, trip-unit requirements, terminal requirements, mounting arrangement, and installation specifications before installation.

Certifications

• Siemens Sentron HFD Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic
• Bolt-On Mounting
• Frame Only
• 40°C Rated
