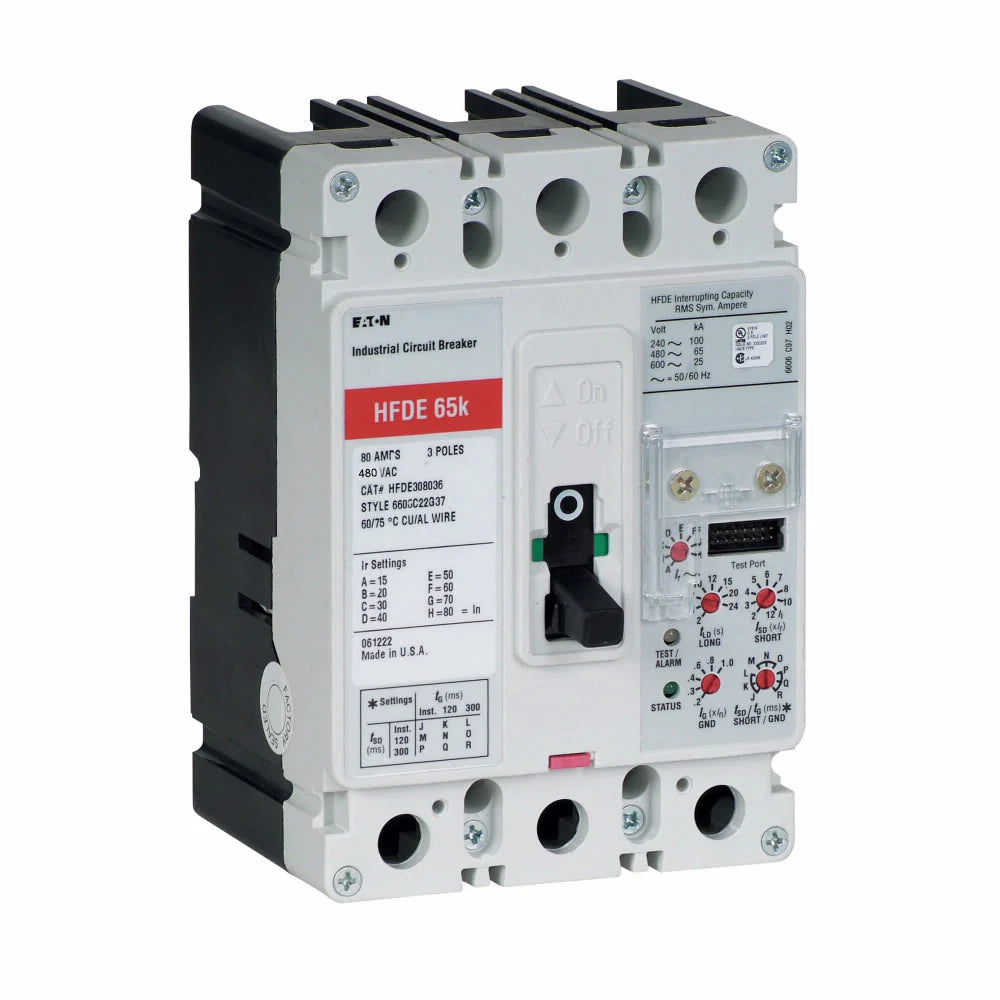

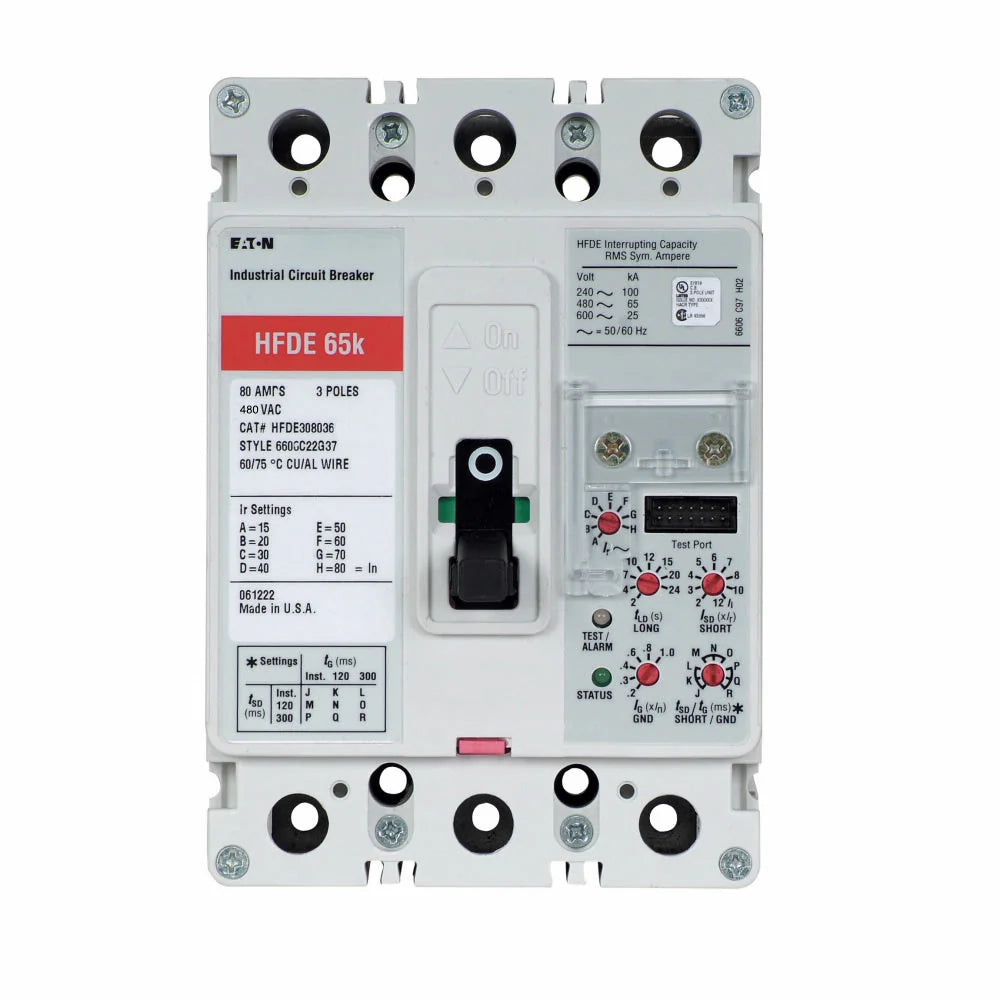

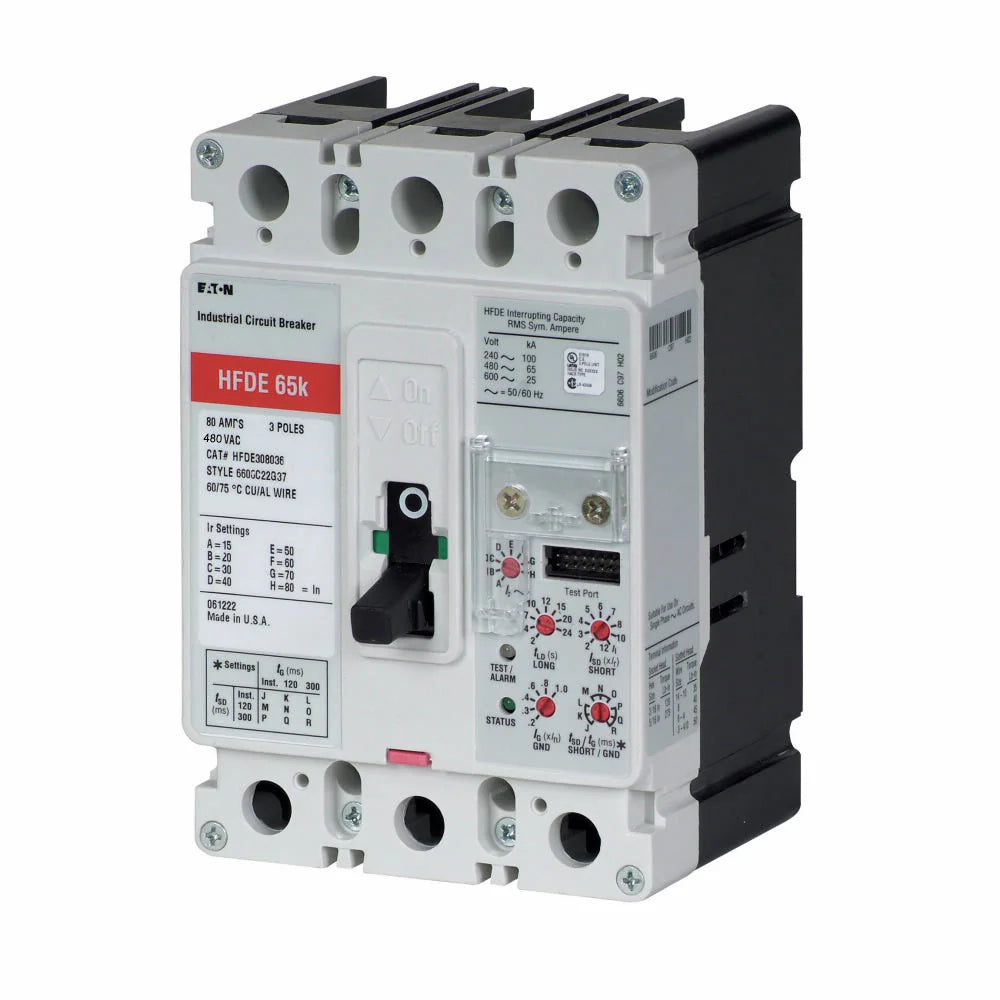

Eaton HFDE308036 Molded Case Circuit Breaker – 80A – 3-Pole / 3-Phase – 480V – 65kA @ 480V – Bolt-On – Series C HFDE

The Eaton HFDE308036 is an 80A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer / Westinghouse Series C Type HFDE. It features solid-state electronic protection with Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG) trip functions.

The breaker is rated for 480V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on mounting configuration, is supplied as a complete breaker, and includes load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: HFDE
• Catalog No.: HFDE308036
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 480V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Functions: Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG)
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Terminal Type: Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFDE308036
• Catalog Number: HFDE308036
• Model: HFDE308036
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HFDE
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 80A
• Trip Configuration: LSIG
• UPC:786685112695

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type HFDE electrical distribution equipment that accepts HFDE Series molded case circuit breakers. The HFDE308036 provides 80A, 3-pole solid-state electronic protection for compatible 480V electrical distribution applications.

The breaker uses a bolt-on mounting configuration, includes load-side lug terminals, and provides LSIG protection. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, trip-unit requirements, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• Series C HFDE
• 80A Rated
• 3-Pole / 3-Phase
• 480V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• LSIG Trip Functions
• Bolt-On Mounting
• Complete Breaker
• Load-Side Lug Terminals
