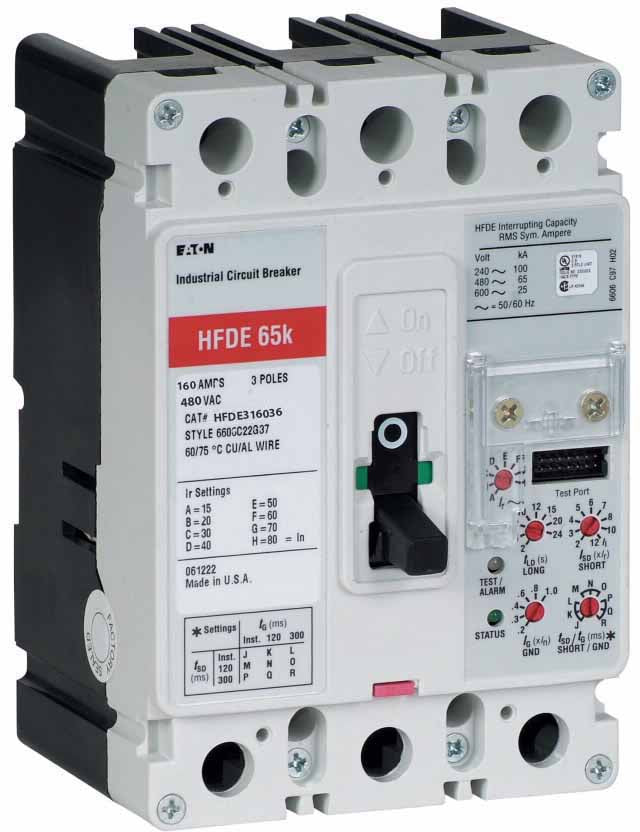

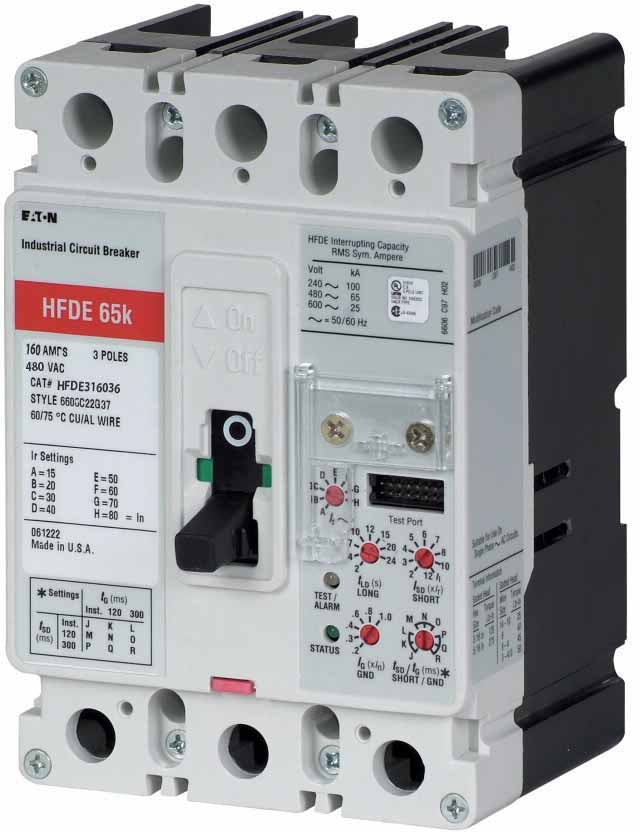

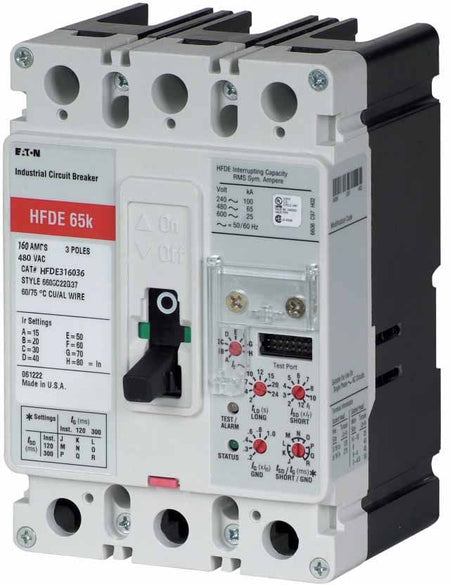

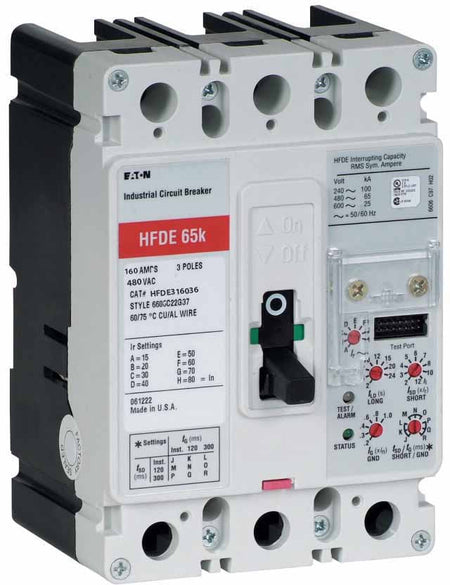

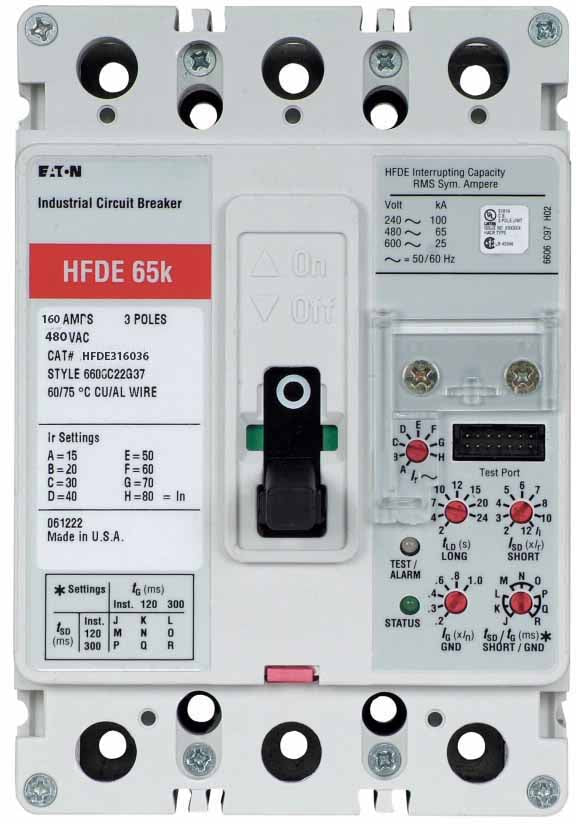

Eaton HFDE316036 160 Amp Electronic Molded Case Circuit Breaker – 3 Pole – 65 kA@480 V AC – Digitrip 310 RMS LSIG – Load-Side – Series C

The Eaton HFDE316036 is a 160 Amp, 3-pole electronic molded case circuit breaker from the Eaton Series C, Type HFDE, F-Frame product range. It features a Digitrip 310 RMS electronic trip unit with LSIG protection, providing Long-Time, Short-Time, Instantaneous, and Ground-Fault functions. The breaker has interrupting ratings of 100 kA at 240 V AC and 65 kA at 480 V AC. It is designed for load-side connections and operates at 50/60 Hz. This model is not UL rated.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Electronic Molded Case Circuit Breaker
• Series: Series C
• Type: HFDE
• Frame: F-Frame
• Catalog Number / MPN: HFDE316036
• Assembly: Complete Breaker
• Primary Rating: 160 Amp
• Poles / Configuration: 3 Pole
• Interrupting Rating: 100 kA @ 240 V AC; 65 kA @ 480 V AC
• Trip Type: Electronic LSIG
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground-Fault
• Connection: Load-Side
• Frequency: 50/60 Hz
• UL Rating: Not UL Rated

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: HFDE316036
• Series: Series C
• Type: HFDE
• Frame: F-Frame
• Current Rating: 160 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG
• UPC:786685112718

Compatibility

The Eaton HFDE316036 is intended for compatible Eaton Series C F-Frame electrical distribution equipment and applications requiring electronic LSIG protection.
