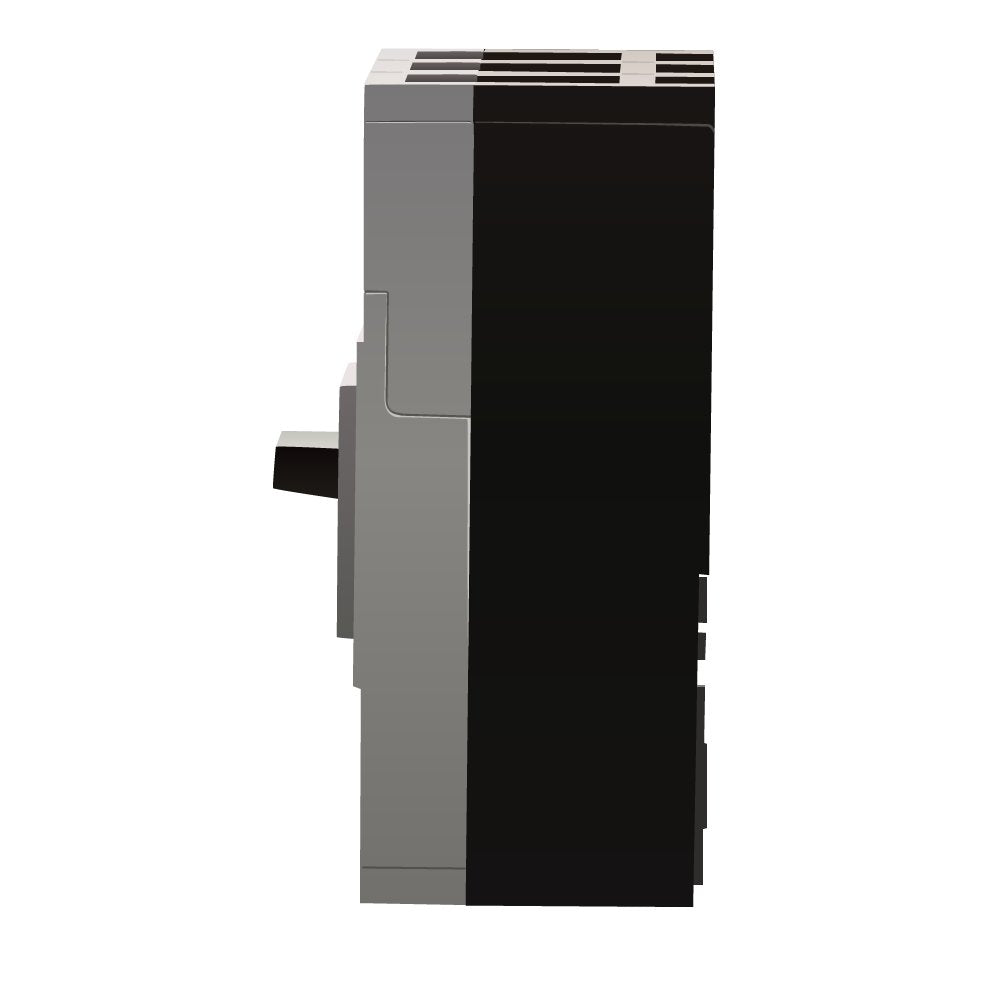

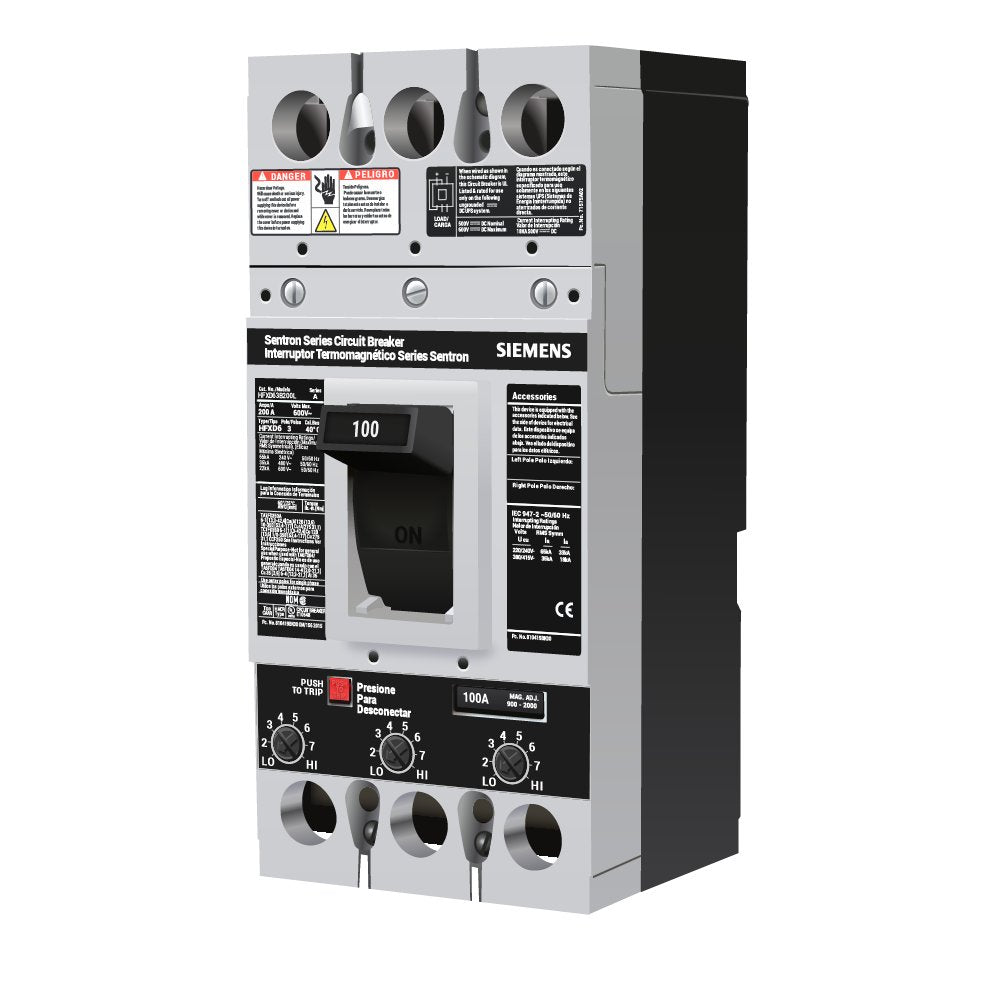

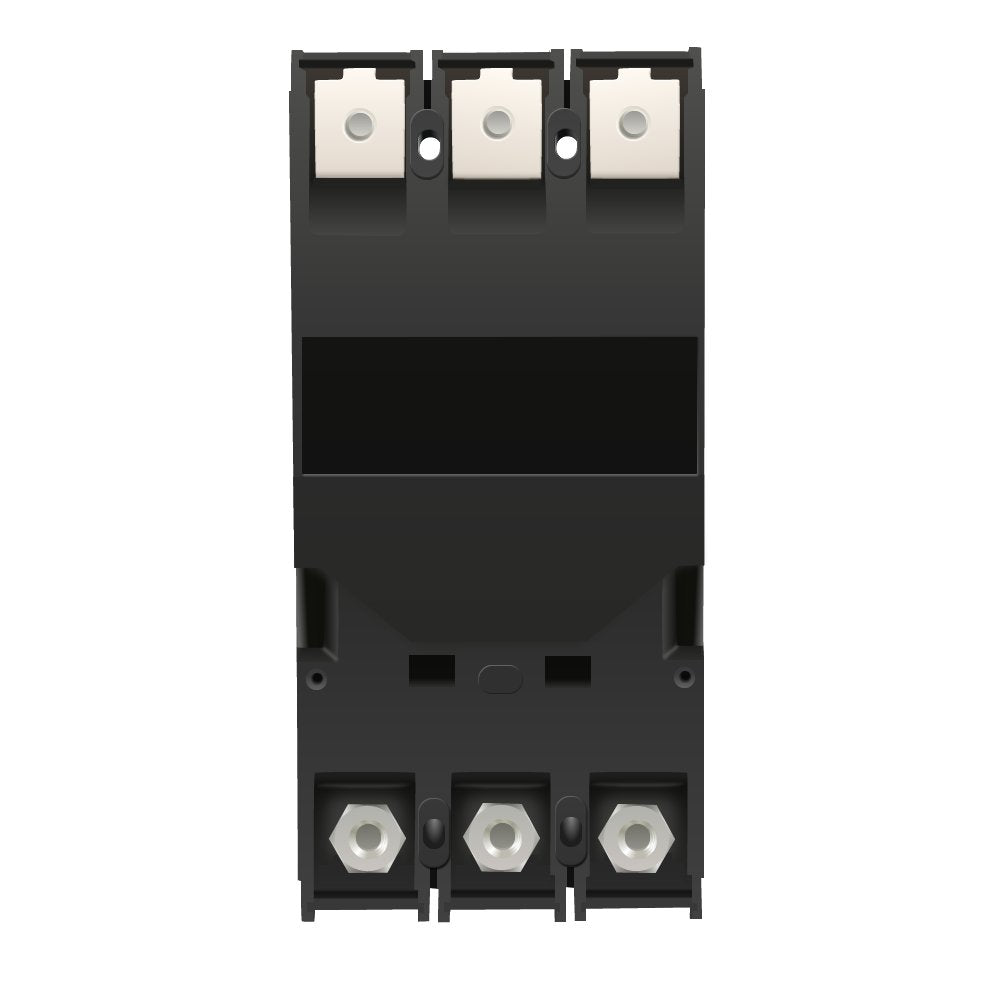

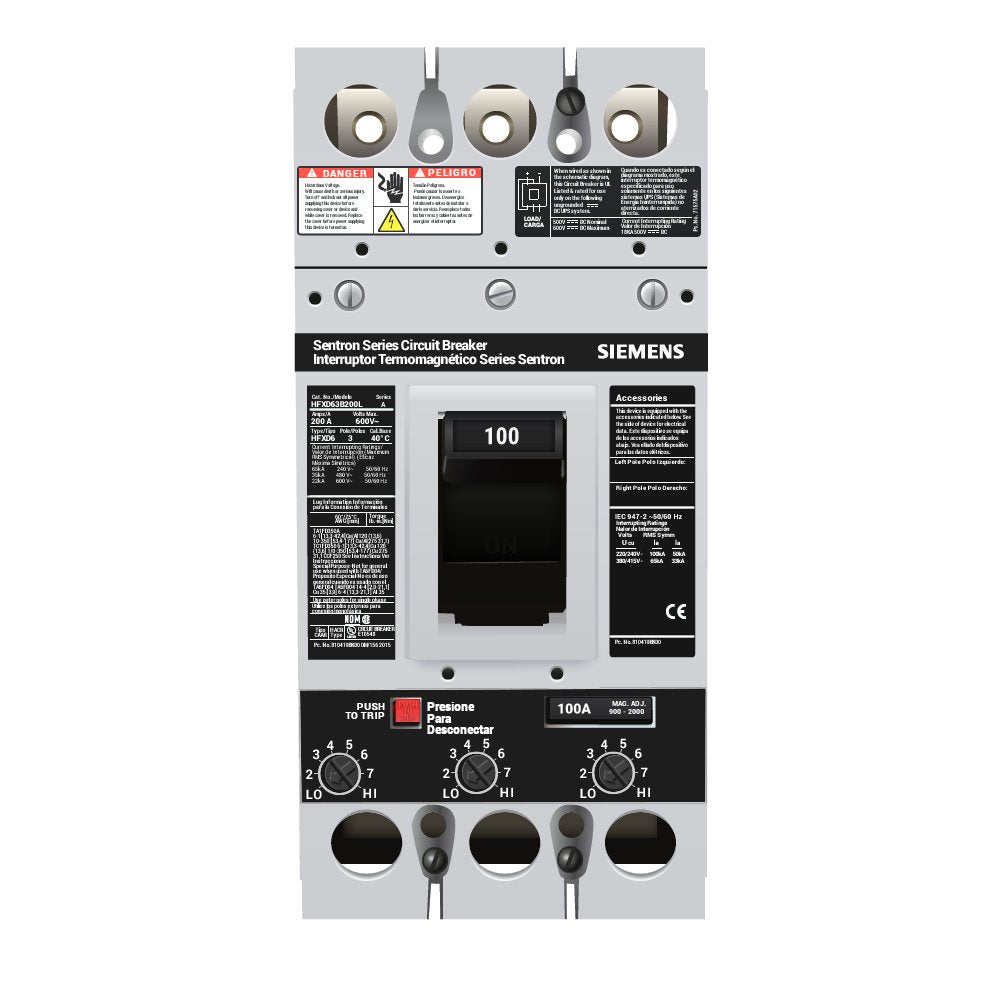

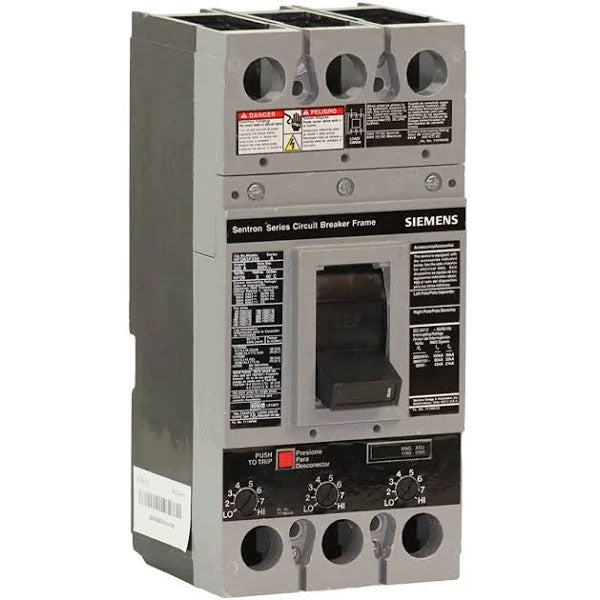

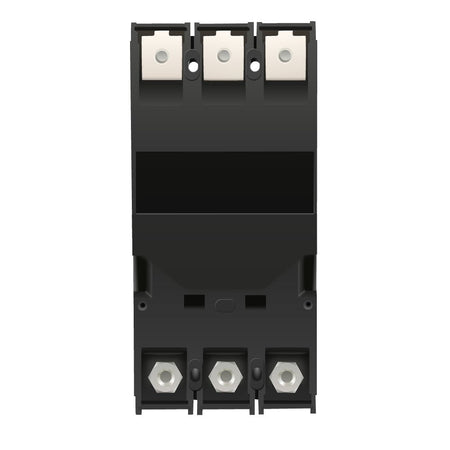

Siemens HFXD63B100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Sentron HFXD Series

The Siemens HFXD63B100 is a 100A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Type HFXD Series. It features thermal-magnetic protection with a non-interchangeable trip unit for compatible electrical distribution applications.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on mounting configuration and is supplied as a complete breaker with a non-interchangeable trip unit and load-side lug terminals. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: HFXD
• Type: HFXD
• Catalog No.: HFXD63B100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFXD63B100
• Catalog Number: HFXD63B100
• Model: HFXD63B100
• Product Family: Siemens Sentron Circuit Breakers
• Series: HFXD
• Type: HFXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Configuration: Non-Interchangeable Trip Unit
• UPC:783643318458

Compatibility:

Designed for use with compatible Siemens Sentron HFXD Series electrical distribution equipment that accepts HFXD Series bolt-on molded case circuit breakers. The HFXD63B100 provides 100A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a non-interchangeable trip unit and is supplied complete with load-side lug terminals.

Certifications:

• Siemens Sentron HFXD Series
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Bolt-On Mounting
• Complete Breaker
• Load-Side Lug Terminals
• 40°C Rated
