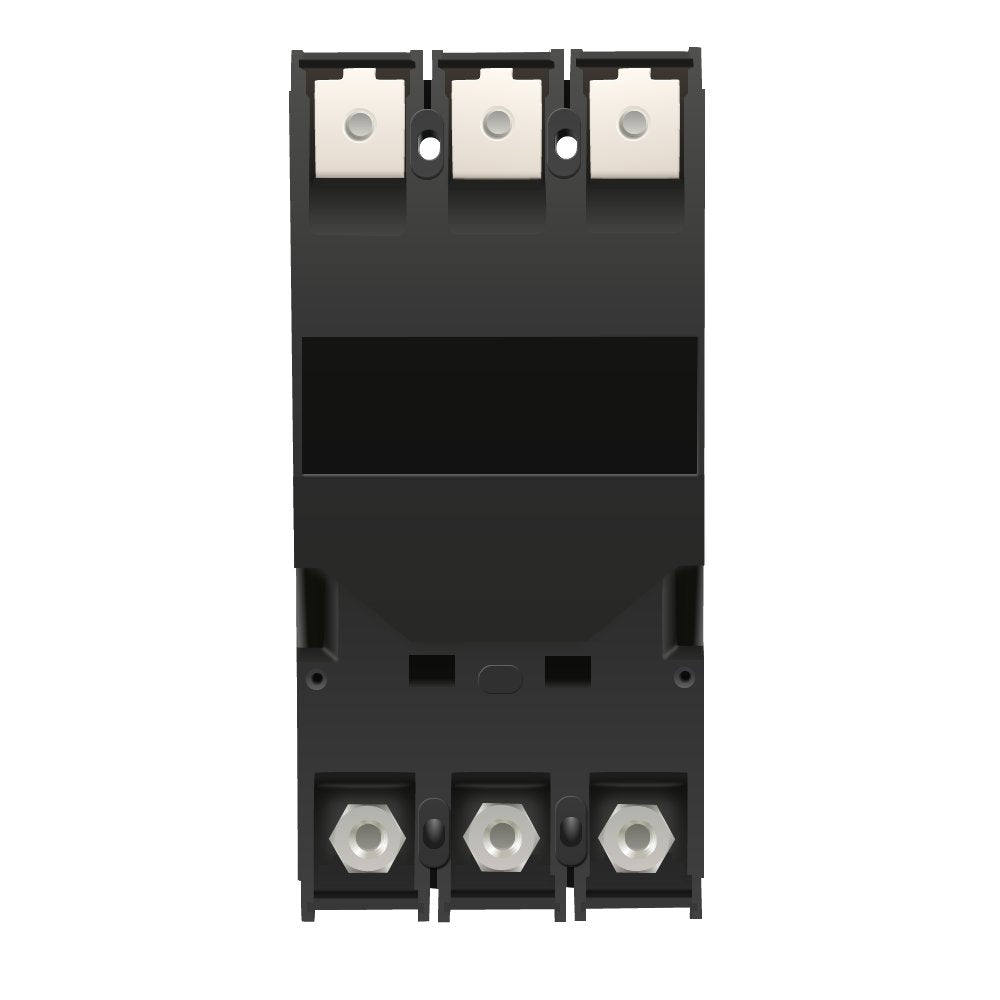

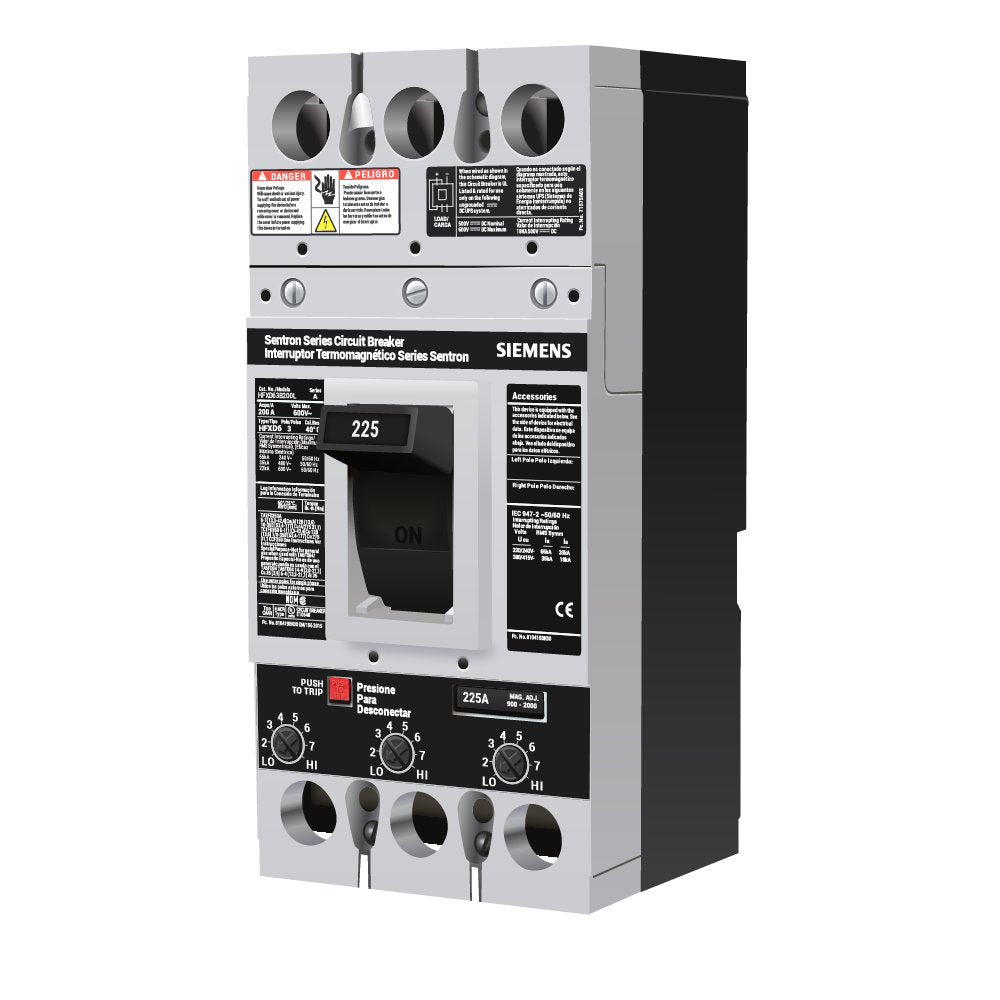

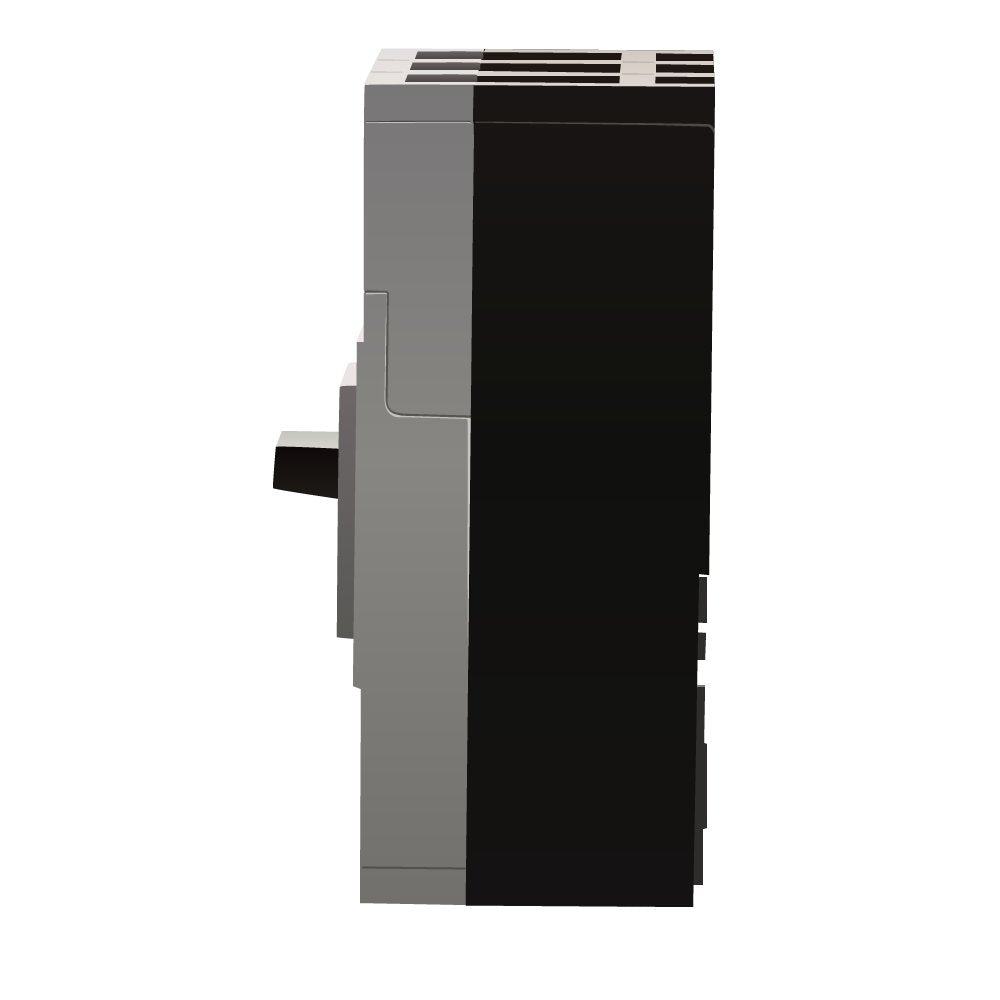

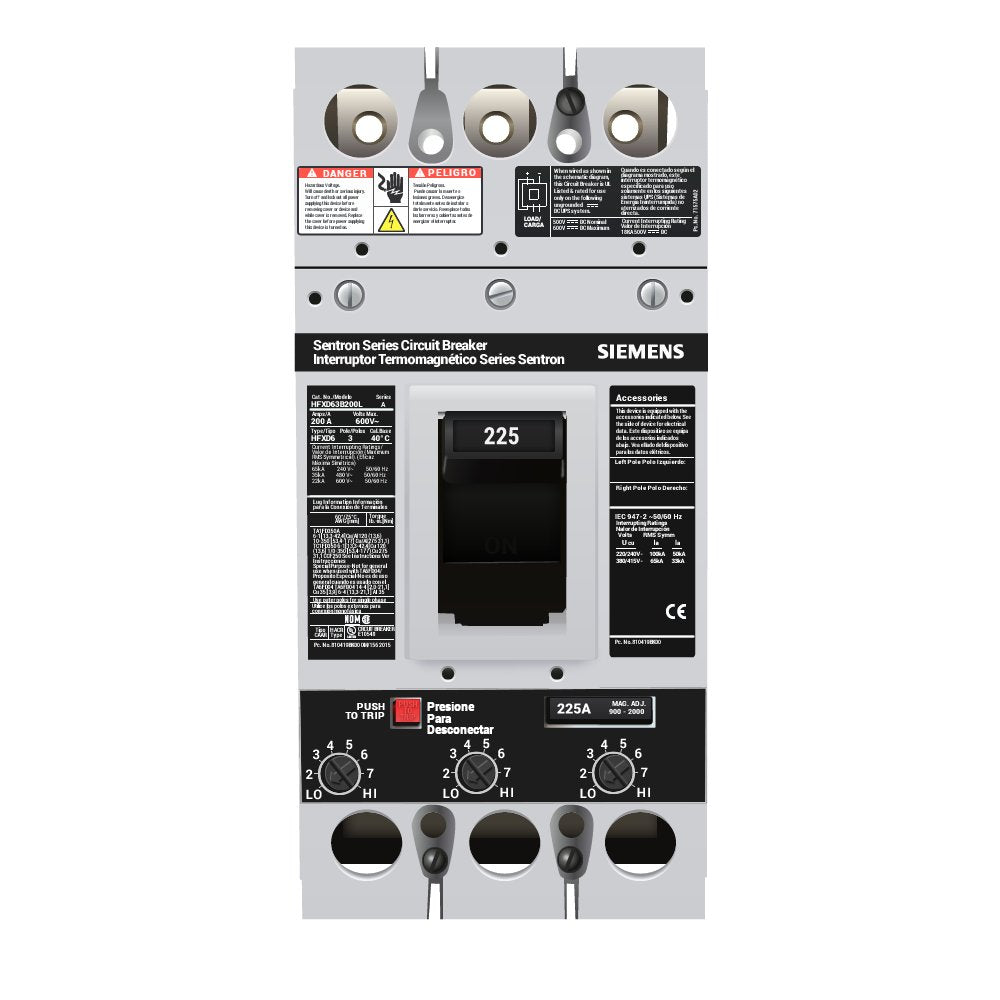

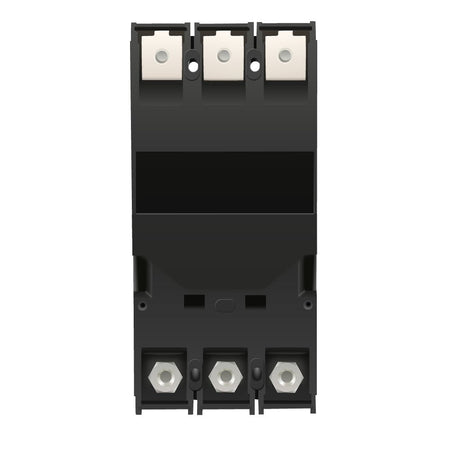

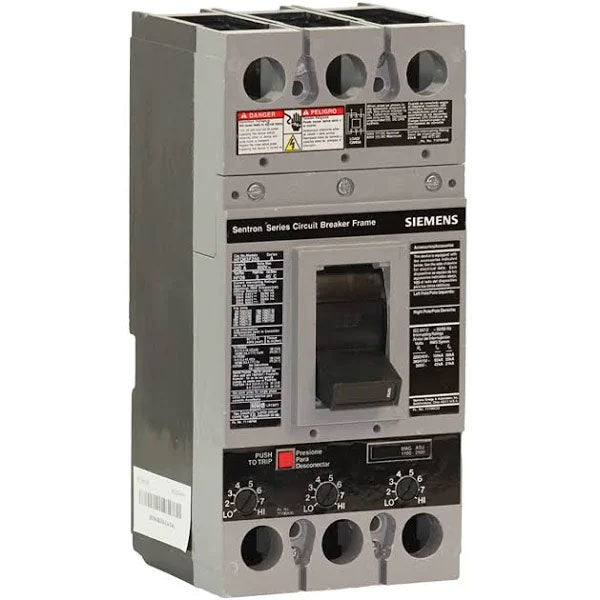

Siemens HFXD63B225 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Sentron Series HFXD

The Siemens HFXD63B225 is a 225A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Series Type HFXD. It features thermal-magnetic protection with a non-interchangeable trip unit and is designed for compatible electrical distribution applications.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on connection, is rated for 40°C operation, and includes load-side lug terminals.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: HFXD
• Type: HFXD
• Catalog No.: HFXD63B225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Mounting / Connection: Bolt-On
• Temperature Rating: 40°C
• Terminal Type: Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFXD63B225
• Catalog Number: HFXD63B225
• Model: HFXD63B225
• Product Family: Siemens Sentron Molded Case Circuit Breakers
• Series: HFXD
• Type: HFXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• UPC:783643318502

Compatibility:

Designed for use with compatible Siemens Sentron Series Type HFXD electrical distribution equipment that accepts the specified bolt-on molded case circuit breaker. The HFXD63B225 provides 225A, 3-pole thermal-magnetic protection for compatible 600V applications.

The breaker includes a non-interchangeable trip unit and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, mounting requirements, and installation specifications before installation.

Certifications:

• Sentron Series
• HFXD Series
• 225A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Bolt-On Connection
• Load-Side Lug Terminals
• 40°C Rated
