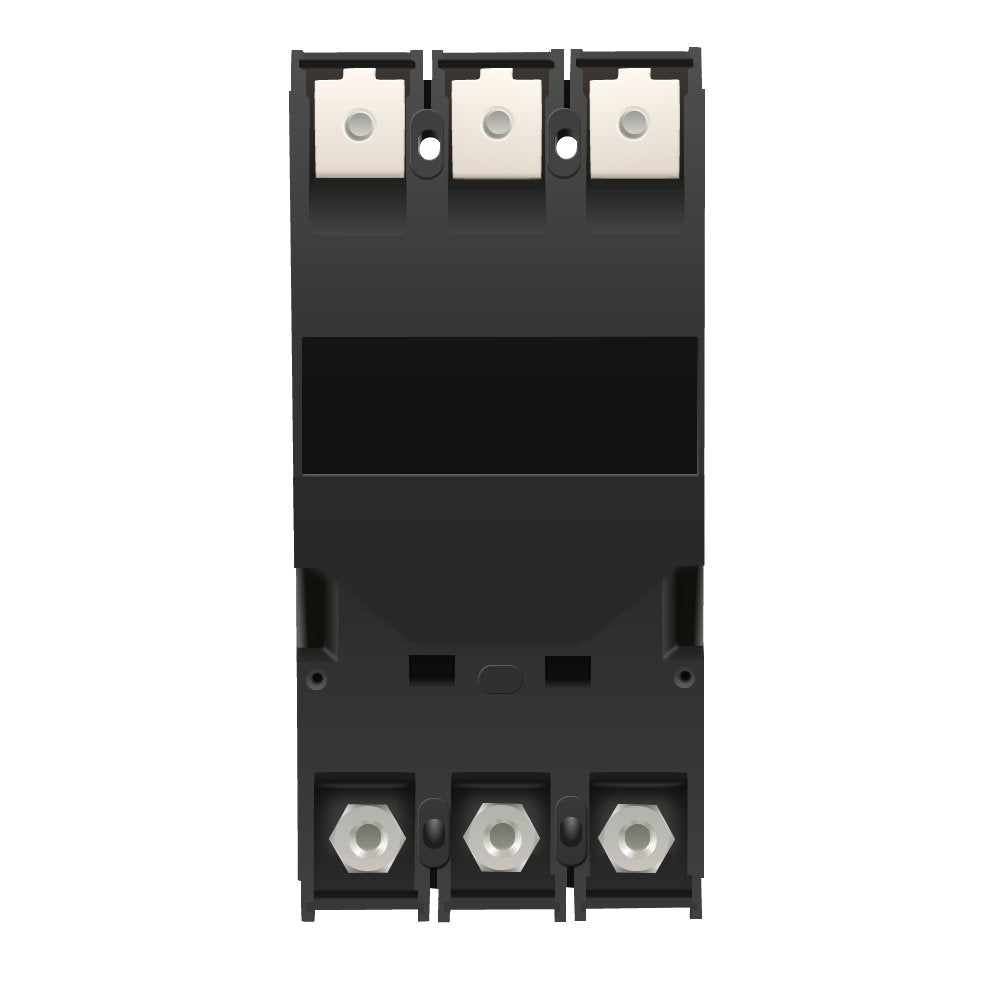

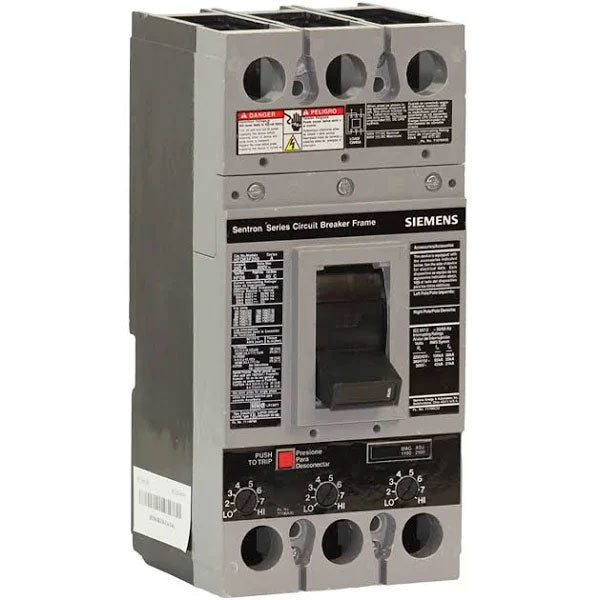

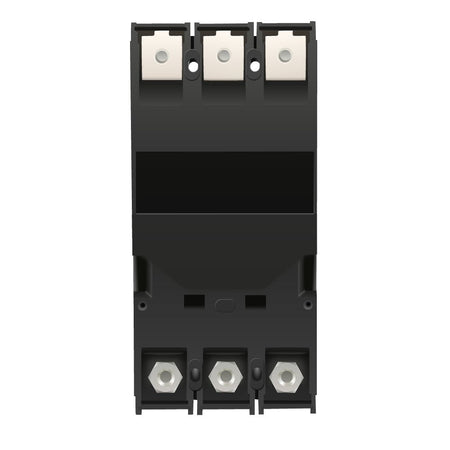

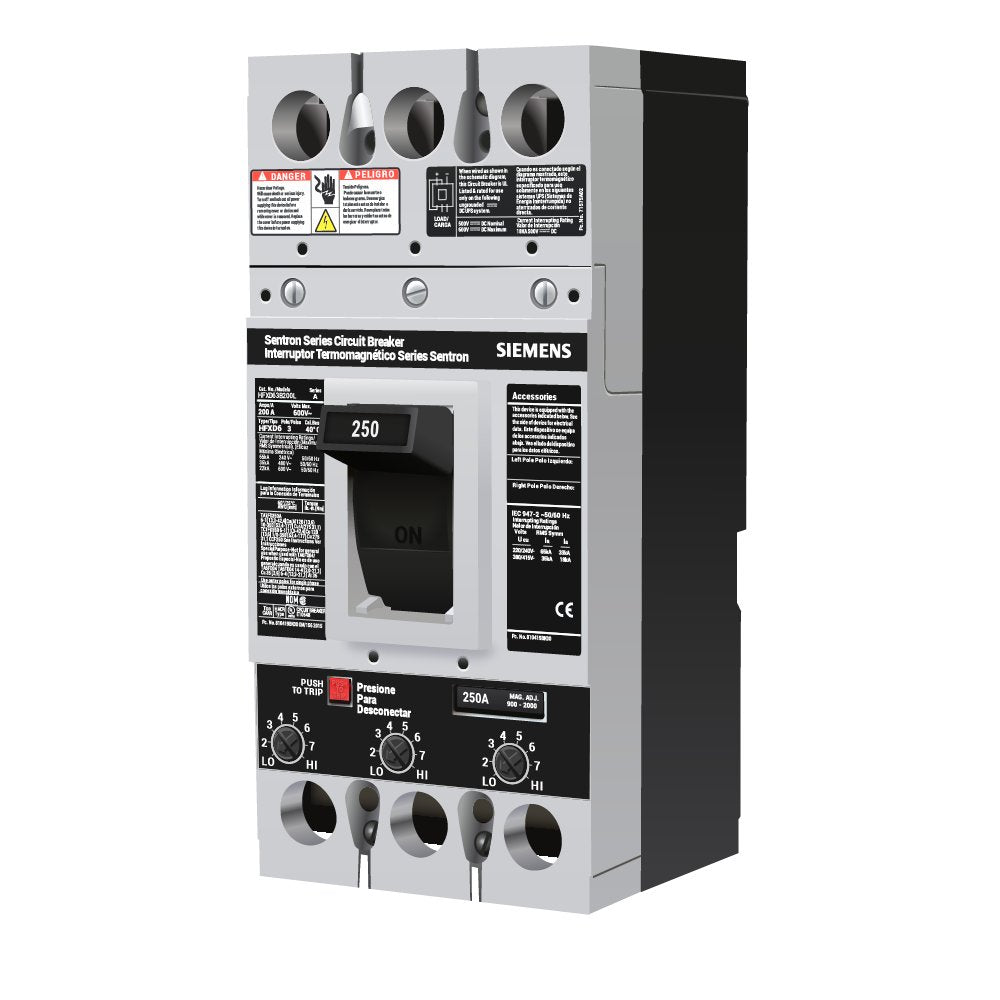

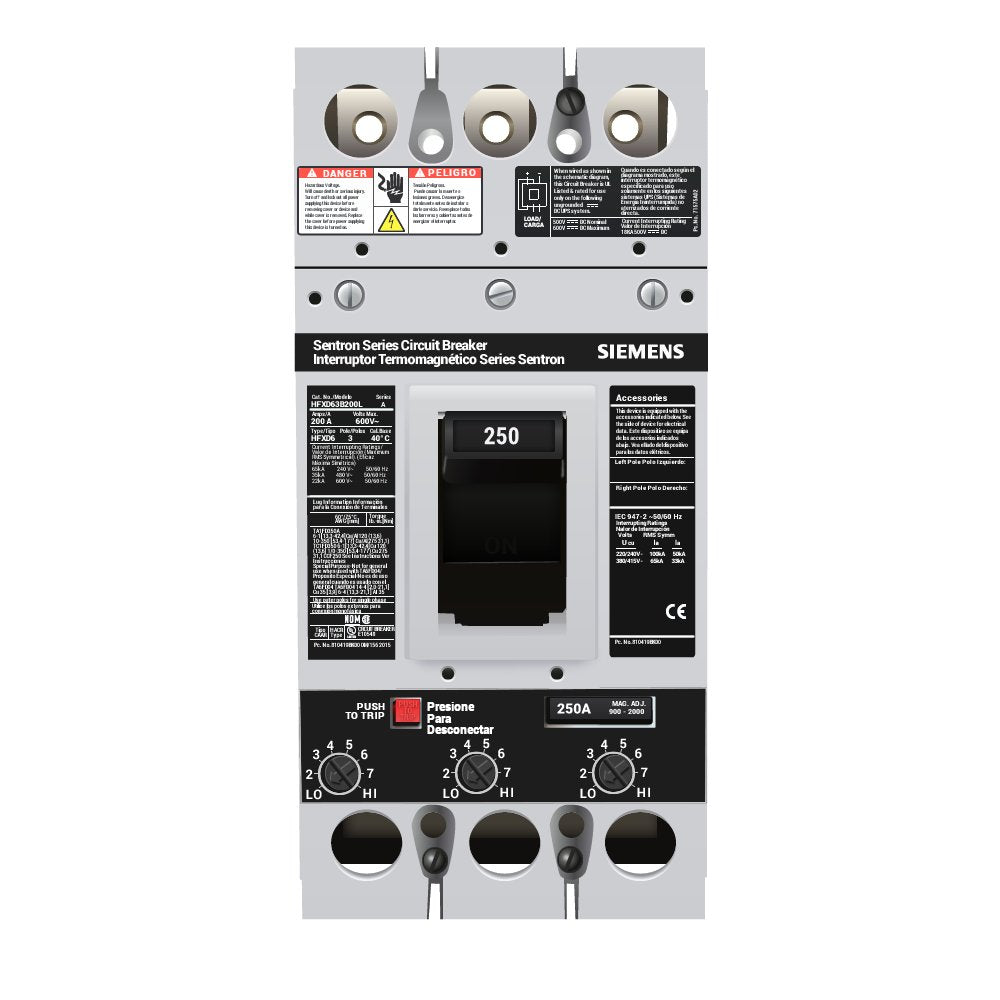

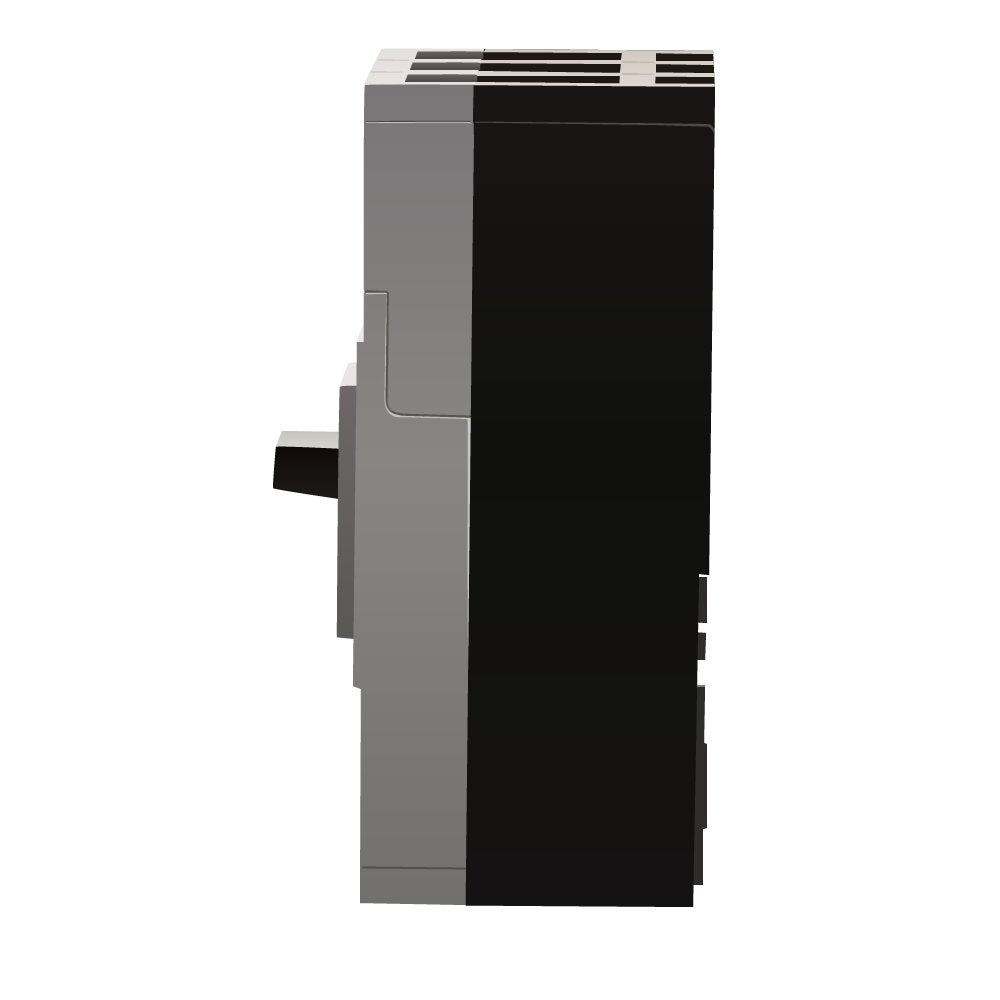

Siemens HFXD63B250 250 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Bolt-On – SENTRON Series

Product Description - HFXD63B250 - Siemens Breakers Molded Case Circuit Breakers

The Siemens HFXD63B250 is a 250 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type HFXD. It is rated for 600 V with a 65 kA interrupting capacity at 480 V and features a thermal-magnetic trip mechanism with a non-interchangeable trip unit. The breaker is designed for 40°C applications, bolt-on mounting, and includes load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: HFXD
• Catalog Number / MPN: HFXD63B250
• Primary Rating: 250 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: HFXD63B250
• Series: SENTRON
• Type: HFXD
• Current Rating: 250 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Terminals: Load-Side Lug Terminals
• UPC:783643318519

Compatibility

The Siemens HFXD63B250 is designed for compatible Siemens SENTRON Type HFXD molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.

Siemens, Sentron Series, type HFXD, 3P, 3PH, 250A, 600V, 65kA@480V, high interrupting capacity, 40 degree C, bolt-on, complete with non-interchangeable trip unit and load side lug terminals, thermal magnetic molded case circuit breakers.
