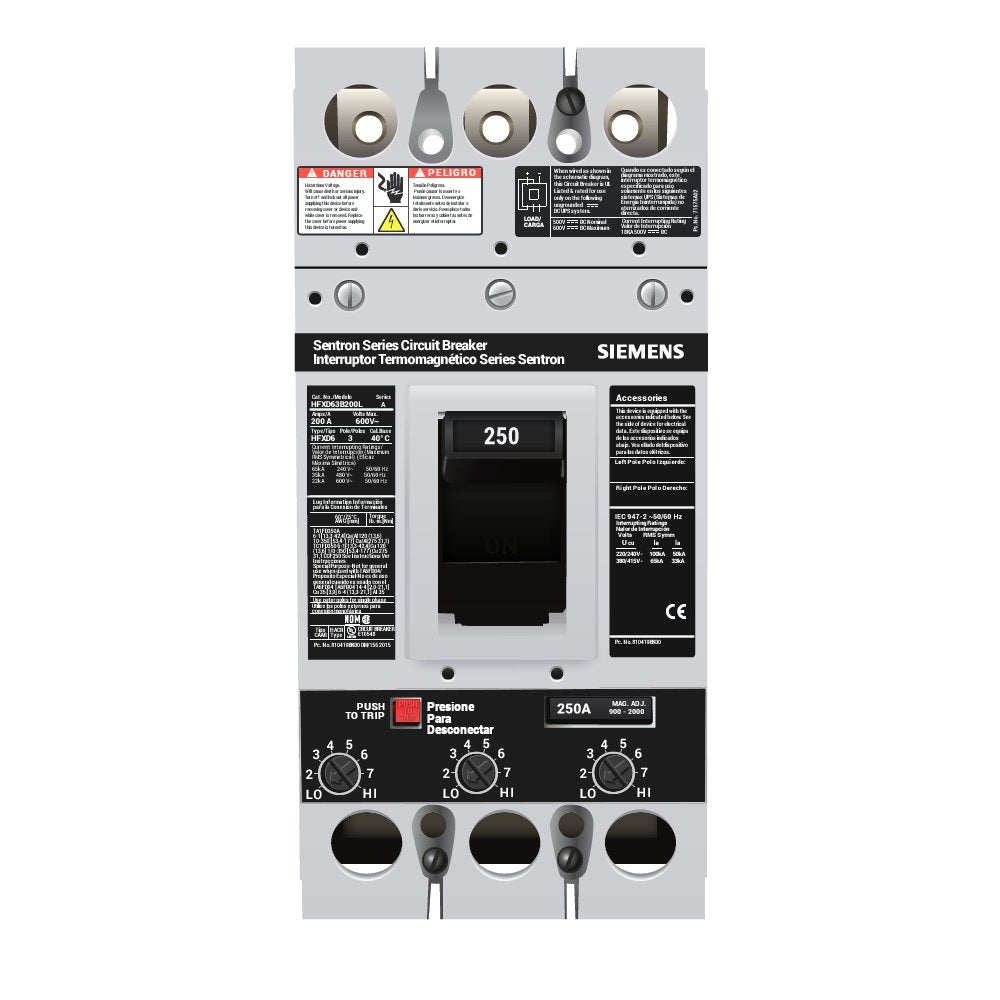

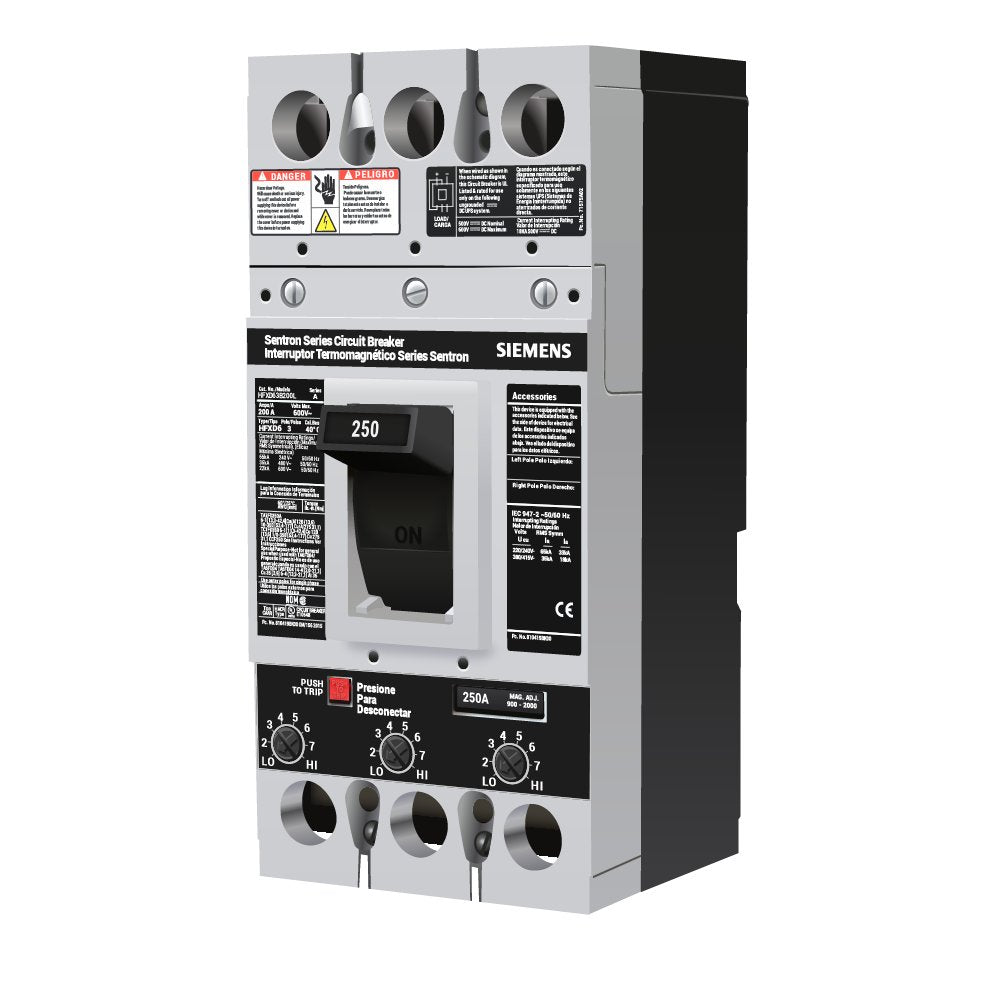

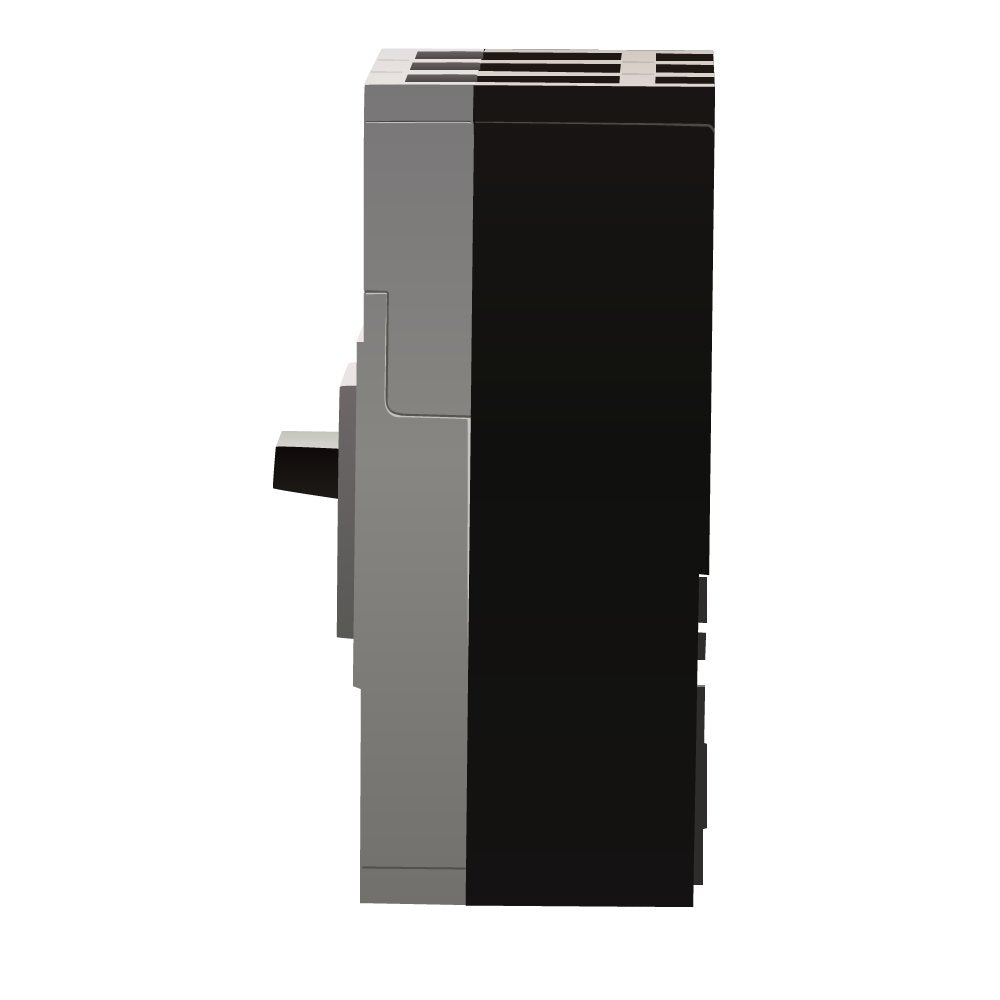

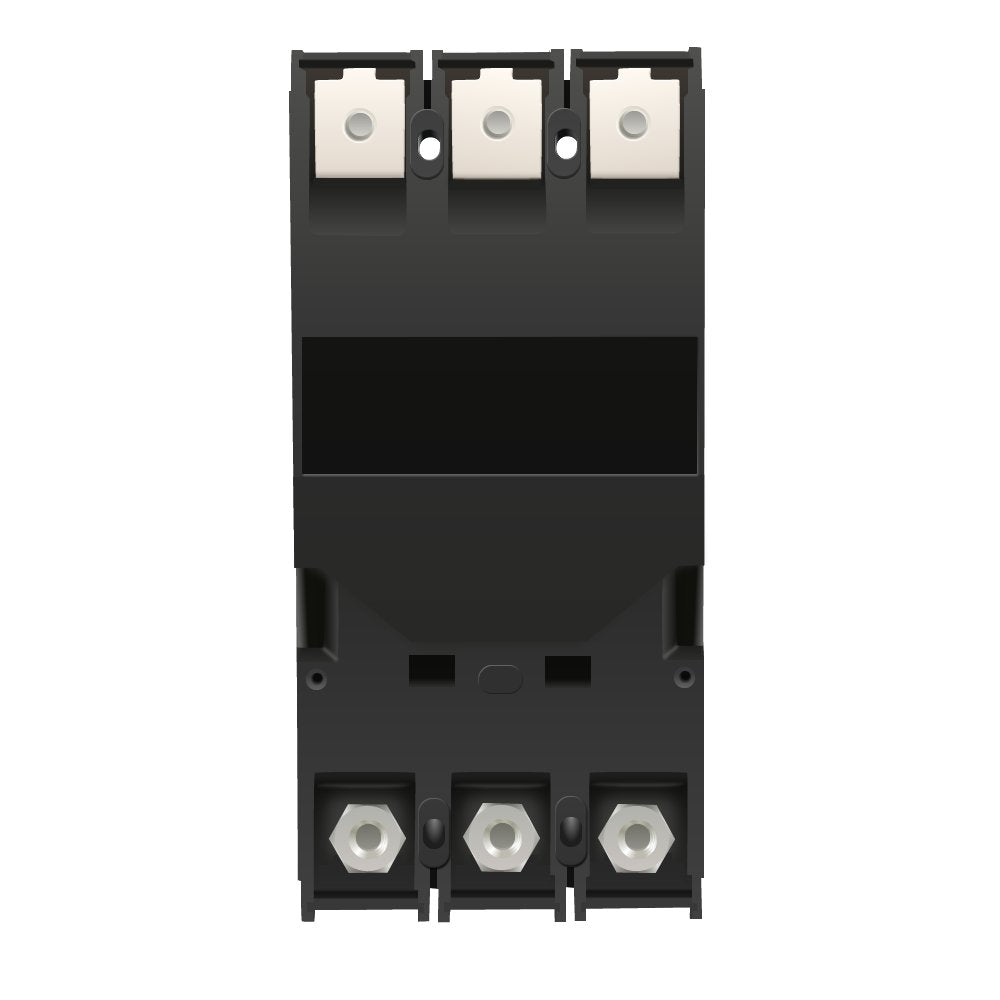

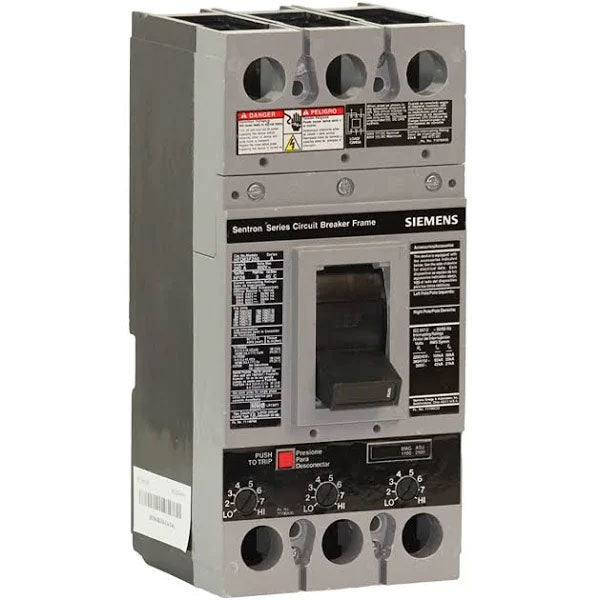

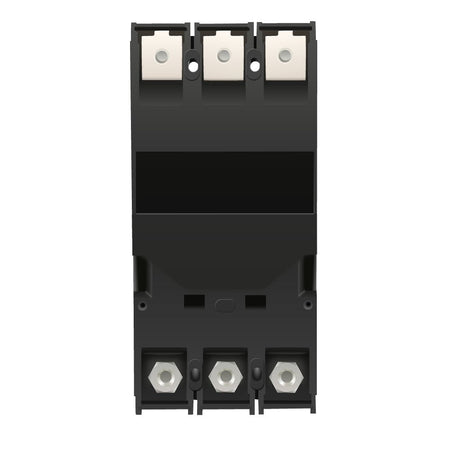

Siemens HFXD63S250A Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Sentron HFXD Series

The Siemens HFXD63S250A is a 250A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Series Type HFXD. It is designed for compatible electrical distribution and switching applications.

The HFXD63S250A is rated for 600V and provides a 65kA interrupting rating at 480V. It features a bolt-on mounting configuration, is supplied without lugs, and is identified as having no overcurrent protection. It is a non-automatic switch rather than an overcurrent-protective circuit breaker.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker / Non-Automatic Switch
• Product Family: Sentron
• Series: HFXD
• Type: HFXD
• Catalog No.: HFXD63S250A
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Overcurrent Protection: None
• Switch Type: Non-Automatic
• Mounting Type: Bolt-On
• Lugs: Not Included
• Application: Electrical Distribution and Switching
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HFXD63S250A
• Catalog Number: HFXD63S250A
• Model: HFXD63S250A
• Product Family: Siemens Sentron Circuit Breakers
• Series: HFXD
• Type: HFXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker / Non-Automatic Switch
• Breaker Configuration: 3-Pole, 250A
• Protection Configuration: No Overcurrent Protection
• UPC:783643106086

Compatibility:

Designed for use with compatible Siemens Sentron Series Type HFXD electrical distribution equipment that accepts HFXD Series molded case switching devices. The HFXD63S250A provides 250A, 3-pole switching for compatible 600V applications.

The device is a non-automatic switch with no overcurrent protection and is supplied without lugs. Separate overcurrent protection may therefore be required as part of the overall electrical system. Always verify the specific panelboard or electrical equipment model, approved device type, system voltage, available fault current, lug requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• Siemens Sentron HFXD Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V
• No Overcurrent Protection
• Non-Automatic Switch
• Bolt-On Mounting
• Lugs Not Included
