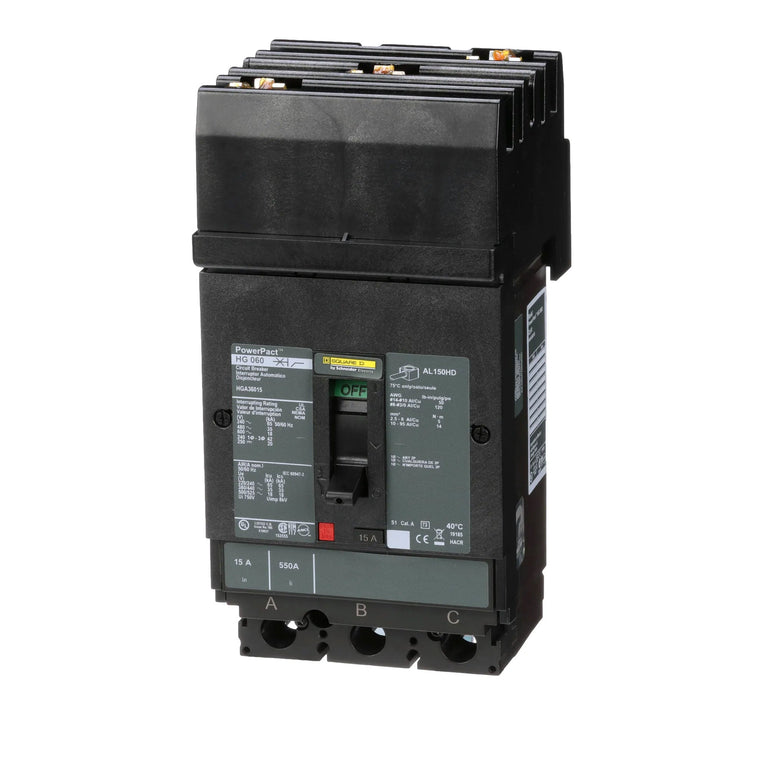

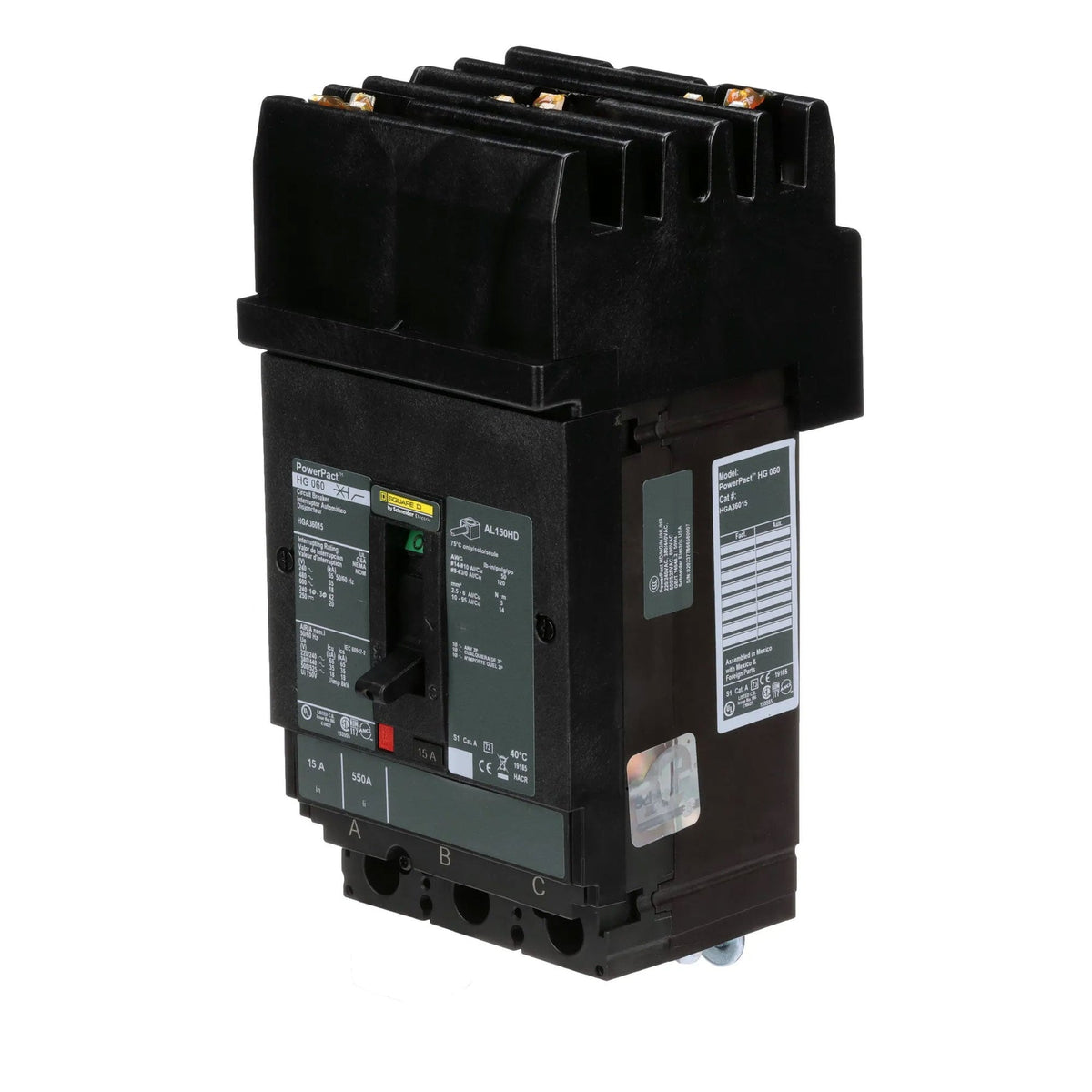

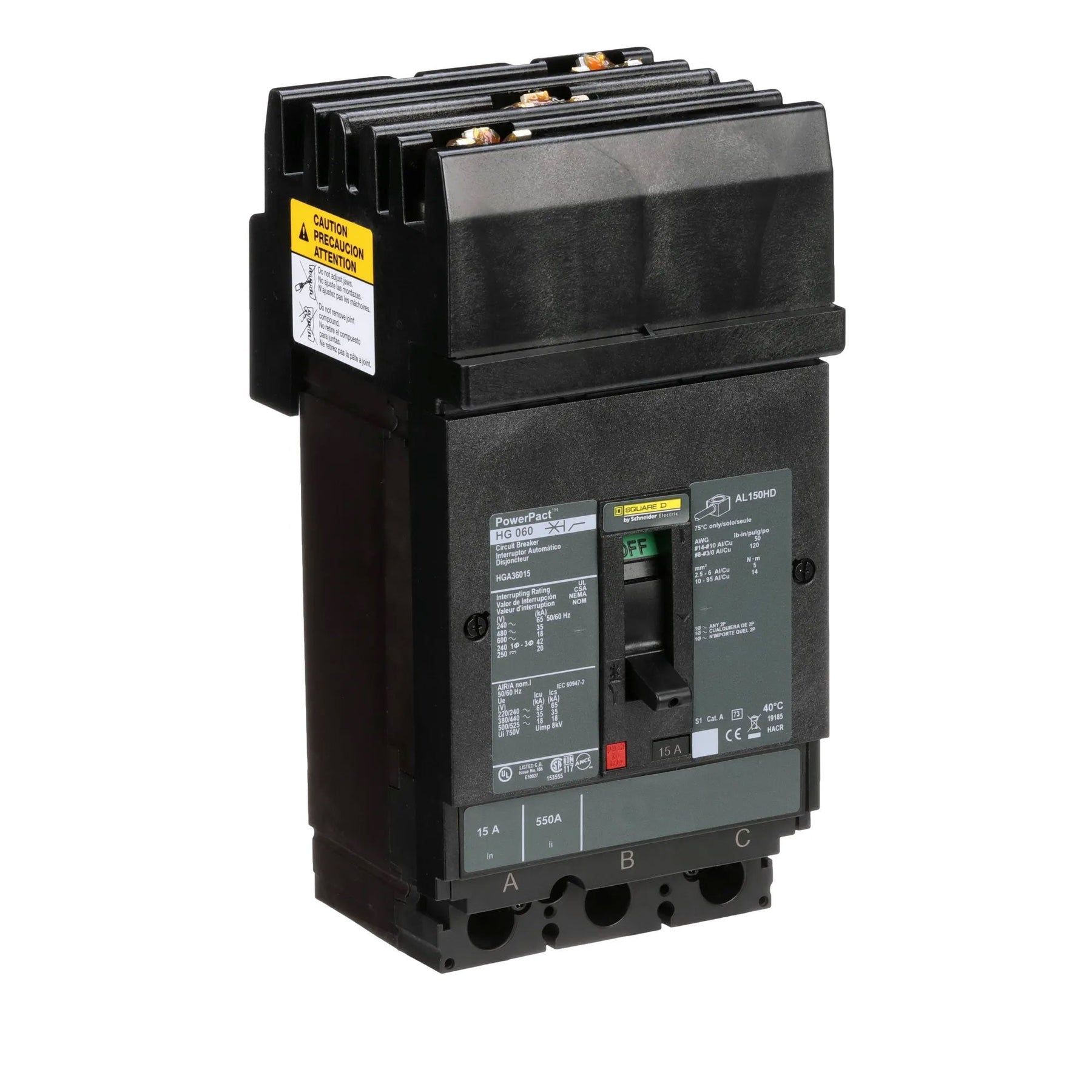

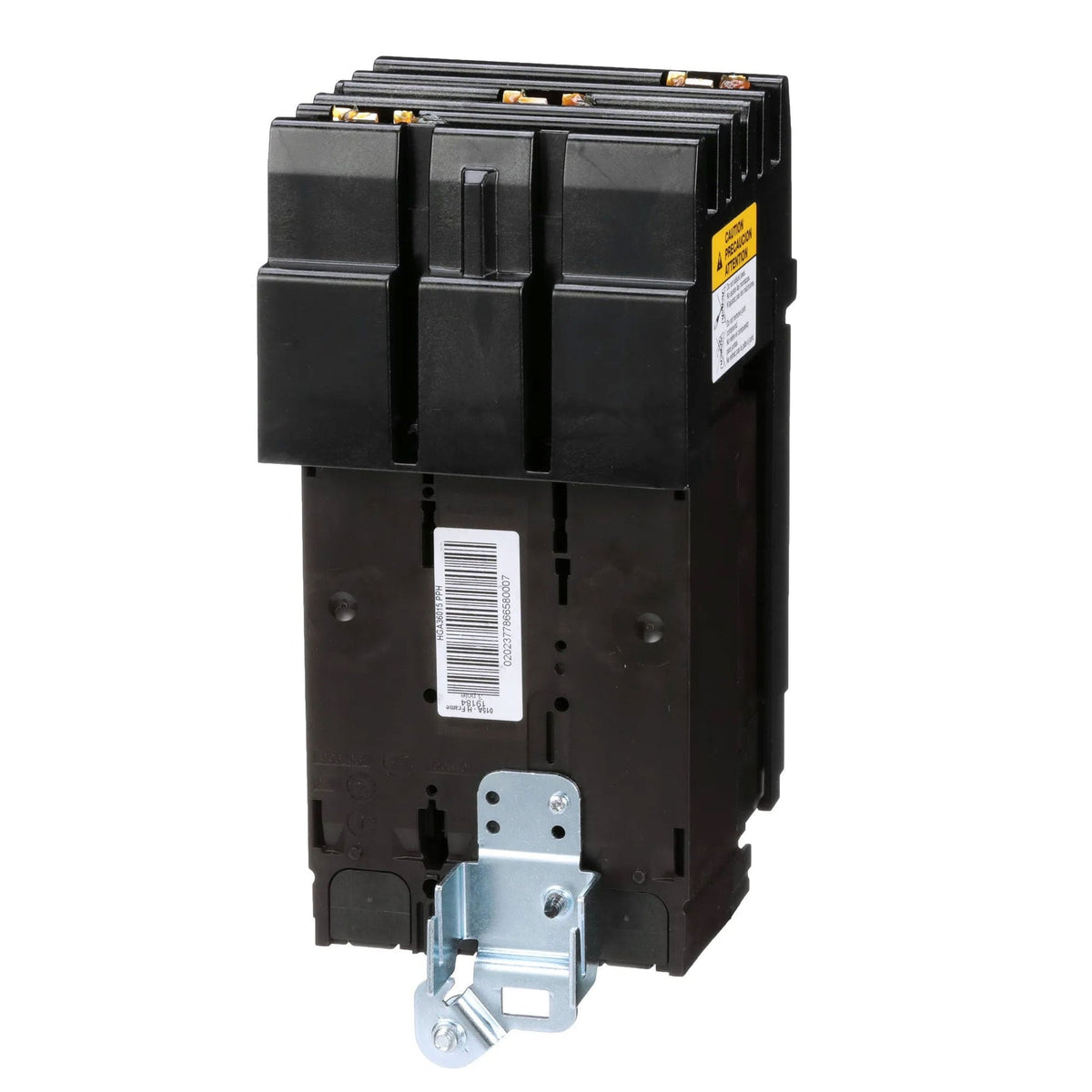

HGA36015 – Square D PowerPact H 3-Pole 15A 600V AC Molded Case Circuit Breaker, 35kA @480v

Product Description

The Square D HGA36015 is a 3‑pole, 15 Amp, 600 V AC PowerPact H molded case circuit breaker designed to protect commercial and industrial electrical systems from overloads and short circuits. This breaker features a thermal-magnetic trip with Long-Time (LI) and Instantaneous trip functions, I-Line style plug-in mounting, and a durable molded case construction.

It provides high interrupting capacity at multiple voltages: 65 kAIC @ 240 V AC, 35 kAIC @ 480 V AC, 18 kAIC @ 600 V AC, and 20 kAIC @ 250 V DC, ensuring reliable protection in various applications. The HGA36015 is UL listed and suitable for reverse-fed installations, delivering robust and safe circuit protection in demanding environments.

Key Features

• Poles: 3

• Amperage: 15 A

• Voltage: 600 V AC (also suitable for 250 V DC)

• Type: PowerPact H Molded Case Circuit Breaker

• Thermal-magnetic trip with Long-Time (LI) and Instantaneous functions

• I-Line plug-in style for secure and convenient installation

• High interrupting capacity: 65 kAIC @ 240 V AC, 35 kAIC @ 480 V AC, 18 kAIC @ 600 V AC, 20 kAIC @ 250 V DC

• UL listed and suitable for reverse-fed applications

• Molded case construction for durability and industrial use

Technical Specifications

• Manufacturer: Square D (Schneider Electric)

• Catalog Number: HGA36015

• Phase: 3-phase

• Trip Type: Thermal-Magnetic

• Connection Type: I-Line plug-in

• Frequency Rating: 50/60 Hz

• Operating Temperature: -25 °C to 70 °C (-13 °F to 158 °F)

Product Data

• UPC / GTIN: 785901795000

• Provides overload and short-circuit protection for industrial and commercial panels

• Compatible with PowerPact panelboards and switchboards

• Built to Square D PowerPact H frame standards for high performance and reliability
