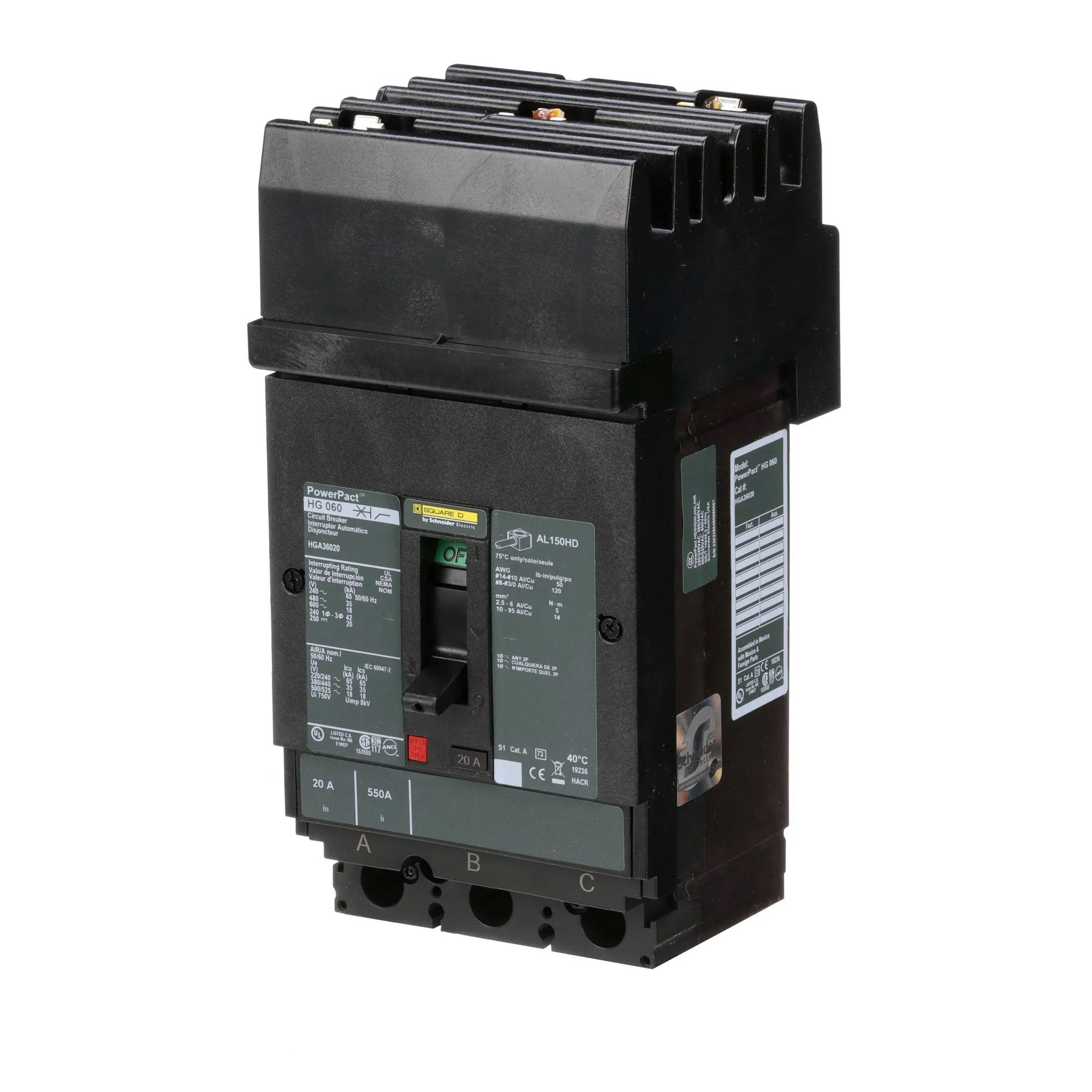

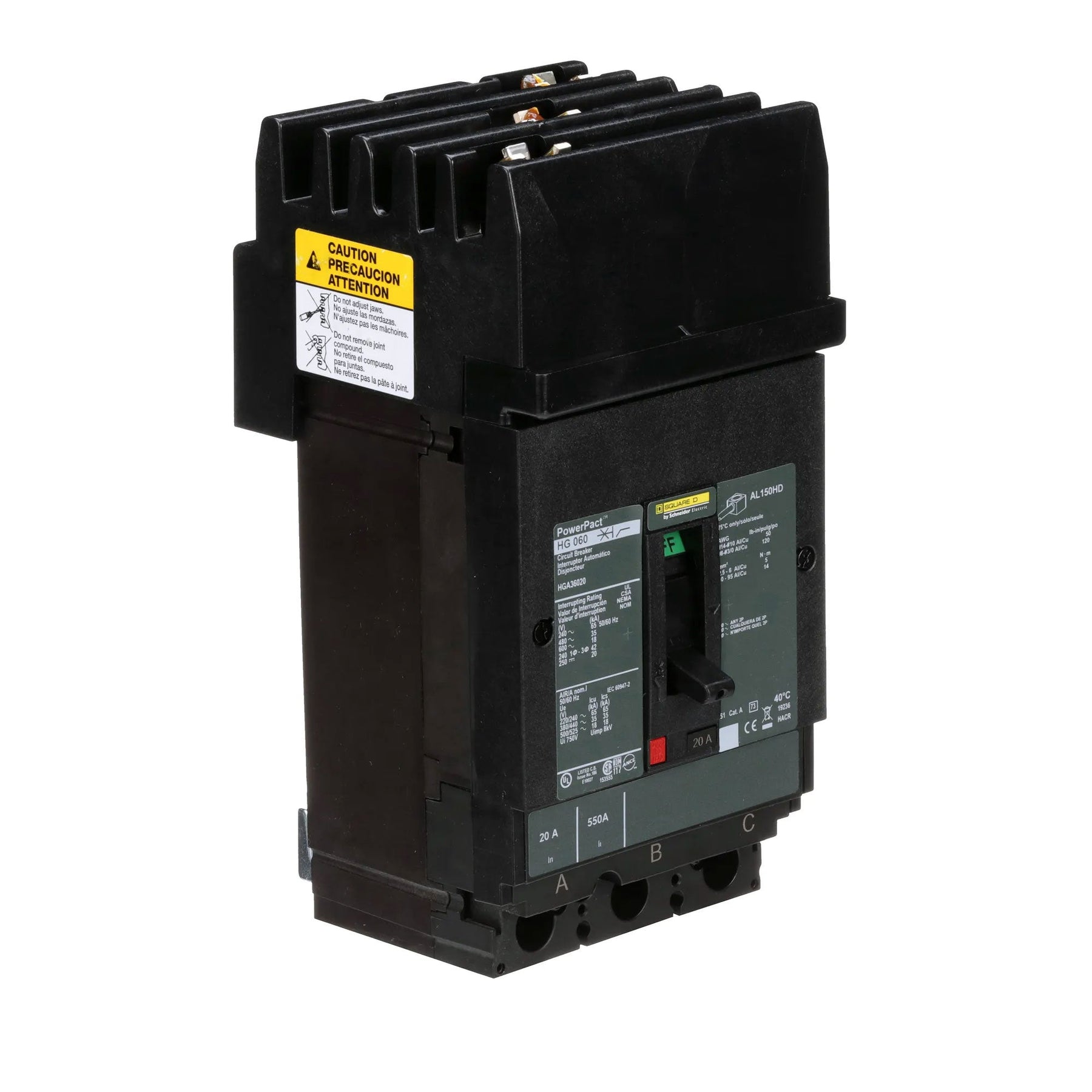

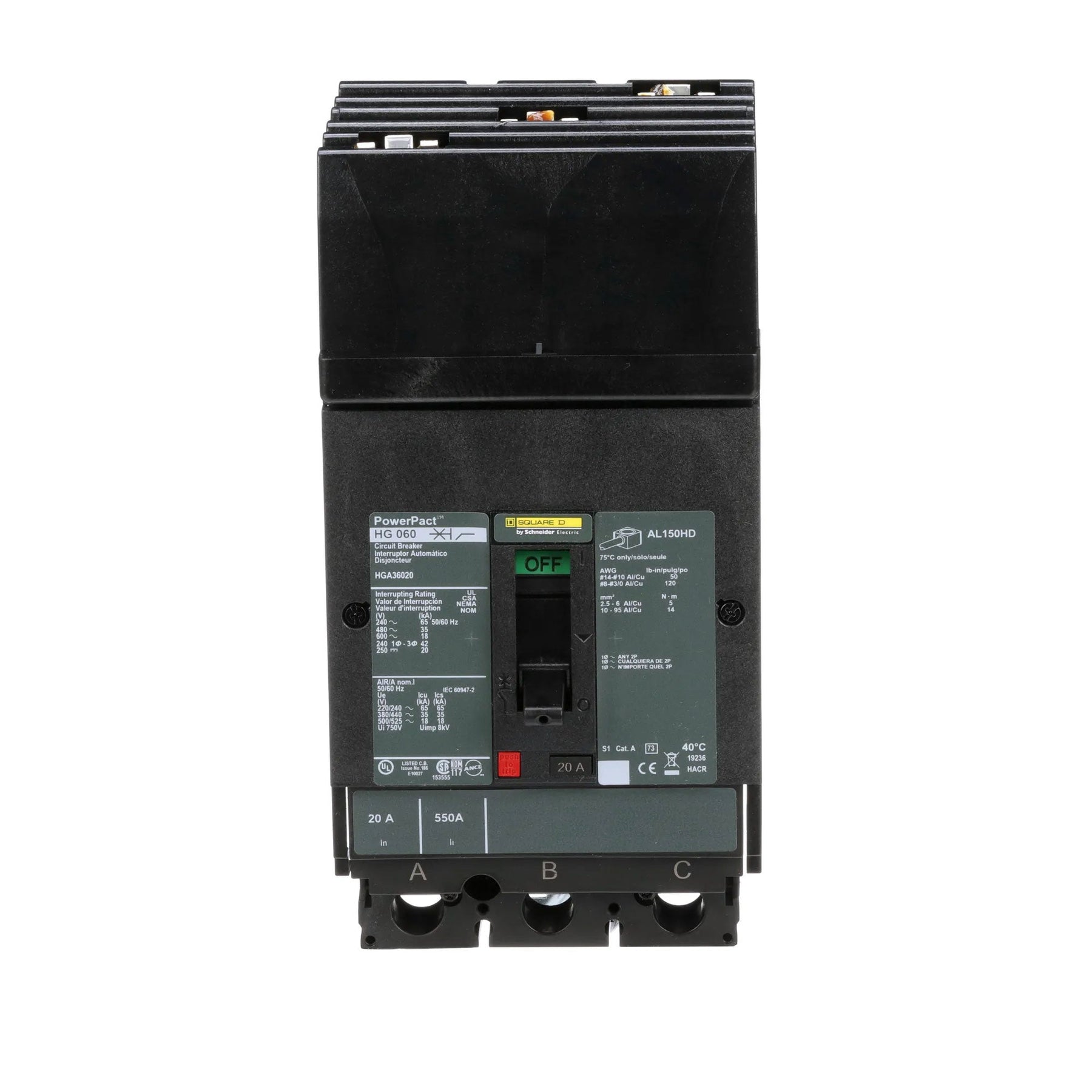

Square D HGA36020 Molded Case Circuit Breaker – 20A – 3-Pole / 3-Phase – 600V AC – 65kAIC @ 240V / 35kAIC @ 480V – I-Line Plug-In – PowerPact H Series

The Square D HGA36020 is a 20A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact H Series. It is designed for commercial and industrial electrical panels and features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The HGA36020 is rated for 600V AC and provides multiple interrupting capacities of 65kAIC at 240V AC, 35kAIC at 480V AC, and 18kAIC at 600V AC. It also has a 20kAIC interrupting rating at 250V DC. The breaker uses an I-Line plug-in connection, is UL Listed, and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: PowerPact H
• Type: HGA
• Catalog No.: HGA36020
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 65kAIC @ 240V AC; 35kAIC @ 480V AC; 18kAIC @ 600V AC
• DC Interrupting Rating: 20kAIC @ 250V DC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)

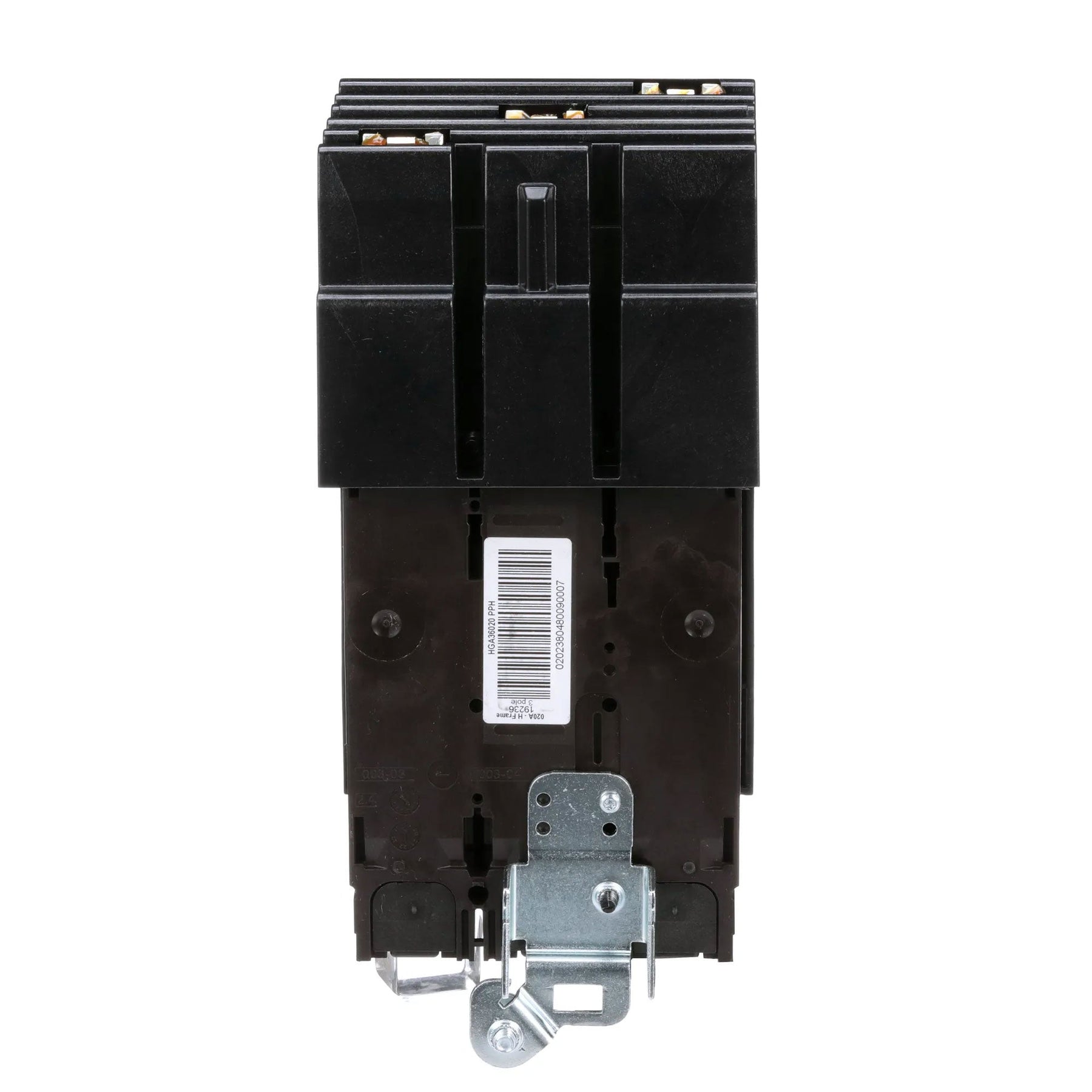

• Connection / Mounting: I-Line Plug-In
• Frequency Rating: 50/60 Hz
• Operating Temperature: -25°C to 70°C (-13°F to 158°F)
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Commercial and Industrial Electrical Panel Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGA36020
• Catalog Number: HGA36020
• Model: HGA36020
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: PowerPact H
• Type: HGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 20A
• UPC:785901601333

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact H panelboards and switchboards that accept the appropriate I-Line plug-in molded case circuit breaker. The HGA36020 provides 20A, 3-pole thermal-magnetic overcurrent protection for compatible AC and DC electrical distribution applications.

The breaker uses an I-Line plug-in connection and is suitable for reverse-fed installations.

Certifications:

• UL Listed
• 20A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 65kAIC @ 240V AC
• 35kAIC @ 480V AC
• 18kAIC @ 600V AC
• 20kAIC @ 250V DC
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Plug-In Connection
• Suitable for Reverse-Fed Applications
• PowerPact H Series
