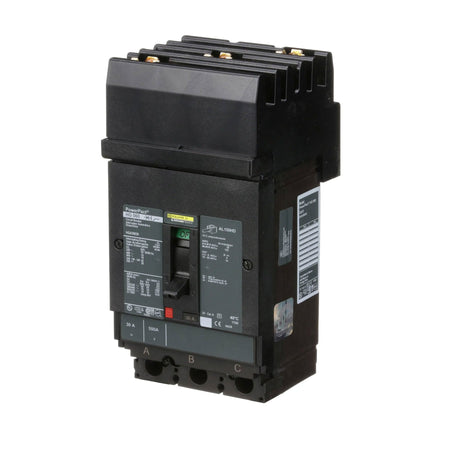

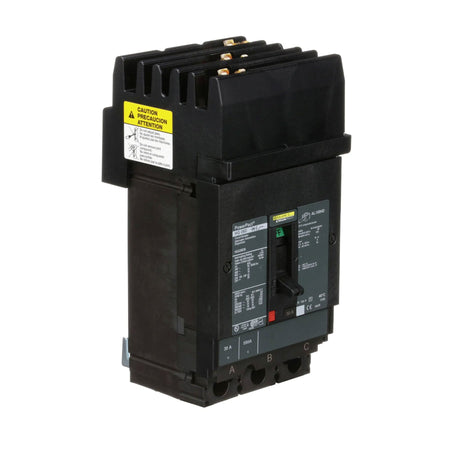

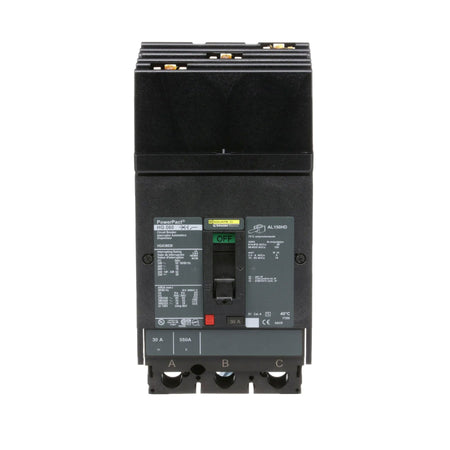

Product Title HGA36030 – Square D PowerPact H 3-Pole 30A 600V AC Molded Case Circuit Breaker, Thermal-Magnetic, 35 kAIC @ 480V
Couldn't load pickup availability
Ask an expert
Product Title
HGA36030 - Square D PowerPact H 3-Pole 30A 600V AC Molded Case Circuit Breaker, Thermal-Magnetic, 35 kAIC @ 480V
Product Description
The Square D HGA36030 is a 3-pole, 30 Amp, 600V AC PowerPact H molded case circuit breaker designed for commercial and industrial electrical panels. This breaker features a thermal-magnetic trip with Long-Time (LI) and Instantaneous functions, I-Line style plug-in mounting, and a robust molded case construction.
It provides high interrupting capacity at multiple voltages: 65 kAIC @ 240V AC, 35 kAIC @ 480V AC, 18 kAIC @ 600V AC, and 20 kAIC @ 250V DC, offering reliable protection across a variety of applications. The HGA36030 is UL listed and suitable for reverse-fed installations.
Key Features
Poles: 3
Amperage: 30A
Voltage: 600V AC (also suitable for 250V DC)
Type: PowerPact H Molded Case Circuit Breaker
Thermal-magnetic trip with Long-Time (LI) and Instantaneous functions
I-Line plug-in style
High interrupting capacity at multiple voltages
UL listed and suitable for reverse-fed applications
Molded case construction
Technical Specifications
Manufacturer: Square D (Schneider Electric)
Catalog Number: HGA36030
Phase: 3-phase
Trip Type: Thermal-Magnetic
Connection Type: I-Line plug-in
Frequency Rating: 50/60 Hz
Operating Temperature: -25 C to 70 C (-13 F to 158 F)
Product Data
UPC / GTIN: 785901795018
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating I-Line Plug-In - 30 Amp - 3 Pole - 600 Volt
