HGA36040 - Square D PowerPact H 3-Pole 40A 600V AC Molded Case Circuit Breaker, Thermal-Magnetic, 35 kAIC @ 480V

Product Title

HGA36040 - Square D PowerPact H 3-Pole 40A 600V AC Molded Case Circuit Breaker, Thermal-Magnetic, 35 kAIC @ 480V

Product Description

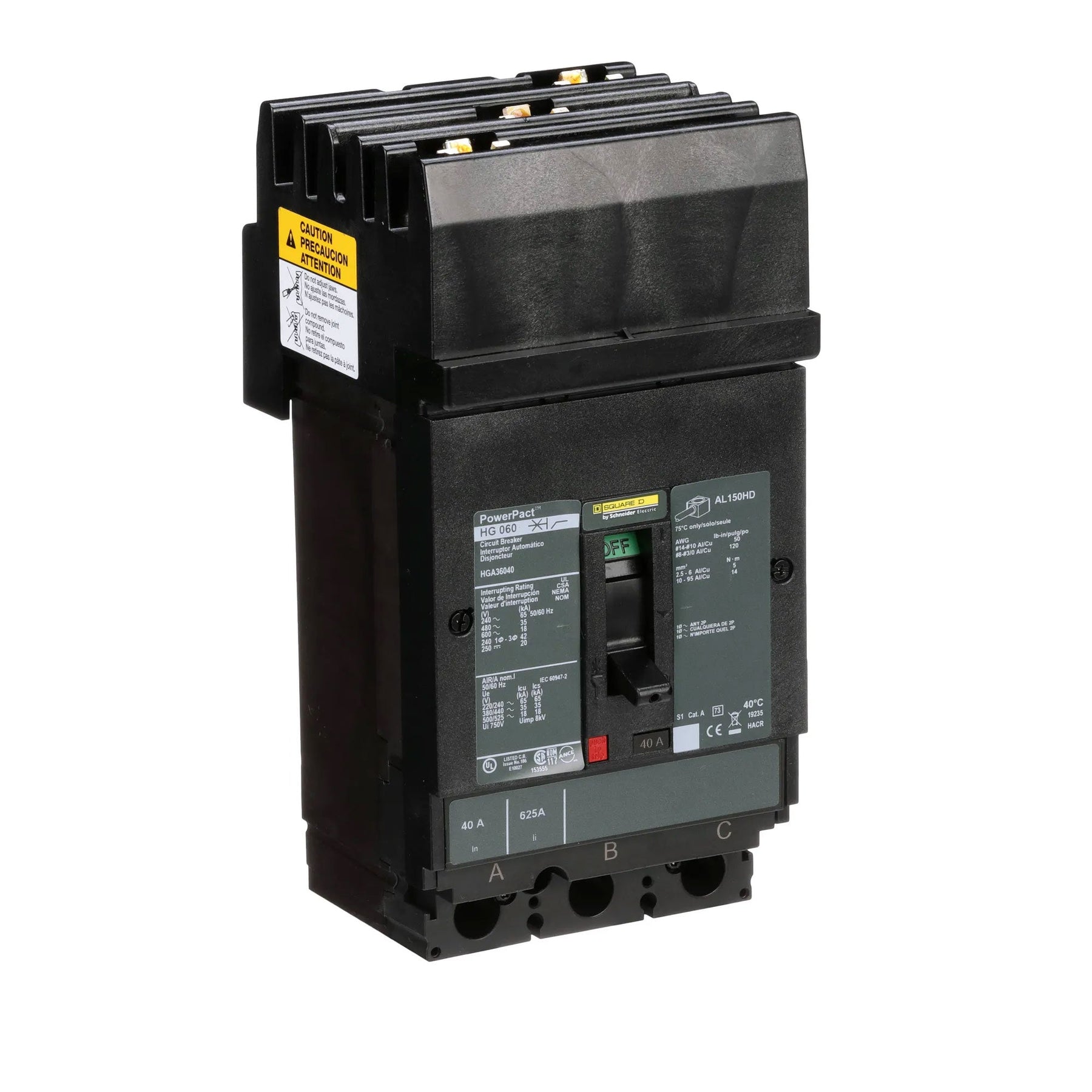

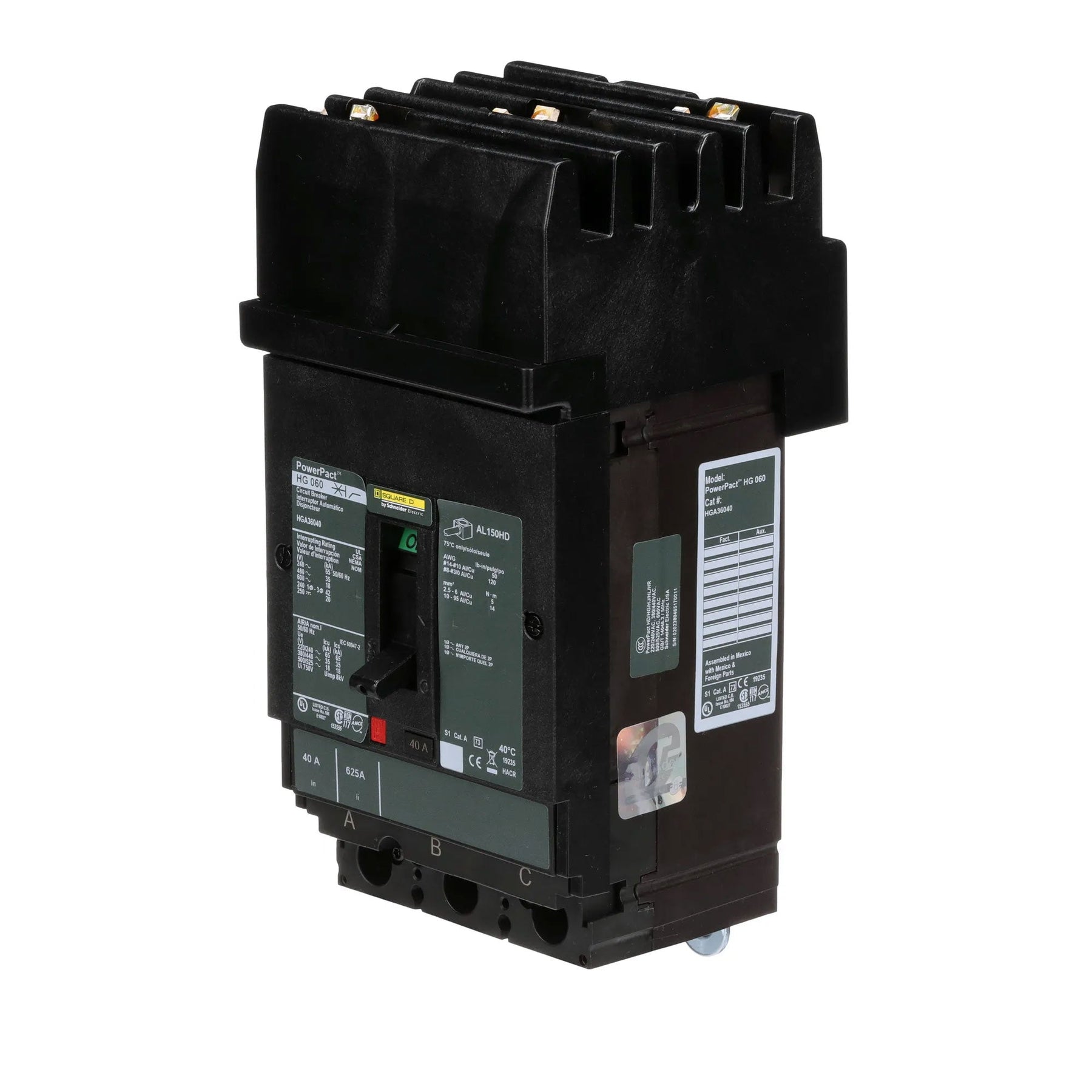

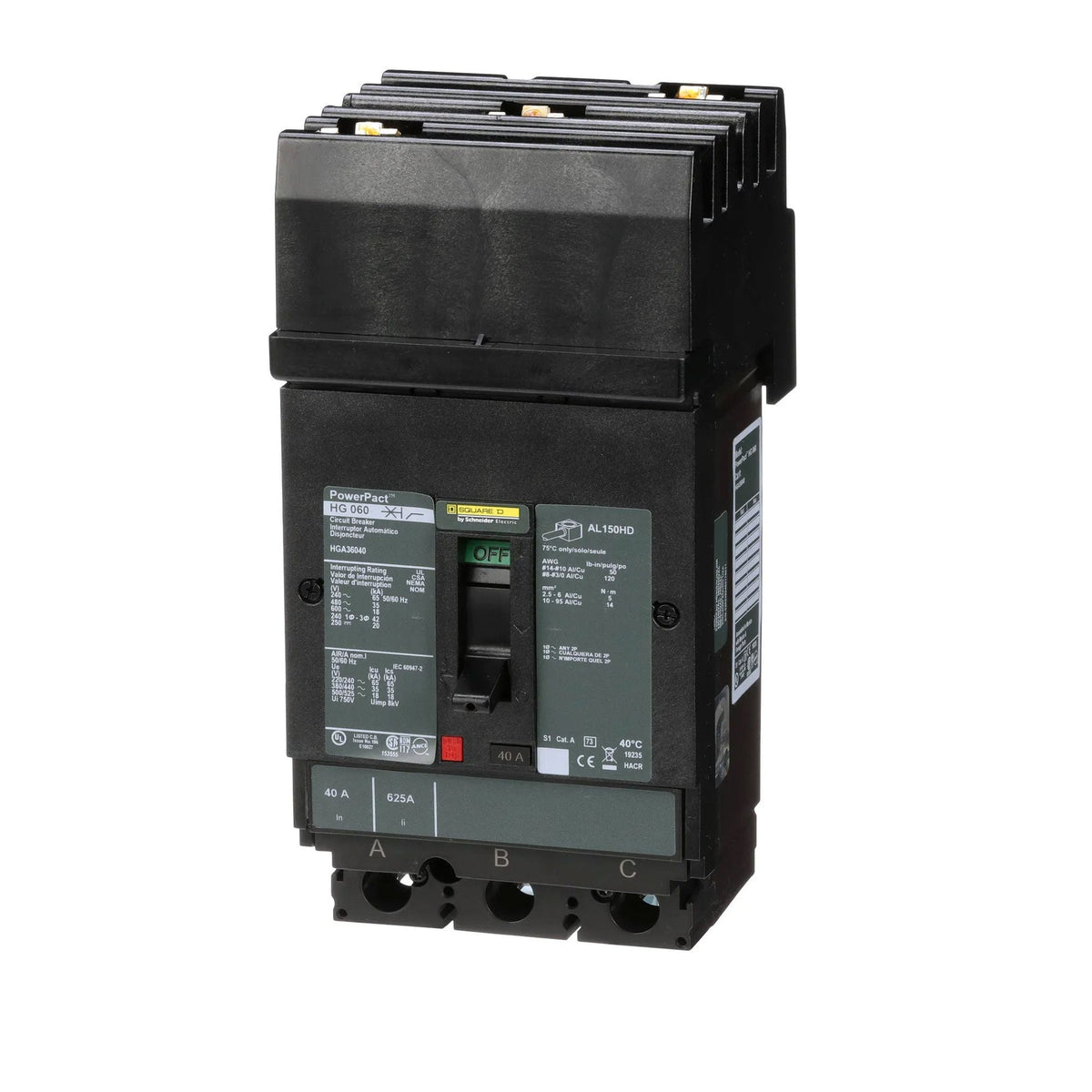

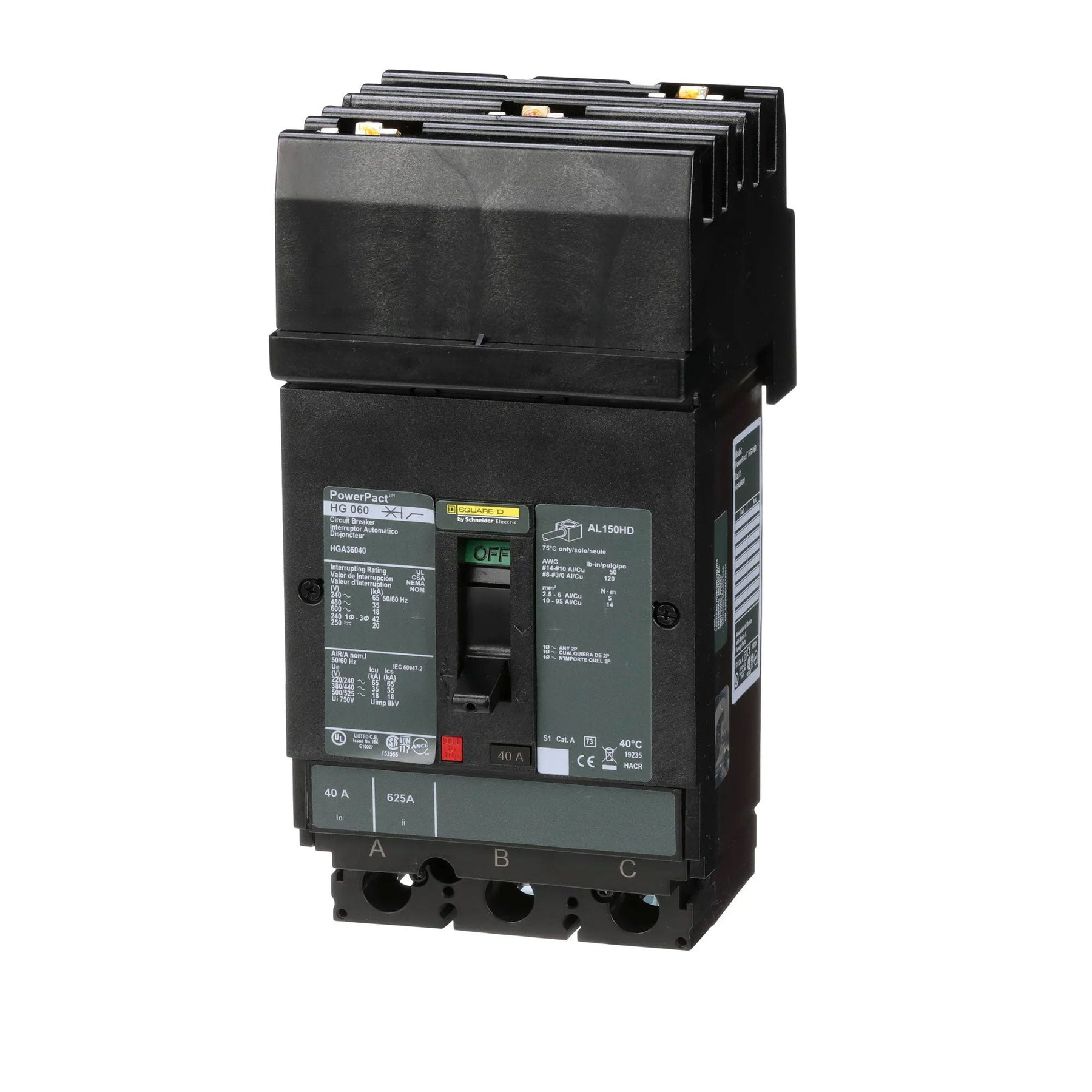

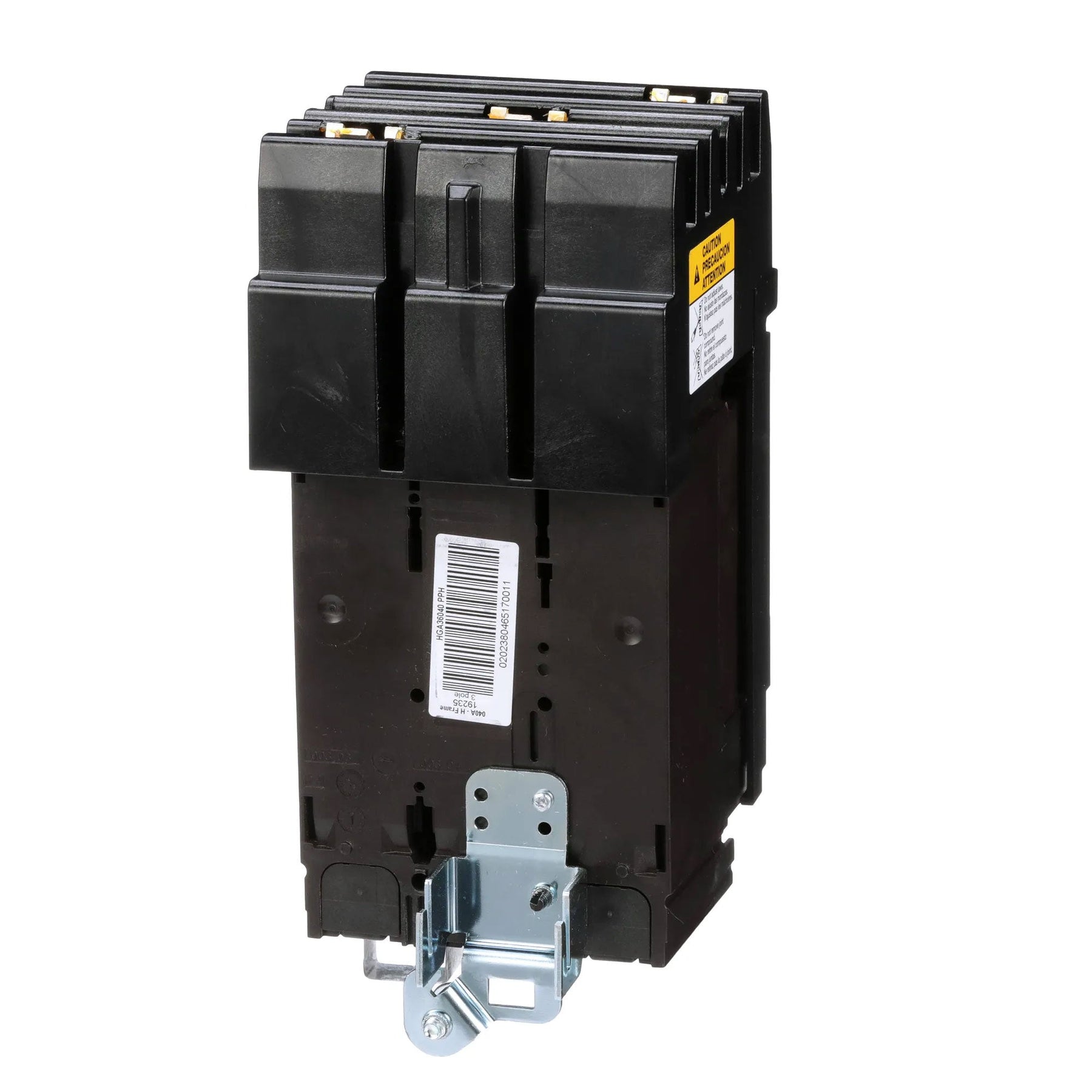

The Square D HGA36040 is a 3-pole, 40 Amp, 600V AC PowerPact H molded case circuit breaker designed for commercial and industrial electrical panels. This breaker features a thermal-magnetic trip with Long-Time (LI) and Instantaneous protection, I-Line style plug-in mounting, and a rugged molded case construction for dependable performance.

It provides high interrupting capacity at multiple voltages, including 65 kAIC at 240V AC, 35 kAIC at 480V AC, 18 kAIC at 600V AC, and 20 kAIC at 250V DC. The HGA36040 is UL listed and suitable for reverse-fed applications, making it ideal for demanding power distribution environments.

Key Features

Poles: 3
Amperage: 40A
Voltage: 600V AC (also suitable for 250V DC)
Type: PowerPact H Molded Case Circuit Breaker
Thermal-magnetic trip with Long-Time (LI) and Instantaneous functions
I-Line plug-in style for secure installation
High interrupting capacity at multiple voltages
UL listed and suitable for reverse-fed applications
Durable molded case construction for industrial use

Technical Specifications

Manufacturer: Square D (Schneider Electric)
Catalog Number: HGA36040
Phase: 3-phase
Trip Type: Thermal-Magnetic
Connection Type: I-Line plug-in
Frequency Rating: 50/60 Hz
Operating Temperature: -25 C to 70 C (-13 F to 158 F)

Product Data

UPC / GTIN: 785901795022
Provides overload and short-circuit protection for commercial and industrial panels
Compatible with Square D PowerPact panelboards and switchboards
Built to PowerPact H frame standards for long-term reliability
