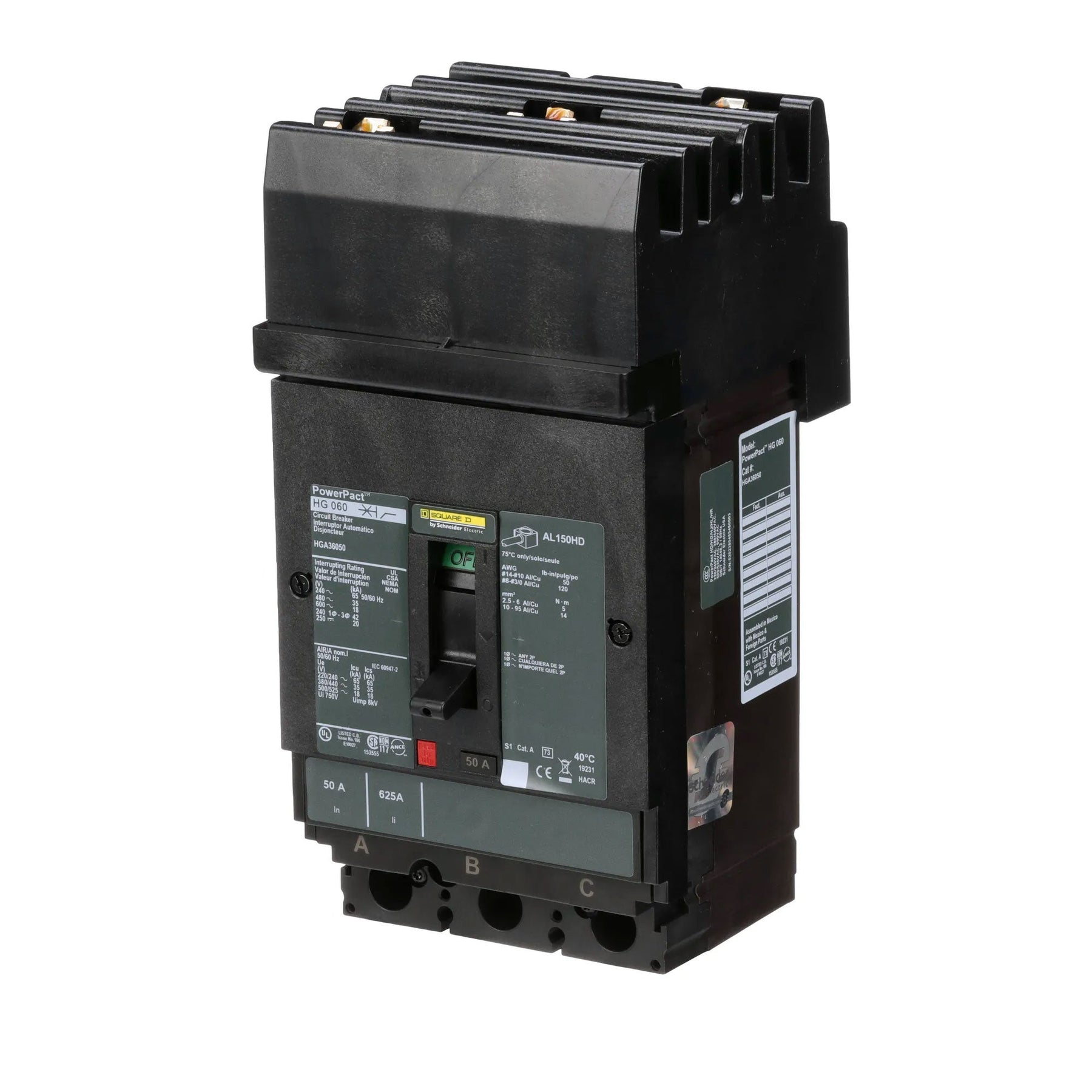

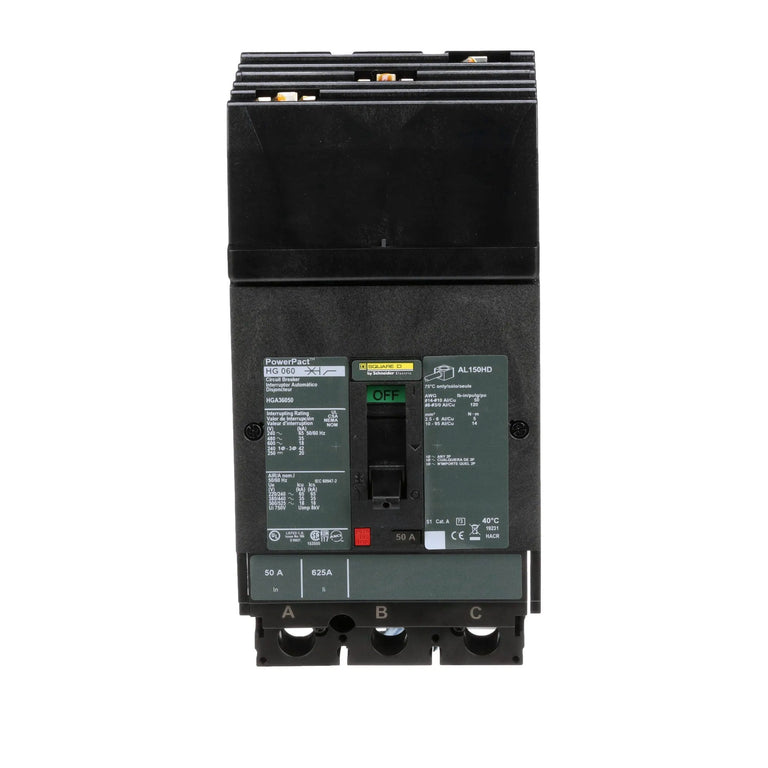

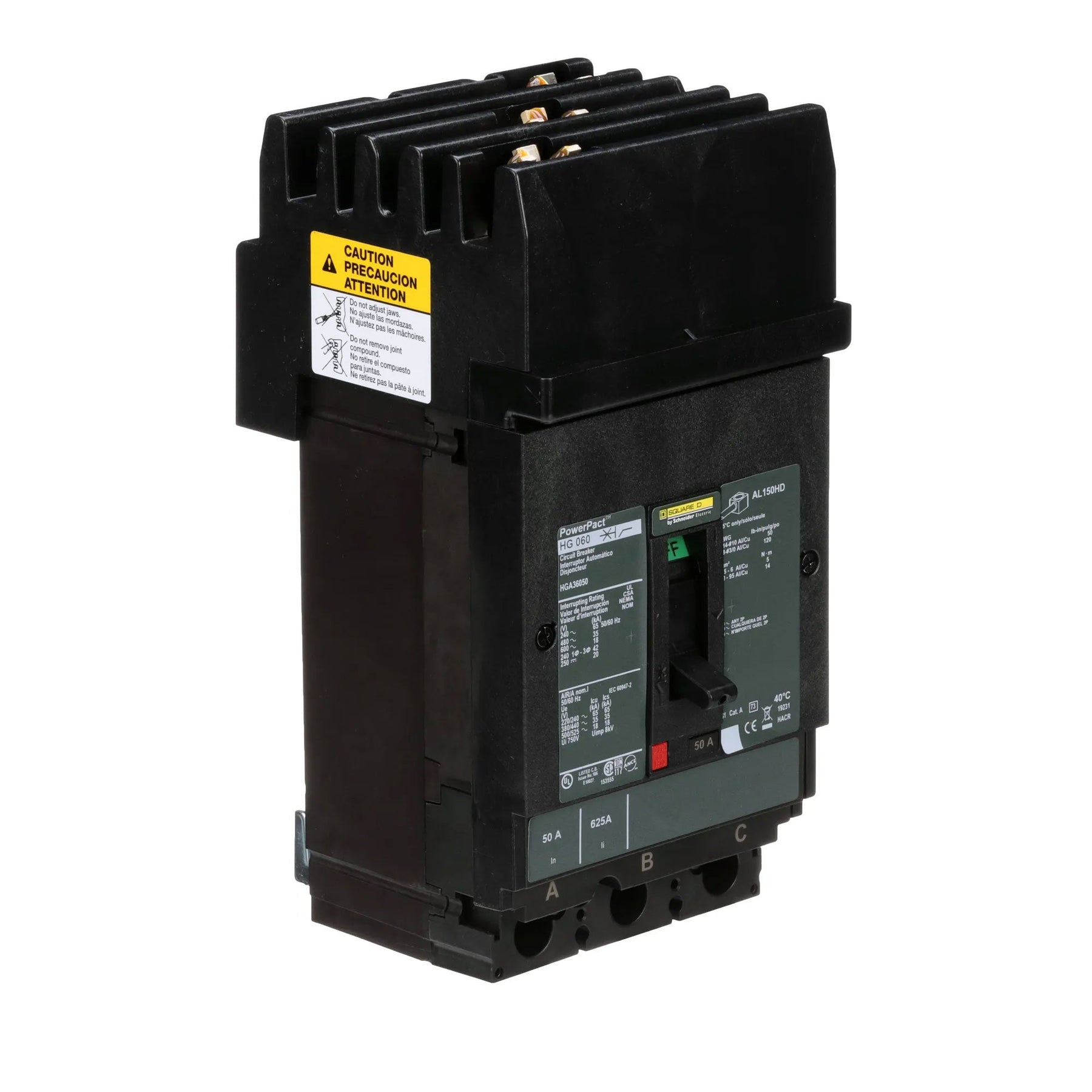

Square D HGA36050 Molded Case Circuit Breaker – 50A – 3-Pole / 3-Phase – 600V AC – 35kAIC @ 480V – I-Line Plug-In – PowerPact H Series

The Square D HGA36050 is a 50A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact H Series. It is designed to provide overload and short-circuit protection for compatible commercial and industrial electrical distribution systems.

The HGA36050 features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions, an I-Line plug-in connection, and molded case construction. It is rated for 600V AC and 250V DC and provides a 35kAIC interrupting rating at 480V AC. The breaker is UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: H
• Type: H
• Catalog No.: HGA36050
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 35kAIC @ 480V AC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)

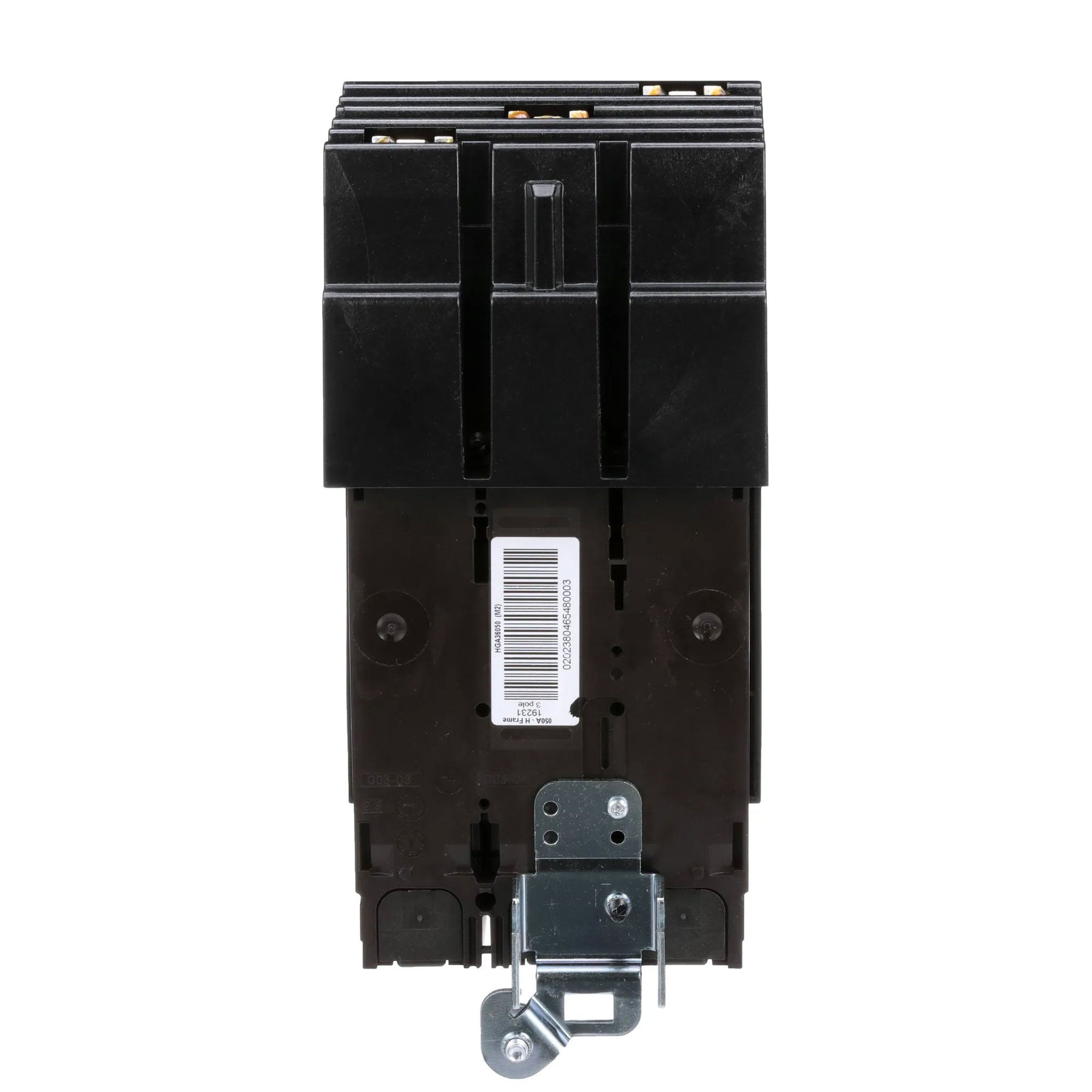

• Mounting / Connection: I-Line Plug-In
• Frequency Rating: 50/60Hz
• Operating Temperature: -25°C to 70°C (-13°F to 158°F)
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Commercial and Industrial Electrical Distribution
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGA36050
• Catalog Number: HGA36050
• Model: HGA36050
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: H
• Type: H
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• UPC / GTIN: 785901795025

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact H Series panelboards and switchboards that accept I-Line style molded case circuit breakers. The HGA36050 provides 50A, 3-pole thermal-magnetic protection for compatible 600V AC electrical distribution applications.

The breaker uses an I-Line plug-in connection and is suitable for reverse-fed applications as specified. Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact H Series
• 50A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 35kAIC @ 480V AC Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Plug-In Connection
• Suitable for Reverse-Fed Applications
• 50/60Hz Rated
