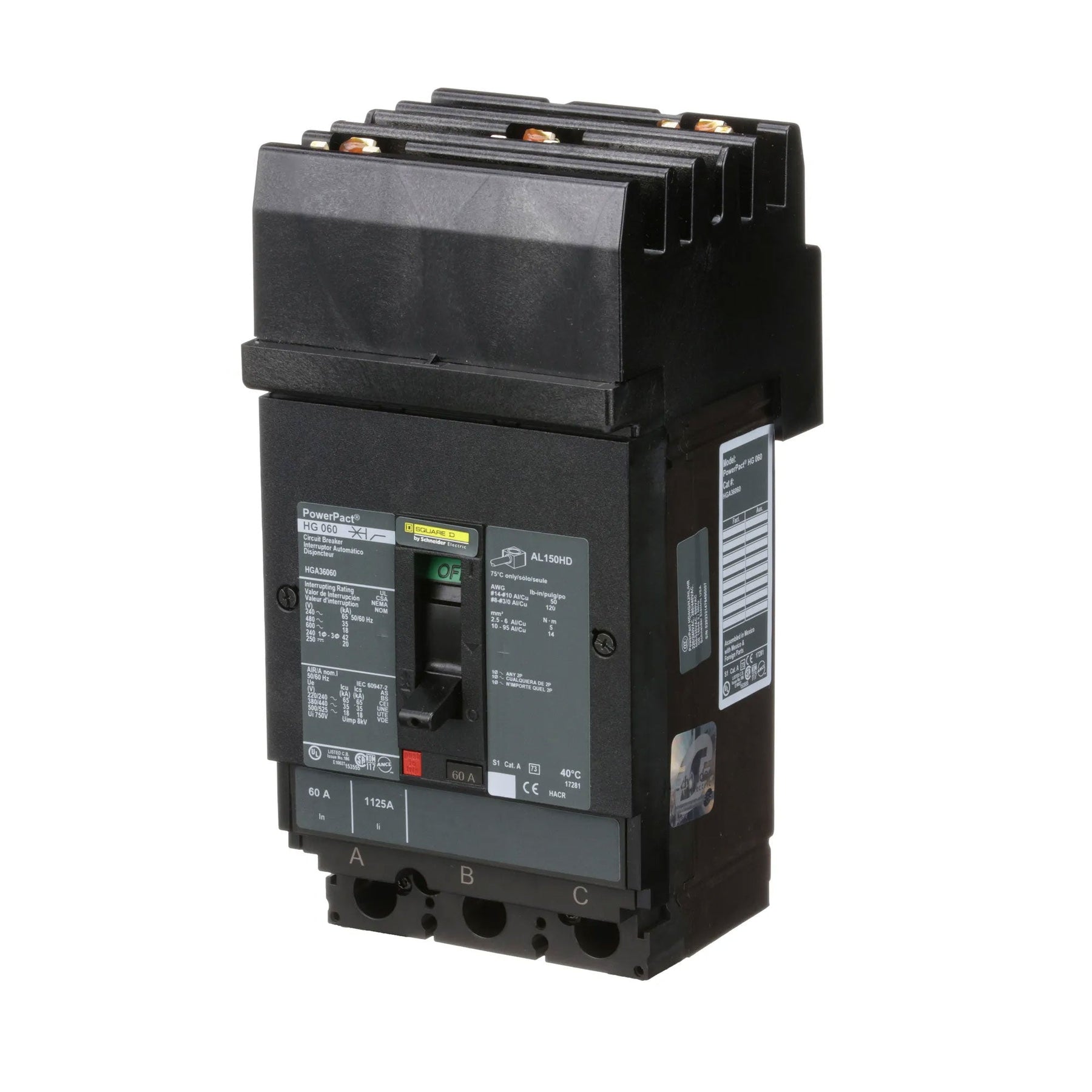

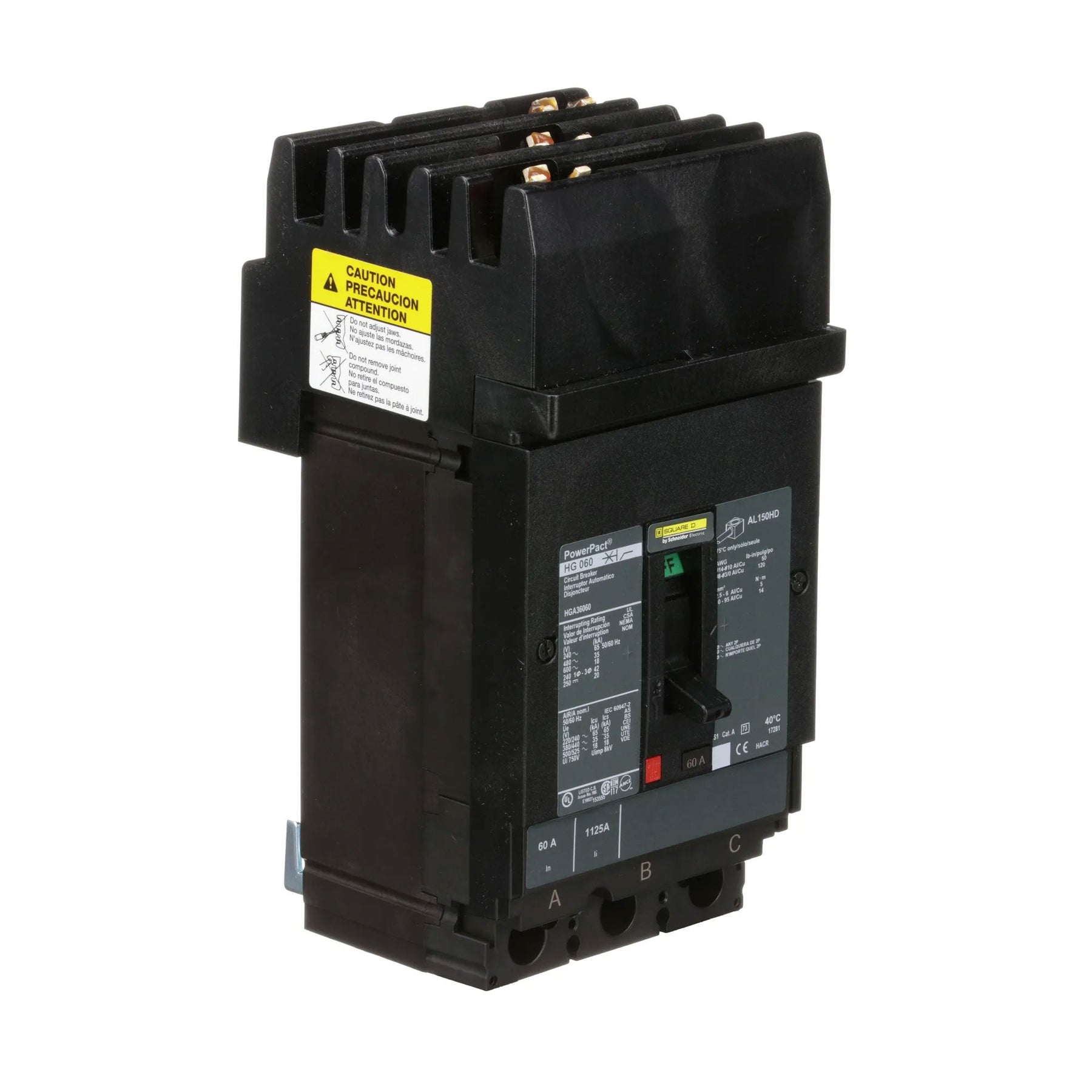

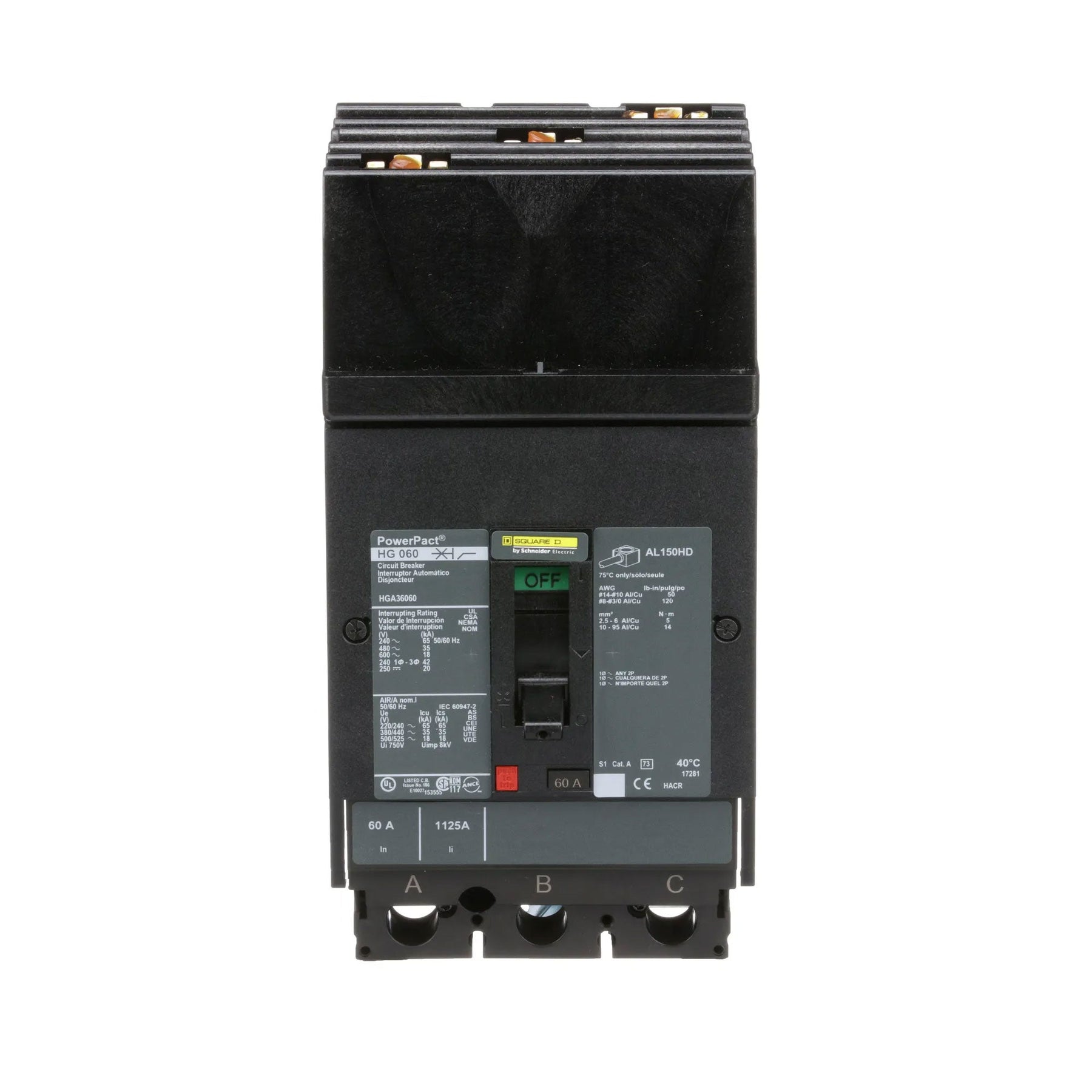

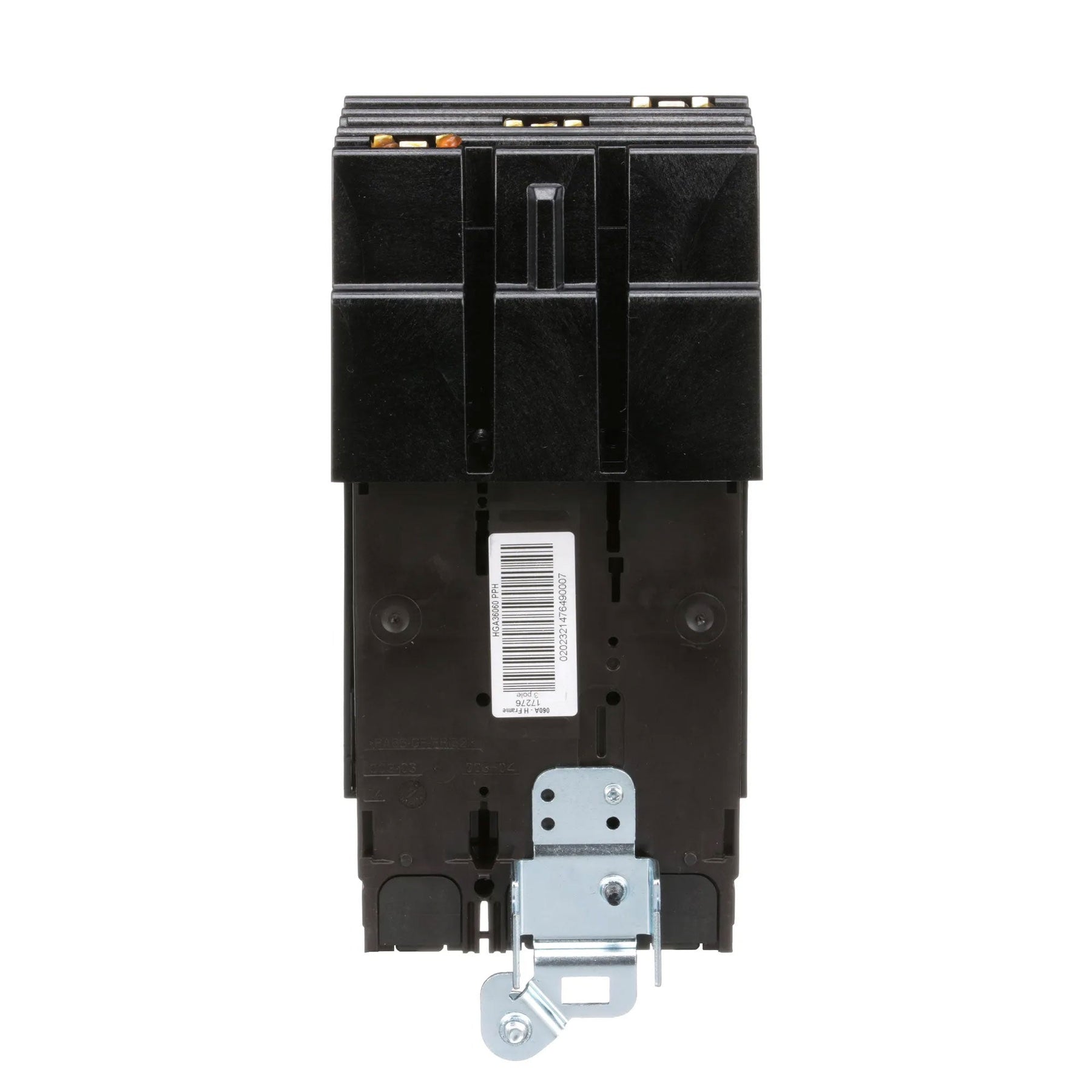

Square D HGA36060 Molded Case Circuit Breaker – 60A – 3-Pole / 3-Phase – 600V AC – 35kAIC @ 480V – I-Line Plug-In – PowerPact HGA Series

The Square D HGA36060 is a 60A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact HGA Series. It is designed to provide overload and short-circuit protection for compatible commercial and industrial electrical distribution systems.

The HGA36060 features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions, an I-Line style plug-in connection, and high interrupting capacity of 35kAIC @ 480V AC. It is rated for 600V AC and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HGA
• Type: HGA
• Catalog No.: HGA36060
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection Type: I-Line Style Plug-In
• Interrupting Rating: 35kAIC @ 480V AC
• Interrupting Capacity: High
• Frequency Rating: 50/60Hz
• Operating Temperature: -25°C to 70°C (-13°F to 158°F)
• Application: Overload and Short-Circuit Protection
• Reverse Feed: Suitable for Reverse-Fed Applications
• Brand: Square D
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGA36060
• Catalog Number: HGA36060
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HGA
• Type: HGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: HGA36060
• Breaker Configuration: 3-Pole, 60A
• UPC / GTIN: 785901795032

Compatibility:

Designed for use with compatible Square D PowerPact HGA Series panelboards, switchboards, and electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The HGA36060 provides 60A, 3-pole protection for compatible 600V AC, 3-phase applications.

The breaker features thermal-magnetic LI protection and is suitable for reverse-fed applications as specified. Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, mounting arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HGA Series
• 60A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 35kAIC @ 480V AC Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Style Plug-In
• Suitable for Reverse-Fed Applications
