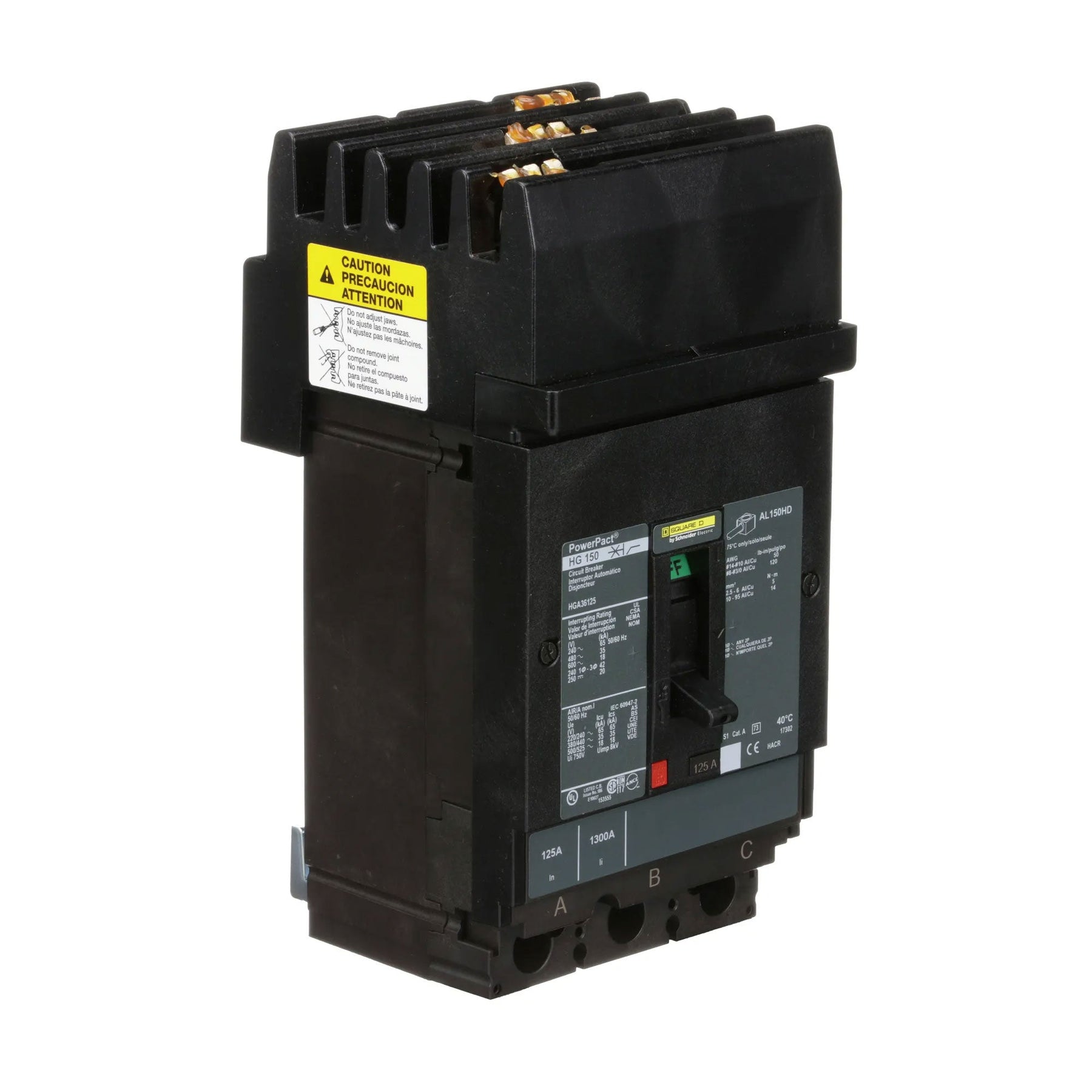

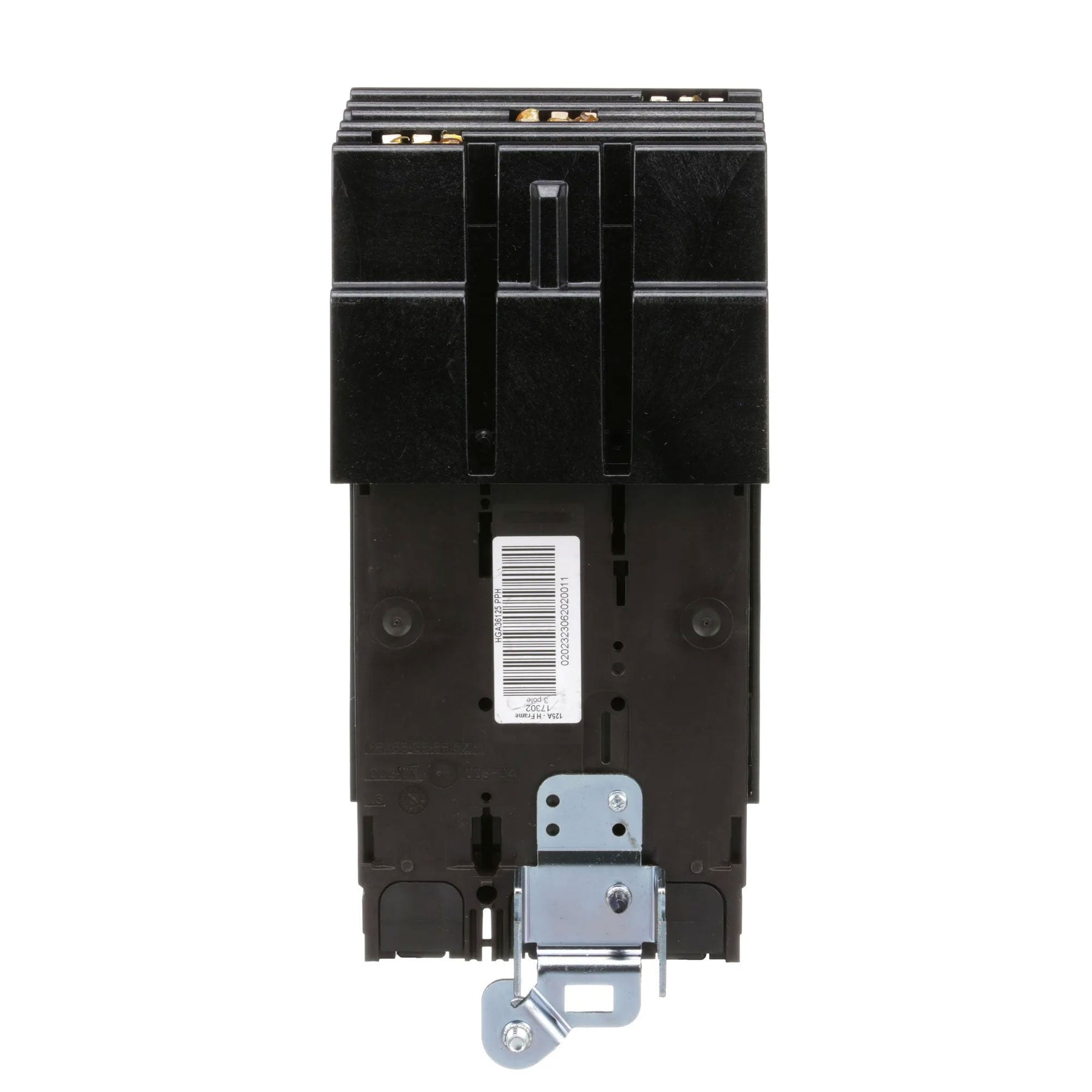

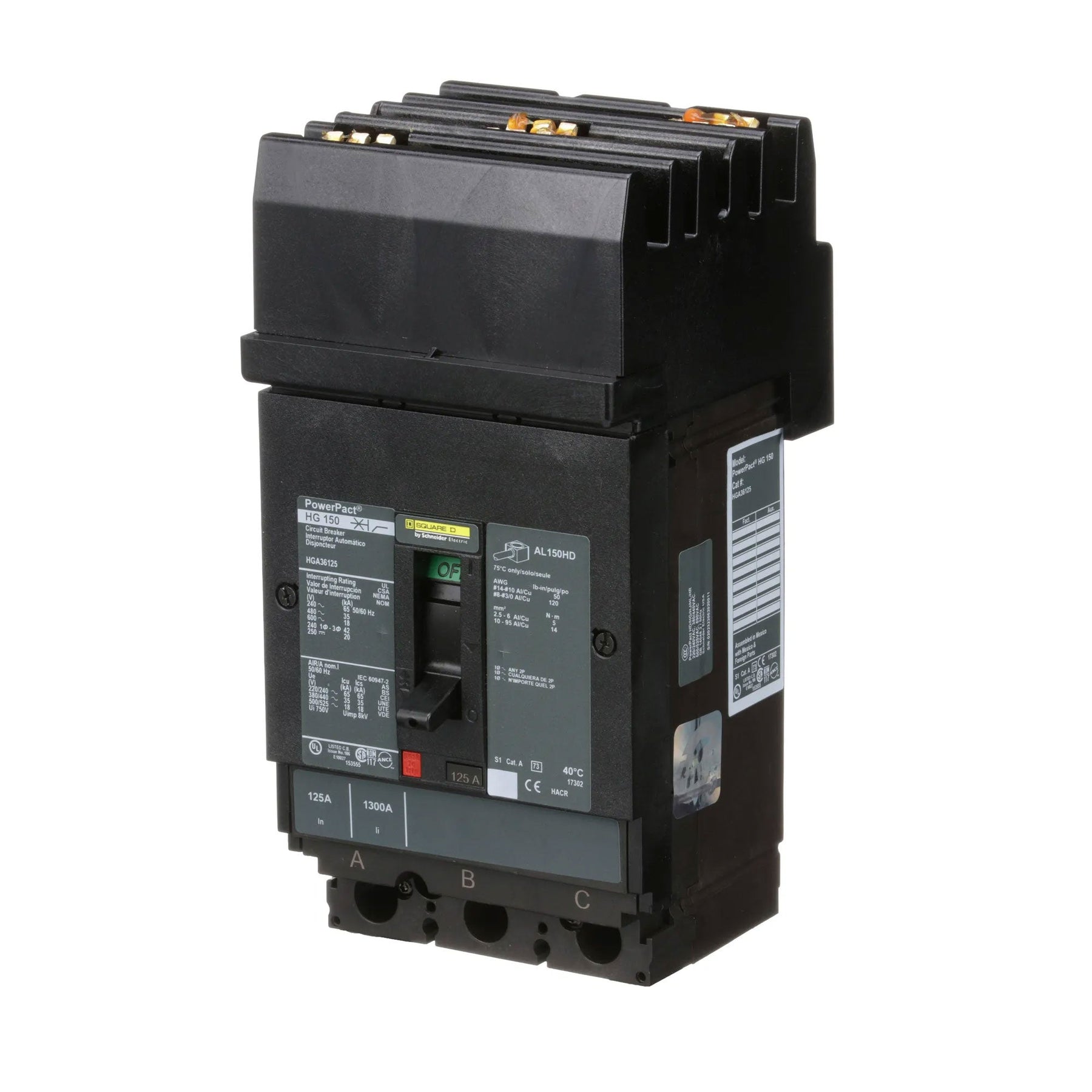

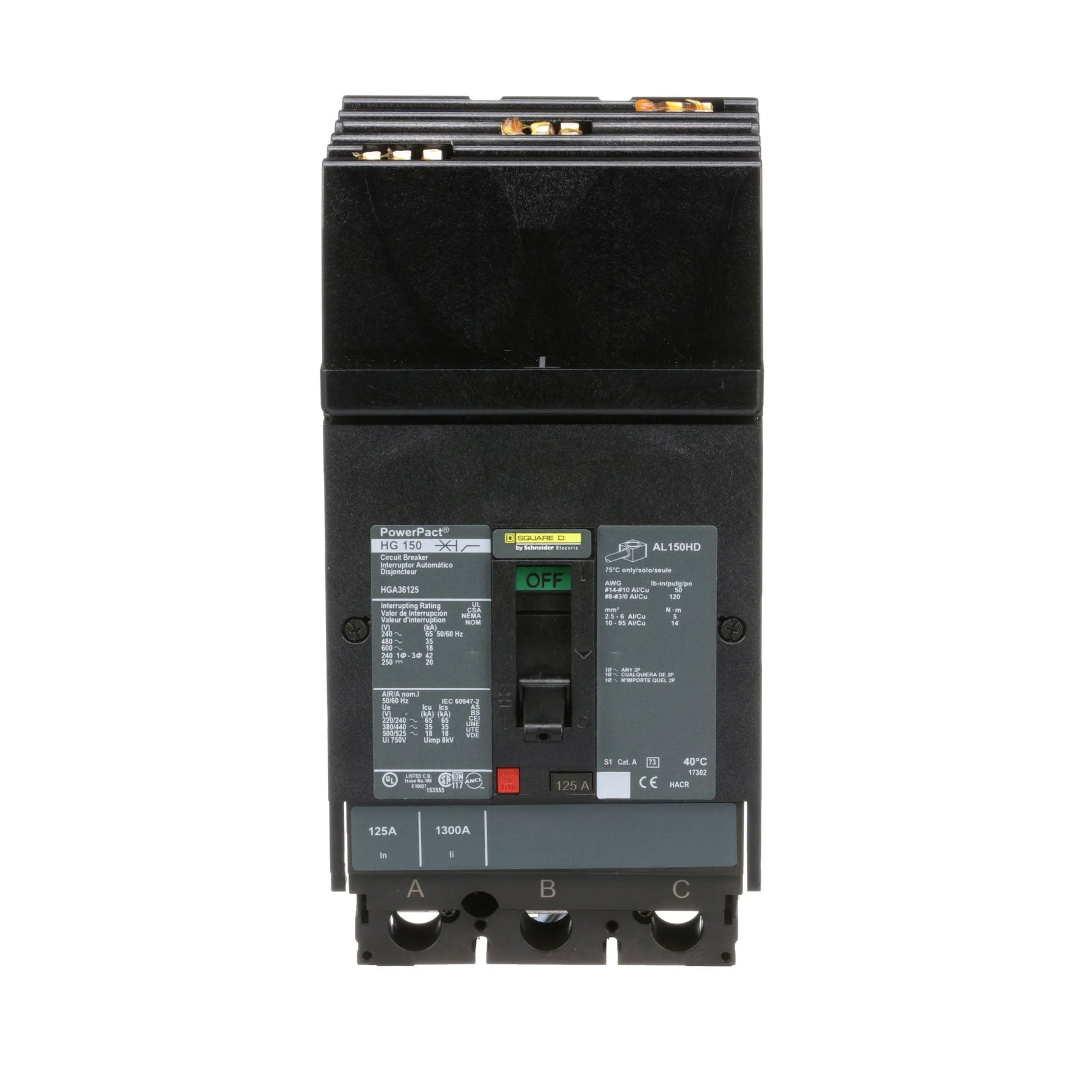

Square D HGA36125 Molded Case Circuit Breaker – 125A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – I-Line Plug-In – PowerPact HGA Series

The Square D HGA36125 is a 125A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact HGA Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The HGA36125 is rated for 600V and provides 35kA interrupting capacity at 480V. It has a high interrupting capacity, uses an I-Line style plug-in connection with ABC phase connection, and is UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HGA
• Type: HGA
• Catalog No.: HGA36125
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Connection: I-Line Style Plug-In
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGA36125
• Catalog Number: HGA36125
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HGA
• Type: HGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: HGA36125
• Breaker Configuration: 3-Pole, 125A
• upc:785901939238

Compatibility:

Designed for use with compatible Square D PowerPact HGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The HGA36125 provides 125A, 3-pole thermal-magnetic protection for compatible 600V, 3-phase applications.

The breaker features ABC phase connection, LI Long-Time and Instantaneous trip functions, high interrupting capacity, and suitability for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, phase connection, trip requirements, and mounting arrangement before installation.

Certifications:

• UL Listed
• PowerPact HGA Series
• 125A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Suitable for Reverse-Fed Applications
