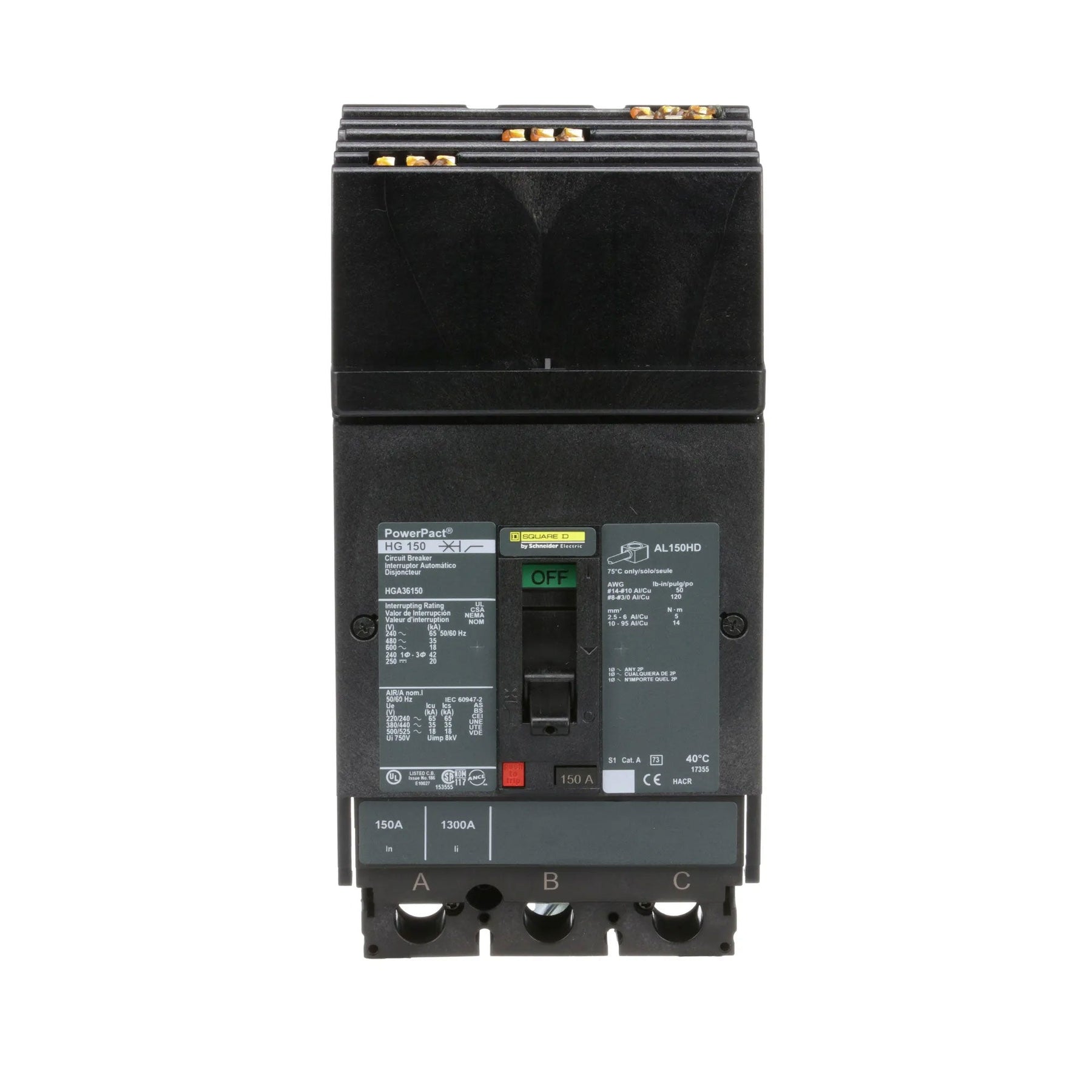

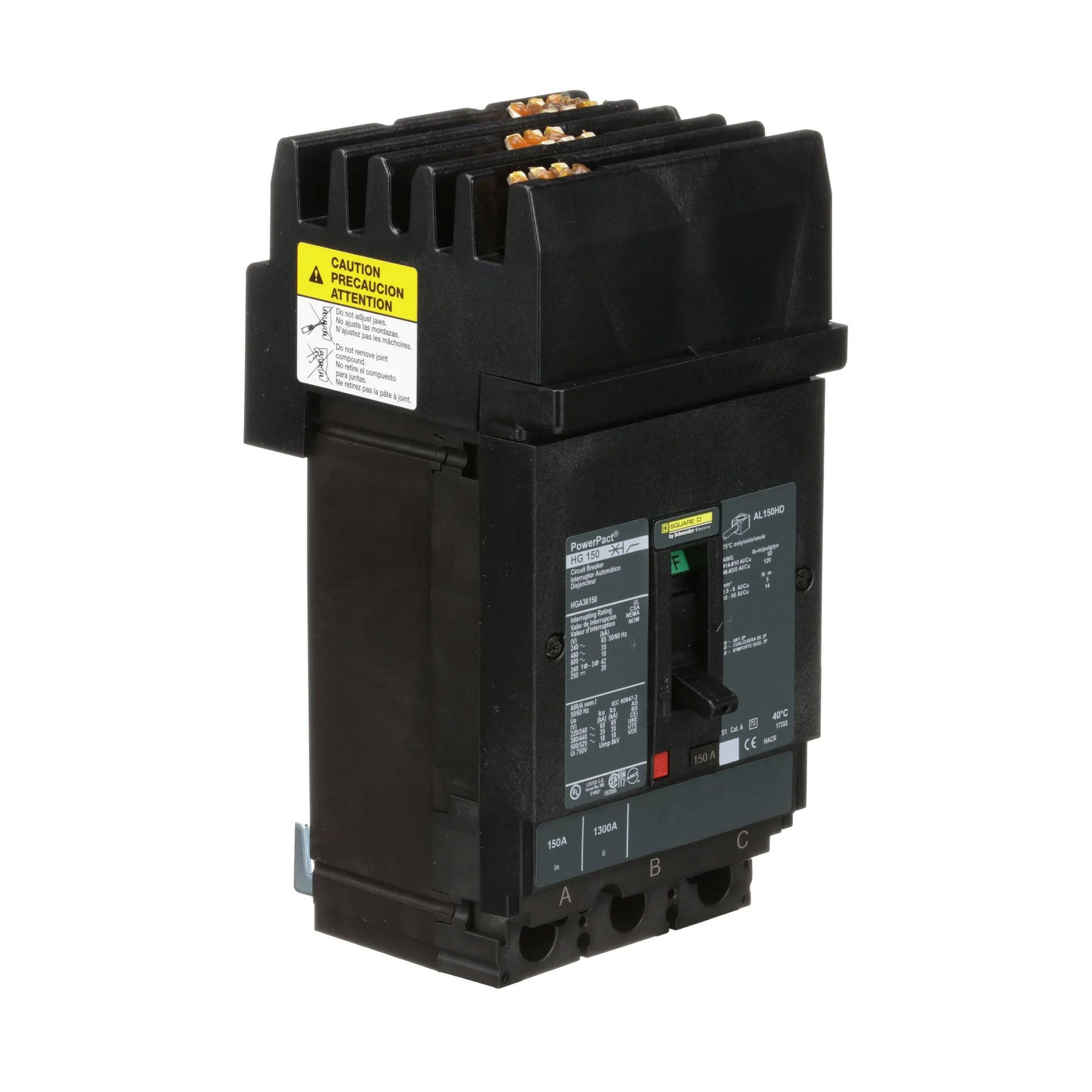

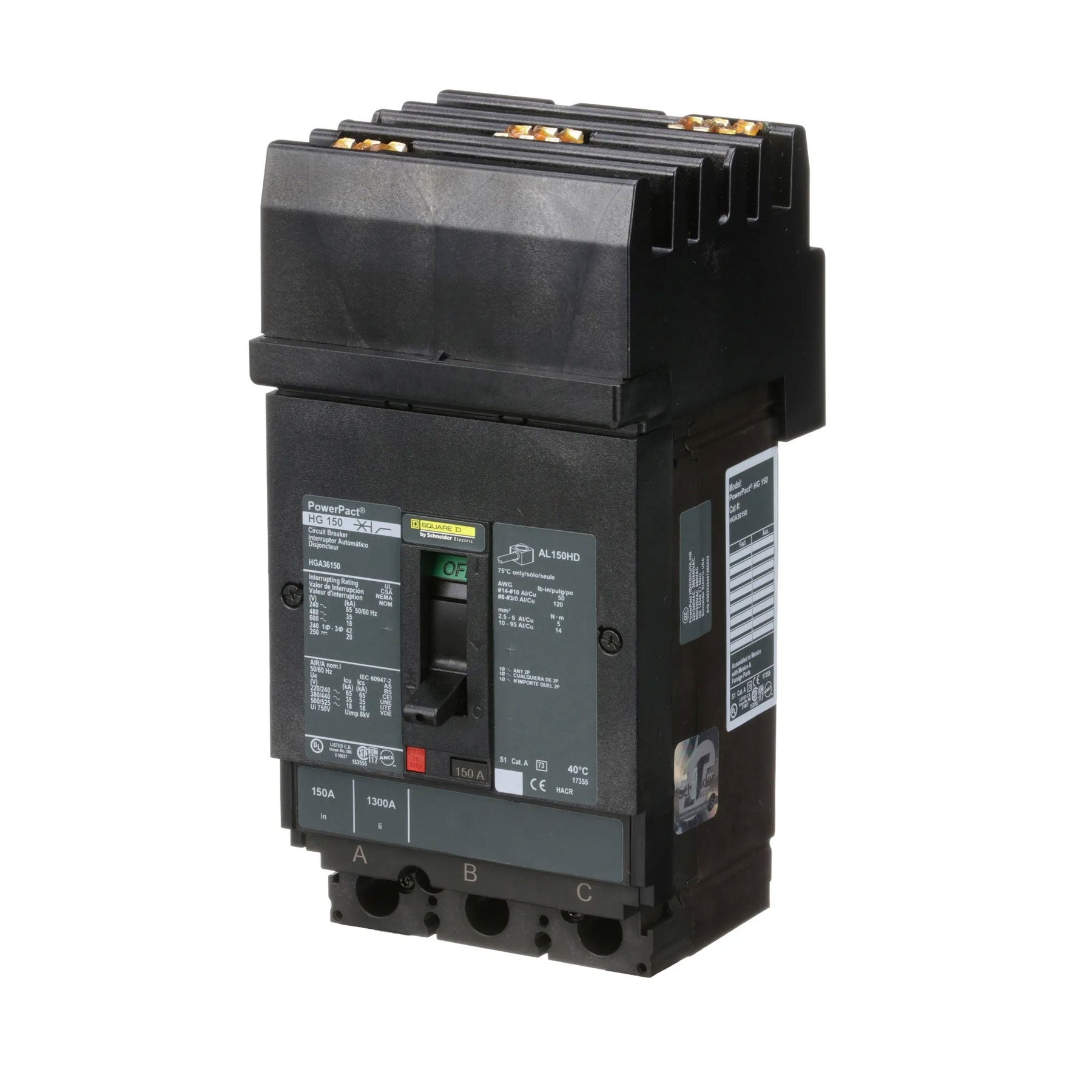

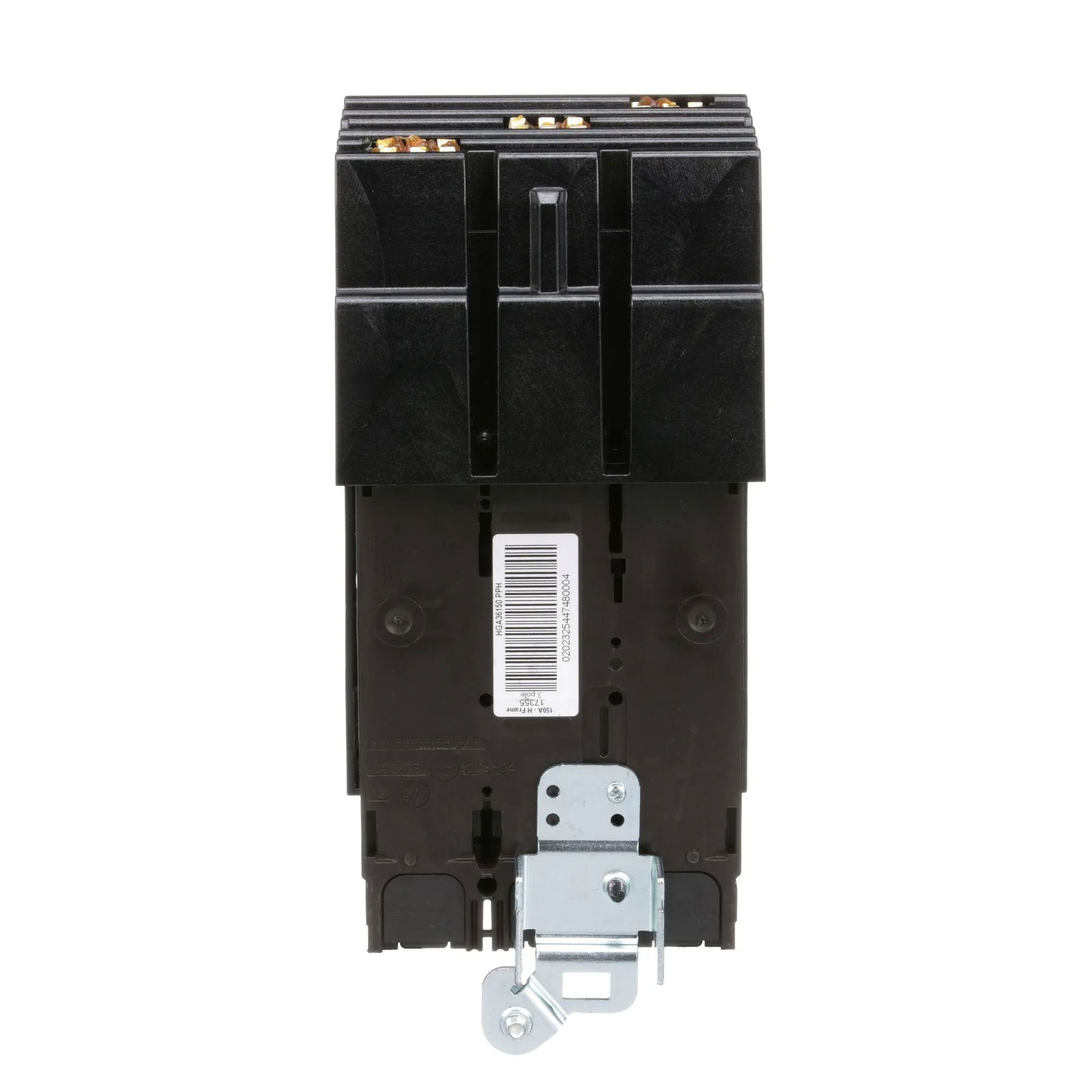

Square D HGA36150 Molded Case Circuit Breaker – 150A – 3-Pole – 600V – 35kA @ 480V – I-Line Plug-In – PowerPact HGA Series

The Square D HGA36150 is a 150A, 3-pole molded case circuit breaker from the Square D PowerPact HGA Series. It is designed for compatible three-phase electrical distribution applications and features an I-Line style plug-in connection with ABC phase connection.

The breaker provides thermal-magnetic protection with a non-interchangeable trip unit and long-time and instantaneous (LI) trip functions. It is rated for 600V and provides a 35kA interrupting rating at 480V. The breaker is UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Catalog No.: HGA36150
• Product Family: PowerPact
• Series: HGA
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High Interrupting
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution
• Standard: UL Listed
• Brand: Square D
• Authenticity: Authentic Schneider Electric / Square D Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGA36150
• Catalog Number: HGA36150
• Model: HGA36150
• Product Family: PowerPact
• Series: HGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• Trip Type: Thermal-Magnetic
• Trip Configuration: Non-Interchangeable, LI
• upc:785901795070

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers.

The HGA36150 provides 150A, 3-pole thermal-magnetic protection for compatible 600V three-phase systems and is suitable for reverse-fed applications. Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, available fault current, phase connection, trip configuration, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HGA Series
• 150A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Reverse-Feed Suitable
• Genuine Square D / Schneider Electric Product
