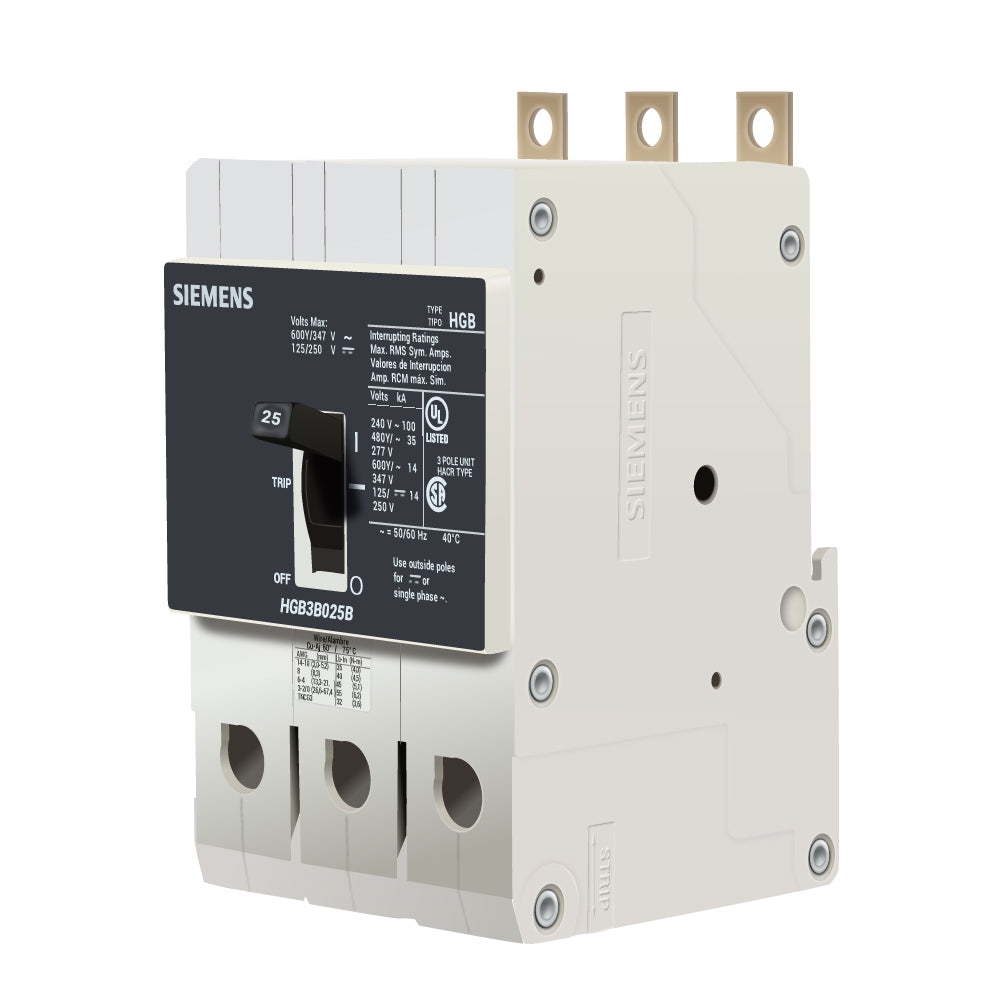

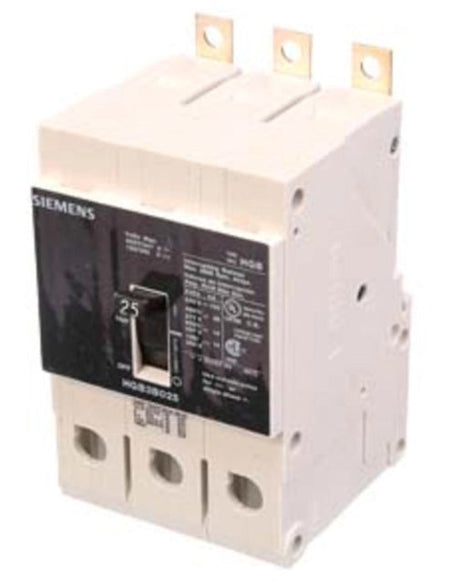

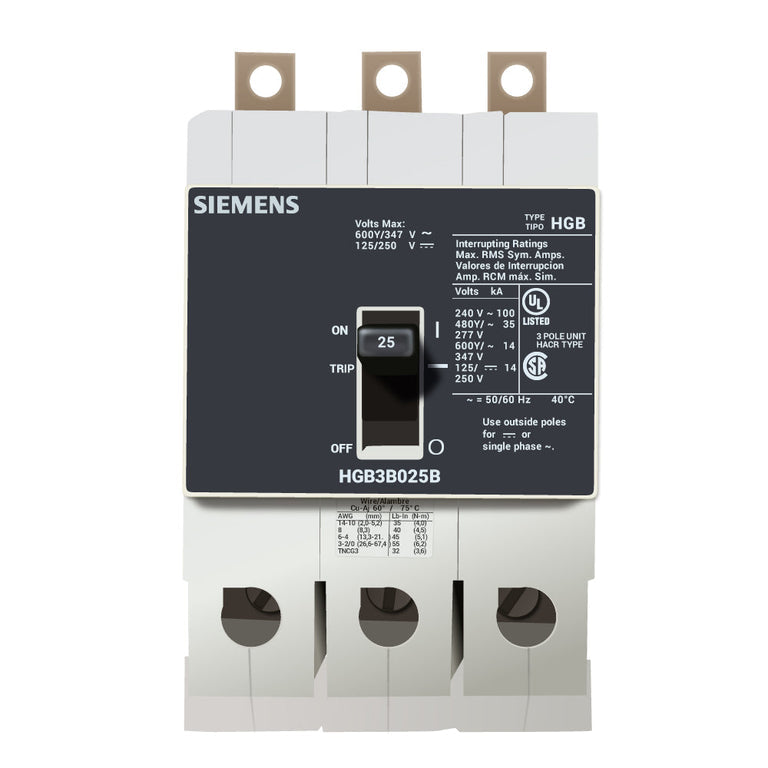

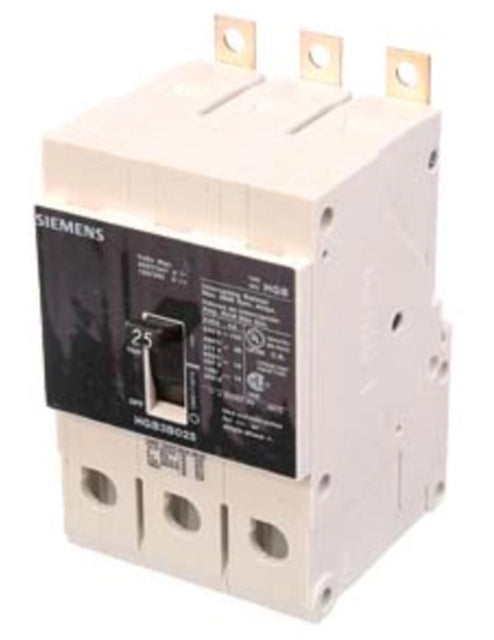

Siemens HGB3B025B 25 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@240 V – Bolt-On – VL Series

The Siemens HGB3B025B is a 25 Amp, 3-pole, 3-phase molded case circuit breaker from the Siemens VL Series, Type HGB. It is rated for 600 V and provides a 100 kA interrupting rating at 240 V with high interrupting capacity. The breaker features thermal-magnetic protection with LI (Long-Time and Instantaneous) trip functions. It is designed for panelboard bolt-on mounting, includes load-side lug terminals, and is suitable for reverse-feed applications.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: VL
• Type: HGB
• Catalog Number / MPN: HGB3B025B
• Primary Rating: 25 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 240 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Panelboard Bolt-On
• Terminals: Load-Side Lug Terminals
• Application: Suitable for Reverse-Feed Applications

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: HGB3B025B
• Series: VL
• Type: HGB
• Current Rating: 25 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Bolt-On
• Terminals: Load-Side Lug Terminals
• UPC:887621219789

Compatibility

The Siemens HGB3B025B is intended for compatible Siemens VL Series Type HGB panelboard and electrical distribution applications, including reverse-feed installations.
