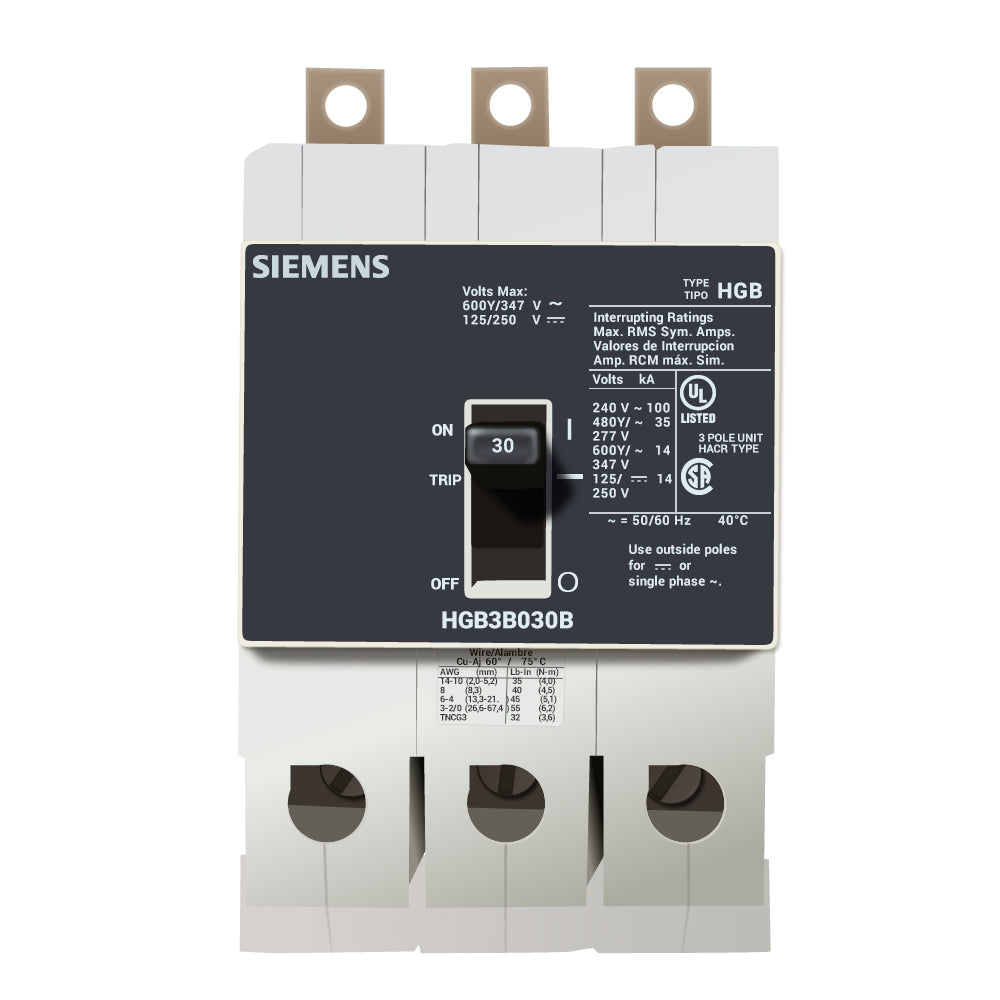

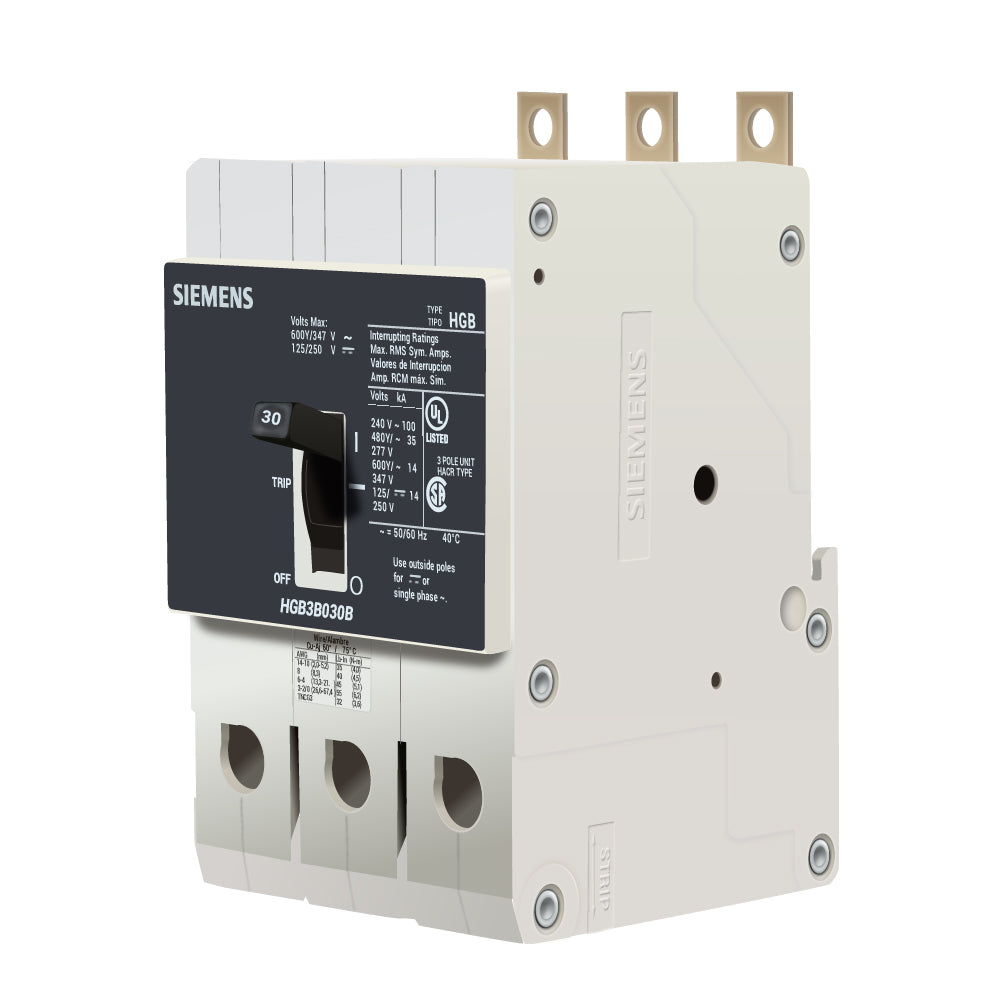

Siemens HGB3B030B Molded Case Circuit Breaker – 30A – 3-Pole / 3-Phase – 600V – 100kA @ 240V – Bolt-On – VL HGB Series

The Siemens HGB3B030B is a 30A, 3-pole, 3-phase molded case circuit breaker from the Siemens VL Series Type HGB. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The HGB3B030B is rated for 600V and provides a 100kA interrupting rating at 240V with high interrupting capacity. It features bolt-on mounting, panelboard mounting, and is suitable for reverse-feed applications. The breaker includes load-side lug terminals.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: VL Series
• Series: VL
• Type: HGB
• Catalog No.: HGB3B030B
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 240V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Mounting Application: Panelboard Mounted
• Terminal Type: Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Feed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGB3B030B
• Catalog Number: HGB3B030B
• Model: HGB3B030B
• Product Family: Siemens VL Circuit Breakers
• Series: VL
• Type: HGB
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 30A
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:887621219796

Compatibility:

Designed for use with compatible Siemens VL Series Type HGB electrical distribution equipment that accepts HGB Series bolt-on molded case circuit breakers. The HGB3B030B provides 30A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker is intended for panelboard mounting, includes load-side lug terminals, and is suitable for reverse-feed applications.
