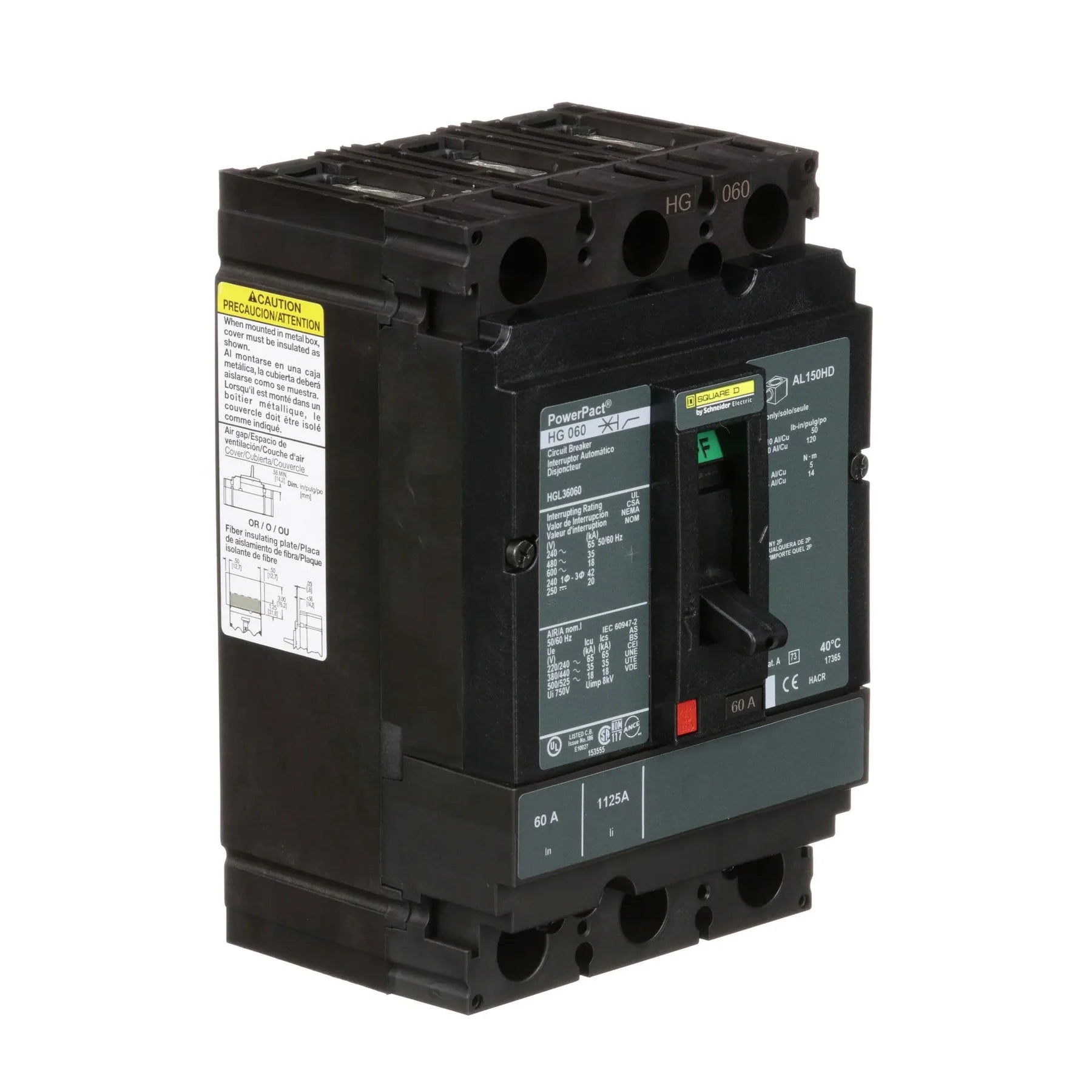

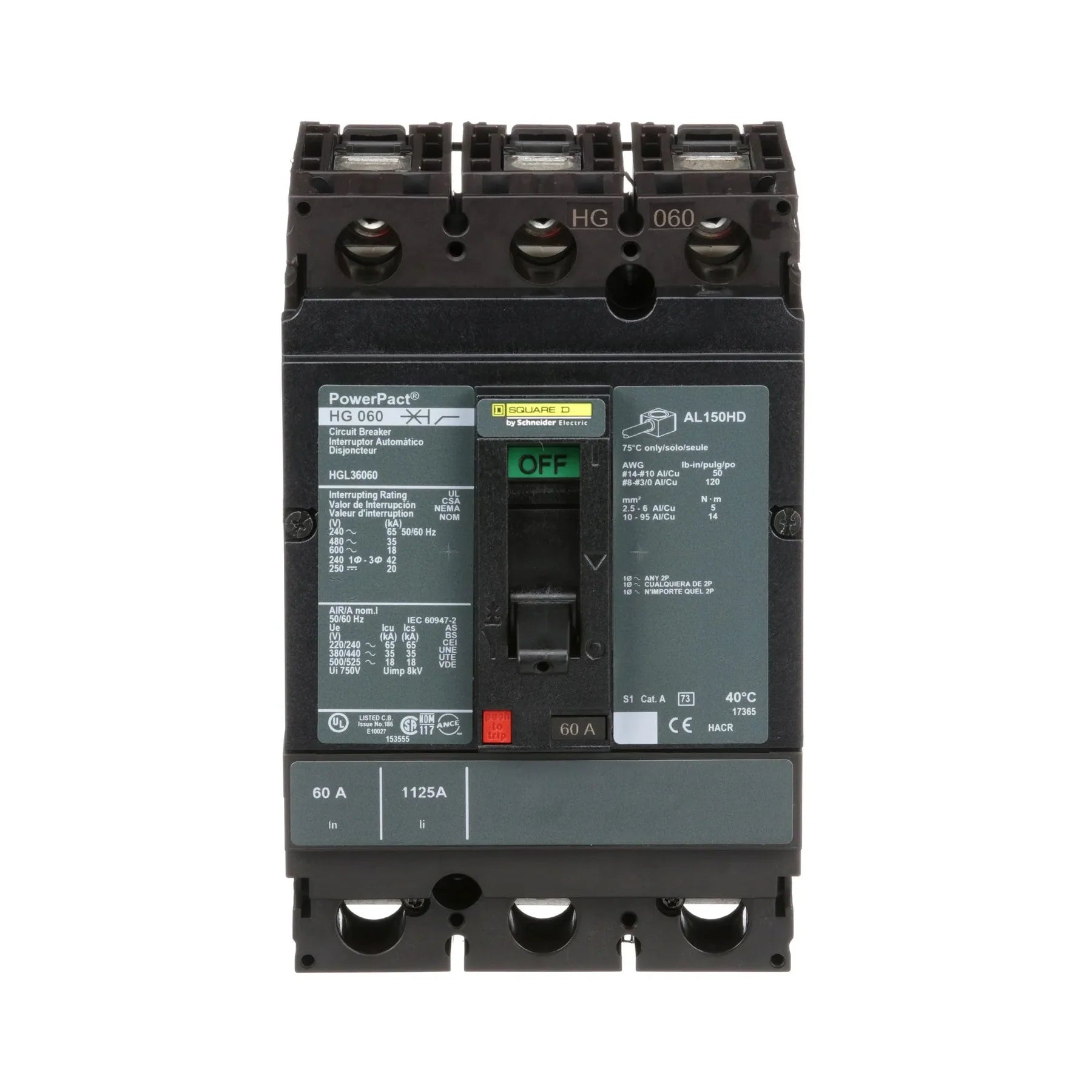

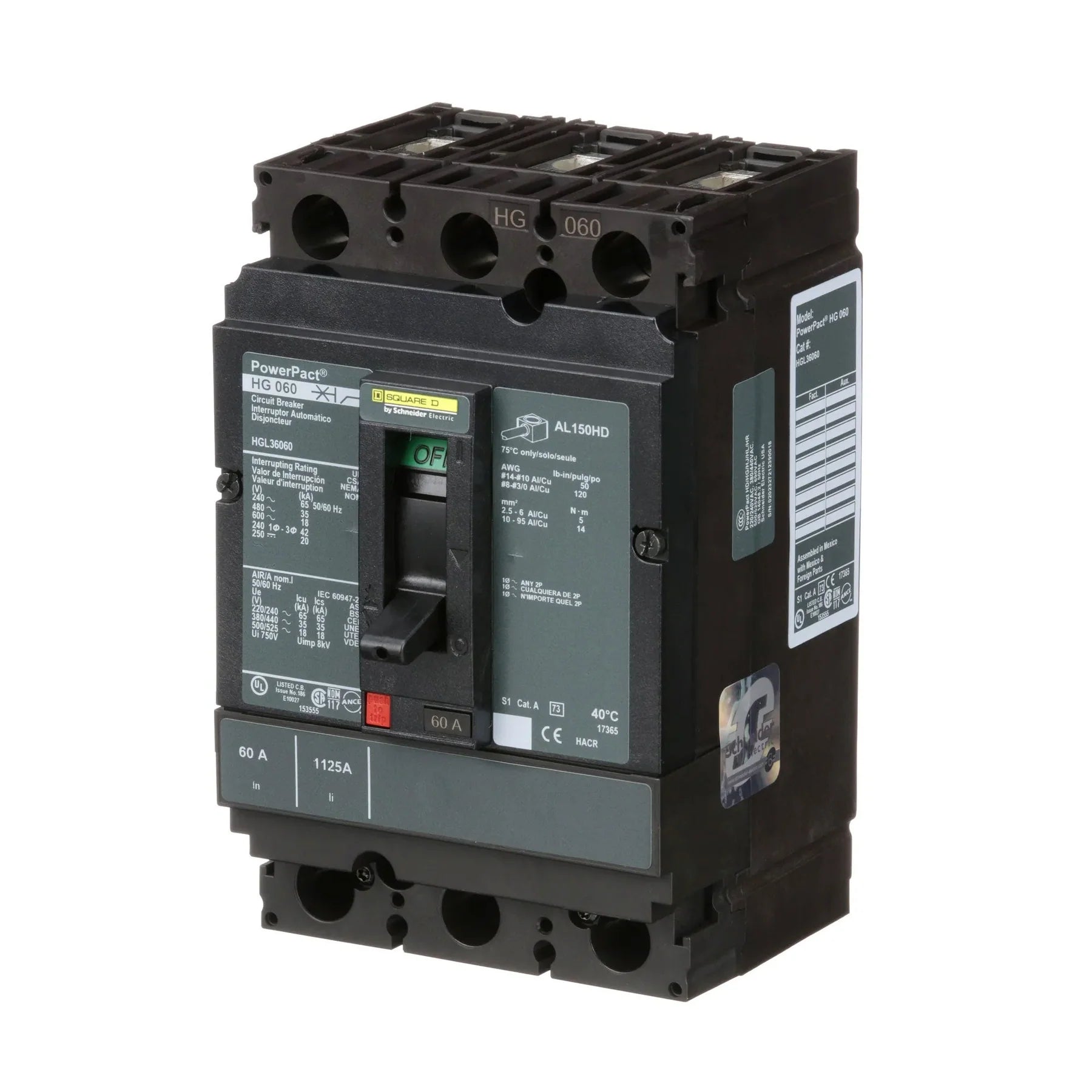

Square D HGL36060 Molded Case Circuit Breaker – 60A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact HGL Series

The Square D HGL36060 is a 60A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type HGL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The HGL36060 is rated for 600V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It features a feed-thru configuration, line-side and load-side lug terminals, and is suitable for reverse-fed applications. The breaker is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HGL
• Type: HGL
• Catalog No.: HGL36060
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGL36060
• Catalog Number: HGL36060
• Model: HGL36060
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HGL
• Type: HGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• UPC:785901598770

Compatibility:

Designed for use with compatible Square D PowerPact HGL Series electrical distribution equipment that accepts HGL Series molded case circuit breakers. The HGL36060 provides 60A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. It is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HGL Series
• 60A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
