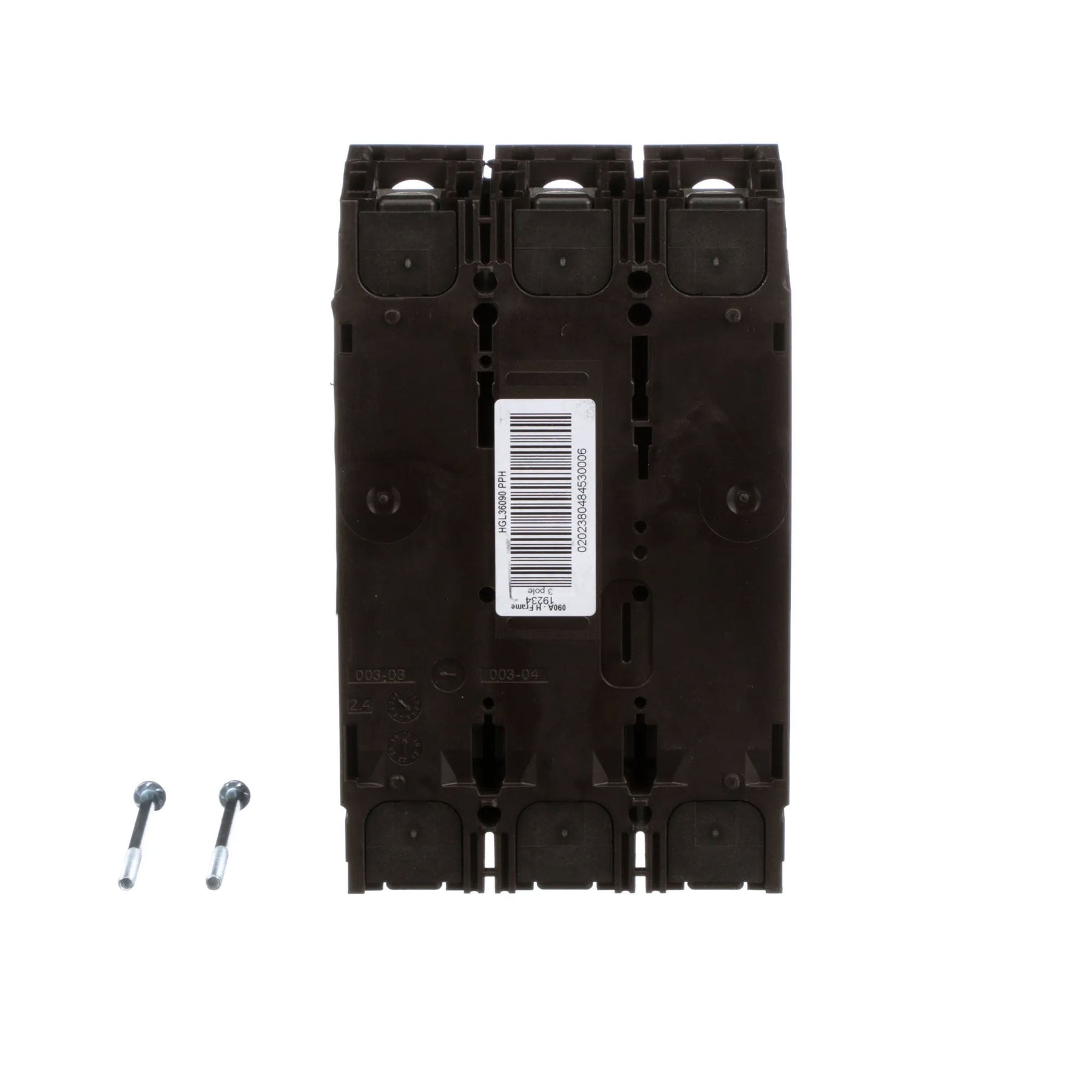

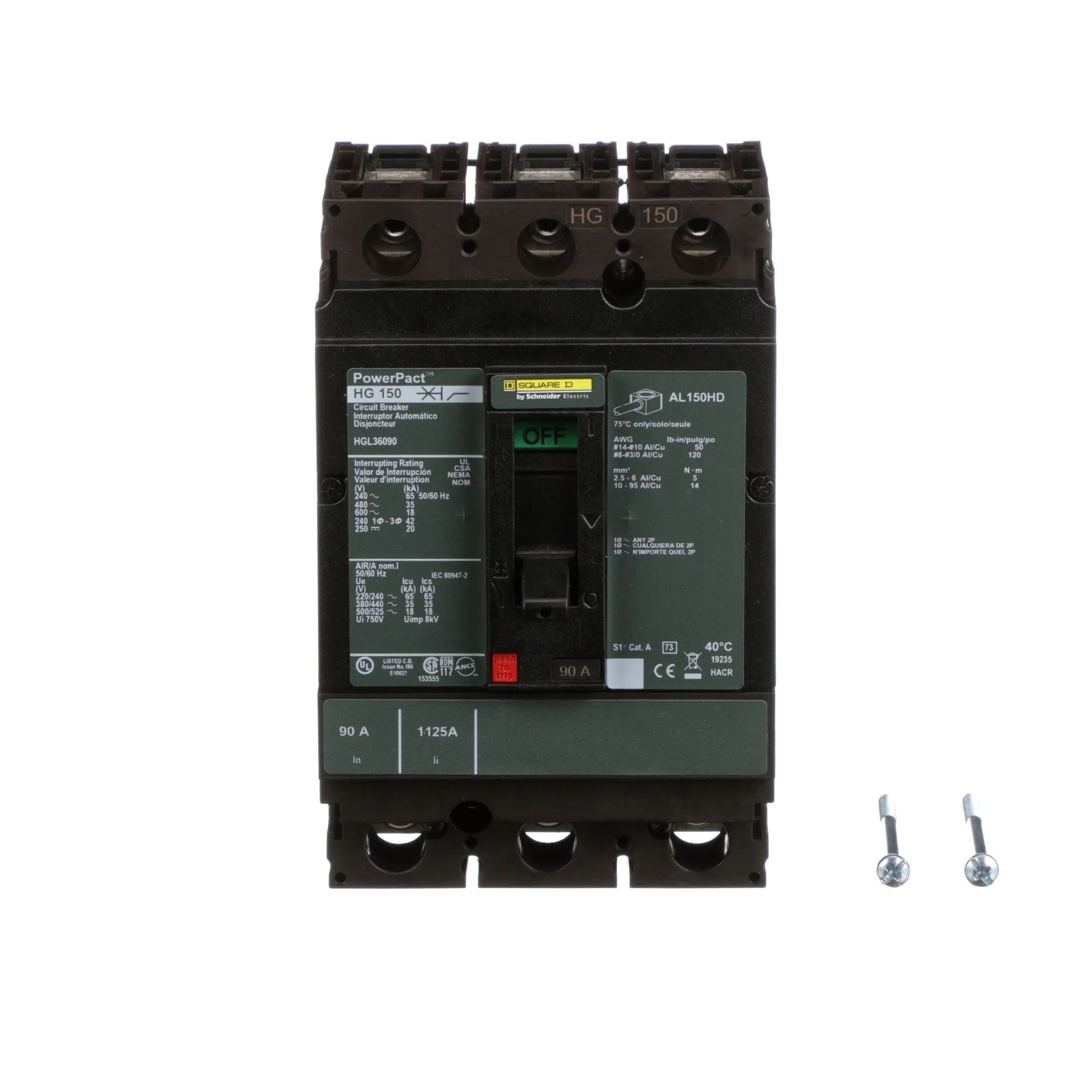

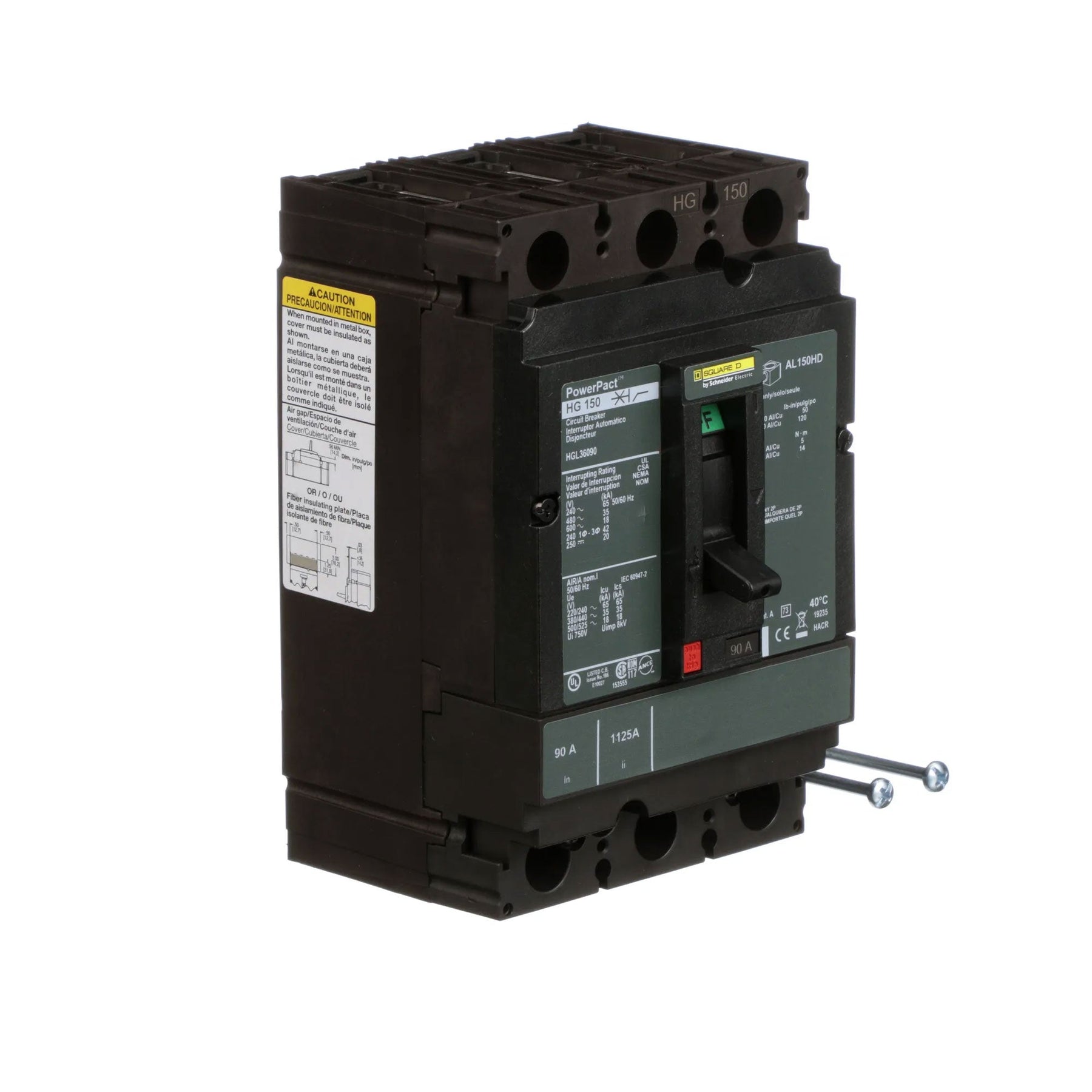

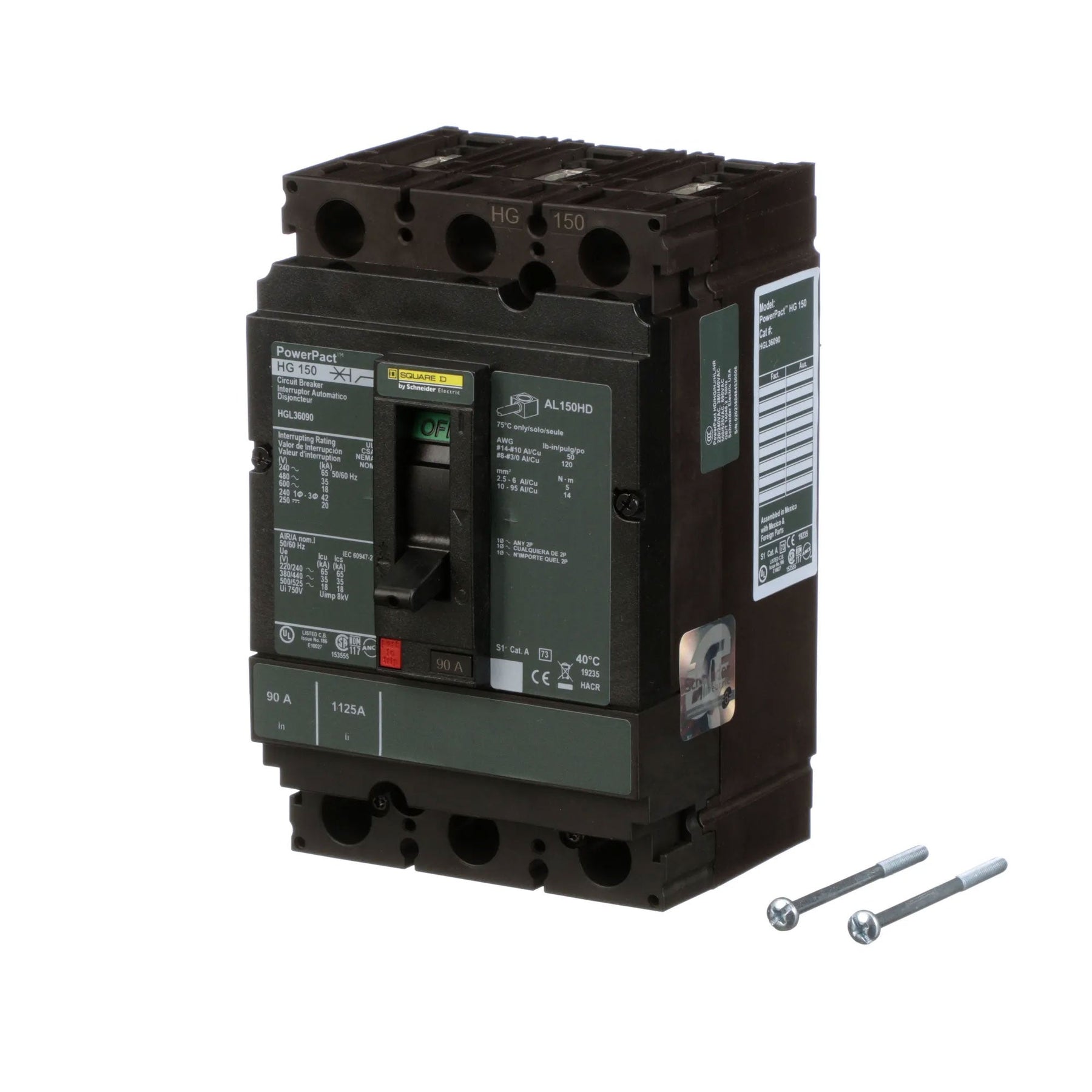

Square D HGL36090 Molded Case Circuit Breaker – 90A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact HGL Series

The Square D HGL36090 is a 90A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type HGL Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The HGL36090 is rated for 600V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It features a feed-thru configuration, line- and load-side lug terminals, and is suitable for reverse-fed applications. The breaker is supplied as a complete breaker and is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HGL
• Type: HGL
• Catalog No.: HGL36090
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Breaker Configuration: Complete Breaker
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGL36090
• Catalog Number: HGL36090
• Model: HGL36090
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HGL
• Type: HGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 90A
• Trip Configuration: Non-Interchangeable LI
• Current Rating: 90A
• UPC: 785901883722

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HGL Series electrical distribution equipment that accepts HGL Series molded case circuit breakers. The HGL36090 provides 90A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a 35kA interrupting rating at 480V, high interrupting capacity, feed-thru configuration, line- and load-side lug terminals, and a non-interchangeable LI trip. It is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, reverse-feed requirements, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HGL Series
• 90A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
• Complete Breaker
