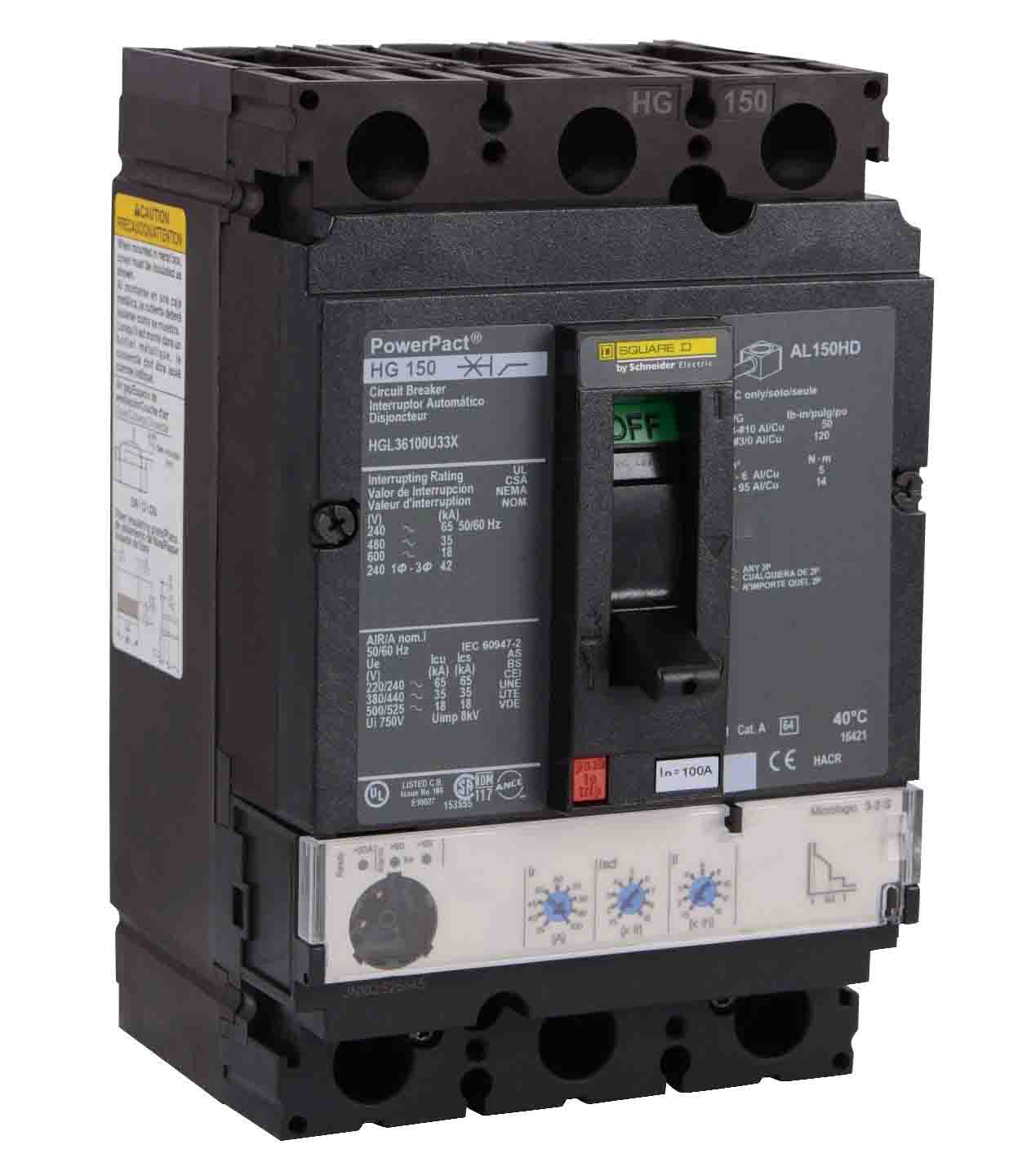

Square D HGL36100U33X Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V – 65kA @ 240V / 35kA @ 480V / 18kA @ 600V – Feed-Thru – PowerPact HGL Series

The Square D HGL36100U33X is a 100A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type HGL Series. It features solid-state electronic protection with a MicroLogic Standard non-interchangeable trip unit and Long-Time, Short-Time, and Instantaneous (LSI) trip functions.

The HGL36100U33X is rated for 600V and provides interrupting ratings of 65kA at 240V, 35kA at 480V, and 18kA at 600V. It features high interrupting capacity, a feed-thru configuration, and line- and load-side lug terminals. The breaker is UL Listed, suitable for reverse-fed applications, and can be used for 2-pole applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HGL
• Type: HGL
• Catalog No.: HGL36100U33X
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 240V; 35kA @ 480V; 18kA @ 600V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic Standard
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• 2-Pole Application: Suitable for 2-Pole Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HGL36100U33X
• Catalog Number: HGL36100U33X
• Model: HGL36100U33X
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HGL
• Type: HGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Unit: MicroLogic Standard
• Trip Configuration: Non-Interchangeable LSI
• UPC:785901402947

Compatibility:

Designed for use with compatible Square D PowerPact HGL Series electrical distribution equipment that accepts HGL Series molded case circuit breakers. The HGL36100U33X provides 100A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features a MicroLogic Standard non-interchangeable trip unit, LSI trip functions, feed-thru configuration, and line- and load-side lug terminals. It is also suitable for reverse-fed and 2-pole applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker configuration, system voltage, available fault current, pole requirements, trip-unit compatibility, terminal arrangement, reverse-feed requirements, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact HGL Series
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 240V Interrupting Rating
• 35kA @ 480V Interrupting Rating
• 18kA @ 600V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• MicroLogic Standard Trip Unit
• Non-Interchangeable Trip
• Long-Time, Short-Time and Instantaneous (LSI) Trip Functions
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
• Suitable for 2-Pole Applications
