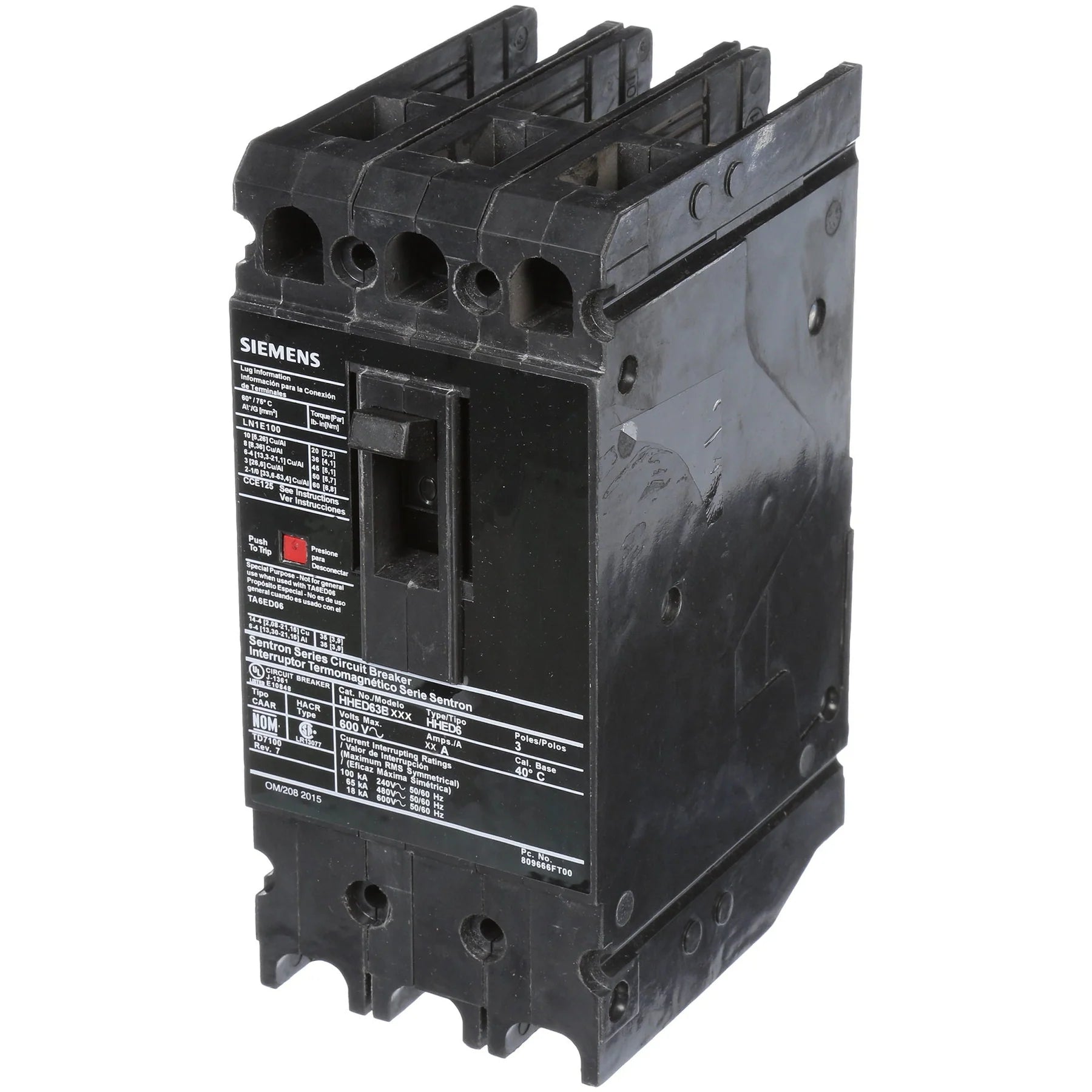

Siemens HHED63B020 Molded Case Circuit Breaker – 20A – 3-Pole / 3-Phase – 600V – 16kA @ 600V – Bolt-On – Sentron HHED Series

The Siemens HHED63B020 is a 20A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Type HHED Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The breaker is rated for 600V and provides a 16kA interrupting rating at 600V with extra high interrupting capacity. It uses a bolt-on mounting configuration, includes load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: HHED
• Type: HHED
• Catalog No.: HHED63B020
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 16kA @ 600V
• Interrupting Capacity: Extra High
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HHED63B020
• Catalog Number: HHED63B020
• Model: HHED63B020
• Product Family: Siemens Sentron Circuit Breakers
• Series: HHED
• Type: HHED
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 20A
• UPC:783643308039

Compatibility:

Designed for use with compatible Siemens Sentron HHED Series electrical distribution equipment that accepts HHED Series bolt-on molded case circuit breakers. The HHED63B020 provides 20A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features extra high interrupting capacity, bolt-on mounting, and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, mounting requirements, temperature requirements, and installation specifications before installation.
