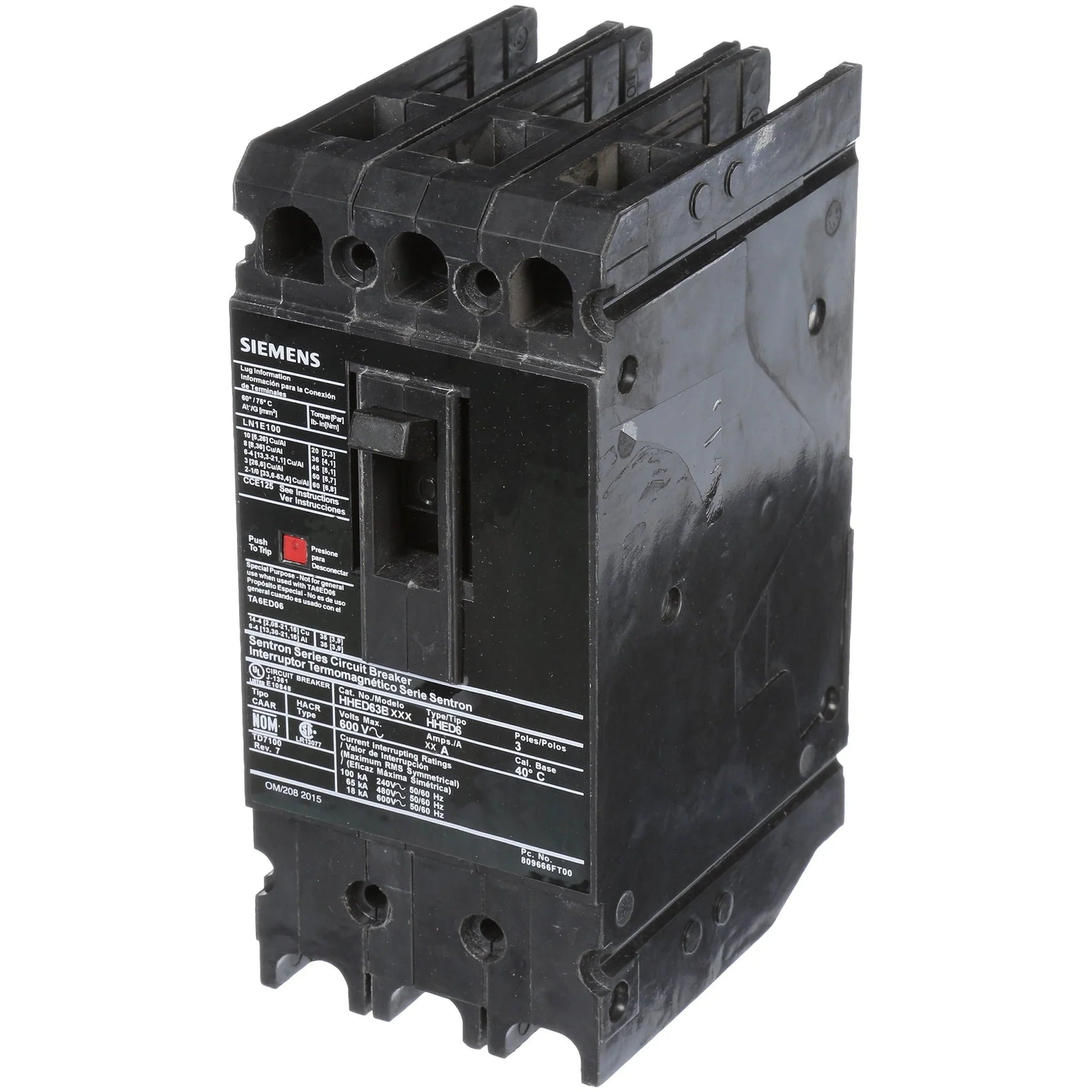

Siemens HHED63B045 45 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 16 kA@600 V – Bolt-On – SENTRON Series

The Siemens HHED63B045 is a 45 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type HHED. It is rated for 600 V with a 16 kA interrupting capacity at 600 V and features a thermal-magnetic trip mechanism. The breaker is designed for 40°C applications, bolt-on mounting, and includes load-side lug terminals.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: HHED
• Catalog Number / MPN: HHED63B045
• Primary Rating: 45 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 16 kA @ 600 V
• Interrupting Capacity: Extra High
• Trip Type: Thermal-Magnetic
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Bolt-On
• Terminals: Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: HHED63B045
• Series: SENTRON
• Type: HHED
• Current Rating: 45 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Terminals: Load-Side Lug Terminals
• UPC: 783643308084

Compatibility

The Siemens HHED63B045 is designed for compatible Siemens SENTRON Type HHED molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
