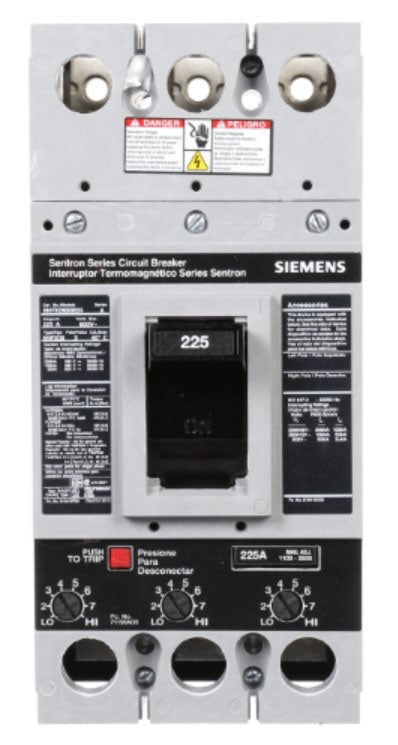

Siemens HHFXD63B225 225 Amp Sentron Molded Case Circuit Breaker – 3 Pole – 600V AC – 100 kA @ 480V

The Siemens HHFXD63B225 is a Sentron Series molded case circuit breaker, Type HHFXD, designed for three-phase electrical distribution applications. It features a 225A current rating, 600V AC voltage rating, and an extra-high interrupting capacity of 100kA at 480V. The breaker uses a bolt-on mounting configuration and is equipped with a non-interchangeable trip unit and load-side lug terminals.

Specifications

• Brand: Siemens
• Product Series: Sentron
• Type: HHFXD
• MPN: HHFXD63B225
• Current Rating: 225A
• Poles: 3
• Phase: 3-phase
• Voltage Rating: 600V AC
• Interrupting Capacity: 100kA at 480V
• Interrupting Rating: Extra-high
• Trip Code: 40CB0C
• Mounting: Bolt-on
• Trip Unit: Non-interchangeable
• Terminals: Load-side lug terminals included

Part Numbers & Identification

• Manufacturer Part Number: HHFXD63B225
• Product Family: Sentron HHFXD
• Product Category: Molded Case Circuit Breaker (MCCB)
• UPC:783643211285

Compatibility

Designed for compatible Siemens Sentron distribution equipment supporting HHFXD-frame, three-pole circuit breakers with a 225A rating, 600V AC application, and bolt-on mounting.
