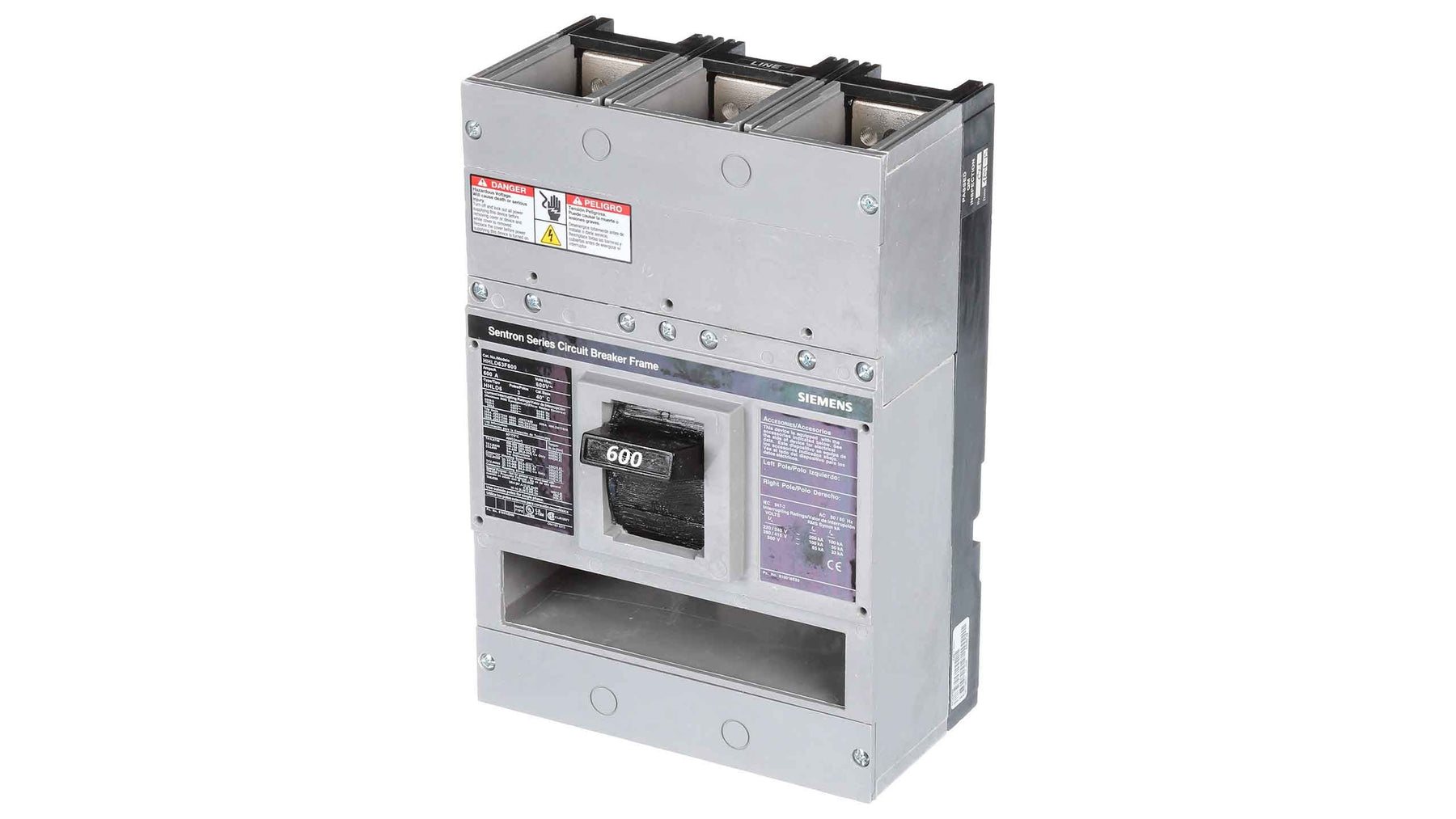

Siemens HHLD63F600 Molded Case Circuit Breaker Frame – 600A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Bolt-On – Sentron HHLD Series

The Siemens HHLD63F600 is a 600A, 3-pole, 3-phase molded case circuit breaker frame from the Siemens Sentron Series Type HHLD. It is designed for compatible electrical distribution applications and provides the frame platform for applicable thermal-magnetic molded case circuit breaker configurations.

The HHLD63F600 is rated for 600V and is identified with a 100kA interrupting rating at 480V and very high interrupting capacity. It uses a bolt-on mounting configuration and is rated for operation at 40°C. The product is supplied as a frame only, not as a complete circuit breaker.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Sentron
• Series: HHLD
• Type: HHLD
• Catalog No.: HHLD63F600
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Interrupting Capacity: Very High
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Breaker Configuration: Frame Only
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HHLD63F600
• Catalog Number: HHLD63F600
• Model: HHLD63F600
• Product Family: Siemens Sentron Circuit Breaker Frames
• Series: HHLD
• Type: HHLD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Frame Configuration: 3-Pole, 600A
• Product Configuration: Frame Only
• UPC:783643213920

Compatibility:

Designed for use with compatible Siemens Sentron Series Type HHLD electrical distribution equipment and breaker configurations that accept the HHLD frame. The HHLD63F600 provides a 600A, 3-pole, 600V frame for compatible thermal-magnetic molded case circuit breaker applications.

This product is supplied as a frame only and should not be treated as a complete circuit breaker. Always verify the required trip unit, terminals, accessories, mounting arrangement, panelboard or electrical equipment model, system voltage, available fault current, and other approved components before installation.

Certifications:

• Siemens Sentron HHLD Series
• 600A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Very High Interrupting Capacity
• Thermal-Magnetic
• Bolt-On Mounting
• 40°C Rated
• Frame Only
