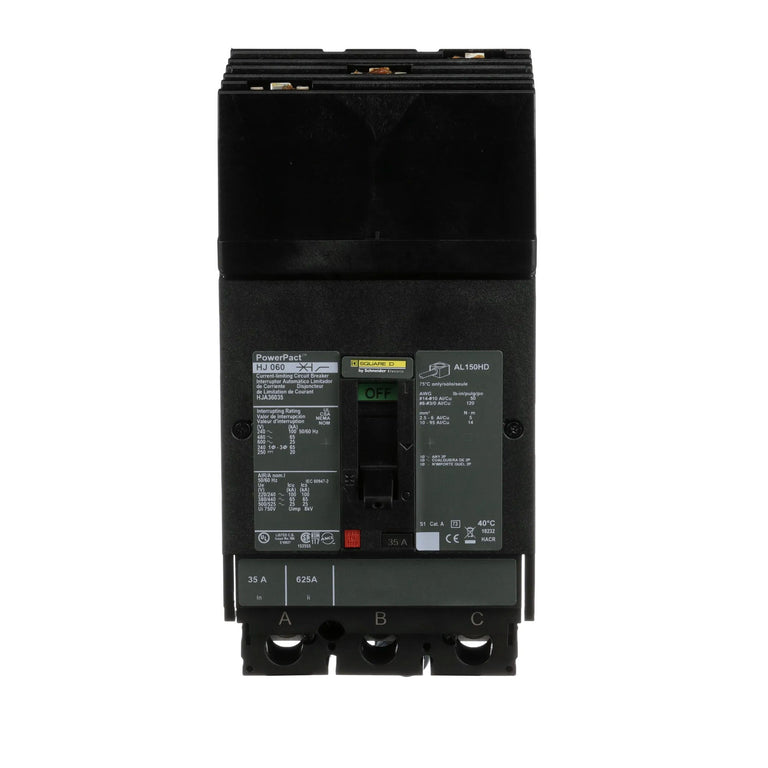

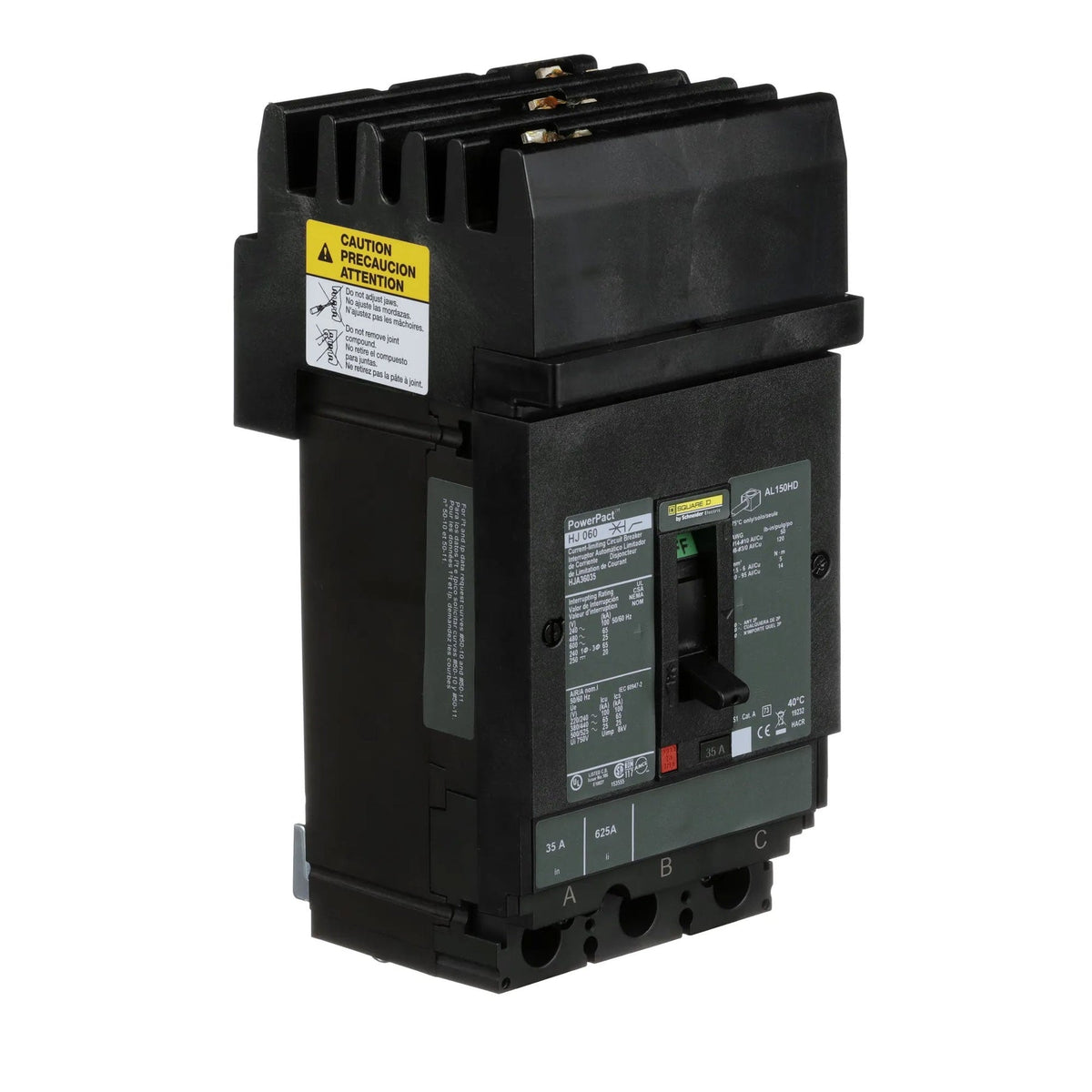

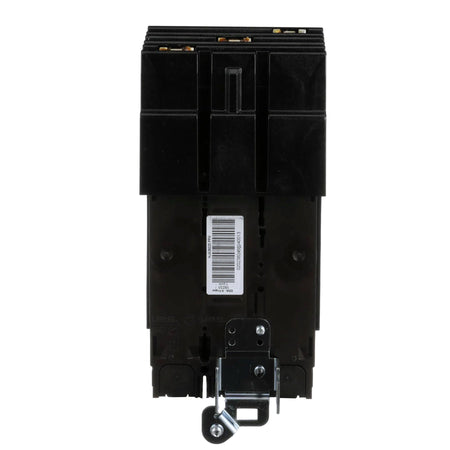

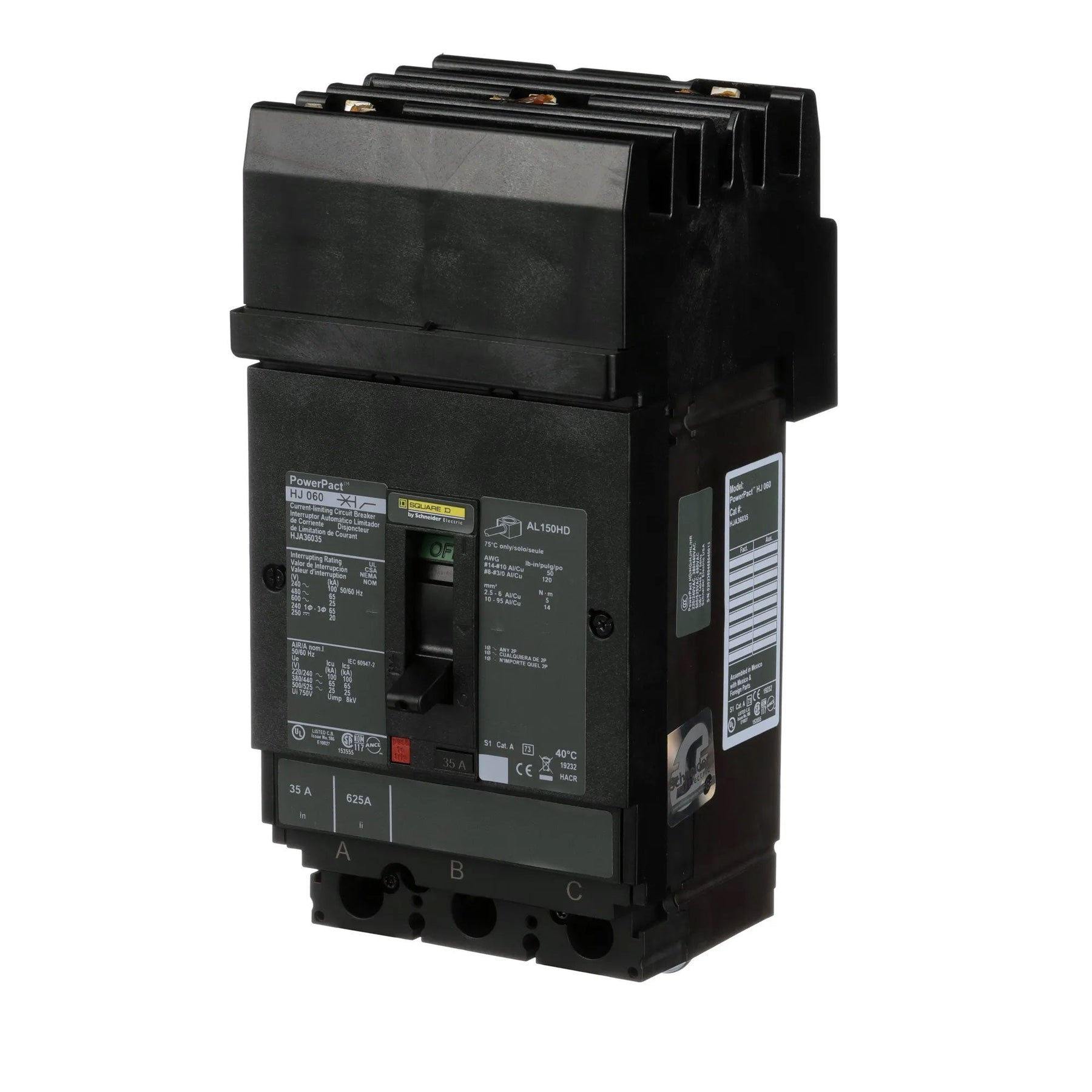

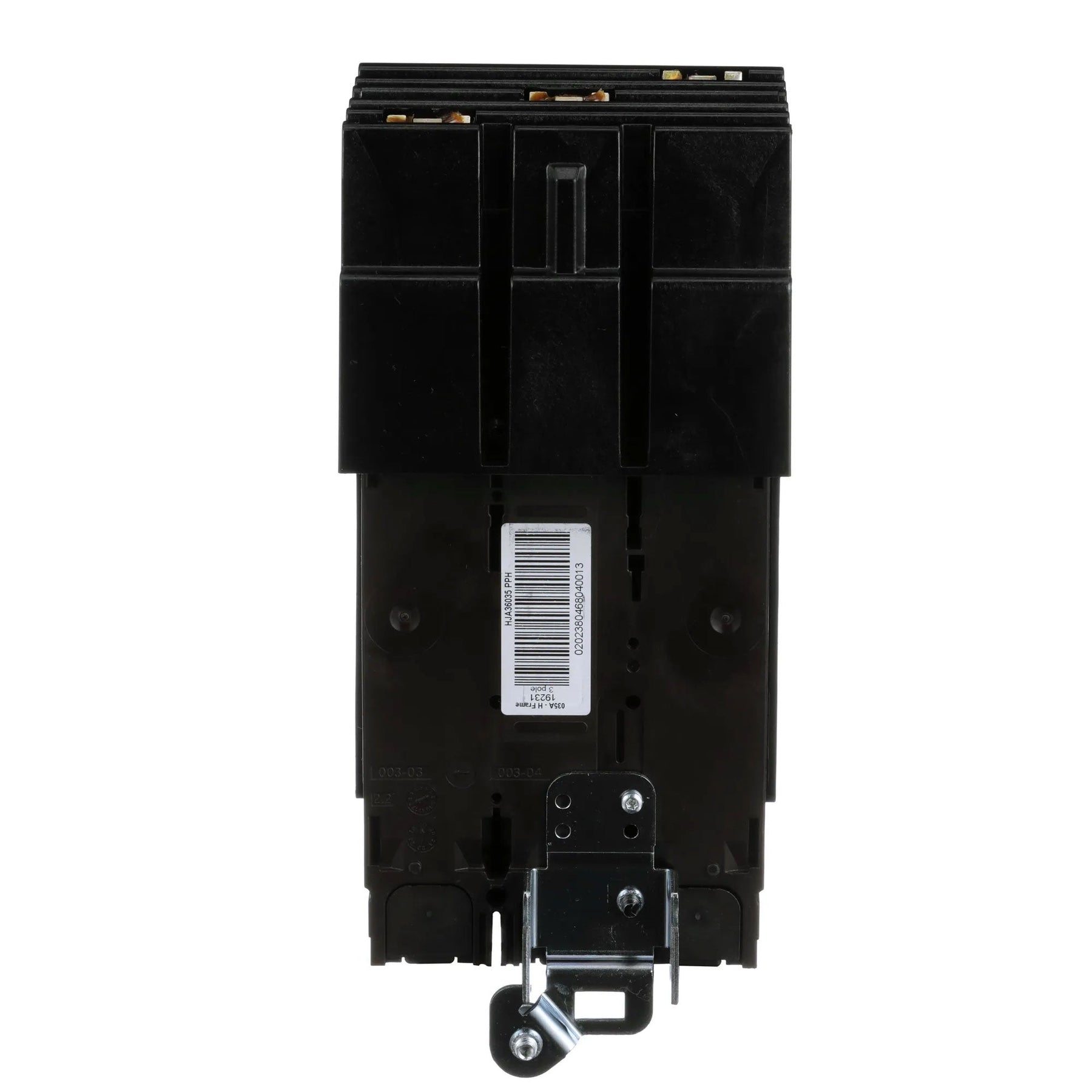

Square D HJA36035 Molded Case Circuit Breaker – 35A – 3-Pole / 3-Phase – 600V AC – 65kA @ 480V – I-Line Plug-In – PowerPact HJA Series

The Square D HJA36035 is a 35A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Square D PowerPact HJA Series. It is designed to provide overload and short-circuit protection for compatible commercial and industrial electrical distribution systems.

The HJA36035 is rated for 600V AC and provides interrupting ratings of 100kA at 240V AC, 65kA at 480V AC, and 25kA at 600V AC. It features I-Line plug-on mounting and a thermal-magnetic LI trip unit providing Long-Time and Instantaneous protection.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact H
• Series: HJA
• Type: HJA
• Catalog No.: HJA36035
• Current Rating: 35A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 100kA @ 240V AC; 65kA @ 480V AC; 25kA @ 600V AC
• Protection Type: Thermal-Magnetic
• Trip Unit: Thermal-Magnetic LI
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Plug-On
• Application: Overload and Short-Circuit Protection
• Application Type: Commercial and Industrial Electrical Systems
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJA36035
• Catalog Number: HJA36035
• Model: HJA36035
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HJA
• Type: HJA
• Frame Type: HJA / PowerPact H
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 35A
• Rated Current: 35A
• Rated Voltage: 600V AC
• UPC:785901422396

Compatibility:

Designed for use with compatible Square D PowerPact HJA Series electrical distribution equipment that accepts I-Line plug-on molded case circuit breakers. The HJA36035 provides 35A, 3-pole thermal-magnetic protection for compatible 600V AC commercial and industrial electrical systems.

The breaker features Long-Time and Instantaneous (LI) protection and the specified interrupting ratings of 100kA at 240V AC, 65kA at 480V AC, and 25kA at 600V AC. Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• UL Listed
• CSA Certified
• NOM
• IEC
• PowerPact HJA Series
• 35A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 100kA @ 240V AC Interrupting Rating
• 65kA @ 480V AC Interrupting Rating
• 25kA @ 600V AC Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• I-Line Plug-On Mounting
