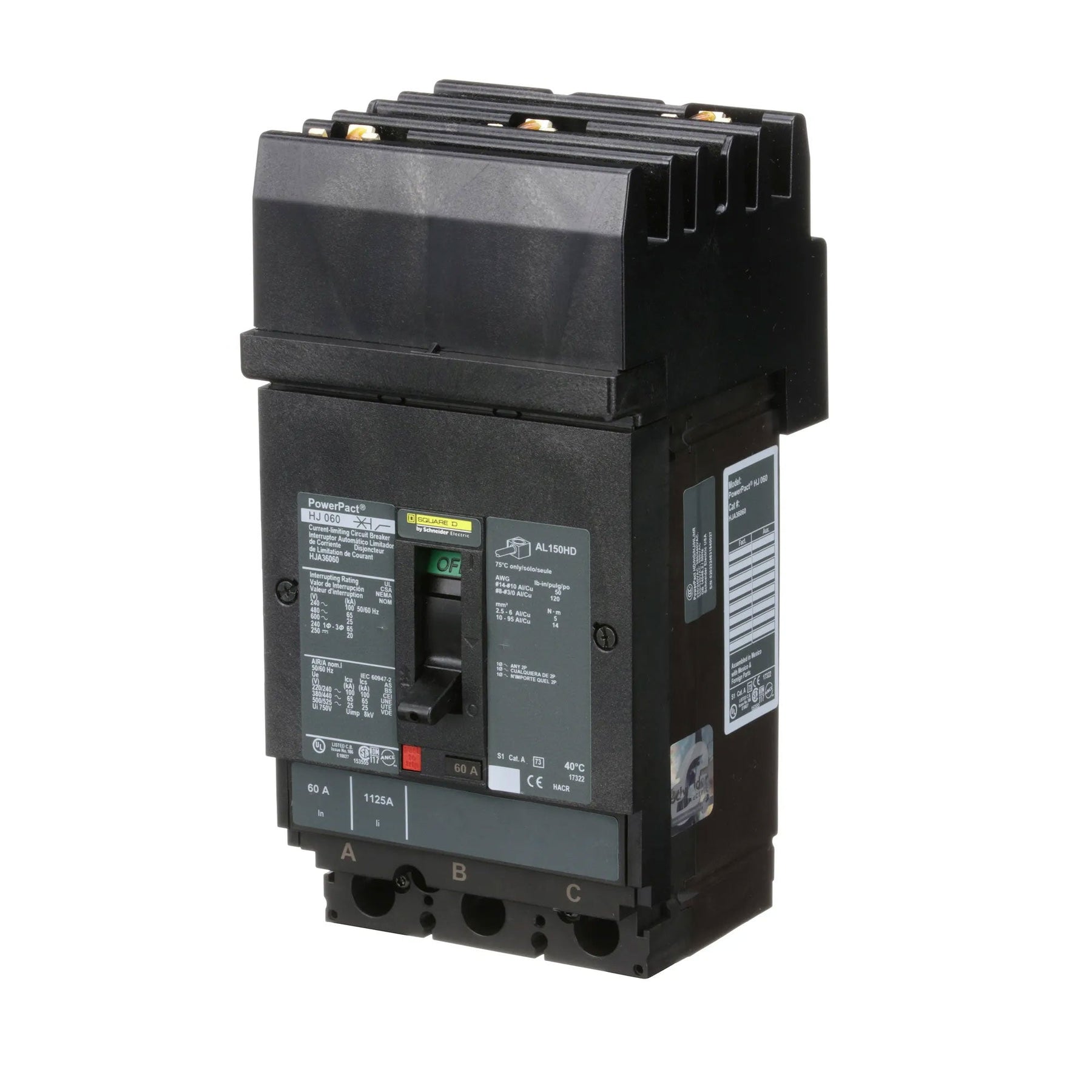

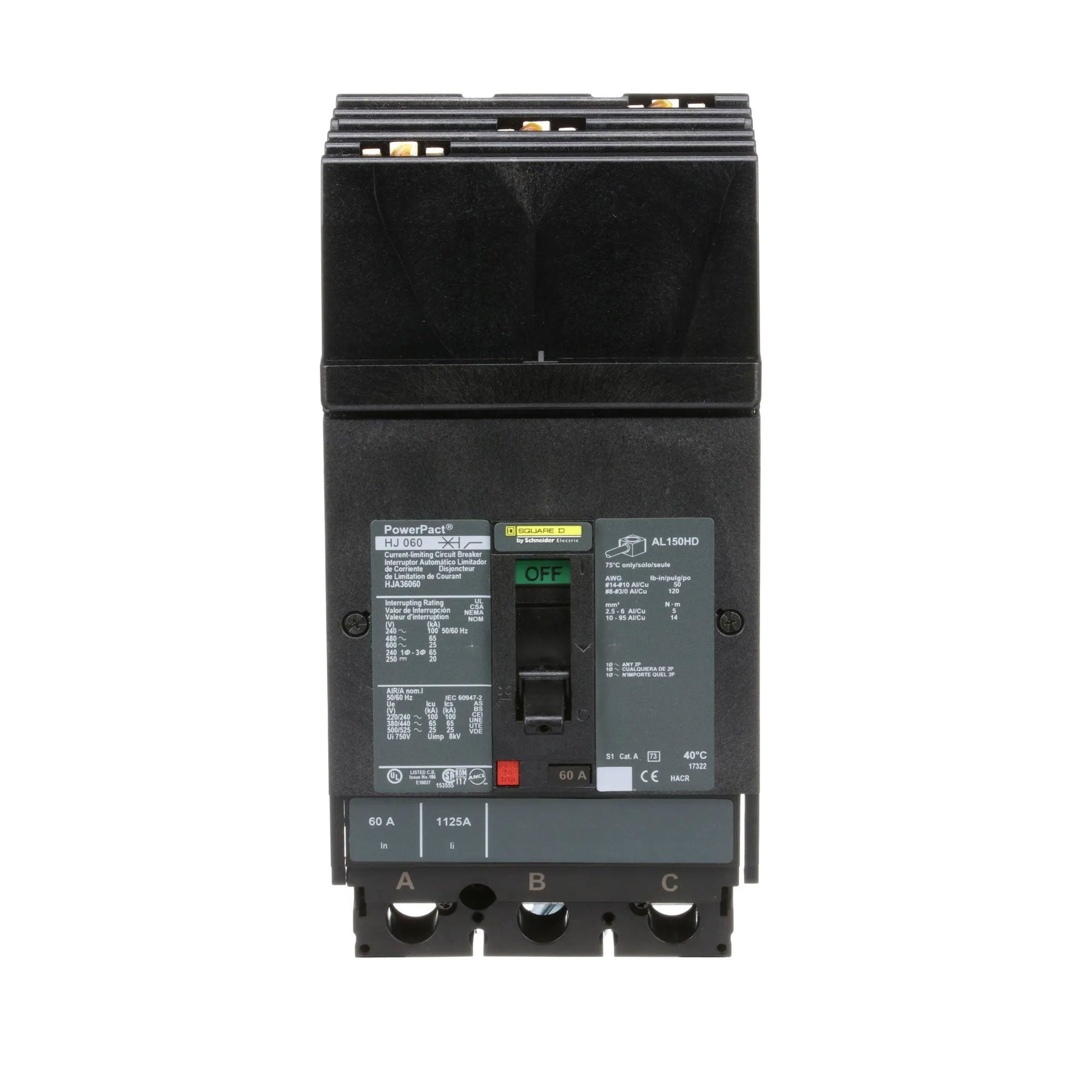

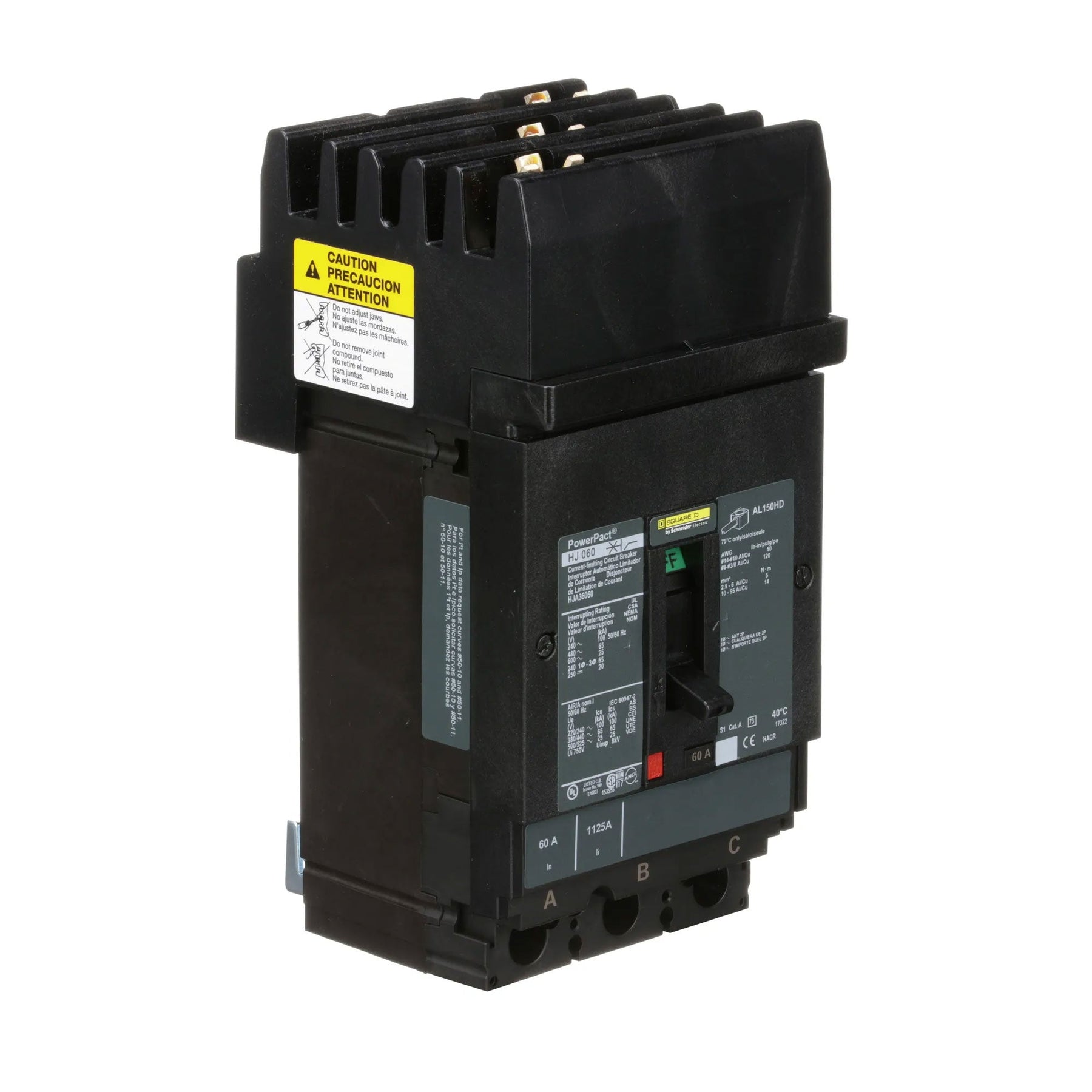

Square D HJA36060 Molded Case Circuit Breaker – 60A – 3-Pole – 600VAC – 100kA @ 240V – I-Line Plug-On – PowerPact HJA Series

The Square D HJA36060 is a 60A, 3-pole molded case circuit breaker from the PowerPact HJA Series. It is designed to provide overload and short-circuit protection in compatible commercial and industrial electrical systems.

The breaker is rated for 600VAC and features I-Line plug-on mounting with a thermal-magnetic trip unit providing Long-Time and Instantaneous (LI) trip functions. It has interrupting ratings of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Catalog No.: HJA36060
• Product Family: PowerPact H
• Series: HJA
• Frame Type: HJA
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600VAC
• Interrupting Rating: 100kA @ 240VAC
• Interrupting Rating: 65kA @ 480VAC
• Interrupting Rating: 25kA @ 600VAC
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)

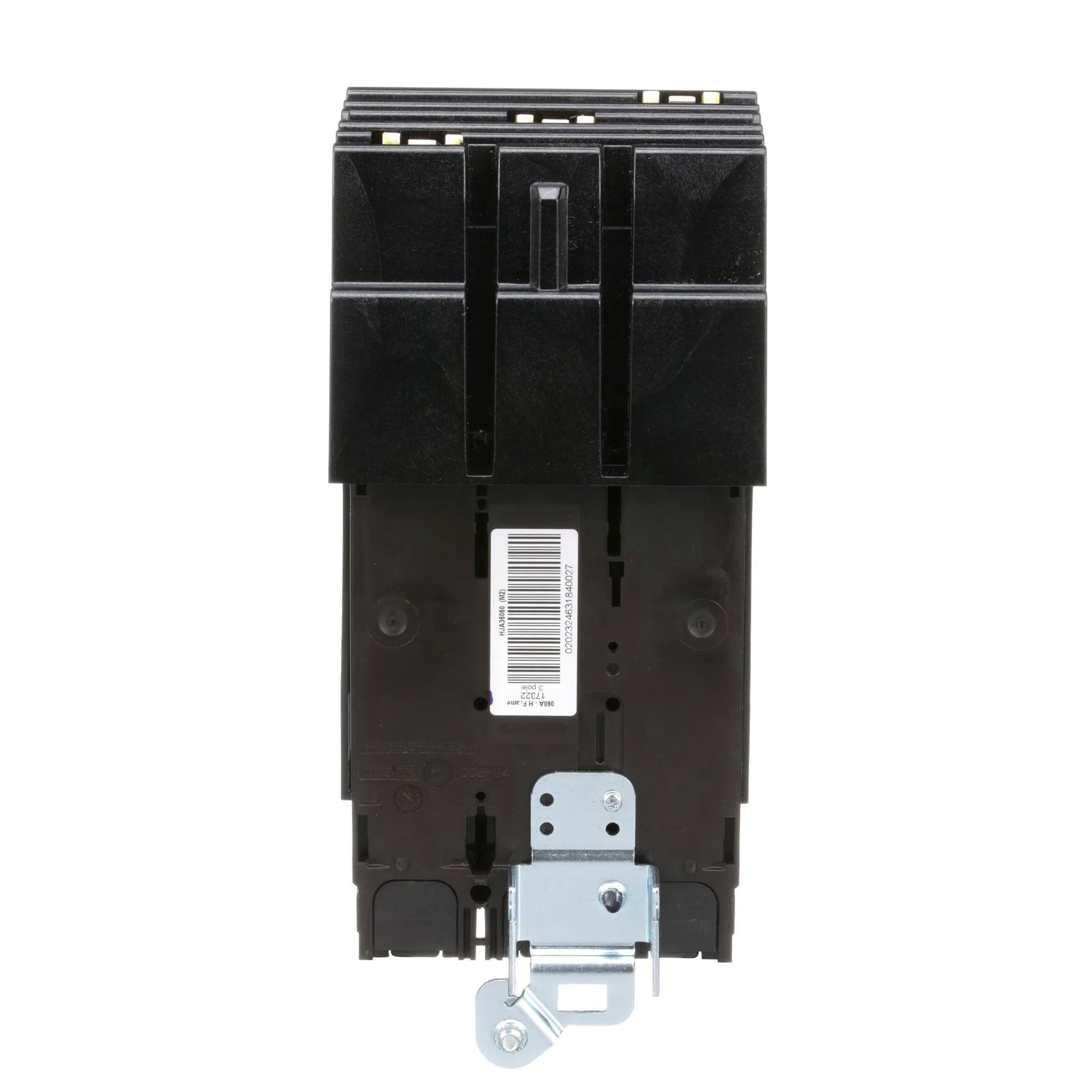

• Mounting Type: I-Line Plug-On
• Application: Commercial and Industrial Electrical Systems
• UPC: 785901600961
• GTIN: 00785901600961
• Weight: Approximately 2.5 lb

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJA36060
• Catalog Number: HJA36060
• Product Family: Square D PowerPact H
• Series: HJA
• Frame Type: HJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: HJA36060
• Breaker Configuration: 3-Pole, 60A
• upc:785901600961

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HJA Series I-Line electrical distribution equipment requiring a 3-pole, 60A molded case circuit breaker. The HJA36060 uses an I-Line plug-on mounting configuration and provides thermal-magnetic Long-Time and Instantaneous protection.

Always verify the specific panelboard or equipment model, approved breaker type, system voltage, interrupting rating, mounting arrangement, pole configuration, and installation requirements before installation.

Certifications:

• UL Certified
• CSA Certified
• NOM Certified
• IEC Certified
• PowerPact HJA Series
• 60A Rated
• 3-Pole / 3-Phase
• 600VAC Rated
• 100kA @ 240VAC
• 65kA @ 480VAC
• 25kA @ 600VAC
• Thermal-Magnetic LI Trip
• I-Line Plug-On Mounting
