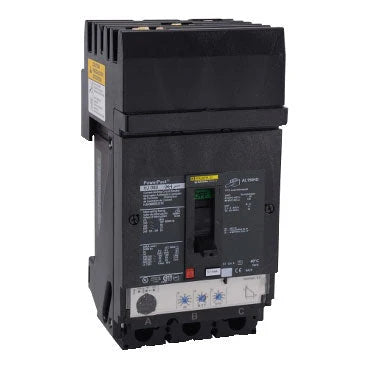

Square D HJA36060U31X 60 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – I-Line Plug-On – PowerPact HJA Series

The Square D HJA36060U31X is a 60 Amp, 3-pole, 3-phase molded case circuit breaker from the Schneider Electric Square D PowerPact HJA Series. It is rated for 600 VAC and 250 VDC and features a Micrologic 3.2 electronic trip unit with LI (Long-Time and Instantaneous) protection functions. The breaker uses I-Line plug-on mounting and provides multiple interrupting ratings depending on system voltage.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact HJA
• Frame: HJA
• Catalog Number / MPN: HJA36060U31X
• Primary Rating: 60 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 VAC / 250 VDC
• Interrupting Ratings:
  • 100 kA @ 240 VAC
  • 65 kA @ 480 VAC
  • 25 kA @ 600 VAC
  • 20 kA @ 250 VDC
• Trip Type: Electronic
• Trip Unit: Micrologic 3.2
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: I-Line Plug-On

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: HJA36060U31X
• Series: PowerPact HJA
• Frame: HJA
• Current Rating: 60 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Micrologic 3.2
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: I-Line Plug-On
• UPC:785901235873

Compatibility

The Square D HJA36060U31X is designed for compatible Schneider Electric Square D PowerPact HJA Series I-Line electrical distribution applications.

Certifications

• UL
• CSA
• NOM
• IEC
