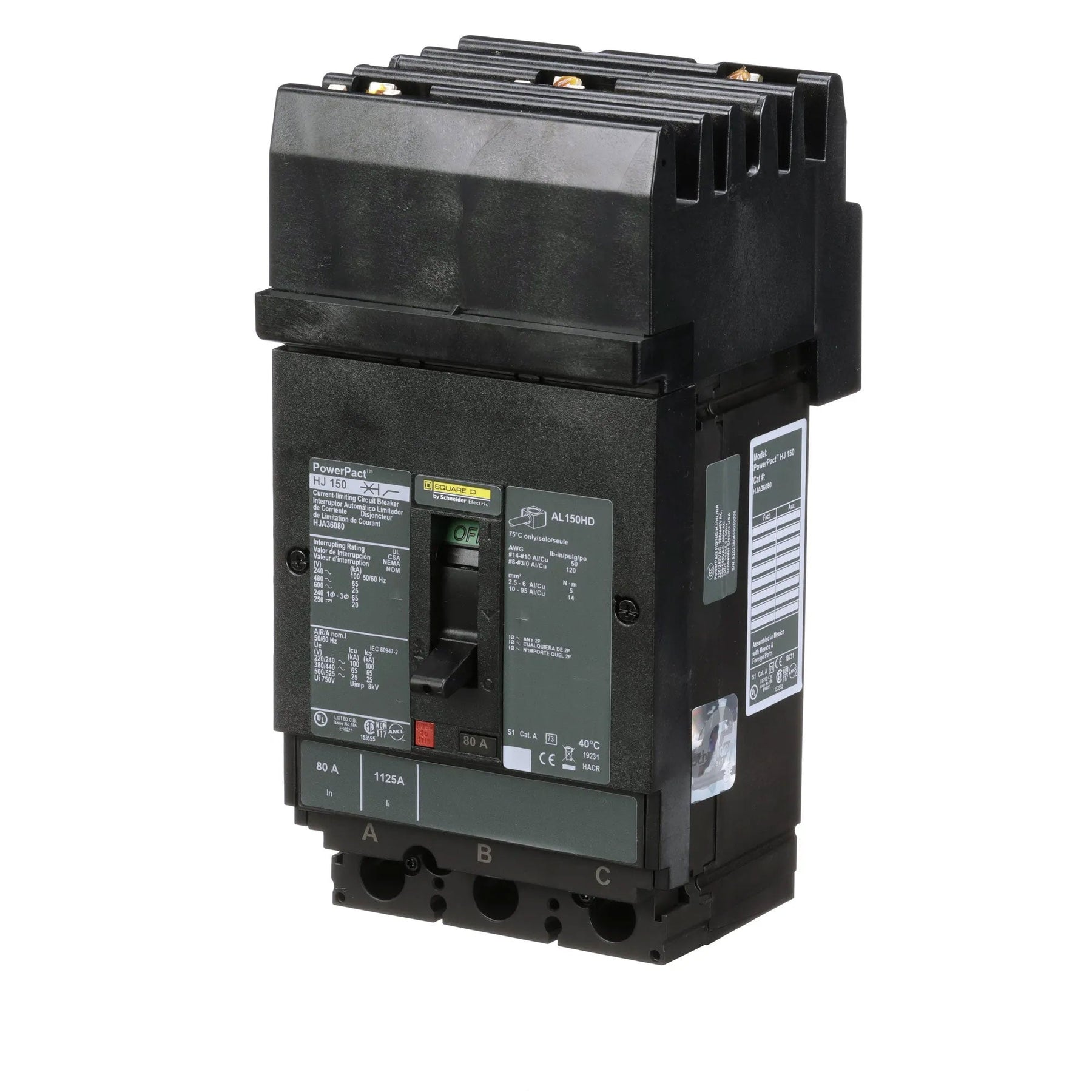

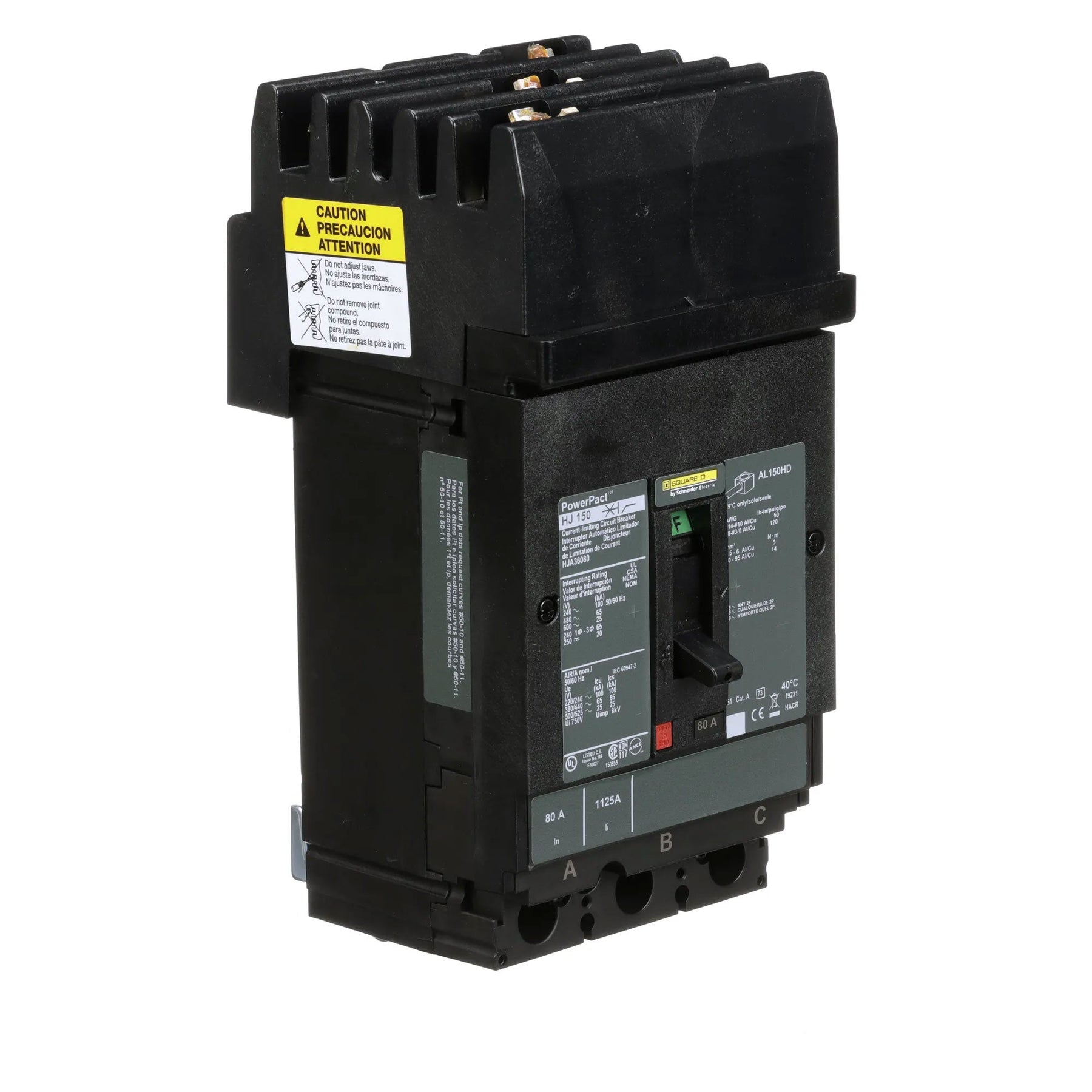

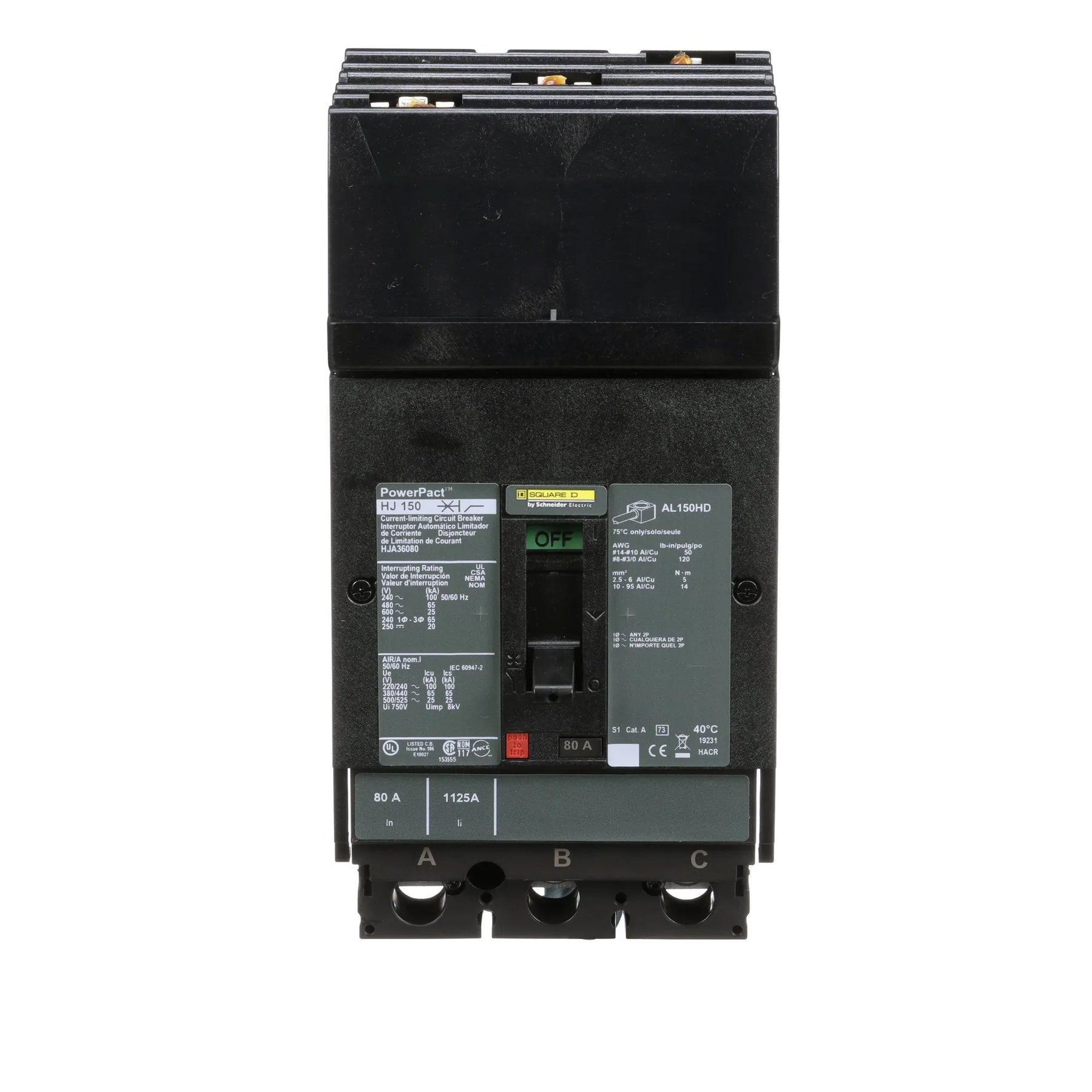

Square D HJA36080 Molded Case Circuit Breaker – 80A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – I-Line Style Plug-In – PowerPact HJA Series

The Square D HJA36080 is an 80A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact HJA Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The HJA36080 is rated for 600V and provides a 65kA interrupting rating at 480V. It features a current-limiting design, I-Line style plug-in connection, and ABC phase connection. The breaker is also suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: HJA
• Type: HJA
• Catalog No.: HJA36080
• Current Rating: 80A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Current Limiting: Current Limiting

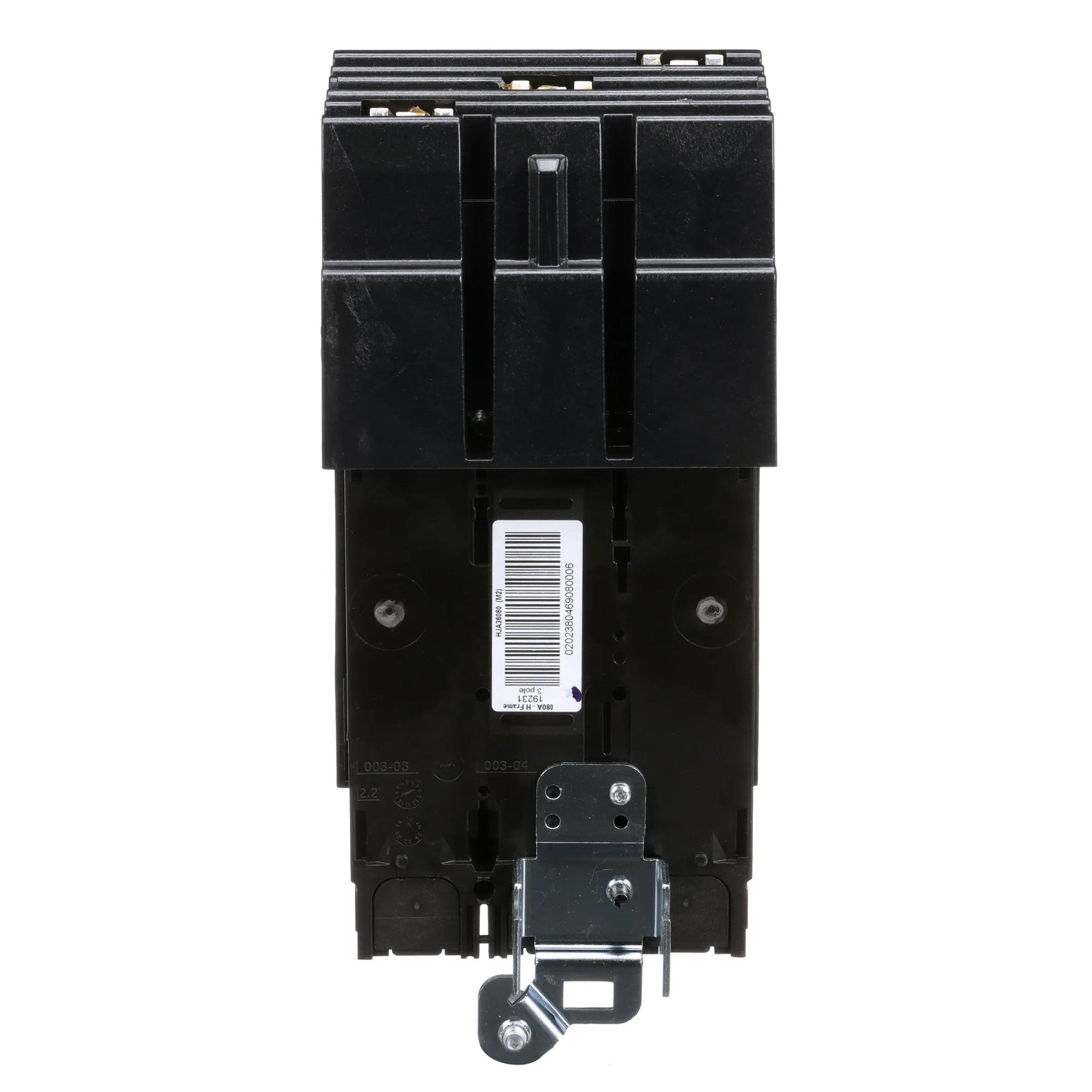

• Mounting / Connection: I-Line Style Plug-In
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJA36080
• Catalog Number: HJA36080
• Model: HJA36080
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: HJA
• Type: HJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 80A
• UPC:785901507222

Compatibility:

Designed for use with compatible Square D PowerPact HJA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The HJA36080 provides 80A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features a 65kA interrupting rating at 480V, current-limiting construction, non-interchangeable LI trip functions, and ABC phase connection. It is also suitable for reverse-fed applications as specified.

Certifications:

• UL Listed
• PowerPact HJA Series
• 80A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• Current Limiting
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• I-Line Style Plug-In
• ABC Phase Connection
• Suitable for Reverse-Fed Applications
