Square D HGL36090 Molded Case Circuit Breaker – 90A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact HGL Series

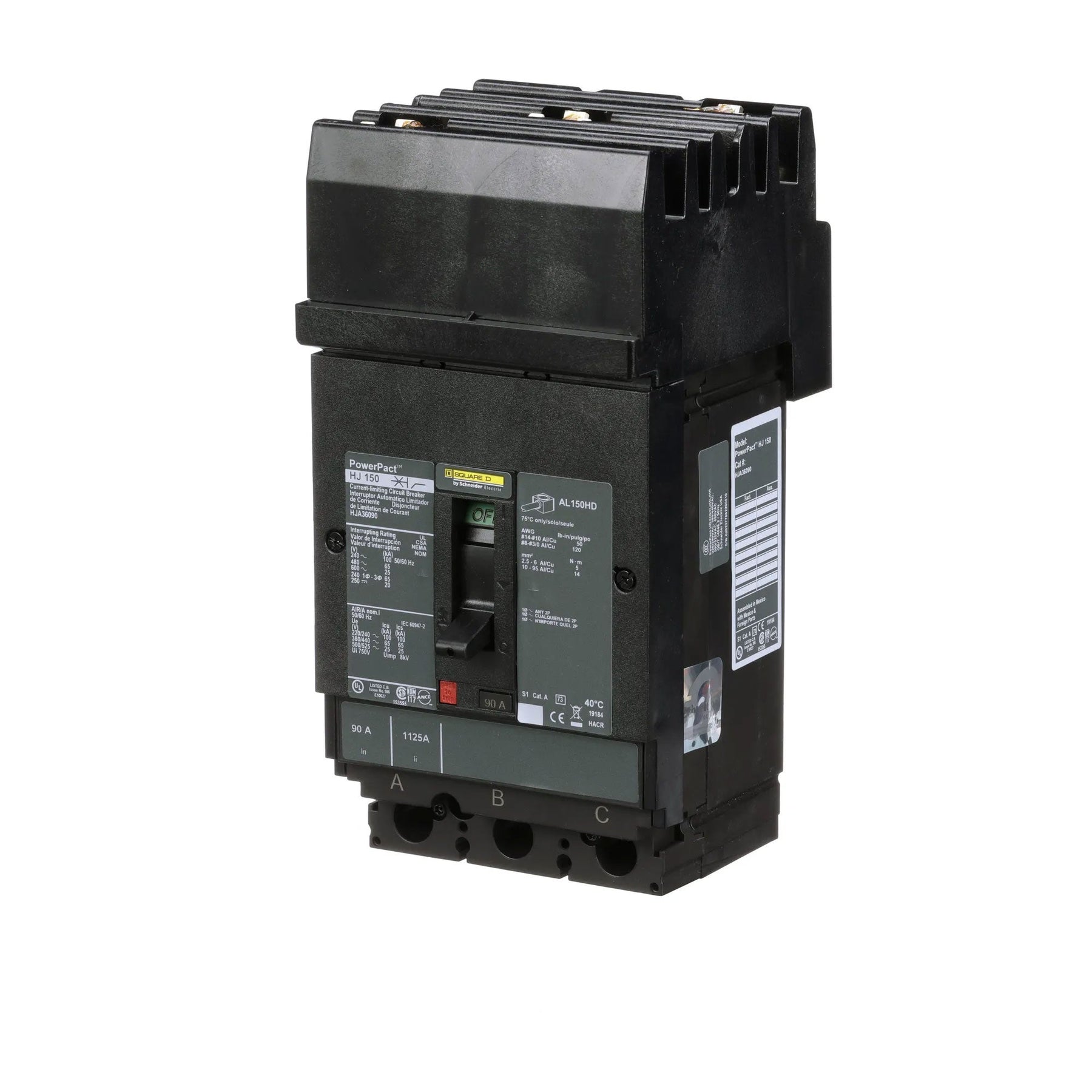

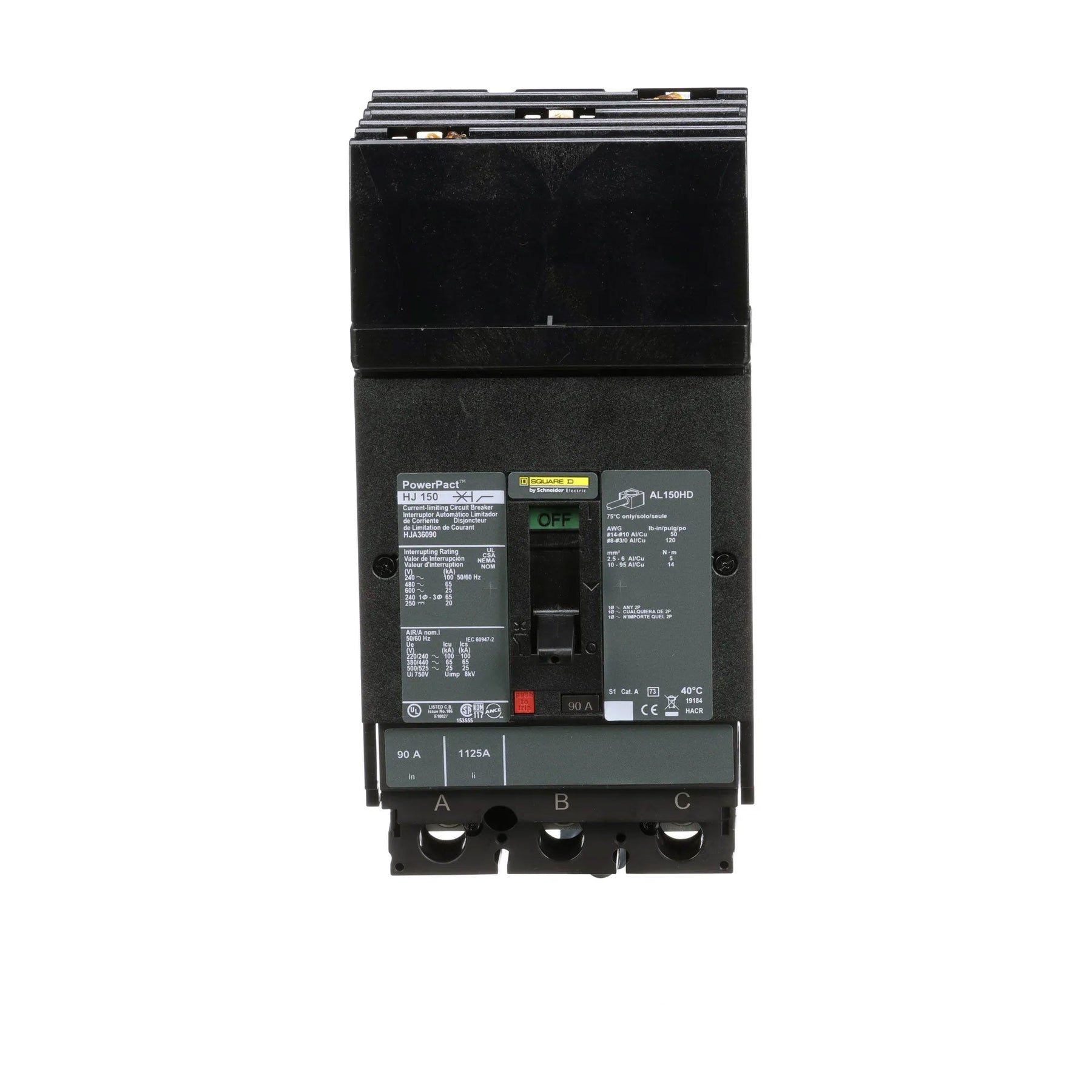

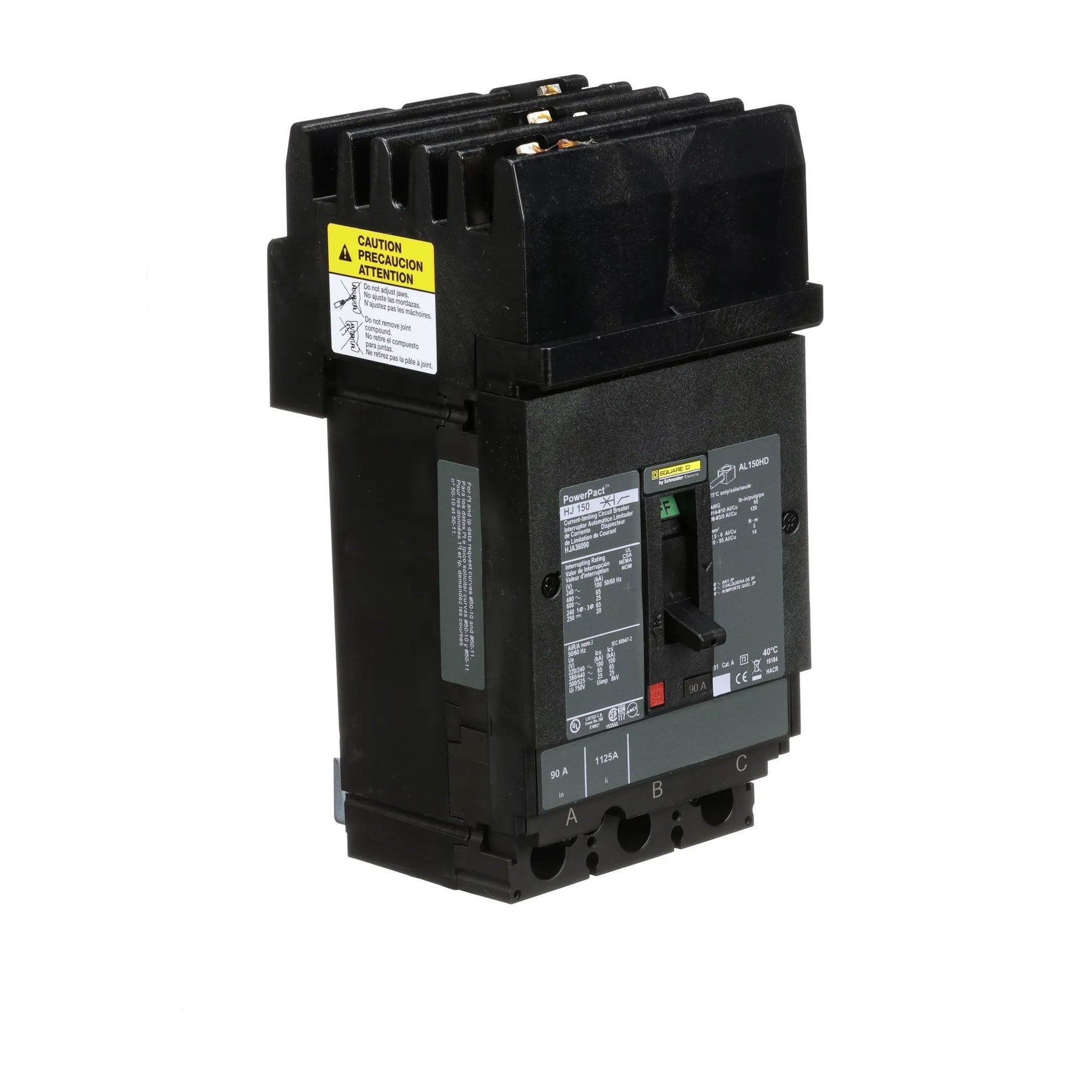

The Square D HJA36090 is a 90A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact HJA Series. It is designed to provide overload and short-circuit protection for compatible commercial and industrial electrical distribution systems.

The HJA36090 is rated for 600V AC and features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions. It uses an I-Line plug-on mounting configuration and provides interrupting ratings of 100kA at 240V AC, 65kA at 480V AC, and 25kA at 600V AC.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact H
• Series: HJA
• Type: HJA
• Catalog No.: HJA36090
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 100kA @ 240V AC; 65kA @ 480V AC; 25kA @ 600V AC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)

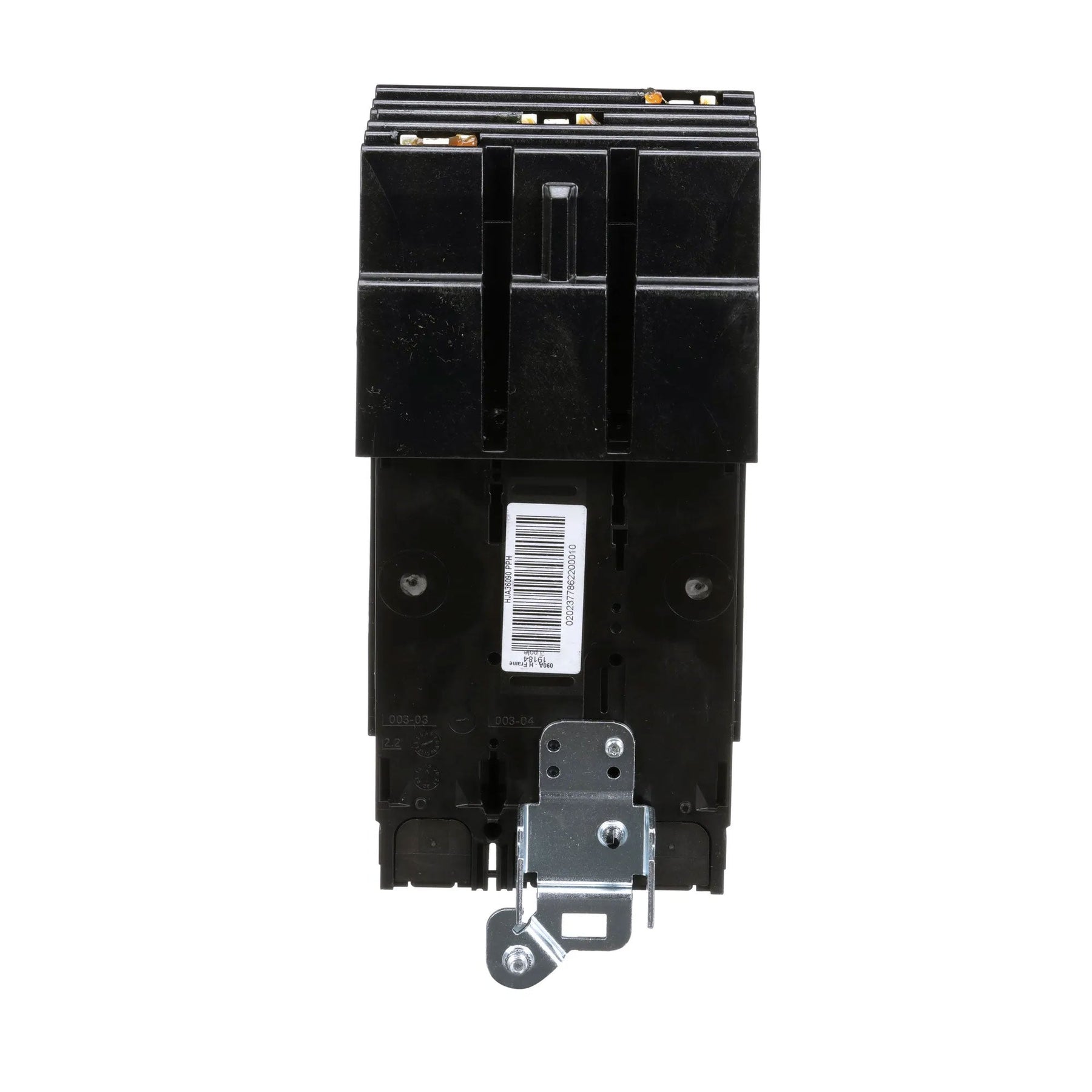

• Mounting / Connection: I-Line Plug-On
• Frame Type: HJA / PowerPact H
• Application: Overload and Short-Circuit Protection
• Application: Commercial and Industrial Electrical Distribution
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJA36090
• Catalog Number: HJA36090
• Model: HJA36090
• Product Family: Square D PowerPact H Molded Case Circuit Breakers
• Series: HJA
• Type: HJA
• Frame Type: HJA / PowerPact H
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 90A
• Trip Configuration: Thermal-Magnetic LI
• Mounting Configuration: I-Line Plug-On
• UPC: 785901507246

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HJA Series electrical distribution equipment that accepts I-Line plug-on molded case circuit breakers. The HJA36090 provides 90A, 3-pole thermal-magnetic protection for compatible 600V AC electrical distribution applications.

The breaker provides interrupting ratings of 100kA at 240V AC, 65kA at 480V AC, and 25kA at 600V AC. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, I-Line compatibility, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• NOM Certified
• IEC Certified
• PowerPact HJA Series
• 90A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 100kA @ 240V AC Interrupting Rating
• 65kA @ 480V AC Interrupting Rating
• 25kA @ 600V AC Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Plug-On Mounting
