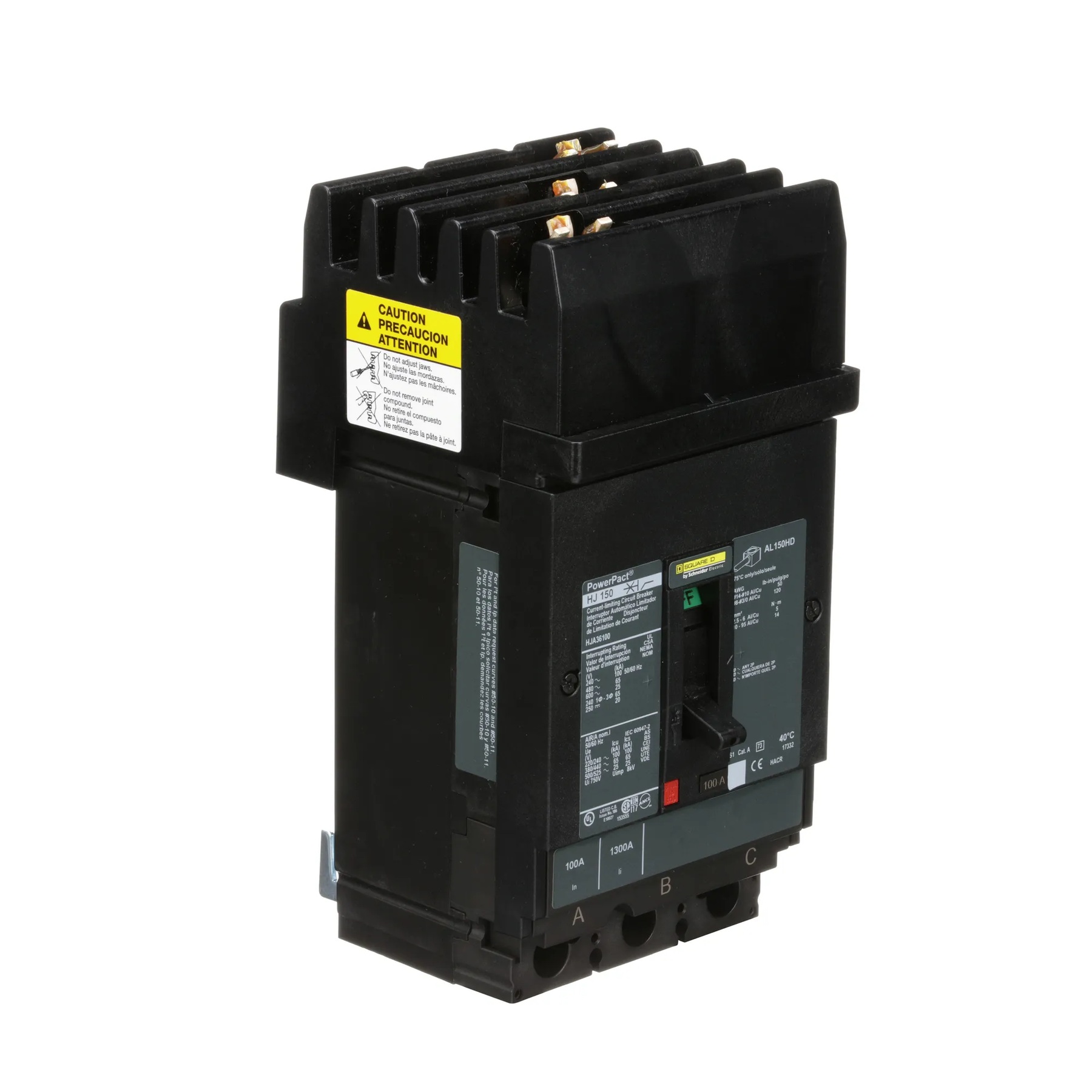

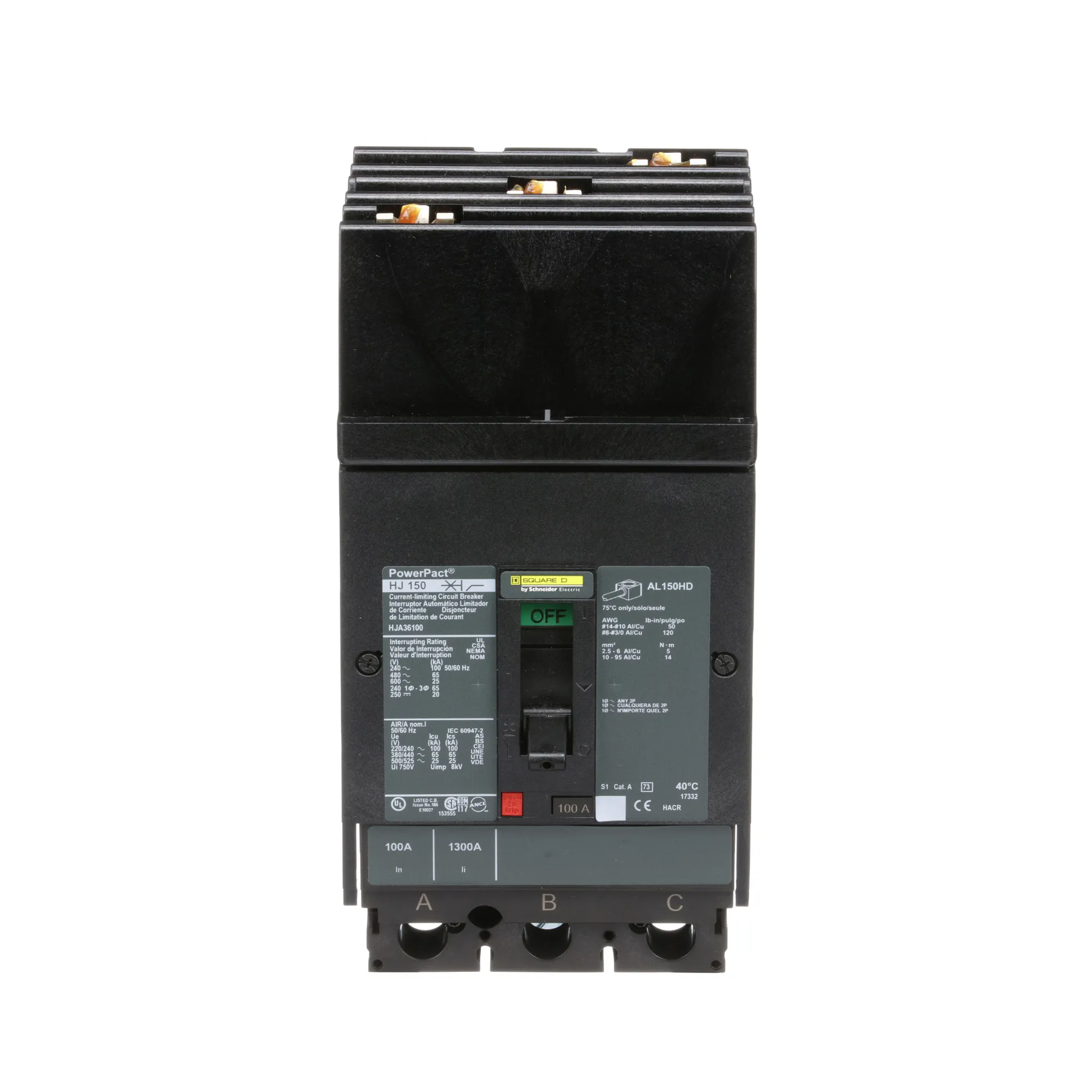

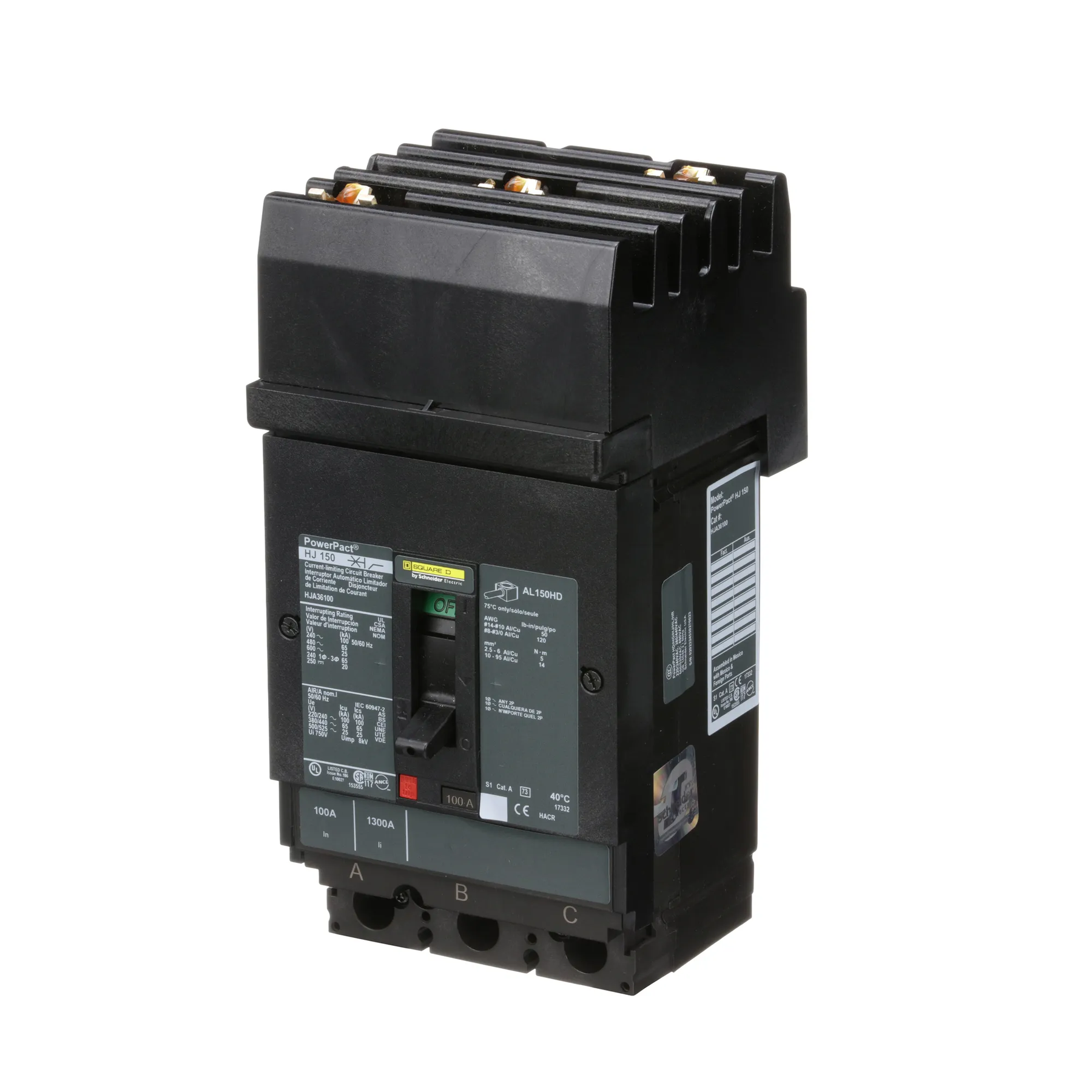

Square D HJA36100 Molded Case Circuit Breaker – 100A – 3-Pole – 600VAC – 100kA @ 240V – I-Line Plug-On – PowerPact HJA Series

The Square D HJA36100 is a 100A, 3-pole molded case circuit breaker from the PowerPact HJA Series. It is designed for overload and short-circuit protection in compatible commercial and industrial electrical distribution systems. The breaker is rated for 600VAC and features I-Line plug-on mounting with a thermal-magnetic LI trip unit providing long-time and instantaneous protection.

The HJA36100 provides different interrupting ratings depending on system voltage, including 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Catalog No.: HJA36100
• Product Family: PowerPact H
• Series: PowerPact HJA
• Frame Type: HJA
• Current Rating: 100A
• Number of Poles: 3-Pole
• Voltage Rating: 600VAC
• Phase: 3-Phase
• Trip Unit: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous

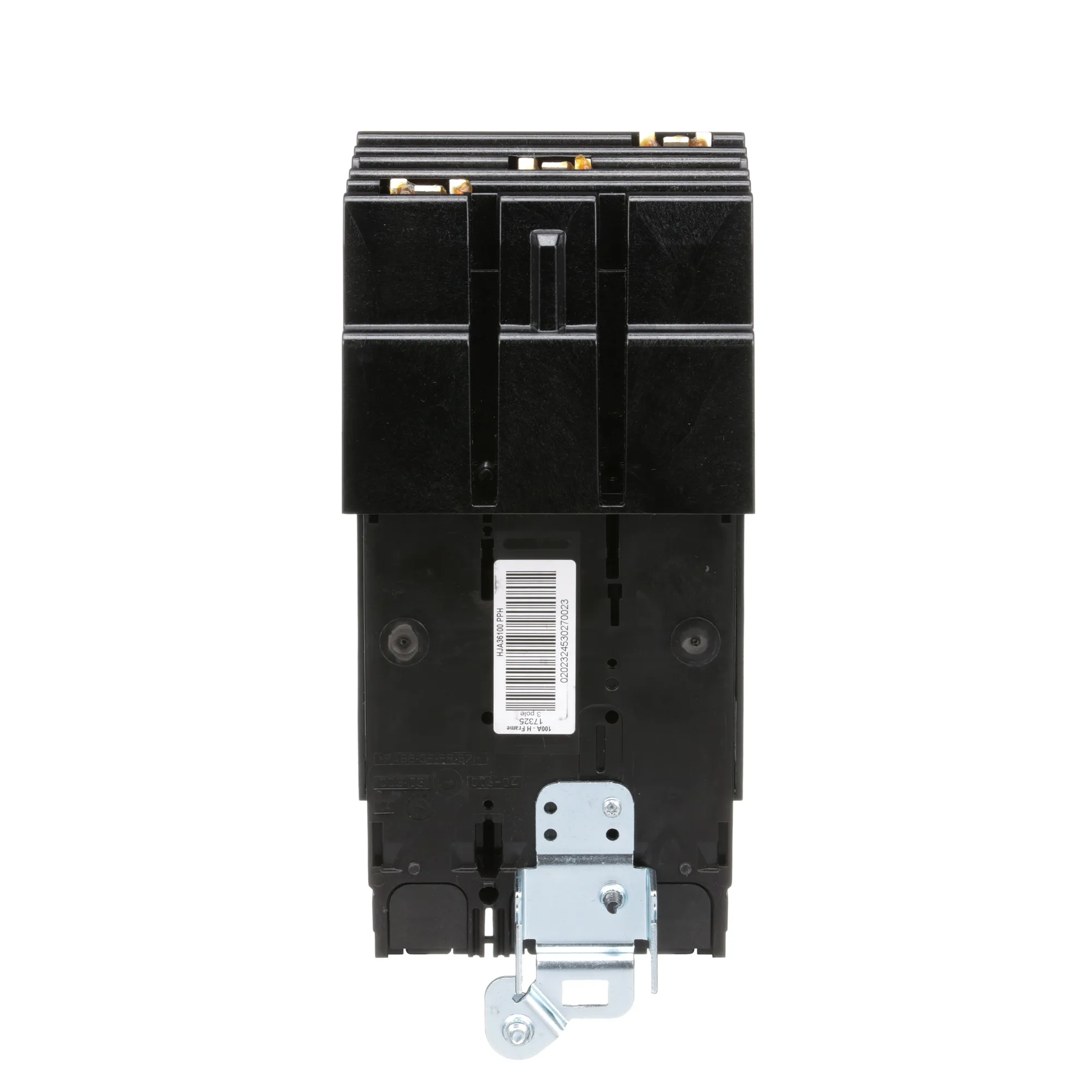

• Mounting Type: I-Line Plug-On
• Interrupting Rating: 100kA @ 240VAC / 65kA @ 480VAC / 25kA @ 600VAC
• Weight: Approximately 2.8 lb
• Brand: Square D
• Manufacturer: Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJA36100
• Catalog Number: HJA36100
• Model: HJA36100
• Product Family: PowerPact H
• Series: PowerPact HJA
• Frame: HJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Configuration: 3-Pole, 100A
• UPC: 785901600978
• GTIN: 00785901600978

Compatibility:

Designed for use with compatible Square D PowerPact HJA / I-Line electrical distribution equipment that accepts the specified I-Line plug-on molded case circuit breaker configuration. The HJA36100 provides 100A, 3-pole thermal-magnetic protection for compatible systems up to 600VAC.

Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, pole configuration, interrupting rating, I-Line mounting compatibility, and installation requirements before installation.

Certifications:

• UL Certified
• CSA Certified
• NOM Certified
• IEC Certified
• 100A Rated
• 3-Pole / 3-Phase
• 600VAC Rated
• 100kA @ 240VAC
• 65kA @ 480VAC
• 25kA @ 600VAC
• Thermal-Magnetic LI Trip Unit
• I-Line Plug-On Mounting
