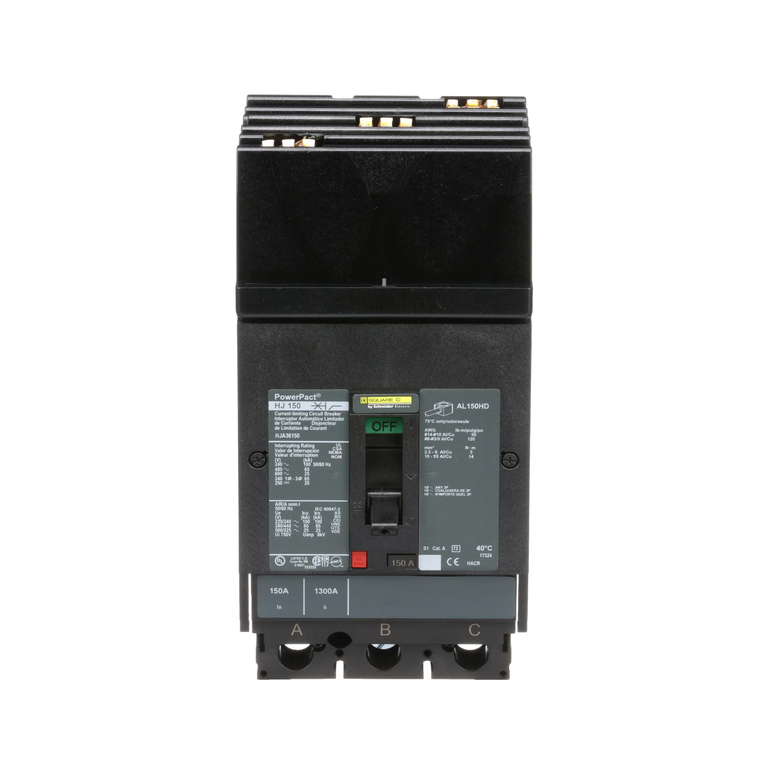

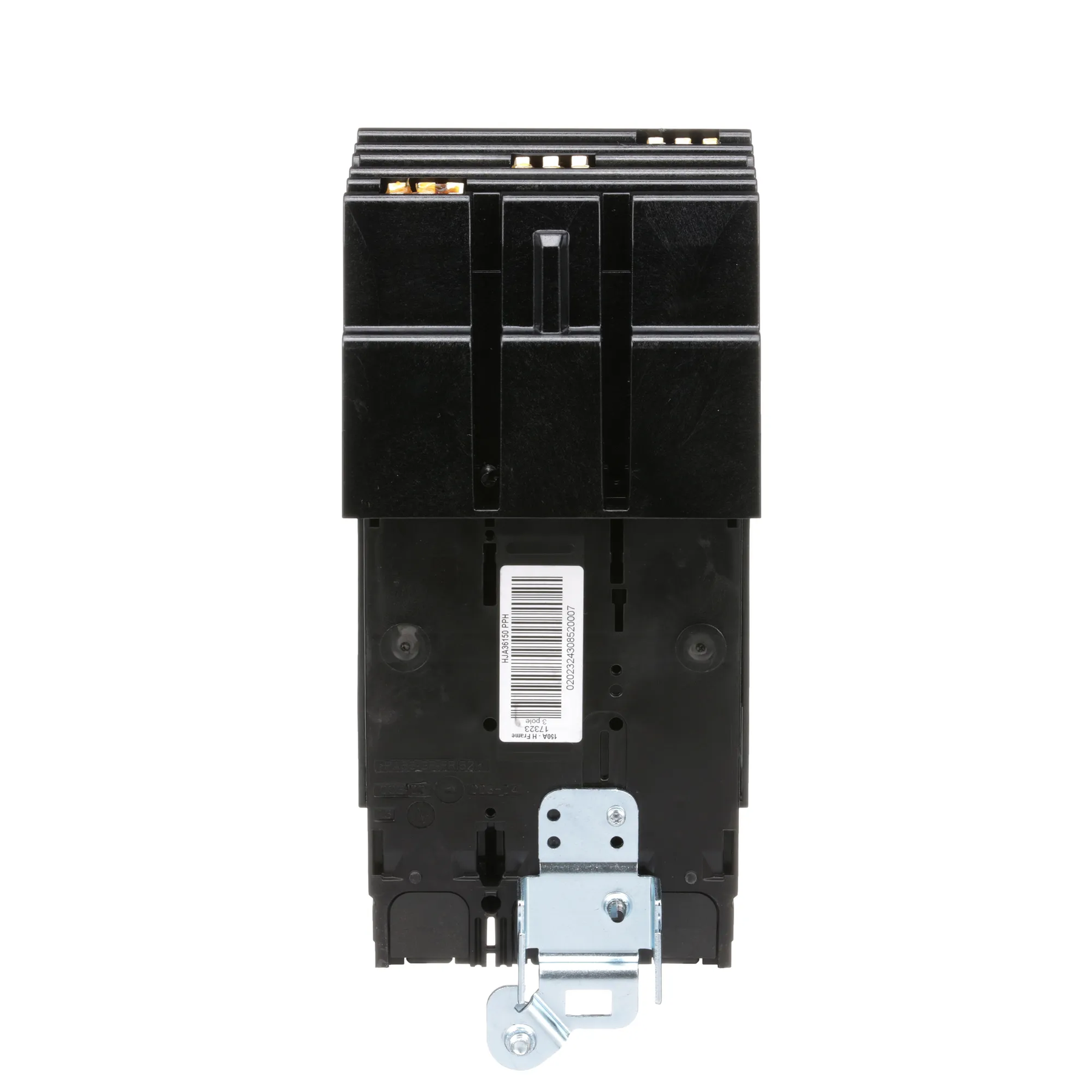

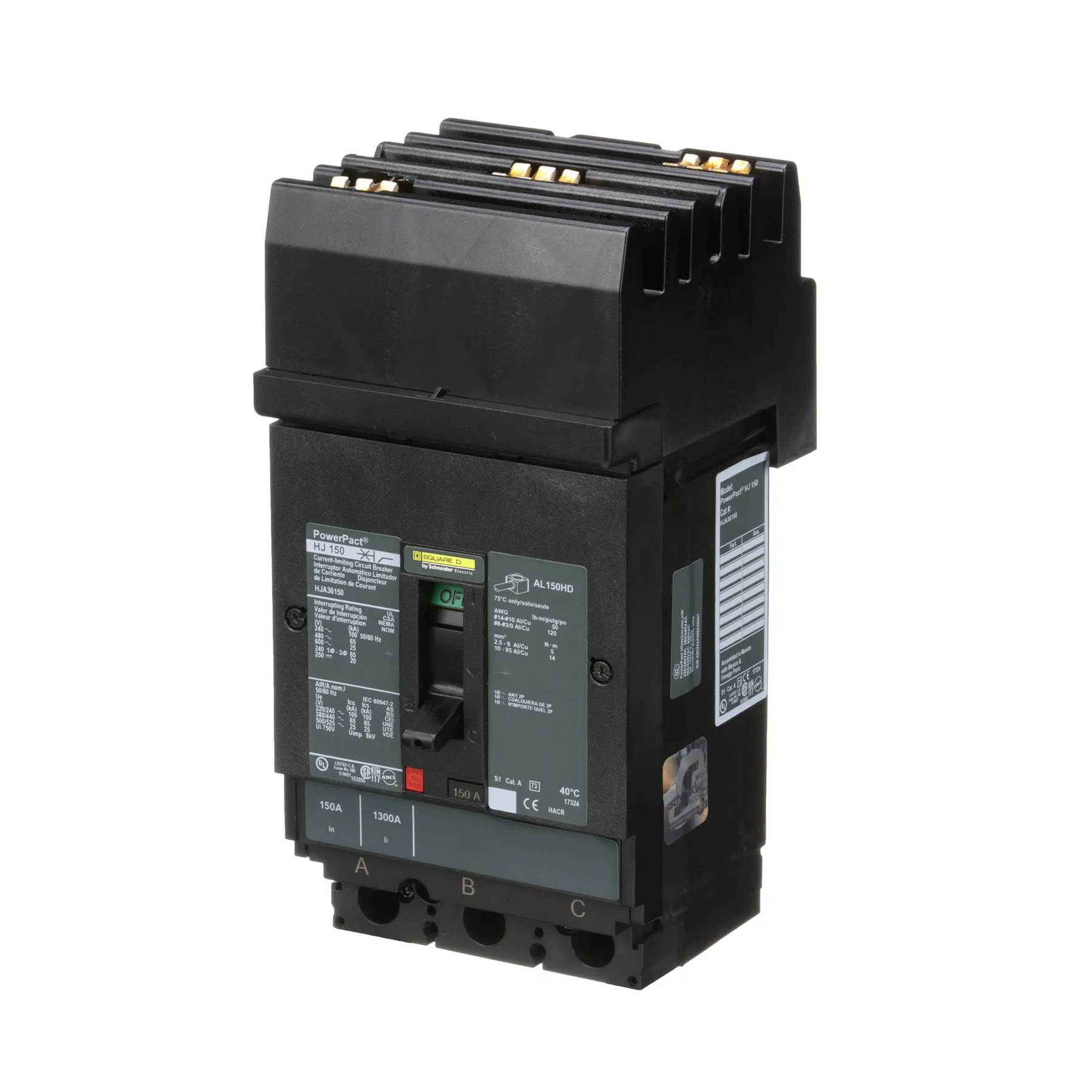

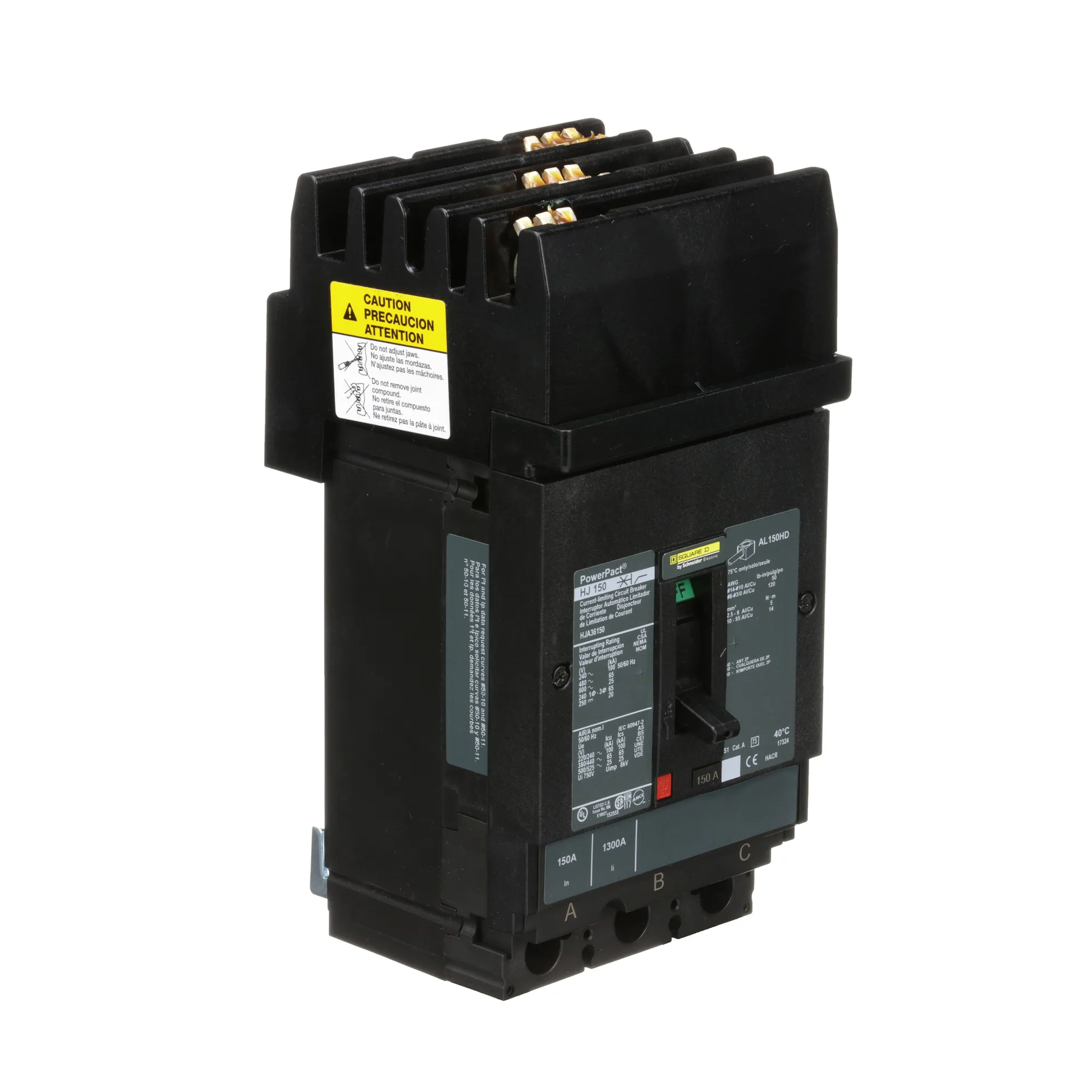

Square D HJA36150 Molded Case Circuit Breaker – 150A – 3-Pole – 600VAC – 100kA @ 240V – I-Line Plug-On – PowerPact HJA Series

The Square D HJA36150 is a 150A, 3-pole molded case circuit breaker from the PowerPact HJA Series, designed for overload and short-circuit protection in compatible commercial and industrial electrical systems. It is rated for 600VAC and features I-Line plug-on mounting with thermal-magnetic trip technology and Long-Time and Instantaneous (LI) trip functions.

The HJA36150 provides interrupting ratings of 100kA at 240VAC, 65kA at 480VAC, and 25kA at 600VAC. It is suitable for compatible three-phase electrical distribution applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact HJA
• Frame Type: HJA
• Part Number: HJA36150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600VAC
• Interrupting Rating: 100kA @ 240VAC / 65kA @ 480VAC / 25kA @ 600VAC
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: I-Line Plug-On
• Application: Overload and Short-Circuit Protection
• Weight: Approximately 3.1 lb

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJA36150
• Catalog / Part Number: HJA36150
• Product Family: PowerPact H
• Series: HJA
• Frame Type: HJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: HJA36150
• UPC: 785901601008
• GTIN: 00785901601008

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact HJA Series and I-Line electrical distribution equipment that accepts the specified breaker configuration. The HJA36150 is a 150A, 3-pole, 600VAC molded case circuit breaker with I-Line plug-on mounting and thermal-magnetic LI trip protection.

Always verify the specific panelboard or equipment model, approved breaker type, I-Line compatibility, system voltage, pole configuration, interrupting rating, and installation requirements before installation.

Certifications:

• UL Certified
• CSA Certified
• NOM Certified
• IEC Certified
• PowerPact HJA Series
• 150A Rated
• 3-Pole / 3-Phase
• 600VAC Rated
• 100kA @ 240VAC
• 65kA @ 480VAC
• 25kA @ 600VAC
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• I-Line Plug-On Mounting
