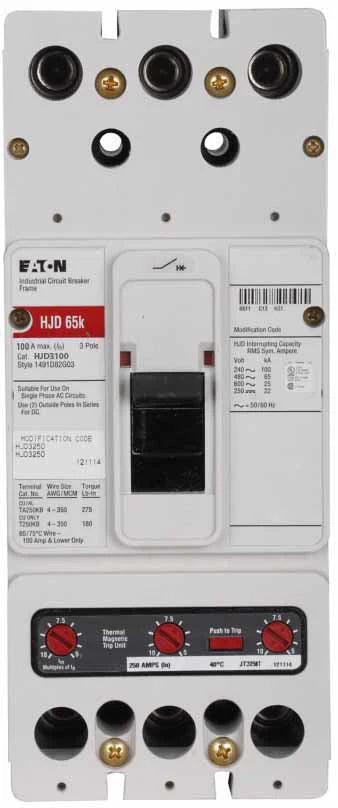

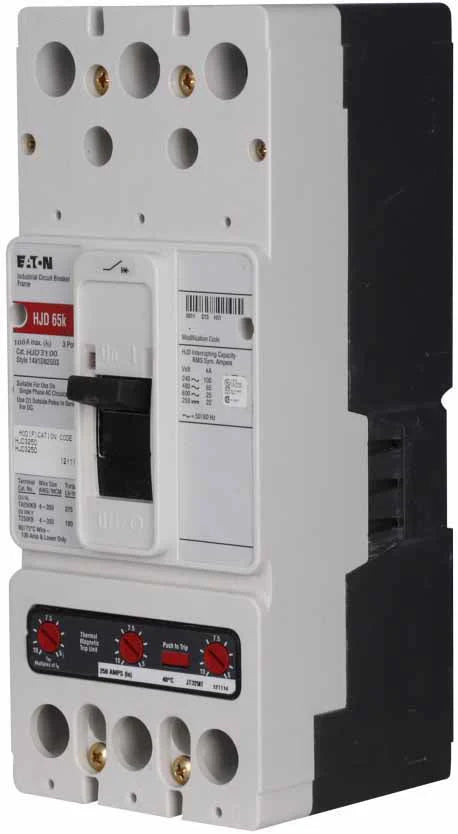

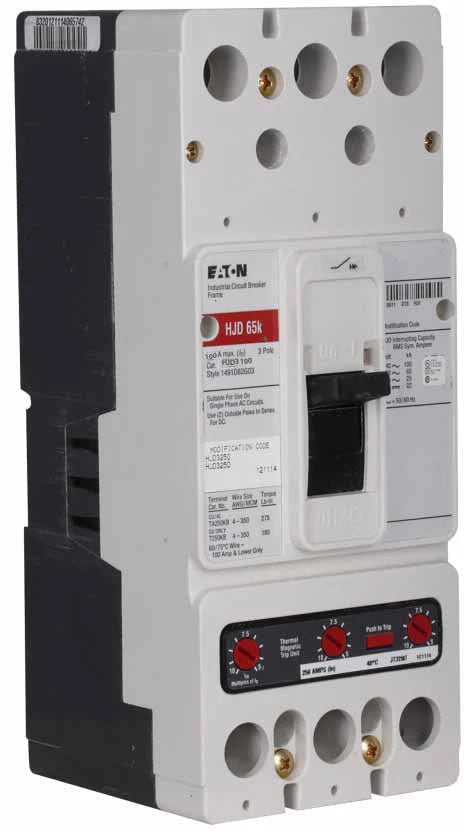

Eaton HJD3100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V AC / 250V DC – 100kA @ 240V / 65kA @ 480V – Complete Breaker – Series C HJD

The Eaton HJD3100 is a 100A, 3-pole molded case circuit breaker from the Eaton Series C J-Frame HJD Series. It is supplied as a complete breaker and features fixed thermal and fixed magnetic trip protection for compatible electrical distribution applications.

The HJD3100 is rated for 600V AC and 250V DC and provides interrupting ratings of 100kA at 240V AC and 65kA at 480V AC. The breaker operates at 50/60 Hz.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: HJD
• Frame: J-Frame
• Catalog No.: HJD3100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: Not specified
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 100kA @ 240V AC; 65kA @ 480V AC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Breaker Configuration: Complete Breaker
• Frequency: 50/60 Hz
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJD3100
• Catalog Number: HJD3100
• Model: HJD3100
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HJD
• Frame: J-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:786679318980

Compatibility:

Designed for use with compatible Eaton Series C J-Frame HJD electrical distribution equipment that accepts HJD Series molded case circuit breakers. The HJD3100 provides 100A, 3-pole overcurrent protection for compatible 600V AC and 250V DC electrical distribution applications.

The breaker is supplied as a complete breaker with fixed thermal and fixed magnetic trip protection and is designed for 50/60 Hz operation. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, mounting arrangement, terminal requirements, and installation specifications before installation.

Certifications:

• Eaton Series C HJD Series
• J-Frame
• 100A Rated
• 3-Pole
• 600V AC Rated
• 250V DC Rated
• 100kA @ 240V AC Interrupting Rating
• 65kA @ 480V AC Interrupting Rating
• Fixed Thermal Protection
• Fixed Magnetic Protection
• 50/60 Hz
• Complete Breaker
