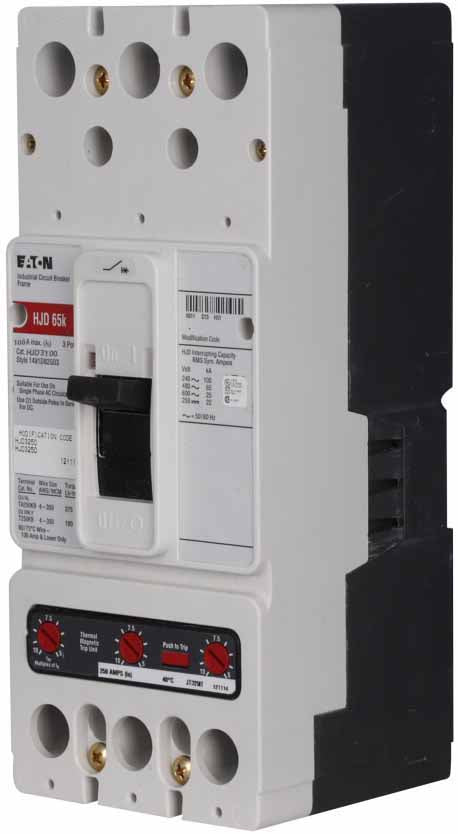

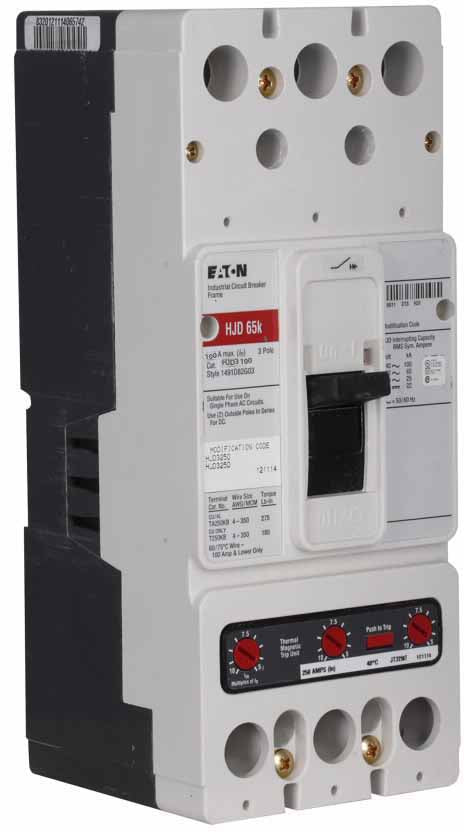

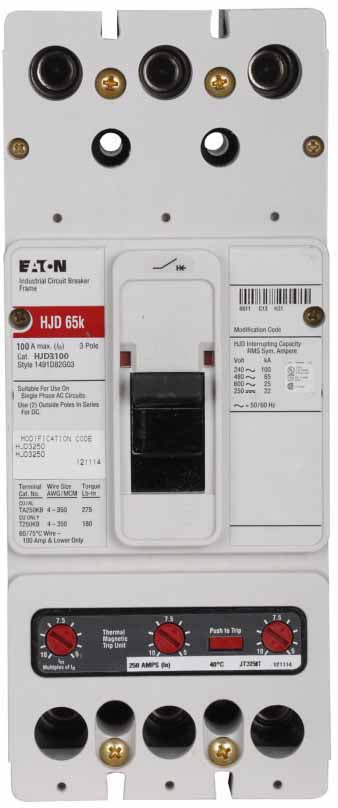

Eaton HJD3100L 100 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Feed-Thru – Series C

The Eaton HJD3100L is a 100 Amp, 3-pole molded case circuit breaker from the Eaton Series C, J-Frame, Type HJD. It is rated for 600 VAC and 250 VDC and features fixed thermal and fixed magnetic trip protection. The breaker provides multiple interrupting ratings, including 100 kA at 240 VAC and 65 kA at 480 VAC, and operates at 50/60 Hz.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Frame: J-Frame
• Type: HJD
• Catalog Number / MPN: HJD3100L
• Primary Rating: 100 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 VAC
• DC Voltage: 250 VDC
• Frequency: 50/60 Hz
• Interrupting Rating: 100 kA @ 240 VAC; 65 kA @ 480 VAC
• Trip Type: Fixed Thermal, Fixed Magnetic

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: HJD3100L
• Series: Series C
• Frame: J-Frame
• Type: HJD
• Current Rating: 100 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Type: Fixed Thermal, Fixed Magnetic

Compatibility

The Eaton HJD3100L is designed for compatible Eaton Series C J-Frame Type HJD molded case circuit breaker and electrical distribution applications.
