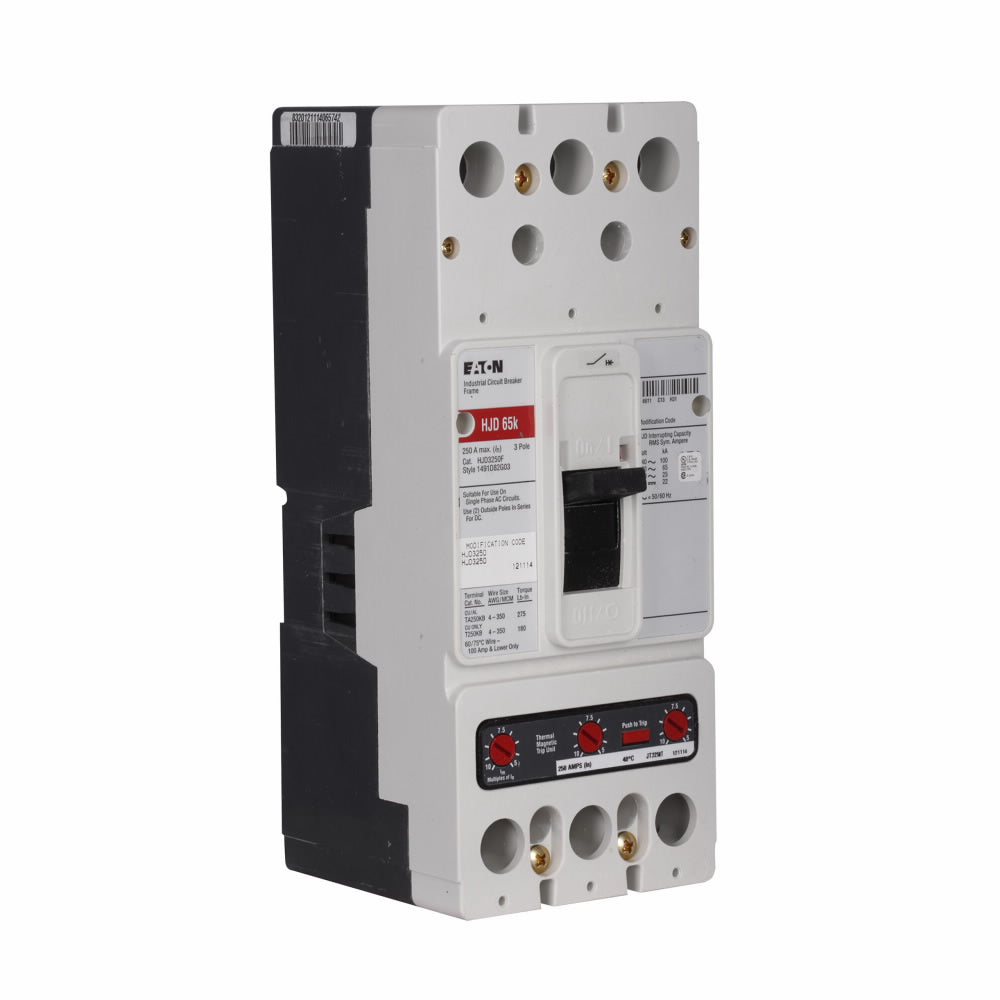

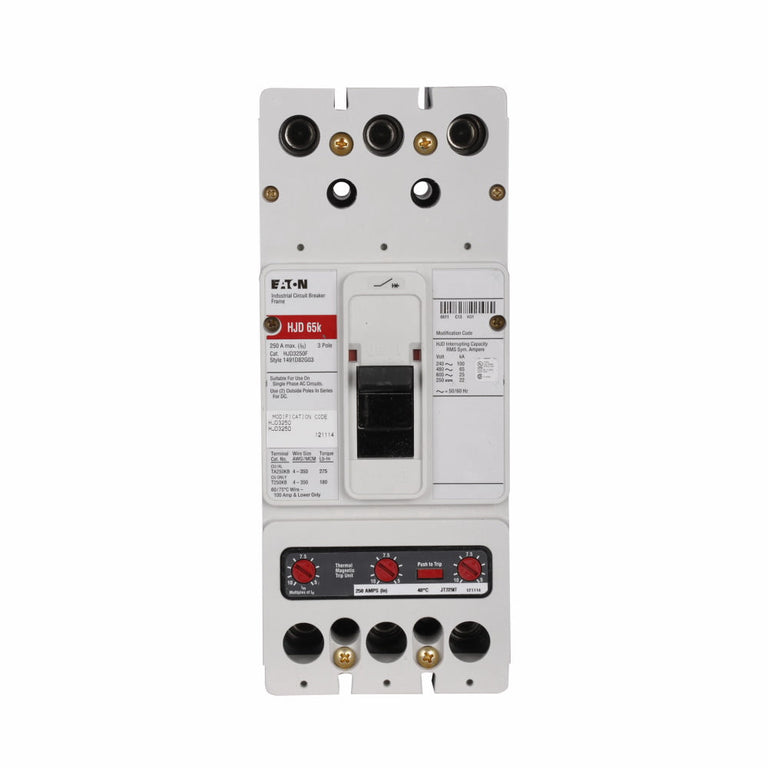

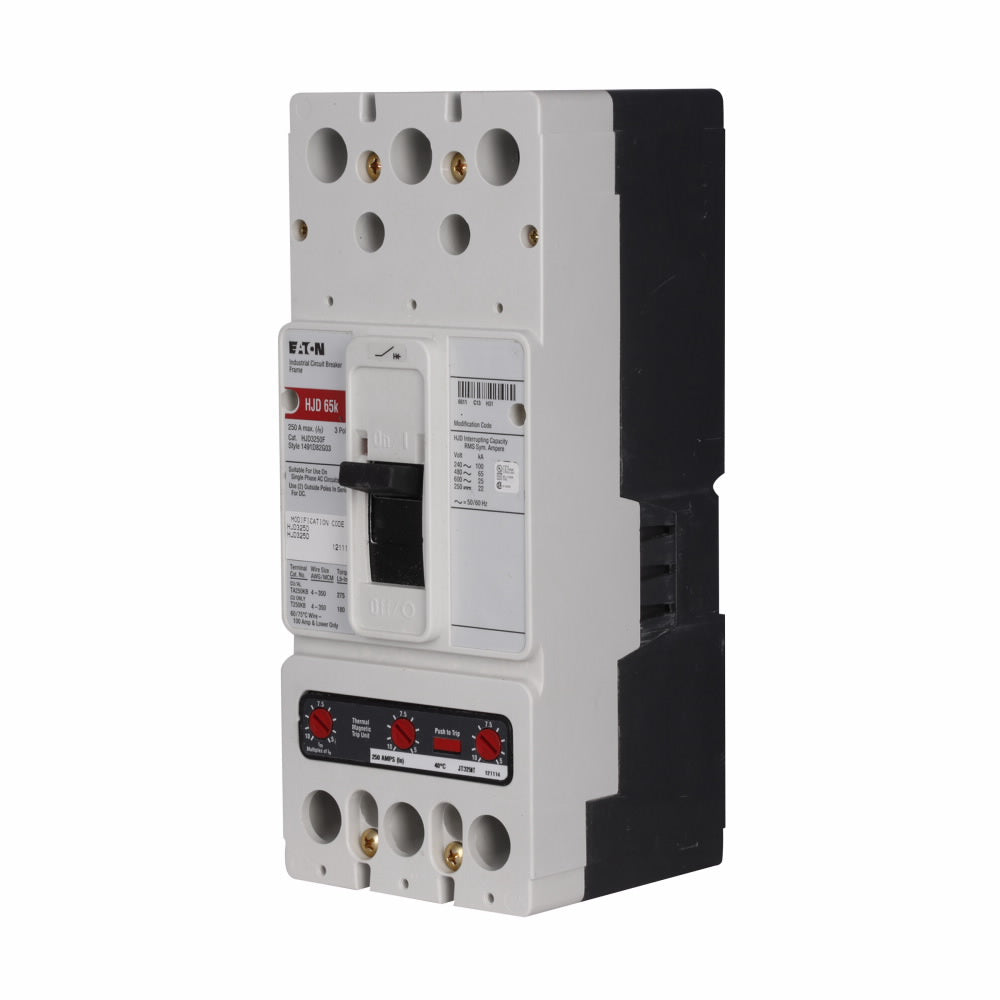

Eaton HJD3175WL 175 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – Bolt-On – Series C

The Eaton HJD3175WL is a 175 Amp, 3-pole molded case circuit breaker from the Eaton Cutler-Hammer Series C, Type HJD. It is rated for 600 V with a 65 kA interrupting rating at 480 V and features high interrupting capacity. The breaker uses thermal-magnetic protection with an interchangeable trip unit and LI (Long-Time and Instantaneous) trip functions. It is designed for bolt-on mounting.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: HJD
• Catalog Number / MPN: HJD3175WL
• Primary Rating: 175 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 480 V
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Ambient Temperature Rating: 40°C
• Connection / Mounting: Bolt-On

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: HJD3175WL
• Series: Series C
• Type: HJD
• Current Rating: 175 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Bolt-On

Compatibility

The Eaton HJD3175WL is designed for compatible Eaton Cutler-Hammer Series C Type HJD electrical distribution applications.
