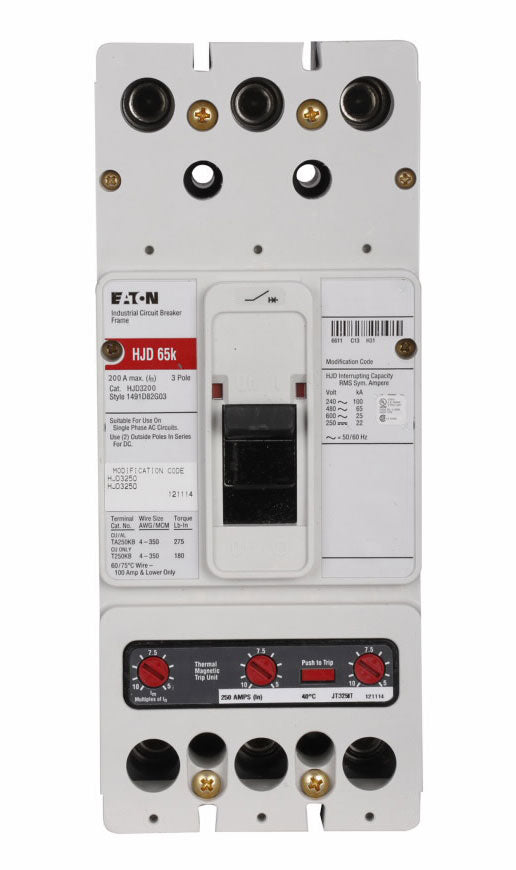

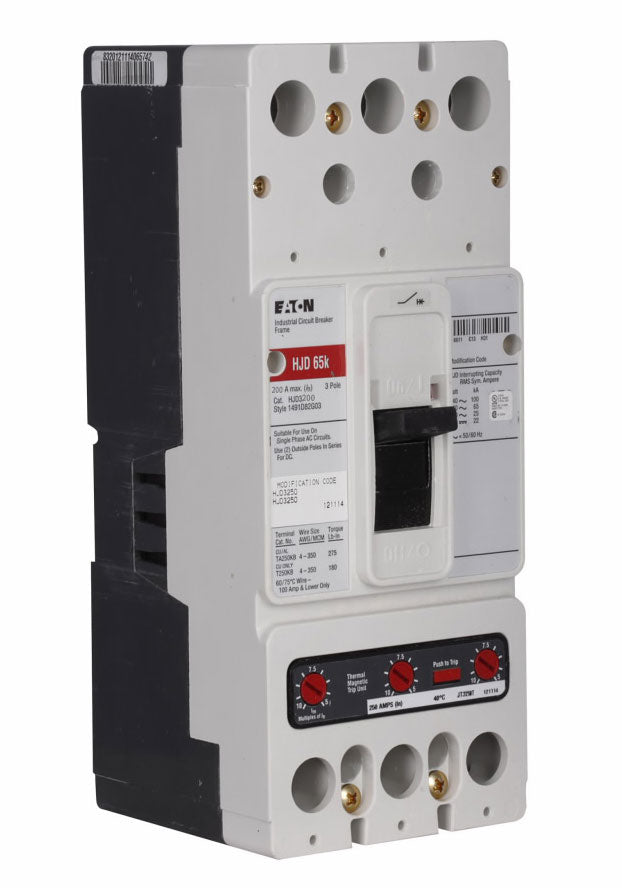

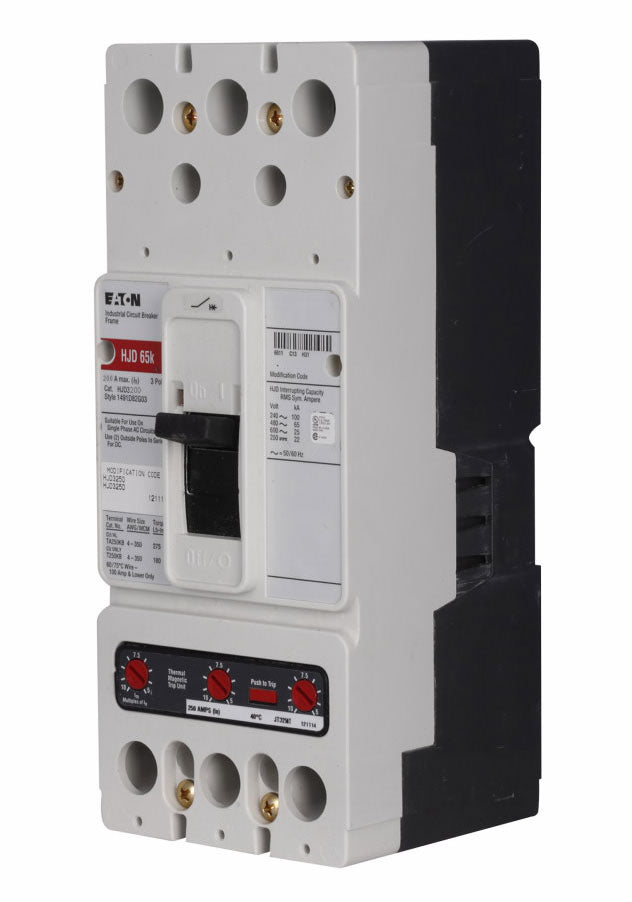

Eaton HJD3200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – Series C HJD

The Eaton HJD3200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C Type HJD. It features thermal-magnetic protection with an interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The HJD3200 is rated for 600V and provides a 65kA interrupting rating at 480V, with high interrupting capacity. It features a feed-thru configuration, line- and load-side lug terminals, and is rated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: HJD
• Catalog No.: HJD3200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): HJD3200
• Catalog Number: HJD3200
• Model: HJD3200
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: HJD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Trip Configuration: Interchangeable LI
• UPC:786679411841

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type HJD electrical distribution equipment that accepts HJD Series molded case circuit breakers. The HJD3200 provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features an interchangeable LI trip, feed-thru configuration, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit compatibility, terminal arrangement, temperature requirements, and installation requirements before installation.

Certifications:

• Series C HJD
• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• 40°C Rated
